Gigaset 5020 Quick Manual

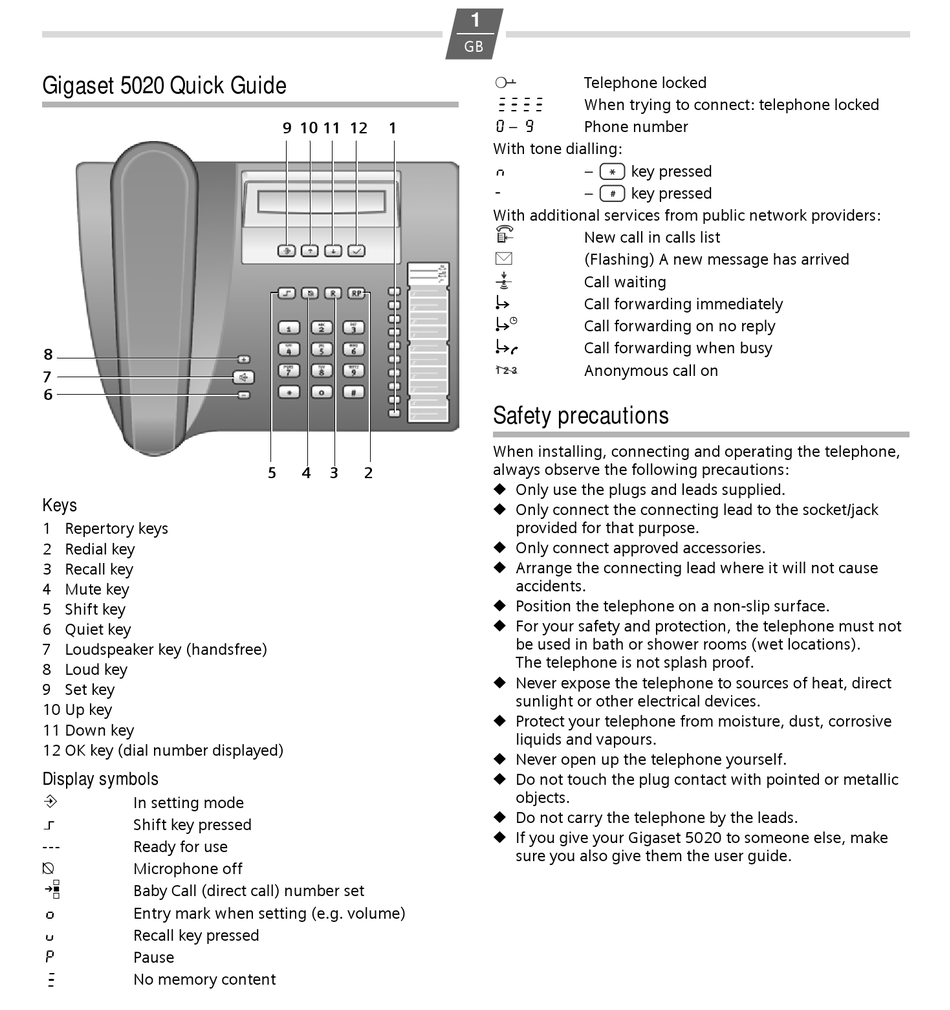

Gigaset 5020 Quick Guide
8
7
6
Keys
1 Repertory keys
2 Redial key
3 Recall key
4 Mute key
5 Shift key
6 Quiet key
7 Loudspeaker key (handsfree)
8 Loud key
9 Set key
10 Up key
11 Down key
12 OK key (dial number displayed)
Display symbols
P
In setting mode
‡
Shift key pressed
--- Ready for use
y
Microphone off
è
Baby Call (direct call) number set
o Entry mark when setting (e.g. volume)
Recall key pressed
u
Pause
P
z No memory content
9 10 11 12 1
5 4 3 2
1
GB
{
Telephone locked
zzzz When trying to connect: telephone locked
0 – 9 Phone number
With tone dialling:
*
n – key pressed
#
- – key pressed
|
With additional services from public network providers:
New call in calls list
†
(Flashing) A new message has arrived
ë
Call waiting
™
Call forwarding immediately
˜
Call forwarding on no reply
—
Call forwarding when busy
š
Anonymous call on
Safety precautions
When installing, connecting and operating the telephone,
always observe the following precautions:
◆
Only use the plugs and leads supplied.
◆ Only connect the connecting lead to the socket/jack
provided for that purpose.
◆
Only connect approved accessories.
◆
Arrange the connecting lead where it will not cause
accidents.
◆
Position the telephone on a non-slip surface.
◆
For your safety and protection, the telephone must not
be used in bath or shower rooms (wet locations).
The telephone is not splash proof.
◆
Never expose the telephone to sources of heat, direct
sunlight or other electrical devices.
◆
Protect your telephone from moisture, dust, corrosive
liquids and vapours.
◆
Never open up the telephone yourself.
◆
Do not touch the plug contact with pointed or metallic
objects.
◆ Do not carry the telephone by the leads.
◆ If you give your Gigaset 5020 to someone else, make
sure you also give them the user guide.
