2.

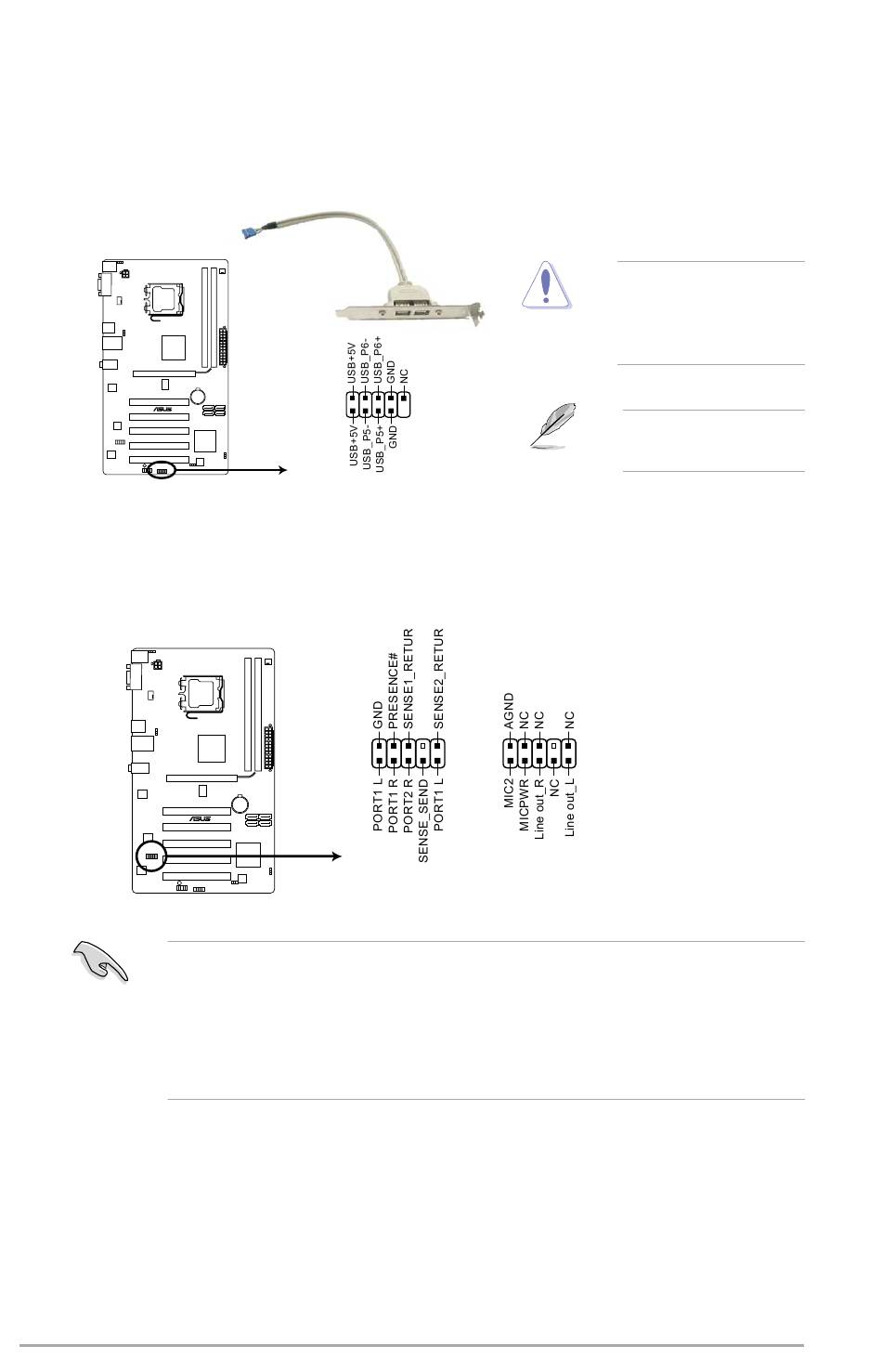

USB connectors (10-1 pin USB56)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specification that supports up to
480 Mbps connection speed.
P5KPL IN/SI
P5KPL IN/SI USB2.0 connectors
3.
Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports either
HD Audio or legacy AC'97 audio standard.
P5KPL IN/SI
P5KPL IN/SI Analog front panel connector
• We recommend that you connect a high-definition front panel audio module to this
• If you want to connect a high-definition front panel audio module to this connector, set
Chapter 1: Product introduction
USB56
PIN 1
AAFP
PIN 1
HD-audio-compliant
connector to avail of the motherboard's high-definition audio capability.
the Front Panel Type item in the BIOS setup to [HD Audio]; if you want to connect an
AC'97 front panel audio module to this connector, set the item to [AC97]. By default, this
connector is set to [HD Audio].
PIN 1
Legacy AC'97
pin definition
compliant definition
Never connect a 1394
cable to the USB
connectors. Doing so will
damage the motherboard!
The USB module cable
is purchased separately.
1-10
