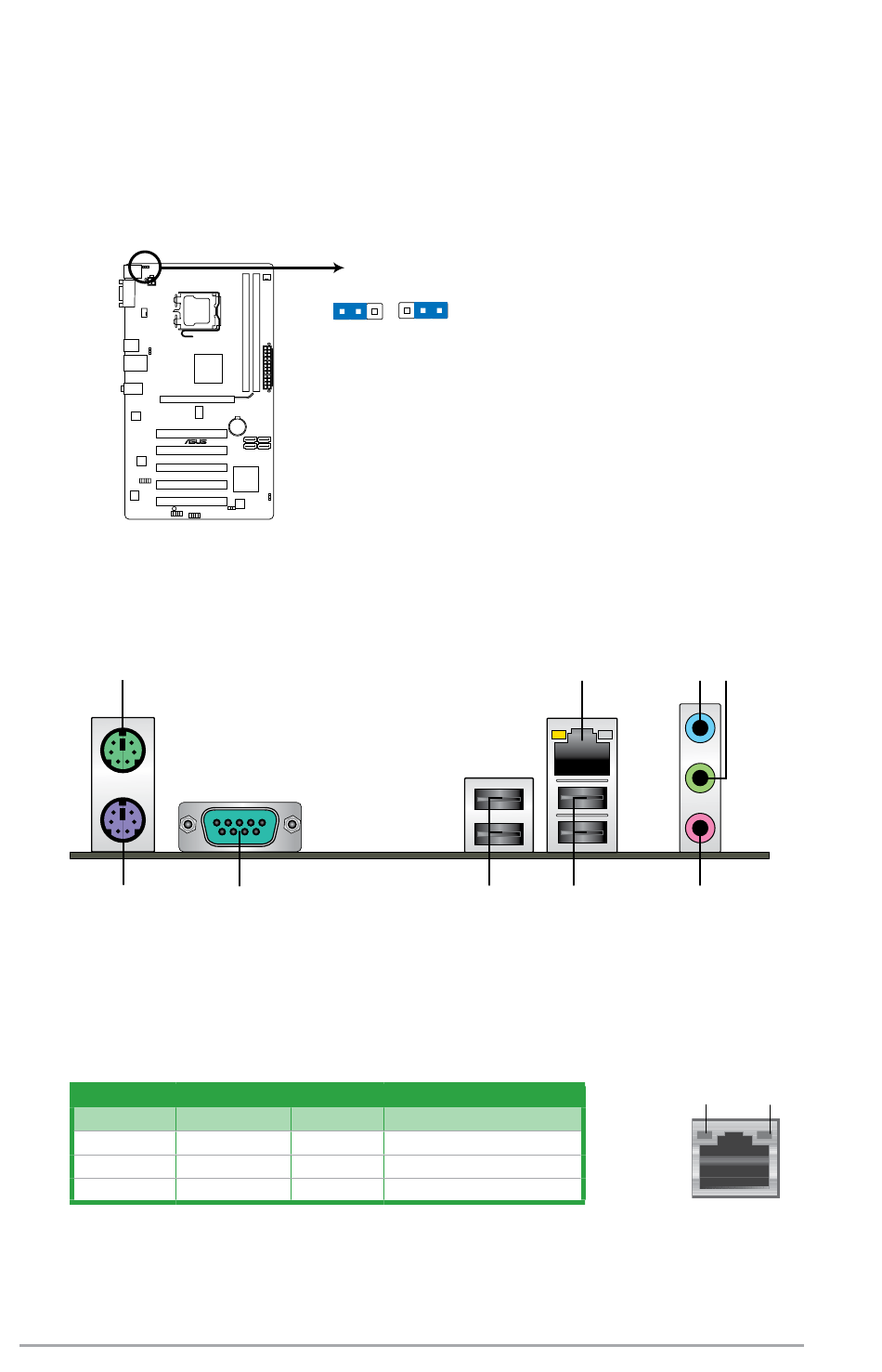

3. Keyboard/mouse power (3-pin KBPWR)
This jumper allows you to enable or disable the keyboard/mouse and USB port 5-6
wake-up feature. When you set this jumper to pins 2-3 (+5VSB), you can wake up the
computer by pressing a key on the keyboard (the default is the Space Bar), clicking
the mouse, or using a USB device. This feature requires an ATX power supply that can
supply at least 1A on the +5VSB lead, and a corresponding setting in the BIOS. The
USBPW56 jumper is for the rear USB ports.
P5KPL IN/SI
P5KPL IN/SI Keyboard Power Setting
1.7

Connectors

1.7.1

Rear panel ports

1
9
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED
Status Description
OFF No link
Yellow Linked
BLINKING Data activity
Chapter 1: Product introduction
KBPWR
1 2
+5V
(Default)
8
Speed LED
Status Description
OFF 10 Mbps connection
ORANGE 100 Mbps connection
GREEN 1 Gbps connection
2 3
+5VSB
7 6
P5KPL IN/SI
2 3 4
5
ACT/LINK
LED
LAN port
SPEED
LED
1-8
