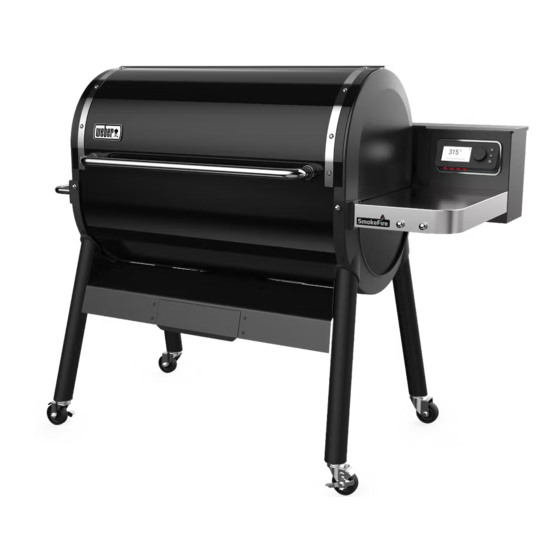

Weber SmokeFire EX4 Owner's Manual

Wood pellet barbecue
Hide thumbs Also See for SmokeFire EX4:
Table of Contents

Advertisement

Quick Links

Download this manual

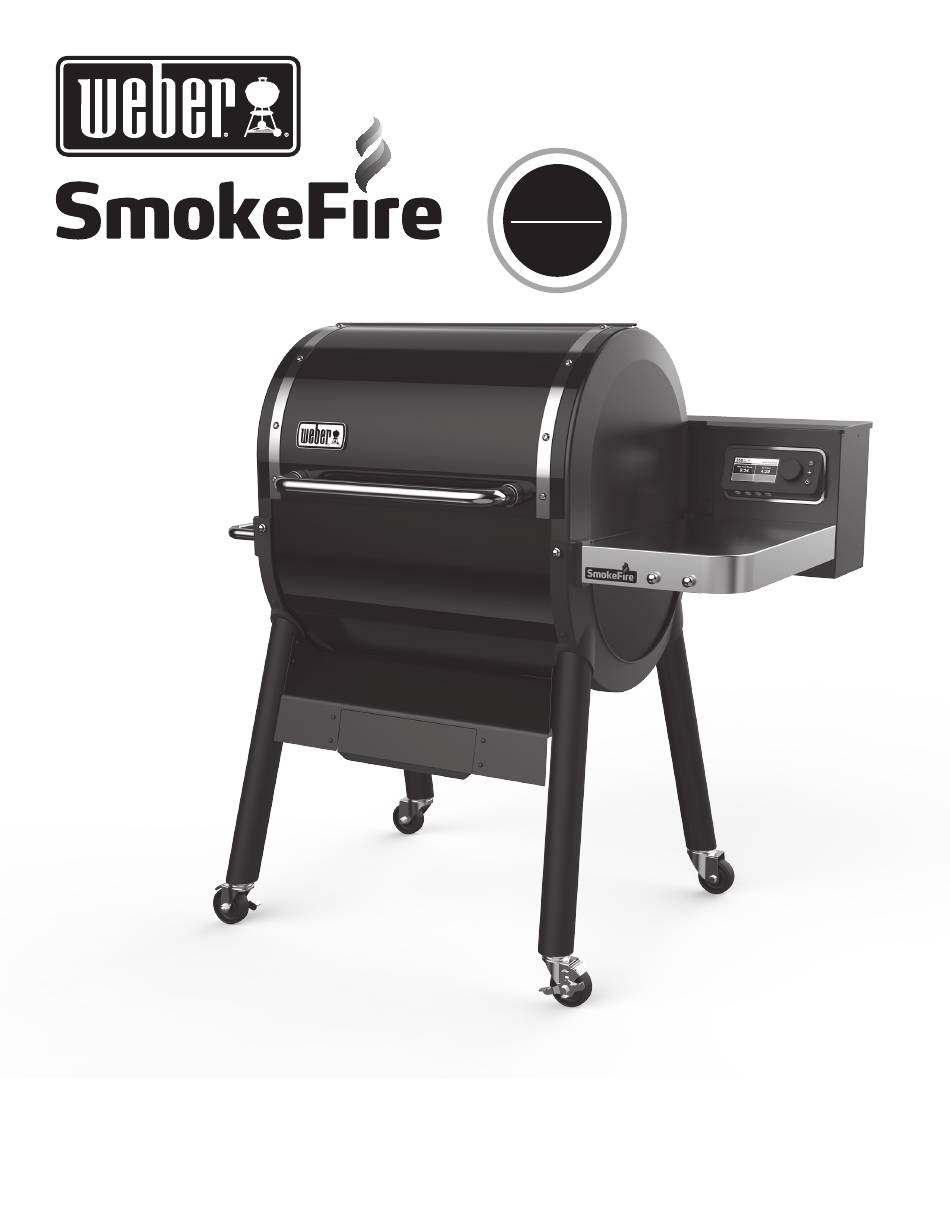

Wood Pellet Barbecue
OWNER'S MANUAL
A MAJOR CAUSE OF FIRES IS FAILURE TO
MAINTAIN REQUIRED CLEARANCES (AIR SPACES)
TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST
IMPORTANCE THAT THIS PRODUCT BE INSTALLED
ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
EX4
EX6
53524
enGB
090420

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmokeFire EX4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weber SmokeFire EX4

Summary of Contents for Weber SmokeFire EX4

  • Page 1 Wood Pellet Barbecue OWNER’S MANUAL A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST 53524 IMPORTANCE THAT THIS PRODUCT BE INSTALLED enGB ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS. 090420...

  • Page 2: Safety

    WARNING! Do not use this barbecue under any Visit weber.com, select your country of origin, and register your barbecue today. overhead combustible construction including •...

  • Page 3: Table Of Contents

    Timers humidity, can expand, break apart and clog or obstruct the auger feeding system. Regulatory Information m WARNING! If using the WEBER CONNECT app 17 Troubleshooting to monitor the operation of the barbecue, make sure that all safety precautions otherwise...

  • Page 4: Warranty

    Owner’s Manual, unless the Owner can prove that the defect or failure is independent WEBER is proud to have you with us as you explore all of your future barbecuing experiences. of non-compliance with the above-mentioned We pride ourselves on two things; making grills that last and providing quality customer service obligations.

  • Page 5: Cooking System

    APART FROM THE WARRANTY AND DISCLAIMERS Built to outlast the competition, SMOKEFIRE’s shine goes far beyond looks. AS DESCRIBED IN THIS WARRANTY STATEMENT, The exclusive WEBER Porcelain-Enamelled finish withstands the elements and helps THERE ARE EXPLICITLY NO FURTHER WARRANTY prevent rusting and cracking over time.

  • Page 6: Special Features

    B Integrated Wi-Fi and Bluetooth® Using your smartphone, login to the WEBER CONNECT app (B) to access the latest software and connect to your barbecue. The WEBER CONNECT app tells you when it’s time to flip, rest and serve, all directly from your smartphone.

  • Page 7: Weber Connect Controller

    (one probe included) to gain superior control over your barbecue for perfect results every time. G SMOKEBOOST A flavour mode that adds an extra kick of smoky, wood fired taste to your food for low and slow cooks. NOTE: Download the WEBER CONNECT app to access the latest barbecue software and controller features. weber.com...

  • Page 8: Before Igniting

    Preparing Barbecue For First Time Startup Before the first startup of your WEBER SMOKEFIRE barbecue, there are some necessary steps to be followed: 1. Remove all packaging materials from the barbecue.

  • Page 9: Meal To Meal Maintenance Every Time

    2. Make sure the hopper is filled with your choice of WEBER SMOKEFIRE ALL NATURAL HARDWOOD PELLETS (B). 3. Check that the power cord is connected to the bottom of the hopper before plugging it into an electrical outlet (C).

  • Page 10: Weber Connect App

    Google LLC. Google Play and the Google Play logo are trademarks of Google LLC. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Weber-Stephen Products LLC is under licence.

  • Page 11: Barbecue Operation

    BEFORE IGNITING, you can now initiate the startup procedure to preheat your SMOKEFIRE barbecue for the first time. NOTE: If this is the very first time starting your SMOKEFIRE barbecue, WEBER recommends that you season your barbecue on the high temperature setting (600°F/315ºC)for at least 30 to 40 minutes with the barbecue lid closed.

  • Page 12: Cooking With Temperature Probes

    On the controller display, and when connected to the WEBER CONNECT app, you will receive a notification when your food has reached the set temperature(s).

  • Page 13: Shutting Down Your Barbecue

    BARBECUE OPERATION Shutting Down Your Barbecue When your cooking session has ended, your WEBER SMOKEFIRE must be properly powered down to clear the auger and burn pot of any remaining pellets and ashes. This helps your barbecue be ready to go the next time you want to start it up.

  • Page 14: Changing Pellets/Purging Hopper

    Explore Your Settings There are many more features to be explored on the controller and the WEBER CONNECT app. From programmable timers to cooking programmes, there are more reasons to love your WEBER SMOKEFIRE barbecue. Explore and...

  • Page 15: Controller Settings

    CONTROLLER SETTINGS NOTE: Download the WEBER CONNECT app to access the latest barbecue software and controller features. Dashboard Main Menu The dashboardshows all of the current barbecue info on the controller display. Push the main menu button to navigate through all of the available Here you will find your current and target barbecue temperature, device settings on the controller.

  • Page 16: Cooking Programmes

    CONTROLLER SETTINGS Cooking Programmes If selecting a guided cooking programme, push the button. Turn and press the dial to select the type of food that you will be cooking. Recently used cooking programmes will be saved within your controller for quick access to frequently cooked foods.

  • Page 17: Troubleshooting

    TROUBLESHOOTING NOTE: Download the WEBER CONNECT app to access the latest barbecue software and controller features. The controller uses advanced technology capable of troubleshooting your SMOKEFIRE barbecue. If a problem is detected with your barbecue, your controller will display and send an error code to notify you of the error before automatically beginning the necessary procedure.
  • Page 18 TROUBLESHOOTING Error Code Cause Solution 1. The barbecue will automatically run the shutdown procedure if the barbecue is still hot. Open the barbecue lid and wait until the barbecue has completed the shutdown procedure and completely cooled. CAUTION: Do not unplug the barbecue or power it off during the shutdown procedure. Communication Failure 2.
  • Page 19 CUSTOMER PARTS SERVICE To obtain replacement parts, contact the local retailer in If you are still experiencing any your area or log onto problems, contact the Customer weber.com. Service Representative in your area using the contact information on weber.com. weber.com...
  • Page 20 TROUBLESHOOTING E1 Auger Jam Clearing an Auger Jam To clear the E1 error code from the controller, please follow these steps: 1. When the barbecue has completed the shutdown procedure and completely cooled, power off the barbecue and unplug from the power source. 2.
  • Page 21 The auger should not pull away from the motor. If the shear pin is broken, it should be replaced before reassembling. Contact a WEBER Customer Service Representative in your area using the contact information on our website for a replacement.
  • Page 22 12. Reinstall the rear access panel (L). 13. Push the hopper slide door closed (M). 14. Open the hopper lid and fill the hopper with your choice of WEBER SMOKEFIRE ALL NATURAL HARDWOOD PELLETS (N). 15. Reinstall the heat baffle, heat diffuser, FLAVORIZER bars and cooking grates inside the cookbox.(O).
  • Page 23 5. Plug in, power on the barbecue, and begin a cooking session to allow the controller to run diagnostics. 6. If the E2 error code still remains on the controller, contact the Customer Service Representative in your area using the contact information on our website for fan replacement. weber.com...
  • Page 24 TROUBLESHOOTING E3 Barbecue Flame is Out Barbecue Flame Out Procedure To clear the E3 error code from the controller, please follow these steps: 1. The barbecue will automatically run the shutdown procedure if the barbecue is still hot. Open the barbecue lid and wait until the barbecue has completed the shutdown procedure and completely cooled.
  • Page 25 5. Plug in, power on the barbecue, and begin a cooking session to allow the controller to run diagnostics. 6. If the E7 error code still remains on the controller, contact the Customer Service Representative in your area using the contact information on our website for motor replacement. weber.com...
  • Page 26 (C). 4. Push the hopper slide door closed (D), and refill the hopper with your choice of WEBER SMOKEFIRE ALL NATURAL HARDWOOD PELLETS. 5. Power on the barbecue and begin a cooking session to allow the controller to run diagnostics.
  • Page 27 TROUBLESHOOTING NOTE: Download the WEBER CONNECT app to access the latest barbecue software and controller features. The controller will display and send notifications to inform you of certain barbecue operations and preventative maintenance cautions. Refer to this troubleshooting section and follow the “Sequence/Actions”...
  • Page 28 TROUBLESHOOTING Replacing the Glow Plug Contact WEBER Customer Service at weber.com for a replacement glow plug. To replace the glow plug, please follow these steps: 1. Open the barbecue lid and shutdown the barbecue by pushing and holding the dial or using the main menu. Wait until the barbecue has completed the shutdown procedure and completely cooled.
  • Page 29 TROUBLESHOOTING weber.com...
  • Page 30 REPLACEMENT PARTS CUSTOMER SERVICE To obtain replacement parts, contact the local retailer in If you are still experiencing any your area or log onto problems, contact the Customer weber.com. Service Representative in your area using the contact information on weber.com.
  • Page 31 Use a flathead screwdriver to gently pry open the fuse holder and remove the fuse (B). NOTE: WEBER recommends replacing the fuse if there is suspicion of failure. 3. Install a new fuse into the fuse holder and reinstall the fuse holder into the power module (C).

  • Page 32: Maintenance

    Please follow these steps for cleaning your SmokeFire engine: 1. Once your barbecue has completed a proper shut down and In order to keep your WEBER SMOKEFIRE barbecue running smoothly completely cooled, power off the barbecue and unplug from the power for years of barbecuing and smoking, WEBER recommends a thorough source.

  • Page 33: Grillmaster Tips

    Wear Gloves The temperature probes included should be cleaned after every use to Always wear heat-resistant barbecue mitts or gloves when using your WEBER ensure safe cooking practices. However, the temperature probes should SMOKEFIRE barbecue. Vents, handles, ash and grease system, and cookbox never be submerged in any type of liquid because it could damage them.

  • Page 34: Replacement Parts

    Use only genuine WEBER replacement REPLACEMENT PARTS parts for any repair or replacement. Visit weber.com SmokeFire - EX4 - EMEA 040320...
  • Page 35 Use only genuine WEBER replacement REPLACEMENT PARTS parts for any repair or replacement. Visit weber.com SmokeFire - EX6 - EMEA 040320 weber.com...
  • Page 36 ICELAND SPAIN Jarn & Gler Wholesale EHF +354 58 58 900 Weber-Stephen Ibérica SRL +34 935 844 055 service-es@weber.com WEBER-STEPHEN PRODUCTS LLC www.weber.com © 2020 Designed and engineered by Weber-Stephen Products LLC, 1415 S. Roselle Road, Palatine, Illinois 60067 USA.
