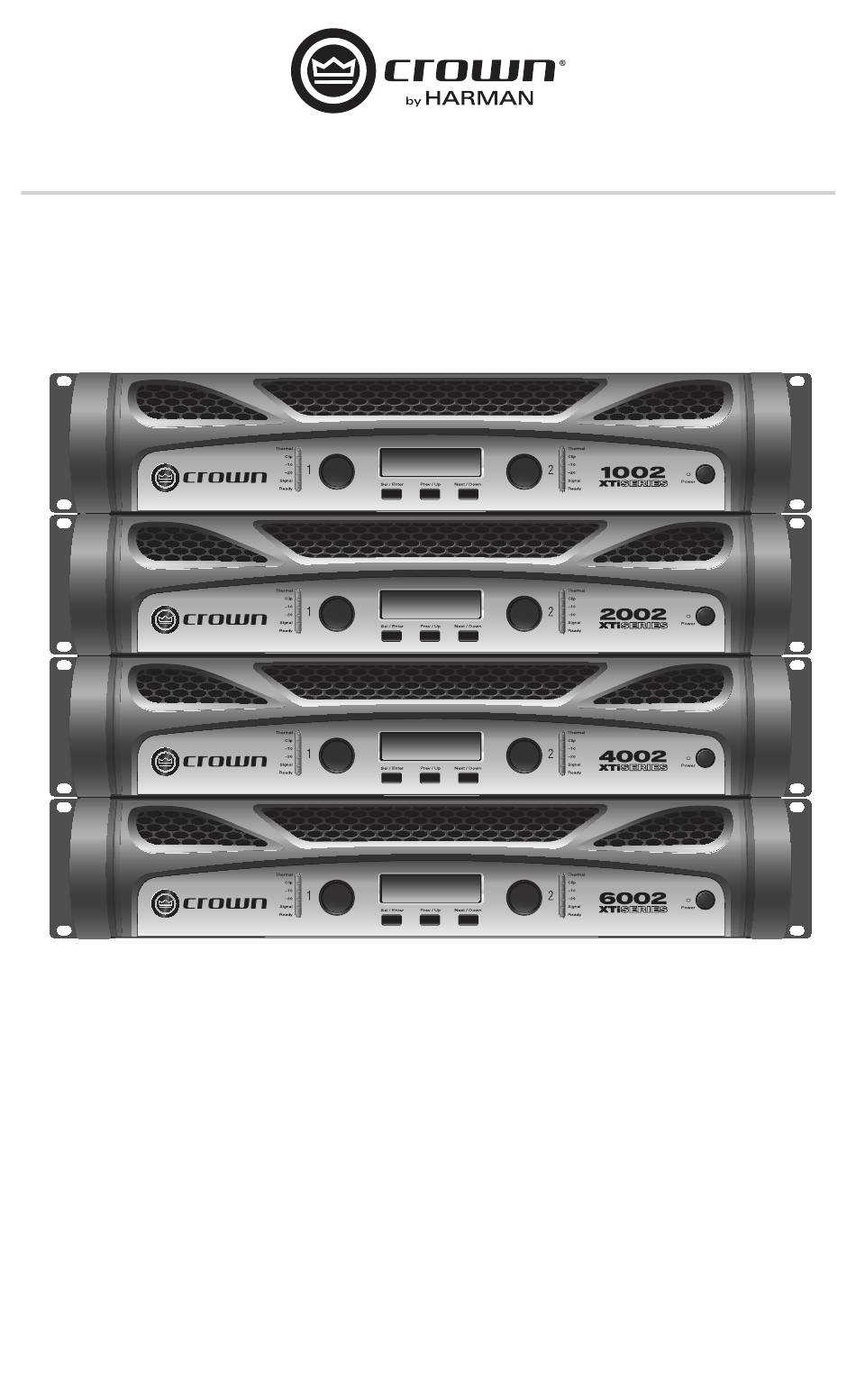

- Page 1 XTi2 Series Operation Manual Models: XTi 1002, XTi 2002, XTi 4002, XTi 6002 5021481 - 6/12...
-
Page 2: Important Safety Instructions
XTi2 Series Power Amplifiers Important Safety Instructions 1. Read these instructions. TO COMPLETELY DISCONNECT THIS EQUIP- MENT FROM THE AC MAINS, DISCONNECT THE 2. Keep these instructions. POWER SUPPLY CORD PLUG FROM THE AC RE- 3. Heed all warnings. CEPTACLE. THE MAINS PLUG OF THE POWER 4. -
Page 3: Declaration Of Conformity
XTi2 Series Power Amplifiers DECLARATION OF CONFORMITY Issued By: Harman International. 1718 W. Mishawaka Rd. Elkhart, IN 46517 U.S.A. European Representative’s Name and Address: David Budge 10 Harvest Close Yateley, GU46 6YS United Kingdom Equipment Type: Commercial Audio Power Amplifiers... -
Page 4: Get Started
XTi2 Series Power Amplifiers Stereo ByPass Mode Get Started Stereo DSP Off This is the default mode the amplifier is set to from the factory. The amplifier is configured for stereo mode with all processing disabled. 1. Connect Left/Right signal source to Channel 1 and Channel 2 using the XLR connectors. - Page 5 XTi2 Series Power Amplifiers Get Started Factory Preset #3: XOVER Putting the amplifier in XOVER mode HIGH 2+/– enables a 1.2kHz 4th order (24dB/ octave) filter that sends frequencies of LOW 1+/– 1.2kHz and below to Channel 1 output and frequencies of 1.2kHz and above to Channel 2 output.
- Page 6 XTi2 Series Power Amplifiers Get Started Low Pass Mode Factory Preset #4: BRG SUBS Putting the amplifier in BRG SUBS (bridged subs) mode allows you to bridge the amplifier for use with a single 8 or 4 ohm subwoofer. The inputs are automatically summed, a 90Hz 4th order (24dB/octave) LowPass filter is enabled, and the output mode is put into bridge-...
-
Page 7: Ensure Proper Cooling
XTi2 Series Power Amplifiers Get Started Factory Preset #5: SUBSYNTH Putting the amplifier in SUBSYNTH mode allows you to turn on the SubHarmonic Synth feature for use with a subwoofer on both channels. The inputs are automatically summed, a 90Hz 4th order (24dB/octave) filter is enabled on both Channel 1 and Channel 2, and the SubHarmonic Synth feature is turned on... -
Page 8: Front Panel Features
XTi2 Series Power Amplifiers Front Panel Features page 8 Operation Manual... -
Page 9: Back Panel Features
XTi2 Series Power Amplifiers Back Panel Features XTi 1002, 2002, 4002 Operation Manual page 9... - Page 10 XTi2 Series Power Amplifiers Back Panel Features XTi 6002 page 10 Operation Manual...
-
Page 11: Front Panel Navigation
XTi2 Series Power Amplifiers Front Panel Navigation From the front panel, you can change settings for several of the amplifier’s integrated signal processing features: Input Y, Crossover Frequency, EQ, Delay, Limiting, and Stereo/Bridge-Mono. The Icons in the display illuminate to show which features are currently applied and turned on. When you power-on the amplifier for the first time, the LCD screen displays “DSP OFF”... -
Page 12: Integrated Processing Features
XTi2 Series Power Amplifiers Integrated Processing Features The XTi2 Series amplifiers include a number of integrated processing features which appear as icons on the front panel LCD screen. They are described below: NOTE: System Architect Software is required to have full control over all Integrated Processing Features which can be downloaded from the following URL –... -
Page 13: Advanced Monitoring
XTi2 Series Power Amplifiers Integrated Processing Features Delay There is up to 50msec of delay available in the signal processing for time aligning your speakers. The software allows you to enter the amount of delay needed in the form of seconds, feet, or meters and does the calculation for you. - Page 14 XTi2 Series Power Amplifiers XTi Specifications Minimum Guaranteed Power, 1 kHz XTi 1002 XTi 2002 XTi 4002 XTi 6002 Per channel, both channels driven Stereo, 2 ohms (per channel) 700W 1,000W 1,600W 3,000W Stereo, 4 ohms (per channel) 500W 800W 1,200W 2,100W Stereo, 8 ohms (per channel)
- Page 15 XTi2 Series Power Amplifiers XTi Specifications Load impedance (note: safe with all types of loads) Stereo: 2-8 ohms (4-8 ohms in XTi 1000 A1 100V versions). Bridge-Mono: 4-16 ohms (8-16 ohms in XTi 1000 A1 100V versions). AC Line Voltage and Frequency Configura tions Available (± 10%): 100V, 120V, 220-240V 50/60 Hz. Operating Temperature: 0°...
-
Page 16: Summary Of Warranty
XTi2 Series Power Amplifiers Warranty SUMMARY OF WARRANTY Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown product, for a period of three (3) years from the date of purchase by the original purchaser (the “warranty period”) that the new Crown product is free of defects in materials and workmanship. - Page 17 XTi2 Series Power Amplifiers Operation Manual page 17...
