Operation Manual
SERIAL NUMBER
SERIAL NUMBER
BAR CODE
~
100-240V
50/60Hz 350W
CAUTION - TO REDUCE THE RISK OF ELECTRIC
ATTENTION - POUR RÉDUIRE LE RISQUE DE CHOC
SHOCK, GROUNDING OF THE CENTER PIN
ÉLECTRIQUE LA FICHE CENTRALE LA PRISE DOIT ÊTRE
OF THIS PLUG MUST BE MAINTAINED
BRANCHÉE POUR MAINTENIR LA MISE À LA TERRE
SERIAL NUMBER
SERIAL NUMBER
BAR CODE
~
100-240V
50/60Hz 350W
CAUTION - TO REDUCE THE RISK OF ELECTRIC
ATTENTION - POUR RÉDUIRE LE RISQUE DE CHOC
SHOCK, GROUNDING OF THE CENTER PIN
ÉLECTRIQUE LA FICHE CENTRALE LA PRISE DOIT ÊTRE
OF THIS PLUG MUST BE MAINTAINED
BRANCHÉE POUR MAINTENIR LA MISE À LA TERRE
• 2|300
• 2|600
• 2|300BL
• 2|600BL
Product Registration: Register your new product at www.warranty.harmanpro.com.
Obtaining Other Language Versions: To obtain information in another language about the use of this product, please contact your local Crown
Distributor. If you need assistance locating your local distributor, please contact Crown at 574-294-8000 or visit www.crownaudio.com.
This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situation which may
arise during installation, operation, or maintenance.
The information provided in this manual was deemed accurate as of the publication date. However, updates to this information may have occurred. To
obtain the latest version of this manual, please visit the Crown website at www.crownaudio.com.
Trademark Notice: Com-Tech, BCA, Crown, Crown Audio, Amcron and Multi-Mode are registered trademarks of Crown International. DriveCore,
DriveCore Install, IQwic, PIP and PIP2 are trademarks of Crown International. Other trademarks are the property of their respective owners.
Some models may be exported under the name Amcron
© 2017 by HARMAN International
1718 W. MISHAWAKA RD.
ELKHART IN 46517 USA

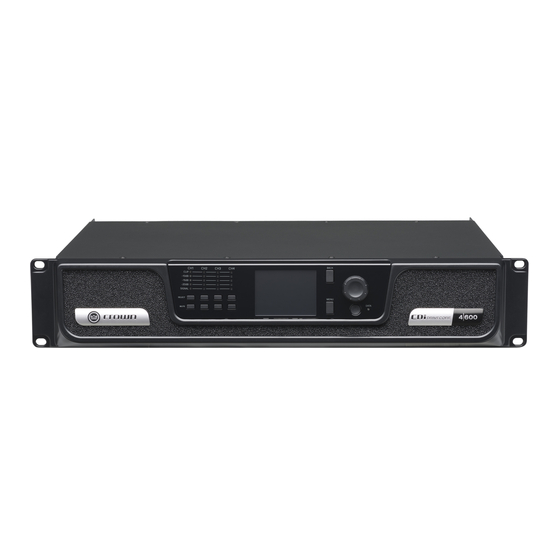

CDi DriveCore Series
Power Amplifiers
1718 W. MISHAWAKA
RD.
• 4|300
• 4|300BL
, Inc. 1718 W. Mishawaka Rd., Elkhart, Indiana 46517-9439 U.S.A. Telephone: 574-294-8000
®
WARNING -
TO REDUCE THE RISK
WARNING
OF FIRE OF ELECTRICAL SHOCK, DO
NOT EXPOSE THIS EQUIPMENT TO RAIN
RISK OF ELECTRIC
OR MOISTURE.
SHOCK
AVERTISSEMENT: RISQUE DE CHOC
AVERTISSEMENT
- ENERGIE
ELECTRIQUE - NE PAS OUVRIR
ELECTRIQUE DANGEREUSE` VOIR LE
CAHIER D'INSTRUCTIONS.
APPARATET MA TILKOPLES JORDET
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
STIKKONTAKT.
OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS.
1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
APPARATEN SKALL ANSLUTAS TILL
2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT
JORDAT UTTAG.
MAY CAUSE UNDESIRED OPERATION.
LAITE ON LIITETTÄVÄ
SUOJAKOSKETTIMILLA VARUSTETTUUN
PISTORASIAAN.
CLASS 2 OUTPUT WIRING PERMITTED.
OUTPUT
WARNING -
TO REDUCE THE RISK
WARNING
OF FIRE OF ELECTRICAL SHOCK, DO
NOT EXPOSE THIS EQUIPMENT TO RAIN
RISK OF ELECTRIC
OR MOISTURE.
SHOCK
AVERTISSEMENT: RISQUE DE CHOC
AVERTISSEMENT
- ENERGIE
ELECTRIQUE - NE PAS OUVRIR
ELECTRIQUE DANGEREUSE` VOIR LE
CAHIER D'INSTRUCTIONS.
APPARATET MA TILKOPLES JORDET
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
STIKKONTAKT.
OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS.
1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
APPARATEN SKALL ANSLUTAS TILL
2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT
JORDAT UTTAG.
MAY CAUSE UNDESIRED OPERATION.
LAITE ON LIITETTÄVÄ
SUOJAKOSKETTIMILLA VARUSTETTUUN
PISTORASIAAN.
CLASS 2 OUTPUT WIRING PERMITTED.
OUTPUT
• 4|600
• 4|600BL
®
IN
BLU link
OUT
GPIO/AUX
8
7
6
5
4
3
2
1
IN
IN
OUT
OUTPUT
WIRING
BRIDGE
4
DUAL
DUAL
OUTPUT
2
1
IN
BLU link
OUT
GPIO/AUX
8
7
6
5
4
3
2
1
IN
IN
OUT
OUTPUT
WIRING
4
BRIDGE
DUAL
DUAL
OUTPUT
2
1
• 2|1200
• 4|1200
• 2|1200BL
• 4|1200BL
ETHERNET
ACT
100Mb
3
2
1
INPUT
ETHERNET
ACT
100Mb
3
2
1
INPUT
5074176-B – 08/17
