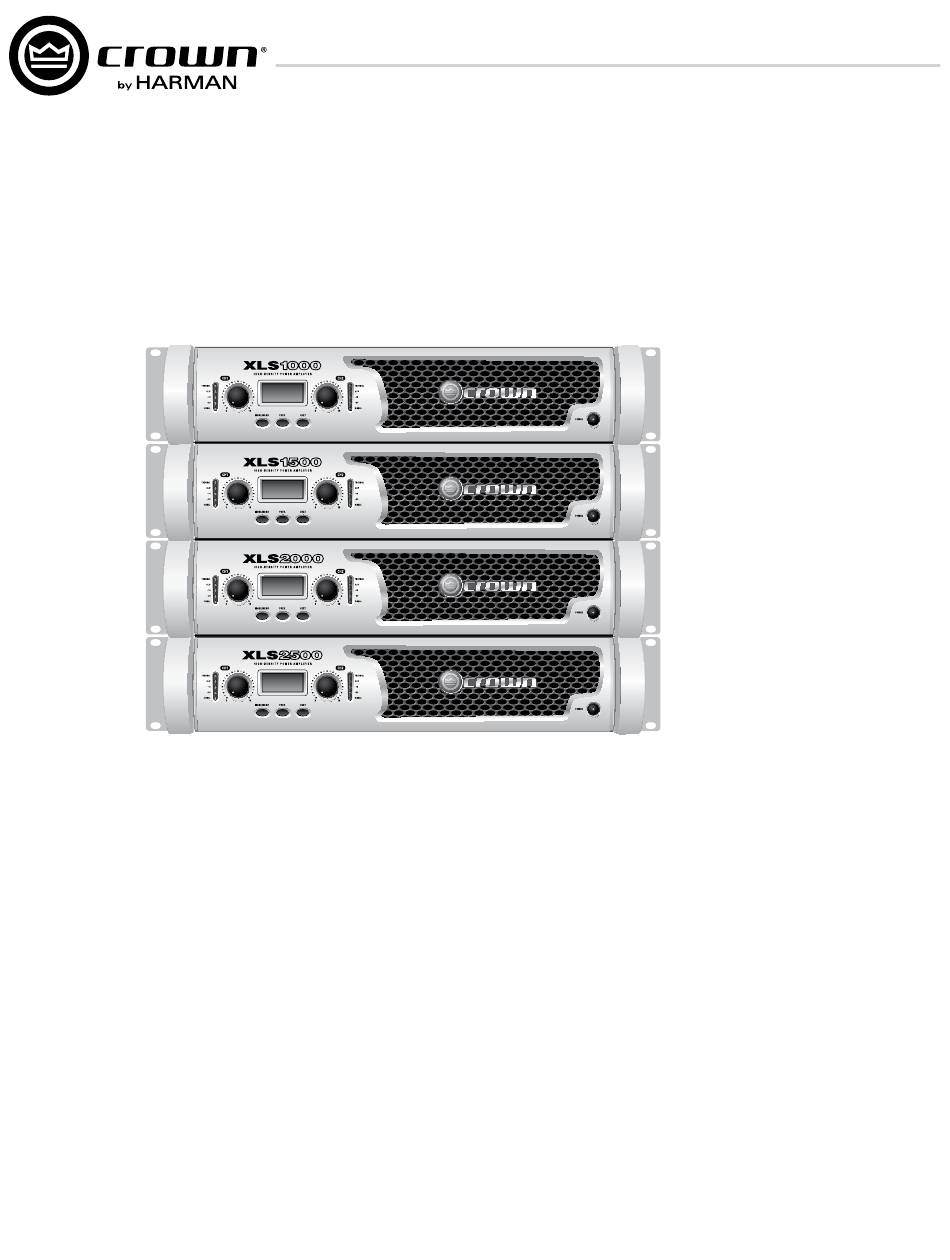

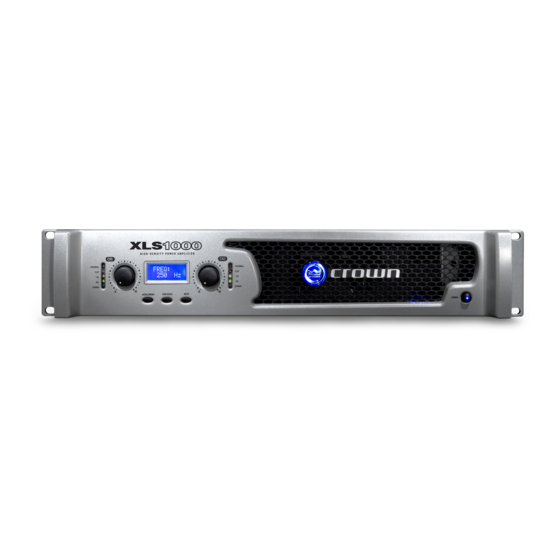

XLS Series Operation Manual
Obtaining Other Language Versions: To obtain information in another language about the use of this product, please contact your local Crown Distributor. If you need
assistance locating your local distributor, please contact Crown at 574-294-8000.
This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situation which may arise during
installation, operation or maintenance.
The information provided in this manual was deemed accurate as of the publication date. However, updates to this information may have occurred. To obtain the latest
version of this manual, please visit the Crown website at www.crownaudio.com.
Trademark Notice: Crown, Crown Audio, and Amcron are registered trademarks of Crown International. Other trademarks are the property of their respective owners.
Later versions of this manual and additional information about this product may be available at the Crown website at www.crownaudio.com.
Some models may be exported under the name Amcron
©2010 by Crown Audio
, Inc., 1718 W. Mishawaka Rd., Elkhart, Indiana 46517-9439 U.S.A. Telephone: 574-294-8000.
®
®
XLS 1000
XLS 1500
XLS 2000
XLS 2500
142169-1 - 10/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Crown XLS 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Harman Crown XLS 1000

Summary of Contents for Harman Crown XLS 1000

  • Page 1 XLS Series Operation Manual XLS 1000 XLS 1500 XLS 2000 XLS 2500 Obtaining Other Language Versions: To obtain information in another language about the use of this product, please contact your local Crown Distributor. If you need assistance locating your local distributor, please contact Crown at 574-294-8000. This manual does not include all of the details of design, production, or variations of the equipment.

  • Page 2: Important Safety Instructions

    XLS Series Power Amplifiers Important Safety Instructions 1. Read these instructions. WATCH FOR THESE SYMBOLS: 2. Keep these instructions. The lightning bolt triangle is used to alert the user to the risk of electric shock. 3. Heed all warnings. The exclamation point triangle is used to alert the user to important 4.

  • Page 3: Declaration Of Conformity

    XLS Series Power Amplifiers DECLARATION OF CONFORMITY Issued By: Harman International. FOR COMPLIANCE QUESTIONS ONLY: Sue Whitfield 1718 W. Mishawaka Rd. 574-294-8289 Elkhart, IN 46517 U.S.A. Sue.Whitfield@harman.com European Representative’s Name and Address: David J. Budge 10 Harvest Close Yateley GU46 6YS...

  • Page 4: Get Started

    XLS Series Power Amplifiers Stereo ByPass Mode Get Started Stereo Bypass Mode This is the default mode the amplifier is set to from the factory. The amplifier is configured for stereo mode with the PureBand™ Crossover System Bypassed. 1. Connect Left/Right signal source to Channel 1 and Channel 2 using either the XLR, ¼...
  • Page 5 XLS Series Power Amplifiers Get Started High Pass Mode HighPass Mode When using the “HighPass Mode”, the amplifier is configured to use a HighPass Filter on Channel 1 and Channel 2 at the selected frequency. Before you get started ensure that you: 1.
  • Page 6 XLS Series Power Amplifiers Welcome Crown’s XLS Series amplifiers define the standard for portable PA systems with unmatched performance, technology and affordability that effortlessly deliver the goods night after night. We packed XLS with enormous flexibility, thanks to its integrated Crossover and Peak Limiters.

  • Page 7: Front Panel Features

    XLS Series Power Amplifiers Front Panel Features Indicators: Signal Presence Indicator: Two green LED’s, one for each channel, illuminate when the channel input signal exceeds -40dBu -10 Indicator: Green LED flashes when output signal level exceeds -10dB below clip -20 Indicator: Green LED flashes when output signal level exceeds -20dB below clip Clip Indicator: Two red LED’s, one for each channel, illuminate when the channel’s output is being overdriven.

  • Page 8: Integrated Processing Features

    XLS Series Power Amplifiers Integrated Processing Features PureBand Crossover System: ™ The PureBand Crossover System provides a variable state Linkwitz-Riley 24dB/octave filter allowing you to choose a point ™ between 50Hz and 3kHz on 1/12th octave centers. The following points are available for choice: 50Hz, 53Hz, 56Hz, 59Hz, 63Hz, 66Hz, 70Hz, 74Hz, 79Hz, 83Hz, 88Hz, 94Hz, 99Hz, 105Hz, 111Hz, 118Hz, 125Hz, 132Hz, 140Hz, 149Hz, 157Hz, 167Hz, 177Hz, 187Hz, 198Hz, 210Hz, 223Hz, 236Hz, 250Hz, 265Hz, 281Hz, 297Hz, 315Hz, 334Hz, 354Hz, 375Hz, 397Hz, 420Hz, 472Hz, 500Hz, 530Hz, 561Hz, 595Hz, 630Hz, 667Hz, 707Hz, 749Hz,...
