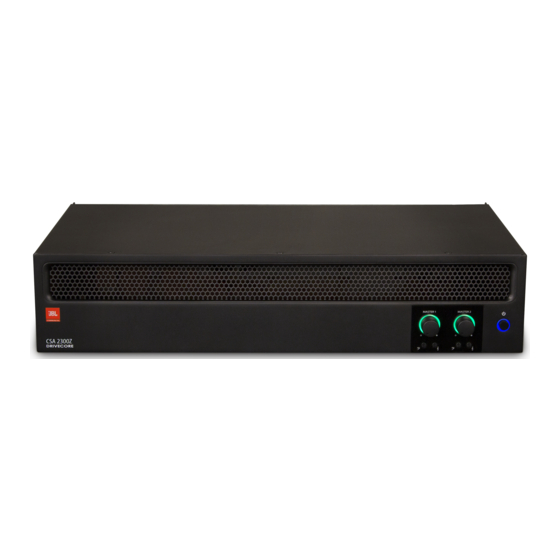

Commercial Series Amplifer
Operation Manual
CSA 1300Z
CSA 2300Z
JBL Commercial Series
CSA 1300Z
CSA 2300Z

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JBL CSA 1300Z and is the answer not in the manual?

Questions and answers

Summary of Contents for Harman JBL CSA 1300Z

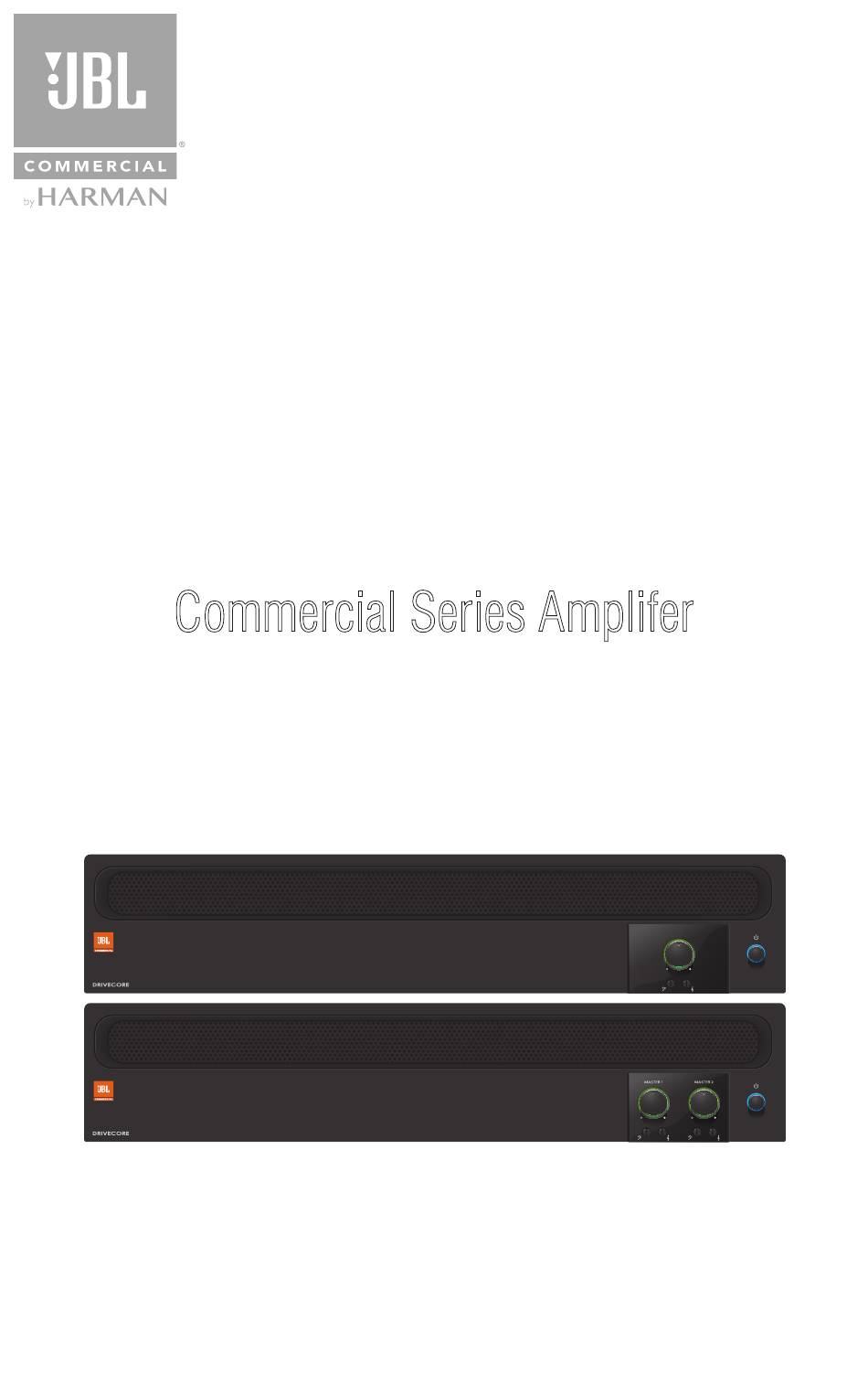

  • Page 1 JBL Commercial Series CSA 1300Z CSA 2300Z Commercial Series Amplifer Operation Manual CSA 1300Z CSA 2300Z...
  • Page 2: Table Of Contents

    Contents Important Safety Information ................3 JBL DECLARATION OF CONFORMITY ............5 1.0 Welcome ....................7 1.1 Features ....................7 1.2 Front Control Panels and Indicators ............8 1.3 Rear Panel Controls and Connectors............. 9 2.0 Setup ......................10 2.1 Unpacking Your Amplifier ..............10 2.2 Installing Your Amplifier .................10 2.3 Ensuring Proper Cooling ...............12 2.4 Choosing Input Wire and Connectors ...........12...
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING FOR YOUR PROTECTION READ THESE INSTRUCTIONS: WARNING KEEP THESE INSTRUCTIONS RISK OF ELECTRIC SHOCK DO NOT OPEN HEED ALL WARNINGS AVERTISSEMENT: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR FOLLOW ALL INSTRUCTIONS WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING LIQUID AND NO OBJECT FILLED WITH LIQUID, SUCH...
  • Page 4 IMPORTANT SAFETY INFORMATION U.K. MAINS PLUG WARNING If you want to dispose this product, do not mix it with gen- eral household waste. There is a separate collection system for used electronic products in accordance with legislation A molded mains plug that has been cut off from the cord is that requires proper treatment, recovery and recycling.
  • Page 5: Jbl Declaration Of Conformity

    Brand: Equipment Type: Commercial Audio Amplifiers Model names: CSA 1300Z, CSA 2300Z We, Harman International, declare under our sole responsibility that the product, to which this declaration relates, is in conformity with the following standards. Report No. Description EN 55103-1:2009 EMC Compatibility –...
  • Page 7: Welcome

    1.0 Welcome The JBL Commercial Series of Amplifiers are a professional tool designed and built ® for Installed sound applications. There are both single channel and two channel models. They provide amplification with a choice of low impedance, 70V or 100V outputs.
  • Page 8: Front Control Panels And Indicators

    1.2 Front Panel Controls and Indicators Figure 1.2 Front View of Single Channel Model CSA 1300Z A. Output Volume Control B. Power Switch C. Illuminated ring around the output volume control will light green with signal presence while red indicates clipping, i.e. the signal has reached the threshold of audible distortion.
  • Page 9: Rear Panel Controls And Connectors

    1.3 Rear Panel Controls and Connectors Figure 1.3 Rear View - CSA 1300Z Circuit breaker reset switch AC Power Inlet – Detachable IEC C. 70V/100V Switch – Enables the 70V and 100V outputs and activates the 70Hz high pass filter D.
  • Page 10: Setup

    2.0 Setup 2.1 Unpacking Your Amplifier Please unpack and inspect your amplifier for any damage that may have occurred during transit. If damage is found, notify the transportation company immediately. Only you can initiate a claim for shipping damage. We will be happy to help as needed.
  • Page 11 Figure 2.2.1 Dimensions 88.42 mm [3.481 in] 432.3 mm [17.02 in] 274 mm [10.78 in] Figure 2.2.2 Rack Mounting front angle brackets...
  • Page 12: Ensuring Proper Cooling

    2.3 Ensuring Proper Cooling When using an equipment rack, keep a minimum space of 4 inches (10cm) from the top surface of the unit. Close any open spaces in the rack with blank panels. DO NOT block any air vents. The side walls of the rack should be a minimum of 2 inches (5 cm) from the amplifier sides.
  • Page 13: Output Wiring And Connectors

    2.5 Output Wiring and Connectors To drive distributed speaker systems designed to operate at 70V or 100V, connect to the corresponding output terminals. JBL recommends using prebuilt or professionally wired, high-quality, two-conductor, heavy gauge speaker wire. Speakers wires should be twisted cable, if possible. To prevent the possibility of short-circuits, the wires should be stripped back no greater than 6 mm (1/4 inch), see Figure 2.5.
  • Page 14: Wiring Your Audio System

    Figure 2.6 Wiring Audio System CSR-V Professional audio system LEVEL 2.6 Wiring Your Audio System Typical input and output wirings are shown in Figure 2.6. INPUTS: Connect input wiring for both channels using either the RCA or the Euro- block input for each channel. OUTPUTS: You may use either low impedance or high impedance speakers.
  • Page 15: Connecting To Ac Mains

    2.7 Connecting to AC Mains Connect your amplifier to the AC mains power source (power outlet) with the supplied AC power cord. First, connect the IEC end of the cord set to the IEC connector on the amplifier; then, plug the other end of the cord set to the AC mains. When properly connected to a live power source and switched on, the power ring should illuminate with a blue color.
  • Page 16: Operation

    3.0 Operation 3.1 Precautions Your amplifier is protected from internal and external faults, but you should still take the following precautions for optimum performance and safety: Before use, your amplifier first must be configured for proper operation, including input and output wiring hookup. Improper wiring can result in serious operating difficulties.
  • Page 17: 100V Switch

    3.2 70/100V Switch When this switch is in the “OFF” position, the amplifier is configured to drive low impedance speakers, (4 Ohms ,minimum) The Hi-Z switch will switch in the built-in output transformer allowing the unit to drive 70V or 100V speaker systems directly when connected to the appropriate output terminals.
  • Page 18: Troubleshooting

    4.0 Troubleshooting CONDITION: No power to the amplifier so that the power ring is not illuminated. POSSIBLE REASON: The amplifier is not plugged into the power receptacle CONDITION: No sound or low sound. POSSIBLE REASON: The input signal is not present or at a very low level. POSSIBLE REASON: The Master Volume control is turned down.
  • Page 19: Appendix A: Target Performance Specifications

    Appendix A: Target Performance Specifications Performance CSA 1300Z CSA 2300Z Rated Power into 4 Ω or 8 Ω; 300W 300W 1kHz, ≤ 0.5% THD Number of Output Channels Insertion Loss (70V & 100V 1 dB maximum outputs) Input Sensitivity (8 Ω Load) Balanced line input: 775mV ;...
  • Page 20: Appendix B: Remote Rs232 Control

    Appendix B: Remote RS232 Control RJ45 connector pin assignments CSA1300Z & CH1 of CSA2300Z Function Usage Pin 4 Pin 5 +Vref CSR-V Pin 3 Pin 6 Vol Ctrl CSR-V none Pin 2 Pin 7 Serial Pin 8 Pin 1 Serial Serial none CSR-V...
  • Page 21 Appendix B: Remote RS232 Control Volume Level Settings Volume Level Integer (Attenuation) -1.65dB -3.3dB -4.9dB -6.6dB -8.25dB -9.9dB -11.55dB -13.2dB -14.85dB -16.5dB -18.15dB -19.8dB -21.45dB -23.1dB -24.75dB -26.4dB -28.05dB -29.7dB -31.35dB -33dB -34.65dB -36.3dB -37.95dB -39.6dB -41.25dB -42.9dB -44.55dB -46.2dB -47.85dB -49.5dB -51.1dB...
  • Page 22: Appendix C: Contact Information

    Appendix C: Contact Information For additional information, please consult JBL Professional Customer Service, your system installer or retailer. On The World Wide Web: www.jblcommercialproducts.com Professional Contacts, Outside the USA: Contact the JBL Professional Distributor in your area. A complete list of JBL Professional international distributors is provided at our U.S.A.
  • Page 24 JBL Commercial 10653 South Riverfront Parkway Suite 300 South Jordan, Utah 84095 Part Number:5050610 Issue: 12/16...
