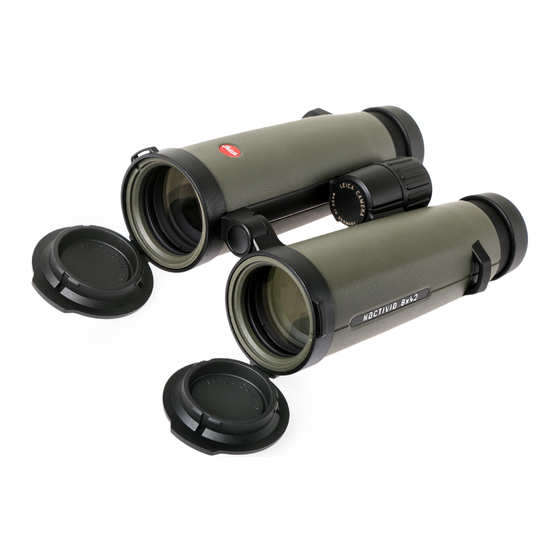

- Page 1 LEICA NOCTIVID ANLEITUNG | INSTRUCTIONS NOTICE D’UTILISATION | GEBRUIKSAANWIJZING ISTRUZIONI | INSTRUCCIONES 取扱説明書 BRUKSANVISNING | ИНСТРУКЦИЯ |...
-
Page 3: Scope Of Delivery
FOREWORD SCOPE OF DELIVERY You are a curious observer or an avid nature lover? – Binoculars The long range optical products by Leica make – Carrying strap looking at everything as exciting as never before. – Carrying case We wish you a great deal of fun and success with –... -
Page 4: Table Of Contents
• Do not use your binocular while walking! You Adjusting the eyecups .........16 might not see obstacles in your way! Adjusting the interocular distance .......17 Focusing/Diopter adjustment ......17 Scale reading ............18 Care/cleaning ............19 Accessories ............20 Spare parts ............20 Troubleshooting ..........21 Technical Specifications ........22 Leica Service Addresses ........23... -
Page 5: Areas Of Use
AREAS OF USE MOUNTING THE LENS CAPS Leica Noctivid binoculars come with a hermetically You need to push the adapter rings over the lenses sealed, nitrogen-fi lled magnesium housing. You of the binoculars before you can fi t the lens caps. -
Page 6: Adjusting The Eyecups
ADJUSTING THE EYECUPS If the eyepieces are heavily soiled, we recommend removing the eyecups for cleaning (Figure D). The eyecups are adjusted by turning them and will The eyecups have a loss protection lock. To unlock, lock securely in the selected position. They can be turn them counter-clockwise a little further until removed to thoroughly clean the eyepieces. -
Page 7: Adjusting The Interocular Distance
ADJUSTING THE INTEROCULAR DISTANCE FOCUSING/DIOPTER ADJUSTMENT Adjust the interocular distance by moving the With the Leica Noctivid binoculars, focusing on binoculars on the pivot axis. Ensure that the objects at varying distances is done using the central focusing unit (Figure A). -
Page 8: Scale Reading
SCALE READING Next, pull the central focusing unit’s wheel up slightly (Figure B). You can see your personal diopter setting in the Then focus on the same object using your right eye scale window on top of the central focusing unit. only. -
Page 9: Care/Cleaning
CARE/CLEANING Any moisture inside the focusing unit (visible in the scale window) will dry faster with the central Your Leica Noctivid binoculars require no special focusing unit’s wheel unlocked. care. Coarse dirt particles like sand can be removed Do not use alcohol or chemical cleaning solutions with a soft brush or simply blown off . -
Page 10: Accessories
ACCESSORIES SPARE PARTS Please visit the Leica Camera AG website for Please contact our Customer Care department or information on the extensive range of accessories your national Leica representative if you ever need for Leica Noctivid binoculars: spare parts like eyecups, caps or carrying straps. -
Page 11: Troubleshooting
TROUBLESHOOTING Problem Cause Remedy The view through the binoculars is a) The binoculars are not a) Move the two binocular tubes not perfectly circular. adjusted to your specific on the pivot axis. interocular distance. b) Your pupils are not in line b) Try adjusting the positions of with the exit pupils of the your head and eyes in conjunc-... -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS LEICA NOCTIVID 8 X 42 LEICA NOCTIVID 10 X 42 Magnification Lens diameter 42mm 42mm Exit pupil 5.25mm 4.2mm Twilight factor 18.33 20.5 Light transmission Subjective viewing angle/ 59.5°/ 61°/ visual field at 1,000m 135m 112m Exit pupil position... -
Page 13: Leica Service Addresses
(a list of either in writing, on the telephone or by e-mail. addresses is provided on your Guarantee Card). Alternatively, you can send us your questions using the contact form on the Leica Camera AG Leica Camera AG homepage. Customer Care... - Page 14 DAS WESENTLICHE. Leica Camera AG │ Am Leitz-Park 5 │ 35578 WETZLAR │ DEUTSCHLAND Telefon +49(0)6441-2080-0 │ Telefax +49(0)6441-2080-333 │ www.leica-camera.com 93710 VII/17/DX/B...
- Page 15 Page 1 of 1 I As at September 2020 I We reserve the right to make modifications to specifications, construction, features, ranges and recommended retail prices without prior notice. We accept no liability for mistakes or printing errors. Leica Camera AG I Am Leitz-Park 5 I 35578 WETZLAR I GERMANY I Phone +49 (0) 6441-2080-0 I Fax +49 (0) 6441-2080-333 I info@leica-camera.com I www.leica-camera.com...
