User Manual
User Manual
User Manual
User M anual
Refrigerator-Freezer
Refrige r ator-Fre ezer
Refrigerator-Freezer
Refrigerator-Freezer
HRF520BW
HRF520BW
HRF520BS
HBM450WH1
HBM450WH1
HRF520BS
HRF520BHS
HBM450SA1
HBM450
HRF520BHS
HRF520BHC
HRF520FS
HBM450HSA1
HBM450H
HRF520FS
HRF520FHS
HRF520FHS
HRF520FHC
HRF520BG
HRF520FG
SA1
SA1
Advertisement
Table of Contents
Related Manuals for Haier HRF520BG
Summary of Contents for Haier HRF520BG

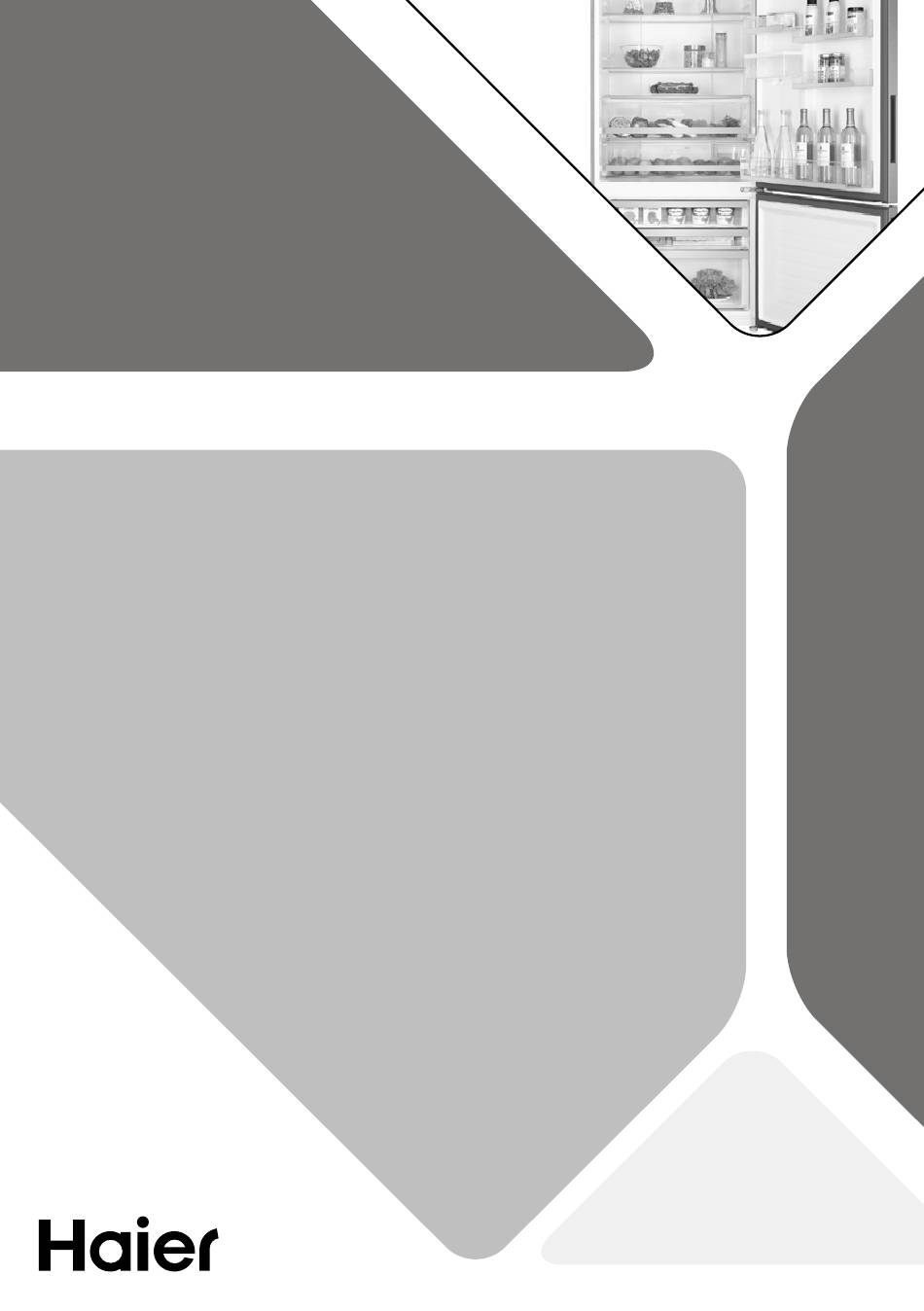

- Page 1 User Manual User M anual User Manual User Manual Refrigerator-Freezer Refrige r ator-Fre ezer Refrigerator-Freezer Refrigerator-Freezer HRF520BW HRF520BW HRF520BS HBM450WH1 HBM450WH1 HRF520BS HRF520BHS HBM450 HBM450SA1 HRF520BHS HRF520BHC HRF520FS HBM450H HBM450HSA1 HRF520FS HRF520FHS HRF520FHS HRF520FHC HRF520BG HRF520FG...
- Page 3 Thank You Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
-
Page 4: Table Of Contents
Content Intended Use ............................ .5 Safety ..............................6 Product Description ........................10 Use ..............................14 Equipment ............................24 Care and Cleaning ..........................27 Troubleshooting ..........................29 Installation ............................32 Technical Data..........................37... -
Page 5: Intended Use
Intended Use Intended use This appliance is intended for cooling and freezing food. It has been designed exclusively for use in dry-interior house holds. It is not intended for commercial or industrial use. ards and loss of warranty claims. Accessories Check the accessories and literature in accordance with this list: Warranty Door... -
Page 6: Safety
Safety Before switching on the appliance for the first time do… ▶ make sure there is no transport damage. ▶ make sure all packaging is removed and is kept out of children´s reach. ▶ wait at least two hours after installing appliance before using to ensure refrigerant circuit is fully effcient. - Page 7 Safety Before switching on the appliance for the first time do not… x install the appliance in direct sunlight or near sources of heat (eg stoves, heaters). x damage the refrigerant circuit. If it does become damaged, do not use the appliance. x use multi-plug adapters and extension cables.
- Page 8 Safety indicated range. ▶ check the condition of food if an increase in the freezer tempera- ture has occurred. During daily use do not… x set unnecessarily low temperature in the refrigerator compart- ment. Minus temperatures may occur at high settings. Attention: bottles can burst.
- Page 9 Safety x use water spray or steam to clean the appliance. x clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. x use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
-
Page 10: Product Description
Product Description (HRF520BW HRF520BS HRF520BG) 1 Refrigerator LED lamp 9 Upper freezer storage drawer 2 Rating plate 10 Middle freezer storage drawer 3 Glass shelves 11 Lower freezer storage drawer 4 Fresh storage box cover 12 Adjustable feet 5 HCS (Humidity Control System) - Page 11 Product Description （HRF520BHS HRF520BHC） 1 Refrigerator LED lamp 9 Upper freezer storage drawer 2 Rating plate 10 Middle freezer storage drawer 3 Glass shelves 11 Lower freezer storage drawer 4 Fresh storage box cover 12 Adjustable feet 5 HCS (Humidity Control System) 13 Upper door dairy bin 6 Fresh storage box 14 Middle door shelves...
- Page 12 Product Description HRF520FS HRF520FG 1 Refrigerator LED lamp 9 Upper freezer storage drawer 2 Rating plate 10 Middle freezer storage drawer 3 Glass shelves 11 Lower freezer storage drawer 4 Fresh storage box cover 12 Adjustable feet 5 HCS (Humidity Control System) 13 Upper door dairy bin 6 Fresh storage box 14 Middle door shelves...
- Page 13 Product Description （HRF520FHS HRF520FHC） 1 Refrigerator LED lamp 9 Upper freezer storage drawer 2 Rating plate 10 Middle freezer storage drawer 3 Glass shelves 11 Lower freezer storage drawer 4 Fresh storage box cover 12 Adjustable feet 5 HCS (Humidity Control System) 13 Upper door dairy bin 6 Fresh storage box 14 Middle door shelves...
-
Page 14: Use
Before first use ▶ Remove all packaging materials, keep them out of children`s reach and dispose them in an environmentally friendly manner. ▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. ▶... - Page 15 Control panel Beverage Cooling Meat & Poultry Buttons: Indicators: A. Fridge selector a1. Fast Cool function a2. Temperature fridge B. Freezer selector b1. Fast Freeze function b2. Temperature freezer C. My Zone selector c1.Beverage Cooling function c2. Meat & Poultry function D.
- Page 16 Sensor keys The buttons on the control panel are sensor keys, which respond when lightly touched with the finger. Switch on/off the appliance The appliance is in operation as soon as it is connected to the power supply. When the appliance is powered on for the first time, indicator “b2” is shining on the display until the temperature reaches -5°C or after 1 hour working.
- Page 17 Door/drawer opening alarm When the refrigerator door or the freezer drawer is opened for more than 3 minutes, the door/drawer opening alarm will sound. The alarm can be silenced by either closing the door/drawer. If the door/drawer is left open for more than 7 minutes, the light inside the refrigerator/under the refrigerator door and control panel illumination will automatically switch off.
- Page 18 The optimum temperature in the freezer is -18°C. Colder temperatures mean unnecessary energy consumption. 4. Press any key except “B” (Freezer) to confirm, or the setting confirms automatically after 5 seconds. Indicator “b2” stops flashing. Fast Cool function Switch on the Fast Cool function if larger quantities of food need to be stored (for example after the pur- chase).
- Page 19 My Zone drawer The fridge compartment is equipped with a My Zone drawer. In accordance with the food’s storage de- mands, the most suitable function can be selected to get the optimal nutritional value of the foods. following functions are available: Beverage Cooling (2-4°C).
- Page 20 Fresh storage drawer The Fresh Storage drawer is suitable to store fruits and vegetables. It has a Humidity Control System (HCS) mo- dule which automatically controls the moisture above 85%. It can maintain this level for several weeks. Water dispenser (Only models with water dispenser) With the water dispenser.
- Page 21 Tips on storing fresh food Storing in the refrigerator compartment ▶ Keep your fridge temperature below 5°C. ▶ Hot food must be cooled to room temperature before storing in the appliance. ▶ Foods stored in the refrigerator should be washed and dried before storing. ▶...
- Page 22 Storage in the freezer compartment ▶ Keep the freezer temperature at -18°C. ▶ 24 hours before freezing, switch on the Fast Freeze function; for small quantities of food 4-6 hours are sufficient. ▶ Hot food must be cooled to room temperature before storing in the freezer com- partment.
- Page 23 Different foods should be placed in different areas according to their properties: Ice cream, bread, etc. Small frozen food such as meat,pizza, ice cubes, Large/heavier portions of food, pre-rolled pastry packet, etc. such as meat, joints for roasting, pizza, etc. When storing commercially frozen foods, please follow these guidelines: ▶...
-
Page 24: Equipment
Equipment Multi-air-flow The refrigerator is equipped with a multi-air-flow sys- tem, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer. Adjustable shelves The height of the shelves can be adjusted to fit your storage needs. - Page 25 Equipment Removable water tank (only models with water dispenser) The water tank can be removed and reinstalled for cleaning in the same way as the door racks. Insert water tank (only models with water dispenser) Place the water tank in the position that the water out- the water tank is locked.
- Page 26 Equipment Energy saving tips ▶ Make sure the appliance is properly ventilated (see INSTALLATION). ▶ Do not install the appliance in direct sunlight or near sources of heat (eg. stoves, heaters). ▶ Avoid unnecessarily low temperature in the appliance. The energy consumption in- creases the lower the temperature in the appliance is set.
-
Page 27: Care And Cleaning
Care and Cleaning WARNING! Disconnect the appliance from the power supply before cleaning. Cleaning Clean the appliance when only little or no food is stored. The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors. WARNING! ▶... - Page 28 HRF520BS HRF520BHS HRF520BHC HRF520FS HRF520FHS HRF520FHC HRF520BG HRF520FG Non-use for a longer period If the appliance is not used for an extended period of time, and the Holiday function for the refrigerator is not being used: Take out the food.
-
Page 29: Troubleshooting
Troubleshooting Many problems that occur can be solved without specific expertise. In case of a problem, please refer to the below list of possibilities and follow instructions before contacting after sales service. See CUSTOMER SERVICE. WARNING! ▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. - Page 30 Troubleshooting Problem Possible Cause Possible Solution It is not cold enough • The temperature is set too high. • Reset the temperature. nside th e appli- • The temperature of the food • Always cool down goods be- ance. stored is too warm. fore storing them.
- Page 31 Troubleshooting Problem Possible Cause Possible Solution The appliance • The appliance is not located on • Adjust the feet to level the ap- makes abnormal level ground. pliance. sounds. • The appliance touches some ob- • Remove objects around the ject around it.
-
Page 32: Installation
Space requirement Required space when door is opened: Appliance width in mm Appliance depth in mm Model HRF520BW HRF520BS 1241 1423 HRF520BHS HRF520BHC HRF520BG 1241 Appliance width in mm Appliance depth in mm Model HRF520FS HRF520FHS 1008 1226 1024 HRF520FHC... - Page 33 Installation Positioning your appliance 50 mm This appliance should be installed in a room that is dry and well ventilated.To provide adequate ventilation,make sure the refrigera- tor is at least 20mm clear on all sides from kitchen cabinetry, and 30mm from the back wall.
- Page 34 Installation Aligning the appliance The appliance should be placed on a flat and solid sur- face. 1. Tilt the appliance slightly backwards. 2. Set the feet to the desired level. Make sure the distance to the wall on the hinge side is at least 100mm for the door to open properly.
- Page 35 Installation Door reversibility (Model HRF520BW, HRF520BS, HRF520BHS,HRF520BHC HRF520BC Before connecting the appliance to the power supply, you should check whether the door swing must changed from right (as delivered) to left, as required by the installation loca- tion and the usability. WARNING! The appliance is heavy.
- Page 36 Installation 13. Change the positions of the blanking plugs and the screw on the other side. a Remove lower door. b Change the door stop at the bottom of the lower door from the current position to opposite side. c Unscrew the bottom hinge. Change the bottom foot from current position to opposite side.
-
Page 37: Technical Data
Technical Data Trademark Haier Haier HRF520BW HRF520FS HRF520BS HRF520FHS HRF520BHS Model No. HRF520FHC HRF520BHC HRF520FG HRF520BG Category of the model Refrigerator-freezer Refrigerator-freezer Voltage/Frequency 220V-240V~/50Hz 220V-240V~/50Hz Energy Star 5 star 4.5 star Frost-free system Product group Total product volume 493L 489L...
