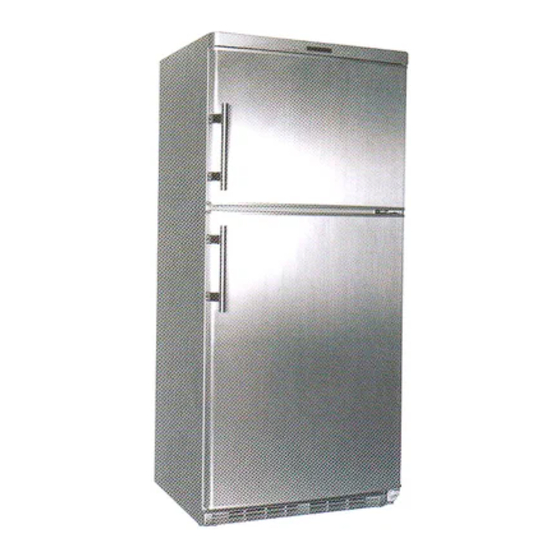

HRF-516FKA
Frost Free Refrigerator/Freezer
Table of Contents
Before using the appliance
Instructions for refrigerator storage
Instructions for freezer storage
Defrosting, cleaning and vacation
Troubleshooting and after-sales service
Please read this operation manual carefully
before using the appliance.
Keep this manual properly for future reference.
Appearance, color and layout of the door may
vary.
....................................1
.............................2-4
................................................6
...........................................6
..............................................7
..........................................8-11
.........................................14
............................................17
..............................................17
..........................................18-19
..............................20-22
...........................23-24
........12
..........13
...............15
.................16
Advertisement
Table of Contents
Related Manuals for Haier HRF-516FKA
Summary of Contents for Haier HRF-516FKA
-
Page 1: Table Of Contents
HRF-516FKA Frost Free Refrigerator/Freezer Table of Contents Before using the appliance Primary features Diagram of parts Safety precautions Location Preparation Operation Functions Instructions for refrigerator storage Refrigerating storage compartment Refrigerating storage precautions Suggestions Instructions for freezer storage Freezing storage compartment... -
Page 2: Primary Features
A semi-automatic icemaker is installed in the freezer compartment and ice cubes can be made efficiently. Unique chiller compartment design On the top of the refrigerator compartment is a chiller drawer designed for convenient access. Automatic defrosting This appliance features air-cooling system for automatic defrosting. -
Page 3: Diagram Of Parts
Light Crisper Power plug Dear customer, Thank you for your purchasing Haier product. Please read this manual carefully before using the electrical appliance that you have just purchased. Haier, sincere forever. Layout of the refrigerator that you have just purchased may vary due to technical improvement of this company. -
Page 4: Safety Precautions
Care for external cable *Hold the plug, not the electric cable, when unplugging the refrigerator. *Ensure that the electric cable is not trapped by the refrigerator. Do not step on the cable. *Avoid damage to the electric cable when moving the refrigerator. - Page 5 Do not swing on or apply excessive pressure to the refrigerator door. This refrigerator should be used for food storage. It is not recommended to place microbiological or chemical materials, w h i c h h a v e s p e c i a l r e q u i r e m e n t i n temperature setting.
-
Page 6: Safety Precautions
D i s a s s e m b l y , r e n o v a t i o n o r c o o l i n g system maintenance of refrigerator must be authorized. Unplug the refrigerator in the event of a power interruption or during cleaning. Allow at least 5 minutes lapse before restarting the refrigerator. -
Page 7: Location
Adjustable foot The refrigerator shall be placed away from heat sources or direct sunlight. Never place the refrigerator near to a water source. Clean and dry any water splashes and stains with soft cloth. Anti-clockwise... -
Page 8: Preparation
Connect the refrigerator to power source at least 30 minutes after the refrigerator is sited and cleaned. Caution: After unpacking, write down the model and manufacture number of the refrigerator on the Warranty Certificate which will be required if technical services are applied for. Operation Manual... -
Page 9: Operation
Some time will be required for the refrigerator to reach the set Caution: level when the temperature is adjusted. The length of this period is... -
Page 10: Functions
Functions Control panel Fuzzy Mode button Super Freeze button Refrigerator Temp button Freezer Temp button Fuzzy Mode icon Super Freeze icon Note: The block English letters in front of the phrases above listed will be used hereinafter to represent the phrases thereof. - Page 11 Fuzzy Mode is set.) In Lock-off mode, press button C, icon H will blink and refrigerator temperature can be set. Every press of button C will increase the refrigerator temperature by 1°C until 10°C is reached. If the same button is pressed again, the cycle will restart from 2°C.
-
Page 12: Holiday Mode
Refrigerator compartment on/off Hold button C pressed for 3 seconds, icon H will disappear and performance of refrigerator compressor will cease. Hold button C pressed for 3 seconds again, icon H will appear and performance of refrigerator compressor will be resumed. -
Page 13: Functions
Defect display If sensors of the refrigerator do not work properly, icon H or I will display F1, F2, F3, F4 or F5 according to the nature of the problem. In such case, although the fridge does not cease operation, it is strongly suggested that... -
Page 14: Storage Areas
. Refrigerator should on ly be used for short- term storage. Storage areas As cold air circulates inside the refrigerator, temperature differences exist inside the storage compartments. Area Different foods should be placed in different areas according to their properties. -
Page 15: Refrigerating Storage Precautions
Never overload shelves, as they may collapse under excessive loads. Dry any water droplets on the food before placing it in the refrigerator. Storage of sorted food Food to be stored should be sorted according to consumer requirements. -
Page 16: Suggestions
Ripe squash, melon, pawpaw, bananas and pineapples should not be stored in the refrigerator. Freezing will accelerate the ripening process. Eggs should be stored vertically in the egg holder. Onions, garlic, ginger, water chestnuts... -
Page 17: Freezing Storage Compartment
*Tilt a bit the front side of ice cube tray when removing it from the refrigerator. Caution: Ice cube tray cannot be used for making ice cubes or containing cheese, tea or soup to avoid cracks due to freezing. -
Page 18: Freezing Storage Precautions
Freezing storage precautions Hot food should not be stored in the refrigerator until it has cooled down to room temperature. The outside of any food packing should be dried before storage in the freezer, and any packing materials should be odor-free, airtight, non-poisonous and nontoxic. -
Page 19: Defrosting
Dry water droplets on surfaces of the refrigerator with a piece of cloth. Caution: Do not use excessive amounts of water for cleaning the refrigerator. Use a dry cloth to clean the switch and the lamp. Regularly clean the surfaces of the external shell to improve the heat elimination efficiency. -
Page 20: Vacation
Caution: It is recommended that the refrigerator be not turned off unless it is necessary. Caution: Do not restart the refrigerator until a period of at least five minutes has elapsed. -
Page 21: Vacation
Secure the shelves in the cold storage compartment, vegetable and fruit tray and drawers in the freezer with tape. Tightly close and tape the door of the refrigerator. Do not tilt the refrigerator more than 45 degrees. Caution: Never place the refrigerator horizontally. -
Page 22: Troubleshooting
Troubleshooting The evaporator and piping system of the refrigerator may produce a slight sound when the refrigerator operates due to ambient temperature changes. A slight sound may be produced by d e f r o s t i n g w a t e r f l o w i n g i n t o t h e... - Page 23 Whir Whir The two sides of the external surface, bottom and the middle connection of the refrigerator will be warm due to heat radiation of the appliance.
- Page 24 Excessive vibration will result in the following circumstances: a)The refrigerator is not well positioned and adjusted. b)The refrigerator is placed on a wood floor or near to wooden furniture. ° C, freezer compartment L i q u i d r e f r i g e r a n t f l o w i n g i n t h e evaporator may produce a slight sound similar to that of flowing water.
-
Page 25: After-Sales Service
After-sales service In the event that the refrigerator does not work properly, please check out and solve problems according to the following methods. If problems persist, contact the after- sales service center. Information of model, accessory list and serial number of the refrigerator is required. -
Page 26: After-Sales Service
Failure of regular cleaning of the refrigerator Prolonged operation period of the compressor Initial operation Large quantity of food loaded Hot weather Frequent opening of the refrigerator door Door not properly closed Improper temperature setting (see the section “Functions”) Poor ventilation...
