MikroTik Metal 52 ac Manual

Metal 52 ac

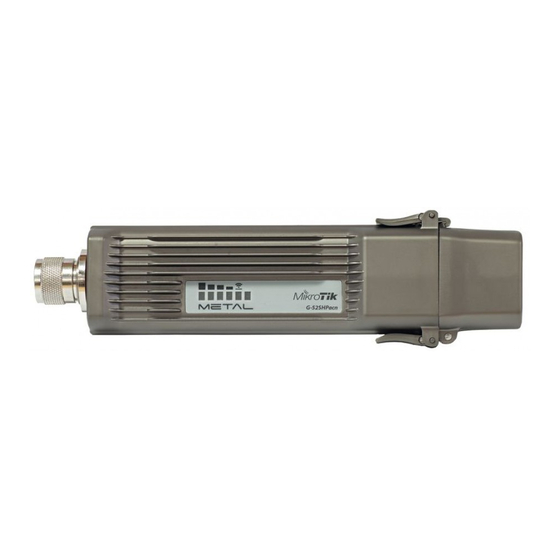

The RBMetalG-52SHPacn Metal comes preinstalled in an outdoor case, with a built-in wireless interface, an N-Male antenna connector, and one 10/100
/1000 Ethernet connector which supports MDI-X auto-detection. The device is packaged with a 24 V power adapter, a PoE injector, and two mounting
loops. Several models are available (dual-band, single band, AP and CPE variants).

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and damage to the system.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an
uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the
general public.

Connecting

1. Connect the antenna to the N-Male connector (see "
2. Open the cover of the Ethernet port (see "
3. Guide your cable through the cover and connect to the Ethernet port. (see "
4. The device accepts 10-30 V Passive PoE from a PoE injector. The included injector should be connected with the "Data" end into a PC, the "Data
+ Power" port should be connected to the device, by using an Ethernet cable of the desired length (not included);
5. Use the provided rubber insulator to put on the Ethernet cable, and push it into the case opening, so that the opening is tightly closed;
6. Download the configuration tool
7. Open WinBox Neighbors tab;
8. Search for the device and connect using MAC address;
9. Default IP: 192.168.88.1, user name:
10. Download the latest RouterOS software from
11. Choose MIPSBE packages, and save them to your PC;
12. Open WinBox and upload downloaded packages, drag and drop into any windows;
13. Restart the device;
14. Connect again and in
15. Secure your device and set a strong password;
MikroTik mobile app
Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point.
1. Scan QR code and choose your preferred OS.
2. Install and open applications.
3. By default, the IP address and user name will be already entered.
4.
Opening Ethernet cover
https://mt.lv/winbox ;
admin , no password (or, for some models, check user and wireless passwords on the sticker);
https://mikrotik.com/download
QuickSet menu set your Country, to apply country regulation settings;
Antenna usage ");
");
Opening Ethernet cover
;
");
