Interface Settings
Depending upon the installed Controller Board, the printer can be equipped with different
interfaces to connect to the host system. The possible interfaces are:
- Parallel Centronics
- Serial 232C
- USB
- Ethernet LAN 10/100
The following paragraphs describe how to configure the parameters of the interfaces.

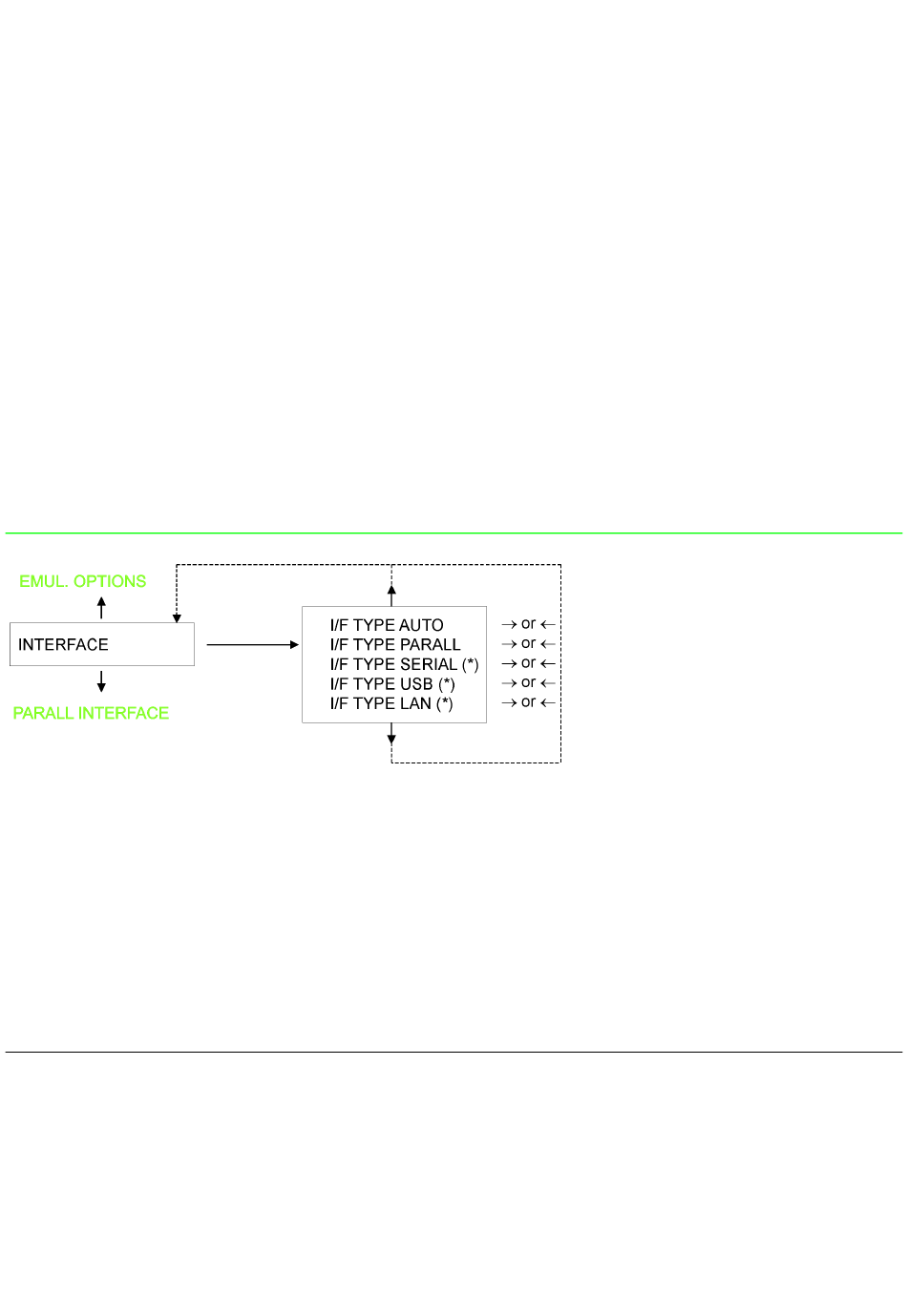

Interface
(*) This item is displayed only if the interface board (Controller Board) installed on the unit is
equipped with this interface.
All the interfaces installed onto the interface board (controller) are active and the hot
AUTO
port feature is operative.
Only the Centronics Parallel Interface is active. Hot Port is not operative.
PARALLEL
Only the Serial RS232 Interface is active. Hot Port is not operative.
SERIAL
Only the USB Interface is active. Hot Port is not operative.
USB
Only the Ethernet LAN Interface is active. Hot Port is not operative.
LAN
45
