SAFETY INFORMATION
WARNING
!
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
- Do not store or use gasoline or
other fl ammable vapors and liquids
in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your
building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
• If you cannot reach your gas
supplier, call the fi re department.
- Installation and service must be
performed by a qualifi ed installer,
service agency, or the supplier.
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or
mobile home, where not prohibited
by local codes.
This appliance is only for use with
the type of gas indicated on the
rating plate. This appliance is not
convertible for use with other gases,
unless a certifi ed kit is used.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
CSA /
INTERTEK
LOGO
$10.00
ADD MANUAL TITLE
INSTALLATION AND
OPERATION MANUAL
(MUST use title from Price Book)
NATURAL GAS MODELS: CBHDPNA / CBHD4STNA / CBHD4PGNA / CDBH4STGNA
PROPANE GAS MODELS: CBHDPPA / CBHD4STPA / CBHD4PGPA / CDBH4STGPA
ADD PRODUCT IMAGE
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES
IF SEPARATE MANUALS, ADD "PLACE BARCODE
Product Name / Code
Builder Series
NATURAL GAS MODELS: ADD PRODUCT CODE HERE
PROPANE GAS MODELS: ADD PRODUCT CODE HERE
ADD ____ ILLUSTRATED
CBHD4ST ILLUSTRATED
FOR INDOOR USE ONLY
IF INSTALLATION + OPERATION,
ADD SERIAL NUMBER LABEL HERE.
LABEL ON THE OWNER'S MANUAL"
ENGLISH
W415-4051 / C / 06.29.22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

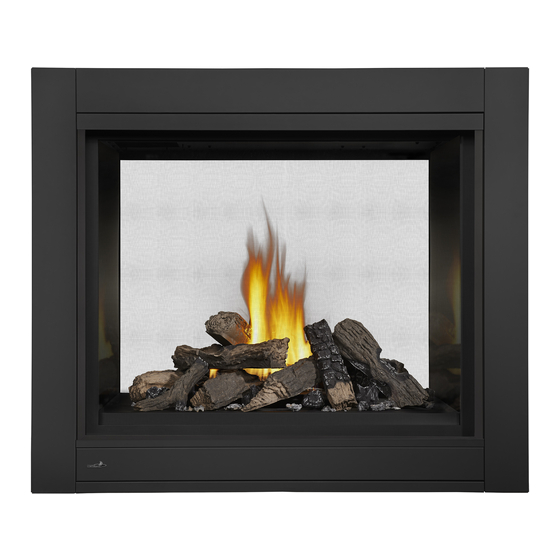

Related Manuals for Continental Fireplaces Builder CBHDPNA
Summary of Contents for Continental Fireplaces Builder CBHDPNA
- Page 1 ENGLISH ADD MANUAL TITLE INSTALLATION AND SAFETY INFORMATION WARNING OPERATION MANUAL Product Name / Code FIRE OR EXPLOSION HAZARD (MUST use title from Price Book) Builder Series Failure to follow safety warnings exactly could result in serious NATURAL GAS MODELS: ADD PRODUCT CODE HERE injury, death, or property damage.
- Page 2 safety information WARNING DANGER • This appliance is hot when operated and can cause severe burns if contacted. • Any changes or alterations to this appliance or its controls can be dangerous and is prohibited. HOT GLASS WILL CAUSE • Do not operate appliance before reading and BURNS.
- Page 3 • Do not allow wind or fans to blow directly into the appliance. Avoid any drafts that alter burner fl ame patterns. RAAK HET GLAS NIET AAN TOT HET IS AFGEKOELD. DUTCH safety information LAAT KINDEREN NOOIT HET GLAS AANRAKEN. WARNING Dit apparaat is voorzien van een barrière die is ontworpen om het risico van brandwonden door het hete kijkglas te beperken.
-
Page 4: Table Of Contents
table of contents general information 11.0 finishing rating plate / lighting instruction location 8 11.1 shipping bracket mobile home installation 11.2 main safety barrier removal / installation dimensions 11.3 end safety barrier removal / installation venting requirements (CBHD4PA only) typical vent installations 11.4 main door removal / installation special vent installations... - Page 5 standard checklist Installer: please fill out the following information Customer: Address: Date of Installation: Location of appliance: Installer: Dealer/Distributor contact number: Serial #: Model: CBHD4PNA CBHD4STNA CBHD4PPA CBHD4STPA Natural Gas: Propane: CBHD4PGNA CBHD4STGNA CBHD4PGPA CBHD4STGPA Fuel Type Natural Gas Propane Altitude (FT) 0-4,500 Max.
-
Page 6: General Information
general information 1.0 general information When the appliance is installed at elevations above 4,500ft (1372m), and in the absence of specific recommendations from the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of 4% for each additional 1,000ft (305m). - Page 7 general information WARNING • Always light the pilot whether for the first time or if the gas supply has run out, with the glass door opened or removed. • Provide adequate clearance for servicing and operating the appliance. • Provide adequate ventilation. •...
-
Page 8: Rating Plate / Lighting Instruction Location
general information rating plate / lighting instruction location WARNING • Allow the appliance to cool before performing any maintenance or cleaning. note: Screen must be removed to access rating plate / lighting instructions. Both the rating plate and lighting instructions are attached to a cable and located behind the control panel of the appliance. -
Page 9: Dimensions
2.0 dimensions dimensions 25 1/8" 638mm 8" 203mm 5" 12 13/16" 325mm 127mm RIGHT LEFT 34 3/16" SIDE SIDE SAFETY BARRIER 868mm 38 1/4" 841mm 2 1/16" 53mm 7 9/16" 43 1/4" 1099mm 192mm 7 9/16" GAS INLET 192mm CBHD4P ILLUSTRATED BHD4P ILLUSTRATED ELECTRICAL INLET 8"... -
Page 10: Venting Requirements
venting requirements 3.0 venting requirements WARNING • Risk of fi re. Maintain specifi ed air space clearances to vent pipe and appliance. • The vent system must be supported every 3’(0.9m) for both vertical and horizontal runs. Use support ring assembly WARNING W010-0067 or equivalent non-combustible strapping to maintain the minimum clearance to combustibles for both vertical and horizontal runs. - Page 11 cept for the exhaust vent pipe connection to the appliance fl ue collar which must be sealed using the black high temperature sealant Mill Pac. For all vent systems is strongly recommend for all installations but required when power venting the appliance, that the outer venting requirements air intake joints are sealed using either high temperature silicone (RTV) or a suitable aluminum tape that covers each joint in the vent system entirely around its circumference.
-
Page 12: Typical Vent Installations
venting requirements typical vent installations 16" min (40.6cm) 40 FT (12m) 36" (91.4cm) 24" (61cm) 38 1/4" 43" (109.2cm) (97.2cm) MIN PLUS RISE* When venting, the horizontal run must be kept to a When terminating vertically, the vertical rise is a maximum of 20 feet (6m). -
Page 13: Special Vent Installations
venting requirements special vent installations 3.2.1 periscope termination Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when fi nal grading is completed, the bottom air slot is located a 12" minimum of 12”... -
Page 14: Converting From 5/8" To 4/7" Venting
venting requirements converting from 5/8" to 4/7" venting Use Mill Pac to seal adapter to the appliance collars. Ue Mill Pac to seal adapter to the appliance collars. Use Mill Pac to seal adapter to the appliance collars. note: Depending on your adaptor kit, the 4/7" venting components may not come pre-assembled. W415-4051 / C / 06.29.22... -
Page 15: Vent Terminal Clearances
venting requirements vent terminal clearances Covered balcony applications ††* ≤ 15 feet = 3 feet = 2 x ACTUAL (0.9m) (4.6m) note: INSTALLATIONS Wall terminals are for illustration purposes only. Size and shapes may vary. Wall terminal CANADA U.S.A. measurements taken from the exhaust outlet, not the mounting plate. 12”... -
Page 16: Vent Application Flow Chart
venting requirements vent application flow chart Top Exit Horizontal Termination Vertical Termination Vertical rise is equal Vertical rise is equal Vertical rise is less Vertical rise is less to or greater than the to or greater than the than horizontal run than horizontal run horizontal run horizontal run... -
Page 17: Horizontal Termination
venting requirements horizontal termination ) < (V See graph to determine the required vertical rise V for the required Simple venting configuration (only one 45° horizontal run H and 90° elbow) 39 (11.9) REQUIRED 30 (9.1) VERTICAL RISE IN FEET 20 (6.1) (METERS) V 10 (3.1) - Page 18 venting requirements ) > (V Simple venting configuration (only one See graph to determine the required vertical rise V for the 45° and 90° elbow) required horizontal run H 12.3 (3.8) REQUIRED 8.3 (2.5) VERTICAL RISE IN FEET (METERS)V 4.8 (1.5) 4.2 (1.3) (1.5) (4.6)
-
Page 19: Vertical Termination
venting requirements vertical termination ) < (V Simple venting configurations. See graph to determine the required vertical rise V for the required horizontal run H 40 (12.2) 30 (9.1) REQUIRED VERTICAL RISE 20 (6.1) IN FEET (METERS) V 10 (3.1) 3 (0.9) 10 (3.1) (1.5) - Page 20 venting requirements ) > (V Simple venting configurations. See graph to determine the required vertical rise V for the required horizontal run H 20 (6.1) 19 (5.8) REQUIRED VERTICAL RISE IN FEET 10 (3.1) (METERS) V 3 (0.9) (7.6) (9.1) (1.5) (3.1) (4.6)
-
Page 21: Framing
framing 4.0 framing note: When using optional fi nishing accessories, the framing dimensions and fi nishing materials may differ from what is outlined in the section below; refer to the leafl et instructions supplied in the accessory kit for specifi c framing and fi nishing specifi cations. -
Page 22: See-Thru Framing (Cbhd4Sta)
framing framing 4.1.1 see-thru framing (CBHD4STA) A: MIN 22 1/8" (56.2cm) 46 1/2" MAX 24 1/8" (61.3cm) [118cm] 45 1/2" [115.6cm] 4.1.2 peninsula framing (CBHD4PA) A: MIN 22 1/8" (56.2cm) MAX 24 1/8" (61.3cm) B: MIN 42 1/2" (108cm) MAX 43 1/2" (110.5cm) note: All framing dimensions are based on the finishing material supports position. -
Page 23: Minimum Clearance To Combustible Enclosures
framing minimum clearance to combustible enclosures IMPORTANT: This appliance requires a minimum inside enclosure height of 50" (127cm), measured from the bot- tom of the appliance. For temperature requirements, this area must be left unobstructed. note: This appliance has a maximum load bearing weight of 250lbs (113kg). IMPORTANT: The firestop assembly provided must be used when the vent pipes pass through any Combustible walls or are terminated horizontally. -
Page 24: Venting Installation
venting installation 5.0 venting installation WARNING • Ensure to unpack all loose materials from inside the fi rebox prior to connecting the gas and electrical supply • If your appliance is supplied with a remote, ensure the remote receiver is in the “OFF” position prior to connecting the gas and electrical supply to the appliance. - Page 25 venting installation 4. Roll the vent sleeve as shown and ensure to clip the ends together (Figure 4). 5. Ensure both ends line up and secure ends with clip and fasteners (Figure 5). Fig. 4 Fig. 5 6. Insert the vent sleeve tabs into the firestop spacer slots then bend the tabs over to secure to the firestop spacer along with 4 supplied fasteners (Figure 6).
-
Page 26: Horizontal Installation
venting installation horizontal installation WARNING • The fi restop assembly must be installed with the vent shield to the top. • Terminals must not be recessed into a wall or siding more than the depth of the return fl ange of the mounting plate. -
Page 27: Vertical Installation
venting installation vertical installation This application occurs when venting through a roof. Installation kits for various roof pitches are available from your authorized dealer / distributor. See the “accessories” section to order specifi c kits required. A. Determine the air terminal location, cut and frame a square opening, as illustrated, in the ceiling and the roof to provide the minimum 1"... -
Page 28: Using Flexible Vent Components
venting installation using flexible vent components WARNING • Do not allow the inner fl ex pipe to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. • Spacers are attached to the inner fl ex pipe at predetermined intervals to maintain an even air gap to the outer fl ex pipe. -
Page 29: Horizontal Air Terminal Installation
Outer Flex Pipe 2" (50.8mm) Overlap Red RTV Silicone venting installation Screws (Supplied) 5.4.1 horizontal air terminal installation Stretch the inner fl ex pipe to the required length taking Screws ADD FASTENER TYPE into account the additional length needed for the fi nished Red RTV Silicone Inner Coupler wall surface. -
Page 30: Vertical Air Terminal Installation
venting installation 5.4.2 vertical air terminal installation WARNING • Maintain a minimum 2” (51mm) space between the air inlet base and the storm collar. note: Fastening hardware provided with appropriate roof terminal and liner kits. Fasten the roof support to the roof using 6 screws. The roof support is optional. - Page 31 6.0 electrical information electrical information hard wiring connection It is necessary to hard wire this appliance. Permanently framing the appliance with an enclosure, requires the appliance junction box to be hard wired. This appliance must be electrically connected and grounded in accordance with local codes. In the absence of local codes, use the current CSA C22.1 Canadian electrical code in Canada or the ANSI/NFPA national electrical code in the United States.
-
Page 32: Electrical Information
electrical information battery back-up installation note: In the event of a power failure, your appliance can be operated using the supplied battery back-up. A. Remove the safety screen and door, refer to "main safety barrier removal / installation" and "main door removal / installation"... -
Page 33: Wiring Diagram
electrical information wiring diagram WARNING • Do not wire 110 volts to the valve or wall switch. ILOT SSEMBLY W010-3037 (NG) GNITION W010-3040 (P) ODULE W190-0135 3/16” IRE TAGS ARE BRACKETED ROUND ÉLECTRODE ILOT VEILLEUSE 1/4” 3/8” - 1/2” (9,5mm - 12,7mm) LA SONDE ATTERY DE FLAMME... -
Page 34: Gas Installation
electrical information 7.0 gas installation WARNING • Risk of fi re, explosion, or asphyxiation. Ensure there are no ignition sources such as sparks or open fl ames. • Support gas control when attaching gas supply pipe to prevent damaging gas line. •... -
Page 35: Nailing Tab Installation
8.0 nailing tab installation nailing tab installation Nailing tabs are provided as part of the frames, as shown. To determine the final location and where to bend the nailing tabs you must first determine the thickness of your finishing material (i.e. NAILING IMAGE drywall). - Page 36 9.0 operation operation WARNING • If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. • If applicable, always light the pilot whether for the first time or if the gas supply has run out with the glass door opened or removed.
-
Page 37: Operating Instructions
operating instructions 10.0 operating instructions When lit for the first time, the appliance will emit a slight odour for a few hours. This is a normal temporary condition caused by the “burn-in” of internal paints and lubricants used in the manufacturing process and will not occur again. -
Page 38: Finishing
finishing 11.0 finishing WARNING • Risk of fire! • Never obstruct the front opening of the appliance. • The front of the appliance must be finished with any non-combustible materials such as brick, marble, granite, etc., provided that these materials do not go below the specified dimension, as illustrated. •... -
Page 39: End Safety Barrier Removal / Installation (Cbhd4Pa Only)
finishing 11.3 end safety barrier removal / installation (CBHD4PA only) note: One of the main safety barriers must be removed prior to end barrier removal, see "main safety barrier removal / installation" section. Remove the 4 securing screws from the top and bottom of the end screen retainer, refer to Figure 1. Pull the safety barrier forward and out from the appliance, refer to Figure 2. -
Page 40: Main Door Removal / Installation
finishing 11.4 main door removal / installation WARNING • Glass may be hot. Do not touch glass until cooled. • If equipped with door latches that are part of a safety system, they must be properly engaged. Do not operate the appliance with latches disengaged. •... -
Page 41: End Door Removal / Installation (Cbhd4Pa Only)
finishing 11.5 end door removal / installation (CBHD4PA only) note: One of the main safety barriers and doors must be removed prior to end barrier removal, see "main safety barrier removal / installation" section and "main door removal / installation" sections for detailed instructions. Remove the 6 screws securing the end door in place, as shown below. -
Page 42: Installing Combustible Board
finishing 11.7 installing combustible board WARNING • The surface above the appliance gets very hot. If proper finishing materials are not used, cracking can occur. • Ensure clearances are maintained for surround removal, as it must lift off the appliance for maintenance. BHD4ST BHD4P SIDE... -
Page 43: Finishing Support Adjustment
finishing 11.7.1 finishing support adjustment Depending on the finishing material we have allowed from 0" (0mm) to 1" (25mm) of adjustment after the 1/2" (13mm) combustible board has been installed. Loosen the 8 screws on each finishing support. Adjust the finishing support to the desired position. -
Page 44: Minimum Mantel Clearances
12” (304,8mm) 4” (101,6mm) 10” (254mm) 6” (152,4mm) 8” (203,2mm) 8” (203,2mm) finishing 6” (152,4mm) 10” (254mm) 11.8 minimum mantel clearances WARNING • Risk of fi re. Maintain all specifi ed air space clearances to combustibles. Failure to comply with these instructions may cause a fi re or cause the appliance to overheat. -
Page 45: Non-Combustible Facing Material
finishing 11.9 non-combustible facing material WARNING WARNING Non-combustible facing material must not project more than 4” (101.6mm) from the face of the door (all four Non-combustible facing material must not project more than 4” (101.6mm) from the face of the d sides). -
Page 46: Log Placement
finishing 11.10 log placement WARNING • Failure to position the logs in accordance with these diagrams or failure to use only logs specifi cally approved with this appliance may result in property damage or personal injury. • Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since appliance may not function properly and delayed ignition may occur. - Page 47 finishing 7. Place log #6 onto the pin located on the right side corner of the burner, then place one pin into middle of the log #6 and log #5 (Fig. 6). Fig. 6 note: Ensure log #6 does not cover any burner ports. 8.
-
Page 48: Glowing Embers
finishing 11.10.1 glowing embers WARNING • Completely blocking the burner ports can cause an incorrect fl ame pattern, carbon deposits and delayed ignition. Tear the embers into pieces and loosely layer above the burner ports covering the burner area. Care should be taken to shred the embers into thin, small irregular pieces as only the exposed edges of the fi bre hairs will glow. -
Page 49: Glass Media Installation
finishing 11.11 glass media installation WARNING • Clean the glass media prior to installation. Before applying the cleaned glass, ensure that it is dry. • Do not change or substitute the glass media material provided with this appliance. If replacing, use only the replacement glass media available from your local authorized dealer / distributor. -
Page 50: Adjustments
12.0 adjustments adjustments 12.1 check pressure readings Inlet pressure can be checked by turning screw (A) counter-clockwise 2 or 3 turns and then placing pressure gauge tubing over the test point. Gauge should read as described on the chart below. Check pressure with main burner operating on “HI”. -
Page 51: Flame Characteristics
adjustments 12.4 flame characteristics FLAME SENSOR PILOT BURNER 3/8” - 1/2” PILOT FLAME (9.5mm - 12.7mm) It’s important to periodically perform a visual check of BURNER SENSOR the pilot and burner flames. Compare them to the ELECTRODE ADD IMAGE illustration provided. If any flames appear abnormal, ELECTRODE call a service person. -
Page 52: Maintenance
13.0 maintenance maintenance WARNING • Turn off the gas and electrical power before servicing the appliance. • Appliance may be hot. Do not service until appliance has cooled. • Do not use abrasive cleaners on glass. • Do not paint the pilot assembly. This appliance and its venting system should be inspected before use and at least annually by a qualifi ed service person. -
Page 53: Care Of Glass
maintenance 13.1 care of glass WARNING • Do not clean glass when hot! Do not use abrasive cleaners to clean glass. Buff lightly with a clean dry soft cloth to remove accumulated dust or fi ngerprints. Clean both sides of the glass after the fi rst 4 hours of operation with an ammonia-free glass cleaner. -
Page 54: Glass / Door Replacement
maintenance 13.3 glass / door replacement WARNING • Do not use substitute materials. • Glass may be hot. Do not touch glass until cooled. • Care must be taken when removing and disposing of any broken door glass or damaged components. Be sure to vacuum up any broken glass from inside appliance before operation. -
Page 55: Glass Burner Removal
maintenance 13.4.2 glass burner removal Remove the main door(s) from the appliance, see "main door removal / installation" section for detailed removal instructions. Vacuum the glass media out of the appliance. Ensure you insert a clean bag into your vacuum cleaner. Remove the 12 screws securing the media tray, then remove the media tray from the appliance, as shown below. -
Page 56: Replacement Parts
replacement parts 14.0 replacement parts WARNING • Failure to position the parts in accordance with this manual or failure to use only parts specifi cally approved with this appliance may result in property damage or personal injury. • **This is a fast acting thermocouple. It is an integral safety component. Replace only with a fast acting supplied by Wolf Steel Ltd. -
Page 57: Cbhd4Pa Overview
replacement parts W415-4051 / C / 06.29.22... -
Page 58: Cbhd4Sta Overview
replacement parts W415-4051 / C / 06.29.22... -
Page 59: Glass Burner Assembly
replacement parts W415-4051 / C / 06.29.22... -
Page 60: Glass Burner Valve Train Assembly
replacement parts W415-4051 / C / 06.29.22... -
Page 61: Log Burner Assembly
replacement parts W415-4051 / C / 06.29.22... -
Page 62: Log Burner Valve Train Assembly
replacement parts W415-4051 / C / 06.29.22... -
Page 63: Accessories
15.0 accessories accessories W415-4051 / C / 06.29.22... -
Page 64: Troubleshooting
troubleshooting 16.0 troubleshooting WARNING • Always light the pilot whether for the fi rst time or if the gas supply has run out, with the glass door open or removed. • Turn off gas and electrical power before servicing the appliance. •... - Page 65 in room, headaches. (This is not applicable in outdoor Check for exhaust damage. Check that venting is installed correctly. appliances). Room is in negative pressure; increase fresh air supply. troubleshooting symptom problem test solution Pilot will not light. Makes Wiring: short, loose, or damaged Verify the thermocouple/sensor is clean and the wiring is undamaged.
- Page 66 Remote too far away from receiver. Refer to “wiring diagram” section. Remote too far away from receiver. Refer to “wiring diagram” section. Wire connector pins are bent. Straighten pins. Wire connector pins are bent. Straighten pins. Valve wiring is damaged. Replace valve.
-
Page 67: Warranty
warranty 17.0 warranty Continental® products are manufactured under the strict standard of the world recognized ISO 9001 : 2015 Quality Management System. Continental® products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fi red at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from Continental®.
