INSTALLER: THESE INSTRUCTIONS MUST BE CONVEYED TO AND REMAIN WITH THE HOMEOWNER.
CDV36TR CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS, CSA 2.33, AND ANSI Z21.88 RESPECTIVELY FOR GAS FIRED SPACE HEATING APPLIANCES.
BCDV36TR CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS, CSA 2.22, AND ANSI Z21.50 RESPECTIVELY FOR VENTED GAS FIREPLACES.
NATURAL GAS MODEL
PROPANE GAS MODEL
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI / AGA / CGA METHODS
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapours and liquids in the vicinity of
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
Installation and service must be performed by a qualified installer, service agency or the
Fax: (705)722-6031 Email: ask@napoleon.on.ca
Web: www.continentalfire.com
DIRECT VENT MILLIVOLT SYSTEM

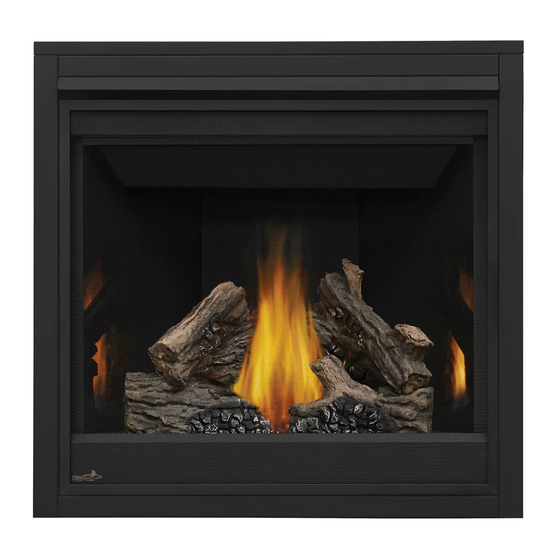

INSTALLATION AND OPERATION INSTRUCTIONS FOR
VENTED GAS FIREPLACE HEATER- CDV36_TR
VENTED GAS FIREPLACE - BCDV36_TR
FOR YOUR SAFETY
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
gas supplier.
Wolf Steel Ltd., RR#1, 9 Napoleon Rd.,
Barrie, ON., Canada L4M 4Y8 (705)721-1212
R-2000
CDV36NTR & BCDV36NTR
CDV36PTR & BCDV36PTR
• Immediately call your gas supplier from a
neighbour's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
1
W415-0211 / C / 03.20.01
Advertisement
Table of Contents
Related Manuals for Continental Fireplaces CDV36_TR
Summary of Contents for Continental Fireplaces CDV36_TR
-
Page 1: For Your Safety
BCDV36TR CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS, CSA 2.22, AND ANSI Z21.50 RESPECTIVELY FOR VENTED GAS FIREPLACES. DIRECT VENT MILLIVOLT SYSTEM INSTALLATION AND OPERATION INSTRUCTIONS FOR VENTED GAS FIREPLACE HEATER- CDV36_TR VENTED GAS FIREPLACE - BCDV36_TR CDV36NTR & BCDV36NTR NATURAL GAS MODEL CDV36PTR &... - Page 2 Warranty Door, Louvre & Trim Removal & Installation General Instructions Log Placement General Information Charcoal Embers Care of Glass & Plated Parts Optional Vermiculite Glowing Embers Venting Lengths Air Terminal Locations Typical Vent Installations Special Vent Installations Pre-Installation Preparation Operating Instructions Maintenance Wall and Ceiling Protection Using Flexible Vent Components...
-
Page 3: Conditions And Limitations
CONTINENTAL gas fireplaces are manufactured under the strict Standard of the world recognized ISO9002 Quality Assurance Certificate. CONTINENTAL products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. Once assembled the complete fireplace is thoroughly inspected by a qualified technician before packaging to ensure that you, the customer, receives the quality product that you expect from WOLF STEEL Ltd.. - Page 4 Minimum inlet gas supply pressure is 4.5 inches water col- umn for natural gas and 11 inches water column for propane. THIS GAS FIREPLACE SHOULD BE INSTALLED AND SERV- Maximum inlet gas pressure is 7 inches water column for ICED BY A QUALIFIED INSTALLER to conform with local natural gas and 13 inches water column for propane.
- Page 5 FIGURE 1b - SPECIFICATIONS FOR MODEL BCDV36 VENTING Use only Wolf Steel or Simpson Dura-Vent Model DV-GS venting components. Minimum and maximum vent lengths, for both horizontal and vertical installations, and air termi- nal locations for either system are set out in this manual and must be adhered to.
- Page 6 AIR TERMINAL INSTALLATIONS: FIGURE 2 Clearance above grade, veranda porch, deck or balcony. Clearance to windows or doors that open. Clearance to permanently closed windows. Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet from the centerline of the terminal. Clearance to unventilated soffit.
-
Page 7: Typical Vent Installations
TYPICAL VENT INSTALLATIONS REAR EXIT TOP EXIT FIGURES 3 When terminating vertically, the vertical rise is a minimum 36 inches and a maximum 40 feet from the centre of the fireplace flue outlet. When using rigid venting, this minimum vertical length may be reduced to 8½". - Page 8 W415-0211 / C / 03.20.01...
-
Page 9: Top Exit Horizontal Termination
for the following symbols used in the venting calcula- feet inches tions and examples are: 1° 0.03 15° 0.45 - greater than 30° 11.0 - equal to or greater than 45° 1.35 16.0 - less than 90°* 32.0 - equal to or less than - total of both horizontal vent lengths ( ) and offsets ) in feet... - Page 10 TOP EXIT / HORIZONTAL TERMINATION when > Simple venting configuration (only one 90° elbow) FIGURE 8 See graph to determine the required ver- tical rise V for the required horizontal run FIGURE 10 = 4 ft = 1.5 ft = 4 + 1.5 = 5.5 ft = 2 ft = 1 ft REQUIRED VER-...
-
Page 11: Rear Exit / Horizontal Termination
REAR EXIT / HORIZONTAL TERMINATION when Simple venting configuration (only two 90° elbows) FIGURE 12 FIGURE 11 See graph to determine the required vertical rise for the required horizontal run = 9 ft = 6 ft R E Q U I R E D = 9 + 6 = 15 ft VERTICAL RISE IN FEET (V... - Page 12 REAR EXIT / HORIZONTAL TERMINATION when Simple venting configuration (only two 90° elbows) FIGURE 13 FIGURE 14 See graph to determine the required vertical rise for the required horizontal run = 4 ft = 1.5 ft = 4 + 1.5 = 5.5 ft REQUIRED VER- = 2 ft TICAL RISE IN...
-
Page 13: Top Or Rear Exit Vertical Termination
TOP OR REAR EXIT VERTICAL TERMINATION when Simple venting configurations FIGURE 15 FIGURE 16 See graph to determine the required vertical rise for the required horizontal run = 5 ft = 10 ft R E Q U I R E D = 5 + 10 = 15 ft VERTICAL RISE IN FEET (V... - Page 14 TOP OR REAR EXIT VERTICAL TERMINATION when = 2 ft Simple venting configurations = 1 ft = 1.5 ft FIGURE 17 = 2 + 1 + 1.5 = 4.5 ft = 6 ft = 2 ft = 6 + 2 = 8 ft = .03(four 90°...
-
Page 15: Pre-Installation Preparation
PRE-INSTALLATION PREPARATION Remove the baffle from the back of the firebox (Model CDV36 Remove the baffle from the back of the firebox (Model CDV36 only) by removing the four screws. FIGURE 20. only) by removing the four screws. FIGURE 20. FIGURE 20 BAFFLE FIGURE 22... -
Page 16: Wall And Ceiling Protection
INSTALLATION WALL AND CEILING PROTECTION VERTICAL INSTALLA- FOR SAFE AND PROPER OPERATION OF THE FIREPLACE, TION: This application oc- FIGURE 25 FOLLOW THE VENTING INSTRUCTIONS EXACTLY. curs when venting through NOTE: REAR EXIT - A clearance to combustibles of a roof. Installation kits for 1"... -
Page 17: Using Flexible Vent Components
USING FLEXIBLE VENT COMPONENTS FIGURE 28 Spacers are attached to the 4" inner flex liner at prede- termined intervals to maintain a 1-1/4" air gap to the 7" FIGURE 27 outer liner. These spacers must not be removed. 1. Stretch the 4" diameter aluminium flexible liner to the required length taking into account the additional length 1. -
Page 18: Using Rigid Vent Components
6. Apply a heavy bead of weatherproof 1. Install the 4 inch diameter aluminium flexible liner to caulking 2 inches the fireplace. Secure with 3 screws and flat washers. Seal above the flashing. the joint and screw holes using the high temperature seal- Slide the storm collar ant provided. - Page 19 6. Remove nails from the shingles, above and to the sides of the chimney. Place the flashing over the air termi- Before attaching elbows to the collars on the back nal and slide it underneath the sides and upper edge of of the fireplace, 1½"...
- Page 20 Proceed once the vent installation is complete. It is best to frame your fireplace after it is positioned and the vent system is installed. Use 2x4's and frame to local build- 1. Move the fireplace into position and secure using the ing codes.
- Page 21 Combustible materials may Combustible mantle clearance can vary according to the be installed flush with the mantle depth. FIGURE 43. Use the graph to help evaluate front of the fireplace but must the clearance needed. Curtains, above the fireplace, must not cover or protrude past any not be positioned lower than the 2"...
- Page 22 PHAZER logs and glowing embers, exclusive to Conti- nental Fireplaces, provide a unique and realistic glowing effect that is different in every installation. Take the time to carefully position the glowing embers for a maximum glow- ing effect. Log colours may vary. During the initial use of the fireplace, the colours will become more uniform as colour pigments 3.
-
Page 23: Optional Blower Installation
OPTIONAL BLOWER INSTALLATION Tilt the blower onto its side. Slide it past the controls and into the clip (C). Secure to the threaded stud using the lock washer and wing nut provided. Ensure that the blower does not touch the fireplace base or the firebox. Attach the connectors from the black and white T H E R M O D I S C... -
Page 24: Optional Fan Installation
OPTIONAL FAN INSTALLATION If the fireplace was not previously equipped with a fan: ELECTRICAL INSTALLATION TO BE DONE BY A QUALI- route a grounded 2-wire, 60hz power cable to the junction FIED INSTALLER and must be connected and grounded box. At this point, it must be strain relieved and insulated. in accordance with local codes. -
Page 25: For Your Safety Read Before Lighting
OPERATION / MAINTENANCE After extended periods of non-operation such as following a vacation or a warm weather season, the fireplace may When lit for the first time, the fireplace will emit a slight emit a slight odour for a few hours. This is caused by dust odour for a few hours. - Page 26 ADJUSTMENTS Closing the air shutter will cause a more yellow flame, but can lead to carboning. Opening the air shutter will cause a Adjust the pilot screw to provide properly sized flame. Turn more blue flame, but can cause flame lifting from the burner in a clockwise direction to reduce the gas flow.
- Page 27 REPLACEMENTS When ordering replacement parts always give the follow- ing information: Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally all parts 1. M & S ODEL ERIAL UMBER OF FIREPLACE 2. I can be ordered through your Continental dealer or dis- NSTALLATION DATE OF FIREPLACE 3.
- Page 28 W010-0569 AIR TERMINAL W120-0036 VERTICAL CAP W170-0063 STORM COLLAR W010-0567 ROOF SUPPORT W263-0054 / W263-0055 / W263-0056 ROOF FLASHING GD225-1K / GD225-1PB / GD225-1AB GD2AB 2" TRIM KIT - ANTIQUE BRASS GD2PB 2" TRIM KIT - POLISHED BRASS GD3AB 3" TRIM KIT - ANTIQUE BRASS GD3PB 3"...
-
Page 29: Troubleshooting Guide
TROUBLE SHOOTING GUIDE EFORE ATTEMPTING TO TROUBLESHOOT PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR OPEN Main burner goes Pilot flame is not large - turn up pilot flame. out; pilot stays on. enough or not engulfing - replace pilot assembly. - Page 30 Pilot goes Gas piping is undersized. - turn on all gas appliances and see if pilot flame flutters, diminishes while standing; or extinguishes, especially when main burner ignites. Monitor appli- Main burner is in ance supply working pressure. 'OFF' position. - check if supply piping size is to code.
- Page 31 W415-0211 / C / 03.20.01...
- Page 32 NOTES: W415-0211 / C / 03.20.01...
