emaux FSF Series Installation & Operating Instruction

VALVE REPLACEMENT PARTS
Item Part No. Description
1 01013003
Handle Big
2 03018008 Pin for Handle
3 01181001 Washer for Handle
4 89280107 M6×30 Screw with Nut for Standard Lid
5 01013004 1 5 Top Mount Valve Standard Lid Black
6 02011002 O Ring for 1 5 Valve Lid
7 01181002 Washer for Spring
8 03014001 Spring for 1 5 Top Mount Valve
9 02011022
O Ring for 1 5 Valve Rotor
10 01021001 1 5 Valve Rotor
11 02311002 Spider Gasket
12 01013007 1 5 Top Mount Valve Bottom Body Clamp black
13 01013011 1 5 Diffuser
14 02011001 O Ring for Diffuser
15 01013012 1 5 Top Mount Valve Over Drain Diffuser
16 02011134 O Ring
17 02020013
O Ring for 1 5 Connector
18 01013015 1 5 Connector black
19 02011003 O Ring for 1 5 Union
20 01171153 1 5 Union A E
21 01013017 1 5 Union Nut black
22 01041002
1 5 Union With Sight Glass short
23 01172026 1 5 Union With Sight Glass Holder
01111048 Connector for pressure gauge stopper
24
02011139 O ring
25 89021703 Drain Plug with O ring
26 06011029 Oil Pressure Gauge With O ring 40Psi
Valve Position Function
FILTER Normal Filtration and Vacuuming
BACKWASH Cleaning Filter by reversing the flow
RINSE Used after backwash to flush dirt from valve
WASTE By-passes filter, used for vacuuming to waste or lowering water level
By-passes filter for circulating water to pool
RECIRCULATE
CLOSED Shuts off all flow to filter or pool
! THIS FILTER OPERATES UNDER HIGH PRESSURE. WHEN ANY PART OF THE CIRCULATING SYSTEM
(e.g., CLAMP, PUMP, FILTER, VALVES, ETC.) IS SERVICED, AIR CAN ENTER THE SYSTEM AND
BECOME PRESSURIZED . PRESSURIZED AIR CAN CAUSE THE LID OR VALVE TO BE BLOWN OFF
WHICH CAN RESULT IN SEVERE INJURY, DEATH, OR PROPERTY DAMAGE.
TURN PUMP OFF BEFORE CHANGING VALVE POSITION.
!
! TO PREVENT DAMAGE TO THE PUMP AND FOR PROPER OPERATION OF THE SYSTEM.CLEAN
PUMP STRAINER AND SKIMMER BASKETS REGULARLY.
! DO NOT UNSCREW SCREWS OF FLANGE CLAMP WHILE PUMP IS RUNNING.
Qty
1
1
1
6
1
1
1
1
2
1
1
1
1
1
1
1
3
3
3
2
3
1
1
1
1
1
1
WARNING
4-4

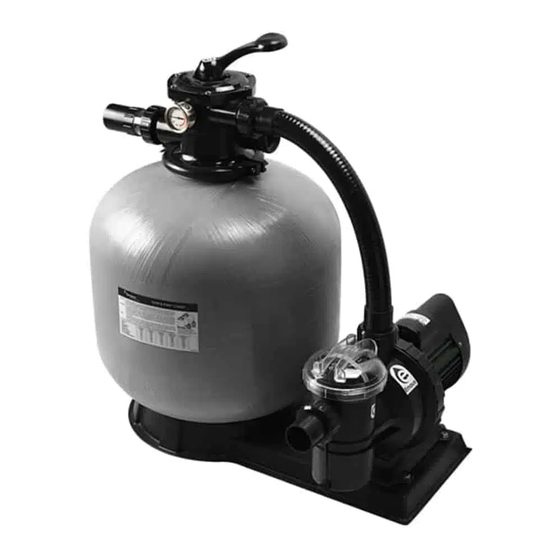

FSF500-6W / FSF650-6W
FILTER & PUMP COMBO
Installation & Operating Instruction
INSTALLATION
* Install filtration system including pump,filter tank and multiport valve.
* The filter system should be installed as close as possibie to the swimming pool and preferably at a
level of 0.50 metres below the surface of the water in the swimming pool. Make sure there is
drainage available at the place where the filter is to be installed.
* PUMP
1) Only qualified,licensed personnel should install pump and wiring.
2) Electrical Contractors Please Note:All 220 volt 60Hz pump must be wired to the main power supply
trough an approved and correctly rated contractor.
3) Allow for gate valve in suction piping.
4) Pump suction and discharge connections have moulded in thread stops,do not try to screw pipe in
beyond these stops.
* FILTER TANK and MULTIPORT VALVE
1) Loading the sand media.Filter sand media is loaded through the top opening of the filter.
a) Loosen the plastic clamps from tank neck.
b) Cap internal pipe with plastic cap to prevent sand from entering it.
c) We recommend filling tank approximately 1/2 way with water to provide a cushion effect when the
filter sand is poured in. This helps protect the under-drain laterals from excessive shock.
d) Carefully pour in correct amount and grade of filter sand.Be sure center pipe remains centered in
opening. Sand surface should be leveled and should come to about the middle of the filter
tank.Remove plastic cap from internal pipe.
2) Assemble filter control valve to filter tank.
a) Insert filter control valve(with O'ring in place)into the tank neck,taking care that the center pipe slips
into the hole in the bottom of the valve.
b) Place two plastic clamps around valve flange and tank neck and tighten just enough so that the valve
mayBe rotated on tank for final positioning.
c) Carefully screw pressure gauge(with O'ring in place)into tapped hole in valve body.Do not over-
tighten.
d) Connect pump to control valve opening marked PUMP with hose.After connections are
made,tighten clamps with screwdrive,tapping around clamp with screwdrive handle to help seat
valve flange clamp.
3) Make return to pool pipe connection to control valve opening marked RETURN and complete other
necessary plumbing connections,suction lines to pump,waste,etc.
4) To prevent water leakage,be sure all pipe connections are tight.
1-4
EMFS16100503
