CB Series Storage Cabinets
(A) Right Hand Back
(B) Left Hand Back
(F) Bottom

Safety Instructions

Safety Instructions
Safety Instructions
Use Caution when handling and assembling metal parts. The metal may have sharp edges or corners. The use of pro-
tective gloves is recommended. Do not use this unit for anything that is outside the designed function of storage. Do
not store loose or heavy items on the top shelves or on the top of the unit, for they create a falling hazard that can injure
yourself or others. Always remember to use proper lifting techniques when moving either the boxed or assembled unit.

General instructions

General instructions
General instructions
It is recommended that the cabinets are assembled by more than one person. Use of a raised flat surface during
assembly is highly recommended. During shipping and handling, some of the tabs that are used for assembly may
have closed together. Use a flat tipped screwdriver to either pry up or push from behind the tab to re-open. To as-
sure the squareness of the unit, do not fully tighten the nuts and screws used in the assembly until all are in place.
After all nuts and screws are in place, square the unit and tighten all nuts and screws appropriately. Make sure that
the unit is placed on a level surface, as this may effect the performance of the unit.

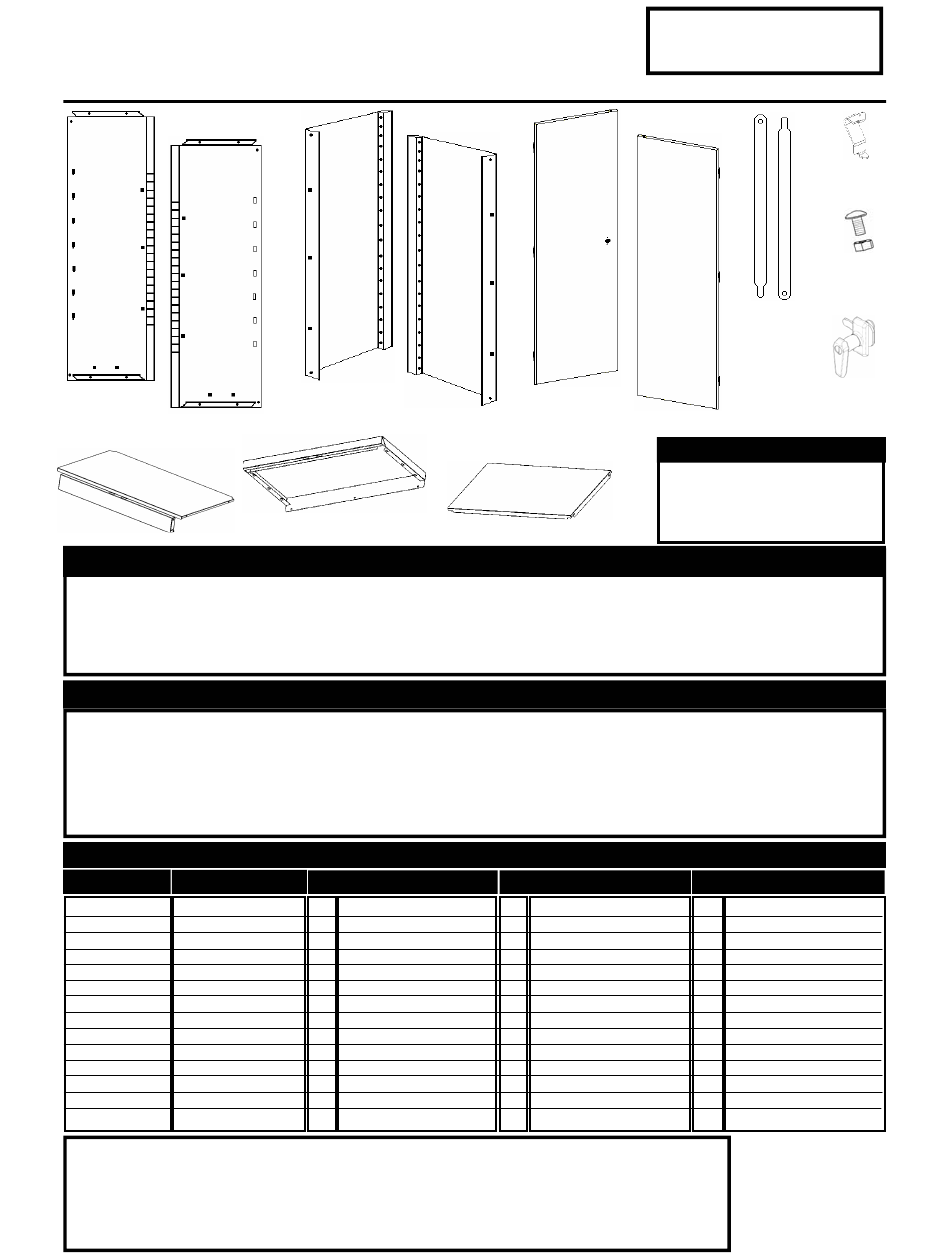

Part List & Product Specification : CB6600 CB7000 & CB7001 Series Storage Cabinets
Part List & Product Specification : CB6600 CB7000 & CB7001 Series Storage Cabinets
Part List & Product Specification : CB6600 CB7000 & CB7001 Series Storage Cabinets
Reference
Reference
Reference
Description
Description
Description
A
Right Hand Back
B
Left Hand Back
C
Right Hand Side
D
Left Hand Side
E
Top
F
Bottom
G
Shelves
H
Shelf Clips
I
Right Hand Door
J
Left Hand Door
K
Door Rods
L
Screws (unslotted)
M
Nuts
N
Handle
Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel free to contact
our Edsal manufacturing facility at, (773) 475-3000 and request customer service. We can also be reached on the internet
at the following email address : customerservice@edsal.com.
To obtain replacement parts, please provide the following information :
- Model #
(C) Right Hand Side
(D) Left Hand Side
(E) Top
CB6600
-
3 Shelf
72"h x 18"d x 36"w
CB6600
CB6600
-
-
3 Shelf
3 Shelf
72"h x 18"d x 36"w
72"h x 18"d x 36"w
1
CCBK6615R
1
CCBK6615L
1
CCSD6519R
1
CCSD6519L
1
CCTO3520
1
CCBO3021
3
CCSH3116
6
7000CLP
1
CCDO6115R
1
CCDO6115L
2
CCDR2900
12
F102438S
12
F1024N
1
201L
- Part # & Description
- Location Purchased
(I) Right Hand Door
(J) Left Hand Door
- 3/8" Socket or Nut Driver
- Small Blade Screwdriver
- Tipped Screwdriver (hole & tab
opening assistance)
(G) Shelves
(patent pending)
(patent pending)
(patent pending)
CB7000
-
4 Shelf
72"h x 18"d x 36"w
CB7000
CB7000
-
-
4 Shelf
4 Shelf
72"h x 18"d x 36"w
72"h x 18"d x 36"w
1
CCBK7218R
1
CCBK7218L
1
CCSD7122R
1
CCSD7122L
1
CCTO4123
1
CCBO3624
4
CCSH3719
8
7000CLP
1
CCDO6718R
1
CCDO6718L
2
CCDR3200
12
F102438S
12
F1024N
1
201L
- Date Purchased
MODEL NUMBER (s)
CB6600 - CB7000 - CB7001
Page 1
(H) Shelf Clips
(L) Screws
(M) Nuts
(K) Door Rods
(N) Handle

Required Tools

Required Tools
Required Tools
CB7001
CB7001-
-
2 Shelf
2 Shelf
42"h x 18"d x 36"w
42"h x 18"d x 36"w
CB7001
-
2 Shelf
42"h x 18"d x 36"w
1
CCBK4218R
1
CCBK4218L
1
CCSD4122R
1
CCSD4122L
1
CCTO4123
1
CCBO3624
2
CCSH3719
4
7000CLP
1
CCDO3718R
1
CCDO3718L
2
CCDR1200
12
F102438S
12
F1024N
1
201L
Consumer Products Division
Edsal Manufacturing Company
4400 South Packers Avenue
Chicago, IL 60609
www.edsal.com
