Edsal Muscle Rack UR184884WR6 Quick Start Manual

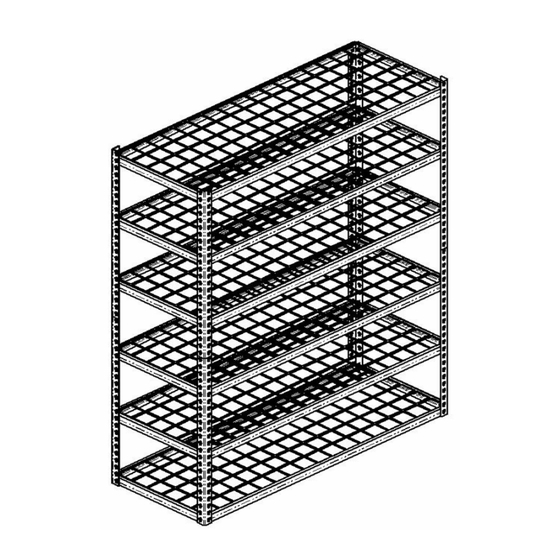

UR184884WR6 6 Shelf UR184884WR6 6 Shelf UR184884WR6 6 Shelf
Description Qty.
A - Beams 12
B - Braces 12
C - Top Post 4
D - Bottom Post 4
E - Wire Deck 6
F - Coupler 4
Safety Instructions
Safety Instructions Safety Instructions
These units should be placed on a level surface. Failure to do so can result in poor product performance or create a
possible safety hazard. This unit should be securely anchored to a wall or floor with suitable fasteners, which are not
included. Do not use this unit for anything other than the manufactures intended purpose. DO NOT STAND ON ANY
PART OF THE UNIT, OR USE IT AS A LADDER. Evenly distribute the weight on each level and always keep the
heavier loads on the bottom. Use care when working with metal parts.
General Instructions
General Instructions General Instructions
Assembly is done with the rivets of the beams and braces fitting into the slots of the post. A rubber mallet may be used
on the beams and braces to seat the rivets properly. A hammer can also be used, providing one uses a cloth or a block
of wood between the hammer head and the parts to prevent damage. Tap gently and be sure the rivets are straight and
fully engaged.
Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel
free to contact our Muscle Rack manufacturing facility at, (773) 475-3000 and request customer service.
We can also be reached on the internet at the following email address : customerservice@edsal.com.
To obtain replacement parts, please provide the following information :
- Model # - Part # & Description
Heavy Duty Shelving
B - Braces
- - - 84"h x 18"d x 48"w 84"h x 18"d x 48"w 84"h x 18"d x 48"w
Part Number Part Size
RUBE 4702 47 7/16"
RUBE 1702 17 7/16"
RCPT3605S 36"
RCPT4805S 48"
WD1848 18" x 48"
RMPC0409 N/A
- Location Purchased
A - Beams
E - Wire Deck
- Date Purchased
MODEL NUMBER
UR184884WR6
C - Top
Post
D - Bottom
Post
F - Post Coupler
Consumer Products Division
Edsal Manufacturing Company
Made In China
4400 South Packers Avenue
Chicago, IL 60609 www.edsal.com
