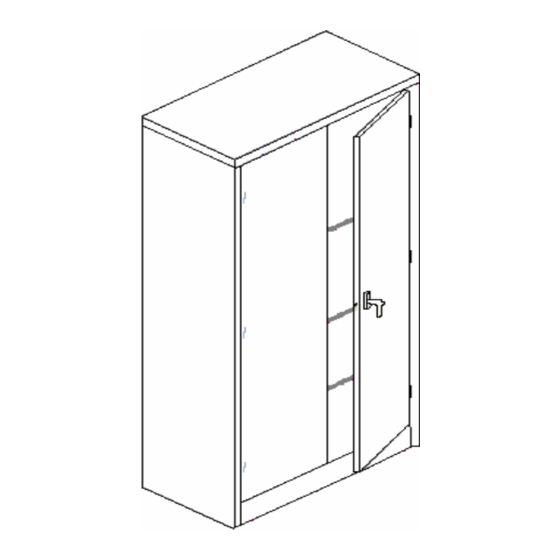

Edsal 7000 Assembly Instructions

(A) Right Hand Back
(B) Left Hand Back
(E) Top
Safety Instructions Safety Instructions
Safety Instructions
Use Caution when handling and assembling metal parts. The metal may have sharp edges or corners. The
use of protective gloves is recommended. This unit should be securely anchored to a wall with suitable fas-
teners. Do not use this unit for anything that is outside the designed function of storage. Do not store loose
or heavy items on the top shelves or on the top of the unit, for they create a falling hazard that can injure
yourself or others. Always remember to use proper lifting techniques when moving either the boxed or as-
sembled unit.
General instructions General instructions
General instructions
It is recommended that the cabinets are assembled by more than one person. The use of a raised flat surface dur-
ing assembly is highly recommended. During shipping and handling, some of the tabs that are used for assembly
may have closed together. Use a flat tipped screwdriver to either pry up or push from behind the tab to re-open.
Make sure that the unit is placed on a level surface, as this may effect the performance of the unit.
Part List & Product Specification : Edsal 7000 Series Quick Assemble Storage Cabinets
Part List & Product Specification : Edsal 7000 Series Quick Assemble Storage Cabinets Part List & Product Specification : Edsal 7000 Series Quick Assemble Storage Cabinets
Reference
Reference Reference Description Description
Description
A Right Hand Back
B Left Hand Back
C Right Hand Side
D Left Hand Side
E Top
F Bottom
G Shelves
H Shelf Clips
I Right Hand Door
J Left Hand Door
K Door Rods
L Kick Plate
M Handle
N Anchor Hardware
Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel free to contact our Edsal
manufacturing facility at, (773) 475-3000 and request customer service. We can also be reached on the internet at the following email
To obtain replacement parts, please provide the following information :
- Model #
Quick Assemble Storage Cabinets
(C) Right Hand Side
(D) Left Hand Side
(F) Bottom
7000 - 4 Shelf – 72"h x 18"d x 36"w
7000 7000 - - 4 Shelf 4 Shelf – – 72"h x 18"d x 36"w 72"h x 18"d x 36"w
1 CBBK7218R KA
1 CBBK7218L KA
1 CBSD7222R KA
1 CBSD7222L KA
1 CBTO3922 KA
1 CBBO3718 KA
4 CCSH3719
8 7000CLP
1 CBDO6718R KA
1 CBDO6718L KA
2 CCDR3325 KA
1 CBKP3606 KA
1 201L
2 TB2
address : customerservice@edsal.com.
- Part # & Description - Location Purchased
(I) Right Hand Door
(J) Left Hand Door
- Rubber Mallet
- Small Blade Screwdriver
- Small Philips Screwdriver
(G) Shelves
(patent pending)
(patent pending) (patent pending)
7001 2 Shelf – 42"h x 18"d x 36"w
7001- 7001 - - 2 Shelf 2 Shelf – – 42"h x 18"d x 36"w 42"h x 18"d x 36"w
1 CBBK4218R KA
1 CBBK4218L KA
1 CBSD4222R KA
1 CBSD4222L KA
1 CBTO3922 KA
1 CBBO3718 KA
2 CCSH3719
4 7000CLP
1 CBDO3718R KA
1 CBDO3718L KA
2 CCDR1825 KA
1 CBKP3606 KA
1 201L
2 TB2
- Date Purchased
MODEL NUMBER (s)
7000 - RTA7000- 7000KA
7001– RTA7001- 7001KA -
7005 - RTA7005 - 7005KA
Page 1
(M) Handle
(L) Kick Plate
(K) Door Rods
(N) Anchor Hardware
(H) Shelf Clips
Required Tools Required Tools Required Tools
(handle assembly)
7005 - 4 Shelf – 72"h x 24"d x 36"w
7005 7005 - - 4 Shelf 4 Shelf – – 72"h x 24"d x 36"w 72"h x 24"d x 36"w
1 CBBK7218R KA
1 CBBK72188L KA
1 CBSD7228R KA
1 CBSD7228L KA
1 CBTO3928 KA
1 CBBO3724 KA
4 CCSH3725
8 7000CLP
1 CBDO6718R KA
1 CBDO6718L KA
2 CCDR3325 KA
1 CBKP3606 KA
1 201L
2 TB2
Consumer Products Division
Edsal Manufacturing Company
4400 South Packers Avenue
Chicago, IL 60609
www.edsal.com
Made In China
