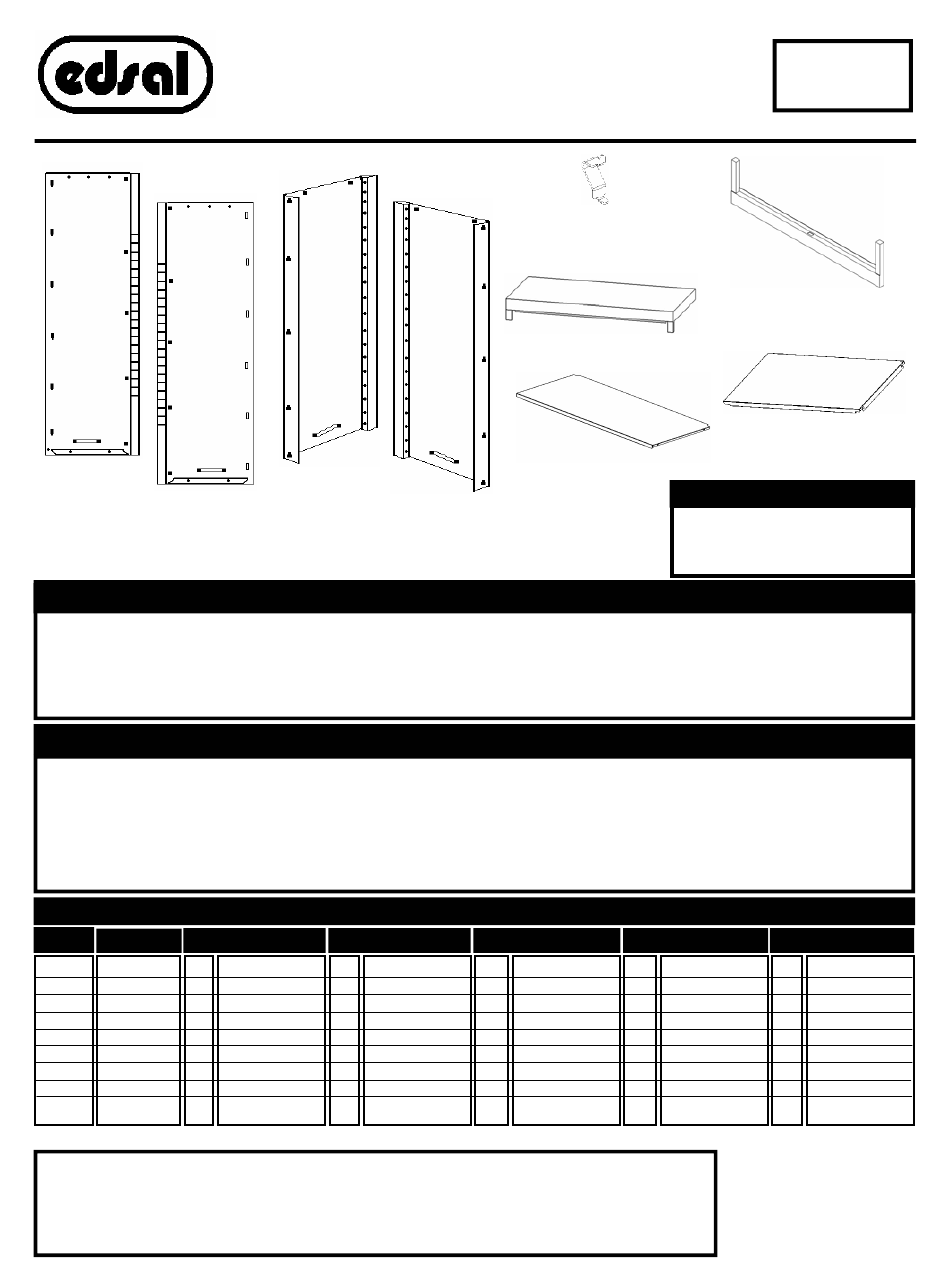

Edsal EBC30 Quick Assembly

(A) Right Hand Back
(B) Left Hand Back
Safety Instructions Safety Instructions
Safety Instructions
Use Caution when handling and assembling metal parts. The metal may have sharp edges or corners. The use of pro-
tective gloves is recommended. Do not use this unit for anything that is outside the designed function of storage. Do
not store loose or heavy items on the top shelves or on the top of the unit, for they create a falling hazard that can injure
yourself or others. Always remember to use proper lifting techniques when moving either the boxed or assembled unit.
General instructions General instructions
General instructions
It is recommended that the bookcase is assembled by more than one person. Use of a raised flat
surface during assembly is highly recommended. During shipping and handling, some of the tabs
that are used for assembly may have closed together. Use a flat tipped screwdriver to either pry
up or push from behind the tab to re-open. Make sure that the unit is placed on a level surface, as
this may effect the performance of the unit.
Part List & Product Specification : Edsal EBC Quick Assemble Bookcase Series (patent pending) Part List & Product Specification : Edsal EBC Quick Assemble Bookcase Series (patent pending) Part List & Product Specification : Edsal EBC Quick Assemble Bookcase Series (patent pending)
Reference Description Description
Reference Reference Description
A Right back 1
B Left back 1
C Right side 1
D Left side 1
E Top 1
F Bottom 1
G Shelves 1
H Shelf clips 2
I Kick plate 1
Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel free to contact our Edsal
manufacturing facility at, (773) 475-3000 and request customer service. We can also be reached on the internet at the following email
To obtain replacement parts, please provide the following information :
- Model #
Quick Assemble Bookcase
(C) Right Hand Side
(D) Left Hand Side
EBC 30 EBC 30 EBC 30 EBC 42 EBC 42 EBC 42
CBBK3018R 1 CBBK4218R
CBBK3018L 1 CBBK4218L
CBSD3017R 1 CBSD4217R
CBSD3017L 1 CBSD4217L
CBTO3717 1 CBTO3717
CBBO3513 1 CBBO3513
CBSH3514 2 CBSH3514
7000CLP 4 7000CLP
CBKP3405 1 CBKP3405
address : customerservice@edsal.com.
- Part # & Description - Location Purchased
(H) Shelf Clips
(E) Top
(F) Bottom
EBC 52 EBC 52 EBC 52
1 CBBK5218R 1
1 CBBK5218L 1
1 CBSD5217R 1
1 CBSD5217L 1
1 CBTO3717 1
1 CBBO3513 1
3 CBSH3514 4
6 7000CLP 8
1 CBKP3405 1
- Date Purchased
MODEL NUMBER (s)
EBC30 - EBC42 - EBC52
- EBC72 - EBC84
(I) Kick Plate
(G) Shelves
Required Tools Required Tools Required Tools
- Rubber Mallet
- Small Blade Screwdriver
EBC 72 EBC 72 EBC 72 EBC 84 EBC 84 EBC 84
CBBK7218R 1 CBBK8418R
CBBK7218L 1 CBBK8418L
CBSD7217R 1 CBSD8417R
CBSD7217L 1 CBSD8417L
CBTO3717 1 CBTO3717
CBBO3513 1 CBBO3513
CBSH3514 5 CBSH3514
7000CLP 10 7000CLP
CBKP3405 1 CBKP3405
