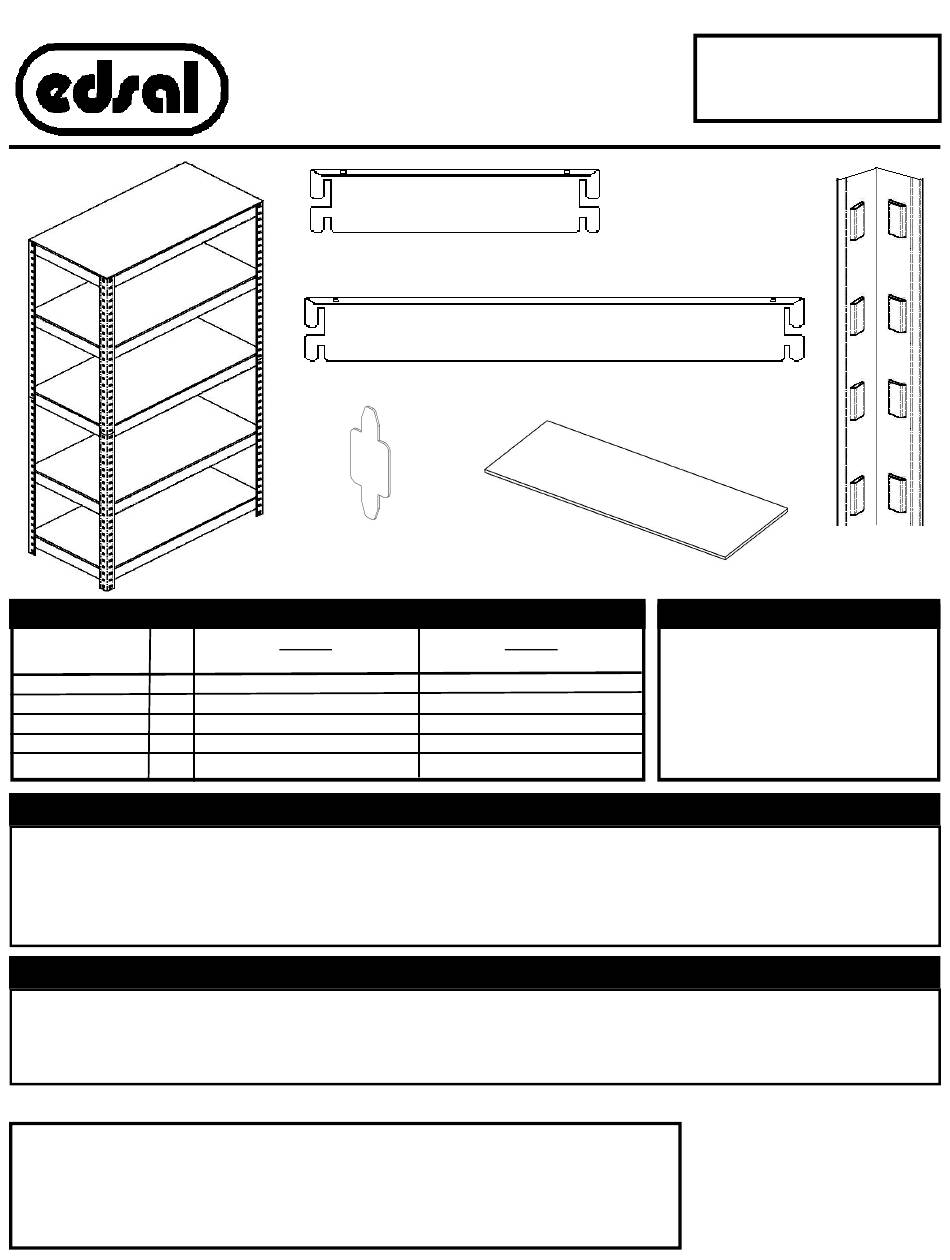

Edsal Super Rack SR100 Assembly Instructions

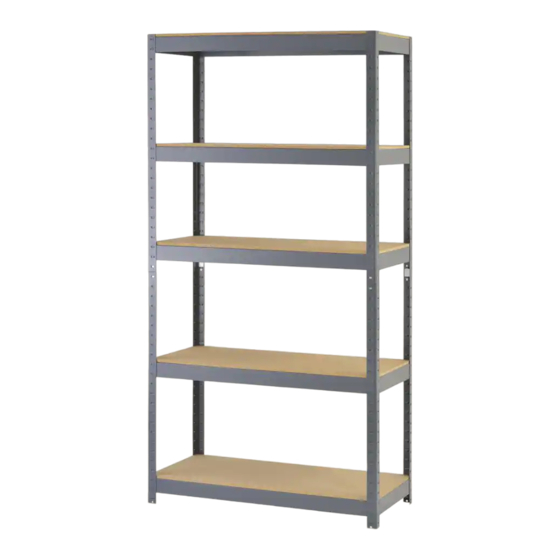

SR 100 - 5 Shelf - 72"h x 18"d x 36"w / SR200
SR SR- - - 100 100 - - 5 Shelf 5 Shelf - - 72"h x 18"d x 36"w / SR200 72"h x 18"d x 36"w / SR200
Description Qty.
A - Beams 10
B - Braces 10
C - Post 8
D - Wood Shelf 5
E - Coupler 8
Safety Instructions Safety Instructions
Safety Instructions
These units should be placed on a level surface. Failure to do so can result in poor product performance or create a
possible safety hazard. This unit should be securely anchored to a wall or floor with suitable fasteners, which are not
included. Do not use this unit for anything other than the manufactures intended purpose. DO NOT STAND ON ANY
PART OF THE UNIT, OR USE IT AS A LADDER. DO NOT OVERLOAD. Evenly distribute the weight on each level
and always keep the heavier loads on the bottom. Use care when working with metal parts.
General Instructions
General Instructions General Instructions
Assembly is done with the tabs of the beams and braces fitting into the slots of the post. A rubber mallet may be used
on the beams and braces to seat the tabs properly. A hammer can also be used, providing one uses a cloth or a block
of wood between the hammer head and the parts to prevent damage. Tap gently and be sure the tabs are straight and
fully engaged.
Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel
free to contact our manufacturing facility at, (773) 475-3000 and request customer service. We can also
be reached on the internet at the following email address : customerservice@edsal.com.
To obtain replacement parts, please provide the following information :
- Model # - Part #, Description, & Color
Super Rack
Boltless Shelving
E - Post Coupler
SR100
Part Number
Part Size
7070
34 7/8"
7068
16 7/8"
6120
36"
RPB21836
18" x 36"
HIPC0200
2 1/2"
- Location Purchased
B - Braces
A - Beams
D - Wood Shelf
- 5 Shelf 72"h x 24"d x 48"w
- - 5 5 Shelf Shelf— — — 72"h x 24"d x 48"w 72"h x 24"d x 48"w
SR200
Part Number
Part Size
7071
46 7/8"
7069
22 7/8"
6120 36"
RPB212448
24" x 48"
HIPC0200
2 1/2"
- Date Purchased
MODEL NUMBER
SR100
SR200
C - Post
Tools Necessary For Assembly Tools Necessary For Assembly Tools Necessary For Assembly
Rubber Mallet
Note:
TAP GENTLY ! A Ham-
mer could be used with a cloth
or a wood block to protect the
Consumer Products Division
Edsal Manufacturing Company
4400 South Packers Avenue
Chicago, IL 60609 www.edsal.com
