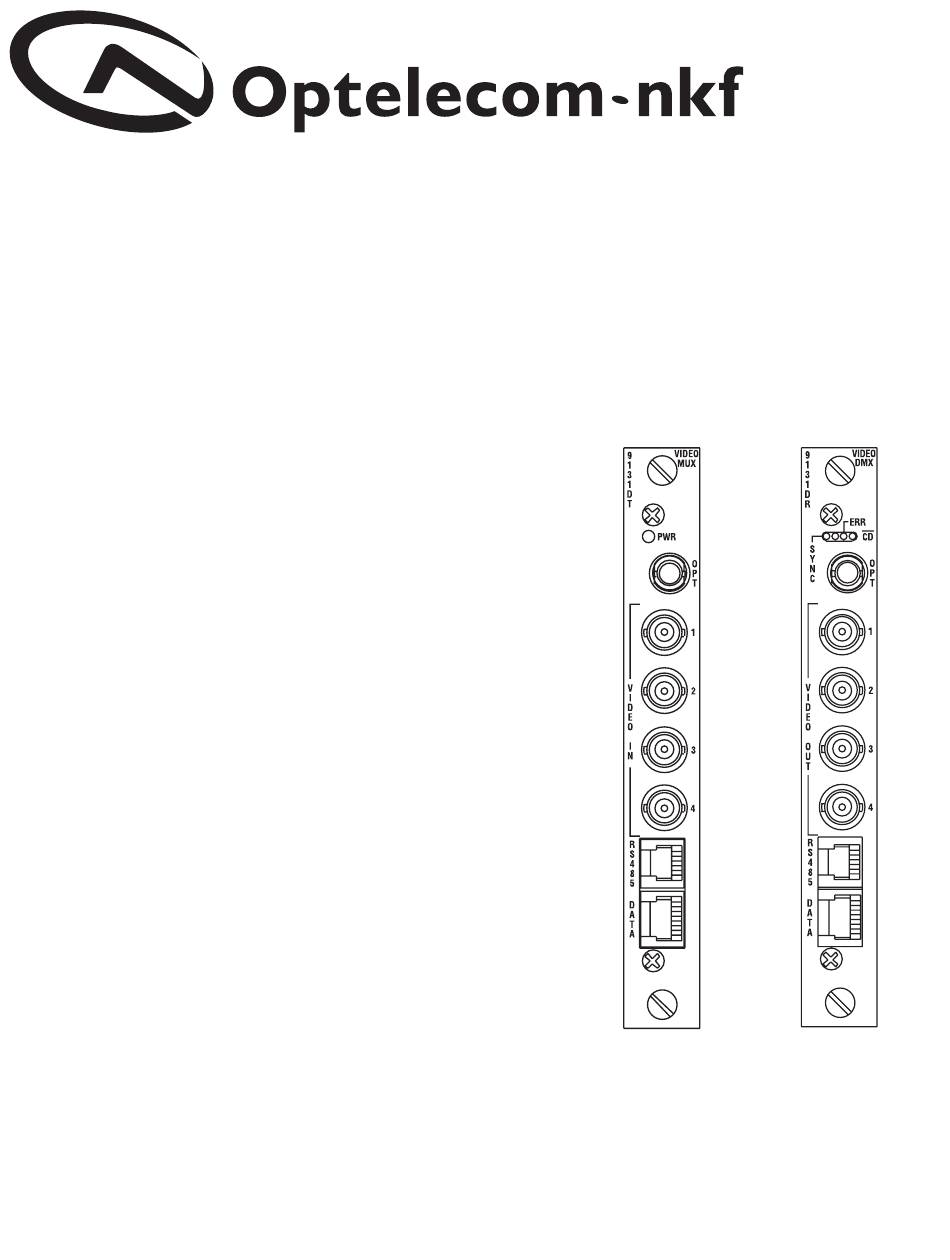

9000 Series
Installation and Operation Manual
Model 9131DT
Model 9131DR
Digital Four Channel Video/Three Channel
Data Multiplexer/Transmitter and
Receiver/Demultiplexer Cards
For the high quality transmission of four channels of
composite baseband video and three channels of data in
one direction over one optical fiber
UM50245, Manual 9131DT/DR, ECO22805, Rev. D
