Optelecom-nkf 9172DT Installation And Operation Manual

Digital four channel video/seven channel data multiplexer/transmitter and receiver/demultiplexer cards
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

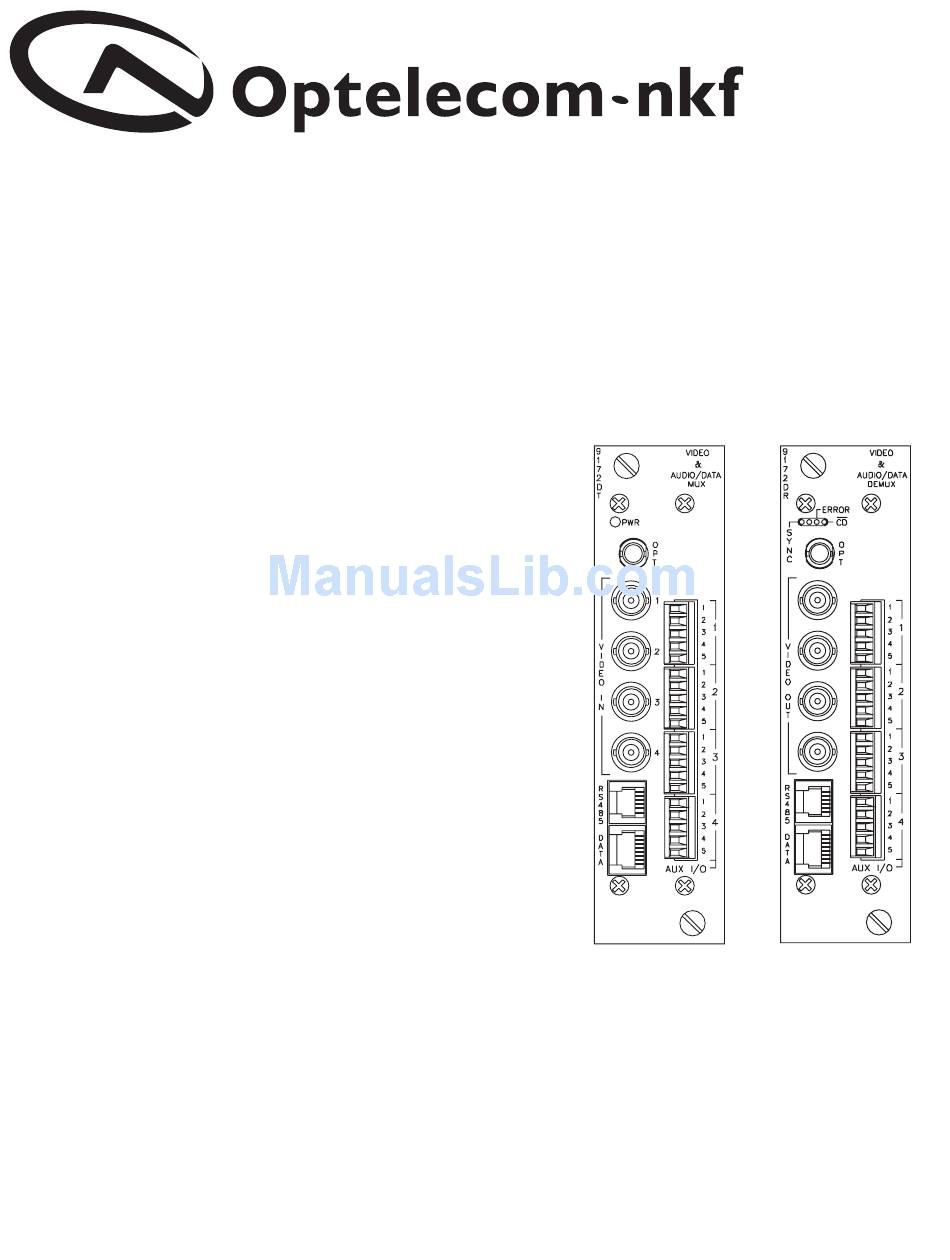

9000 Series
Installation and Operation Manual
Model 9172DT
Model 9172DR
Digital Four Channel Video/Seven Channel
Data Multiplexer/Transmitter and
Receiver/Demultiplexer Cards
For the high quality transmission of four channels of
composite baseband video and three channels of data and
up to four channels of optional data or
stereo audio in one direction over one optical fiber
UM50247 , Manual 9172DT/DR, ECO22807 , Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9172DT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Optelecom-nkf 9172DT

Summary of Contents for Optelecom-nkf 9172DT

  • Page 1 For the high quality transmission of four channels of composite baseband video and three channels of data and up to four channels of optional data or stereo audio in one direction over one optical fiber UM50247 , Manual 9172DT/DR, ECO22807 , Rev. B...

  • Page 3: Table Of Contents

    Section Page Safety Instructions Fiber Information Functional Description 9172DT Indicator, Connector, and Dipswitch Locations and Function 9172DR Indicator, Connector, and Dipswitch Locations and Function 9172DT/9172DR Configuration and Connection Guide Built-In Data Connection and Configuration Operation of the 9172DT and 9172DR...

  • Page 4: Safety Instructions

    Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the unit. Optelecom-NKF assumes no liability for the customer’s failure to comply with any of these safety requirements.
  • Page 5 Si no se cumple con alguna precaución, advertencia o instrucción indicada en este manual se infringen los estándares de diseño, fabricación y el uso destinado a la unidad. Optelecom-NKF no asume ninguna responsabilidad si el cliente no cumple con alguno de estos reequisitos de seguridad.
  • Page 6 Falls vorsichtsmassnahmen, warnungen oder anweisungen in diesem handbuch nicht befolgt werden, verstösst dies gegen die konstruktions, und herstellungsstandards und erfolgt im gegensatz zum vorgesehenen verwendungszweck dieser einheit. Optelecom-NKF übernimmt keine haftung für das verabsäumnis des kunden, diese sicherheitsanforderungen einzuhalten.
  • Page 7 Le non-respect d’une precaution, d’un avertissement ou d’une instruction figurant dans ce manuel est une violation des normes de conception, fabrication et indication d’usage de l’appareil. Optelecom-NKF n’est pas responsable du non-respect de ces consignes de securite par le client.

  • Page 8: Fiber Information

    Fiber Information This unit was manufactured with attention to fiber cleanliness by Optelecom-NKF . Beyond the optical safety information contained in this manual, the following guidelines should be observed when working with optical fibers. The biggest problem is dirt! It takes very little contamination to cause problems with optical fiber connections; cleanliness is extremely important to proper operation of optical equipment.

  • Page 9: Functional Description

    The 9172DT and 9172DR are compatible with and fit into the Series 9000 card chassis. They occupy two card slots each and operate utilizing 6VDC from an appropriate power supply.

  • Page 10: 9172Dt Indicator, Connector, And Dipswitch Locations And Function

    9172DT Indicator, Connector, and Dipswitch Locations and Function IGURE 1. POWER INDICATOR (ONE) When illuminated, the green LED indicates that the card is receiving power from the chassis. 2. OPTICAL OUTPUT PORT (ONE) The optical fiber cable connector is connected to this port for transmission of the optical signal to the 9172DR receiver/demux.

  • Page 11: 9172Dr Indicator, Connector, And Dipswitch Locations And Function

    CD — When illuminated, this red LED indicates that the receiver is not receiving sufficient optical power to operate. (The optical carrier is not detected.) 2. OPTICAL INPUT PORT (ONE) The optical fiber cable connector is connected to this port to receive the optical signal from the 9172DT mux/transmitter. 3. VIDEO OUTPUT CONNECTORS (FOUR) Compatible with BNC connectors, these connectors output the four received video signals.

  • Page 12: 9172Dt/9172Dr Configuration And Connection Guide

    Synchronous Data Port Synchronous Data Port To install, connect the video inputs to the 9172DT, connect the video monitors or other video receptors to the 9172DR, and connect an appropriate optical fiber between the 9172DT and 9172DR optical ports. Connect data signal sources or destinations, as required, to the “DATA” and “RS485” ports per the following Built-In Data Connection section.

  • Page 13: Built-In Data Connection And Configuration

    Built-In Data Connection and Configuration There are two port interfaces on the 9172DT and 9172DR, the “DATA” port and the “RS485” port. The “DATA” port supports two data channels, one a full-time RS232 channel and the other a configurable data channel that is dipswitch programmable for RS422, RS485 2- or 4-wire, or Manchester operation.
  • Page 14 RS485 2-Wire Shield In/Out In/Out Shield (–) Note that on the 9172DT (Transmitter) only input connections are active and on the 9172DR (Receiver) only the output connections are active. IGURE IGURE Transmit End Data Port (RJ45) Transmit End Data Port (RJ45)
  • Page 15 In/Out In/Out In/Out Shield (–) (–) Note that on the 9172DT (Transmitter) only input connections are active and on the 9172DR (Receiver) only the output connections are active. IGURE IGURE Transmit End RS485 Port (RJ12) Transmit End RS485 Port (RJ12)

  • Page 16: Operation Of The 9172Dt And 9172Dr

    Operation is straightforward. Connect per the directions in the Configuration and Connection Guide section on page 6. There are no adjustments. Under normal operation, only the green POWER indicator on the 9172DT and the green SYNC indicator on the 9172DR will be illuminated.

  • Page 17: Operation Of The 9172D With The Network Management System

    Operation of the 9172D with the Network Management System Operation of the 9172DT with the Network Management System consists of the following parameters: 1. Slot Number 2. Card Name (Model Number) 3. Serial Number 4. Time 5. Wavelength 6. Revision Number 7 .

  • Page 18: Specifications For The 9172D

    Specifications for the 9172D OPTICAL Transmitter Model LD3(X) Transmitter Optical Output Wavelength 1310 1310 1550 CWDM 1310 Mating Receiver Model Transmitter Optical Output Power (dBm) 50 µm Transmitter Optical Output Power (dBm) 62.5 µm Transmitter Optical Output Power (dBm) 09 µm Receiver Optical Input Sensitivity (dBm) 50 µm Receiver Optical Input Sensitivity (dBm) 62.5 µm Receiver Optical Input Sensitivity (dBm) 09 µm...
  • Page 19 VIDEO Video Format NTSC or PAL Voltage 1V p-p, 75Ω Bandwidth 2 Hz to 6.5 MHz Differential Gain ≤0.7% typ. Differential Phase ≤0.7° typ. Video SNR ≥67 dB over usable fiber range (weighted per RS250 standard) Encoding 10 bit Linear PCM Sampling Rate 15 MHz Bit Rate Over Fiber...
  • Page 20 12920 Cloverleaf Center Drive • Germantown, MD 20874 • USA Main: +1 301.444.2200 • Fax: +1 301.444.2299 U.S. Toll Free: 800.293.4237 Optelecom-NKF B.V Zuidelijk Halfrond 4 • 2801 DD Gouda • The Netherlands Telephone: +31 182.592.333 • Fax: +31 182.592.123 Email: optelecom@optelecom-nkf.com • Website: www.optelecom-nkf.com...
