9000 Series
Installation and Operation Manual

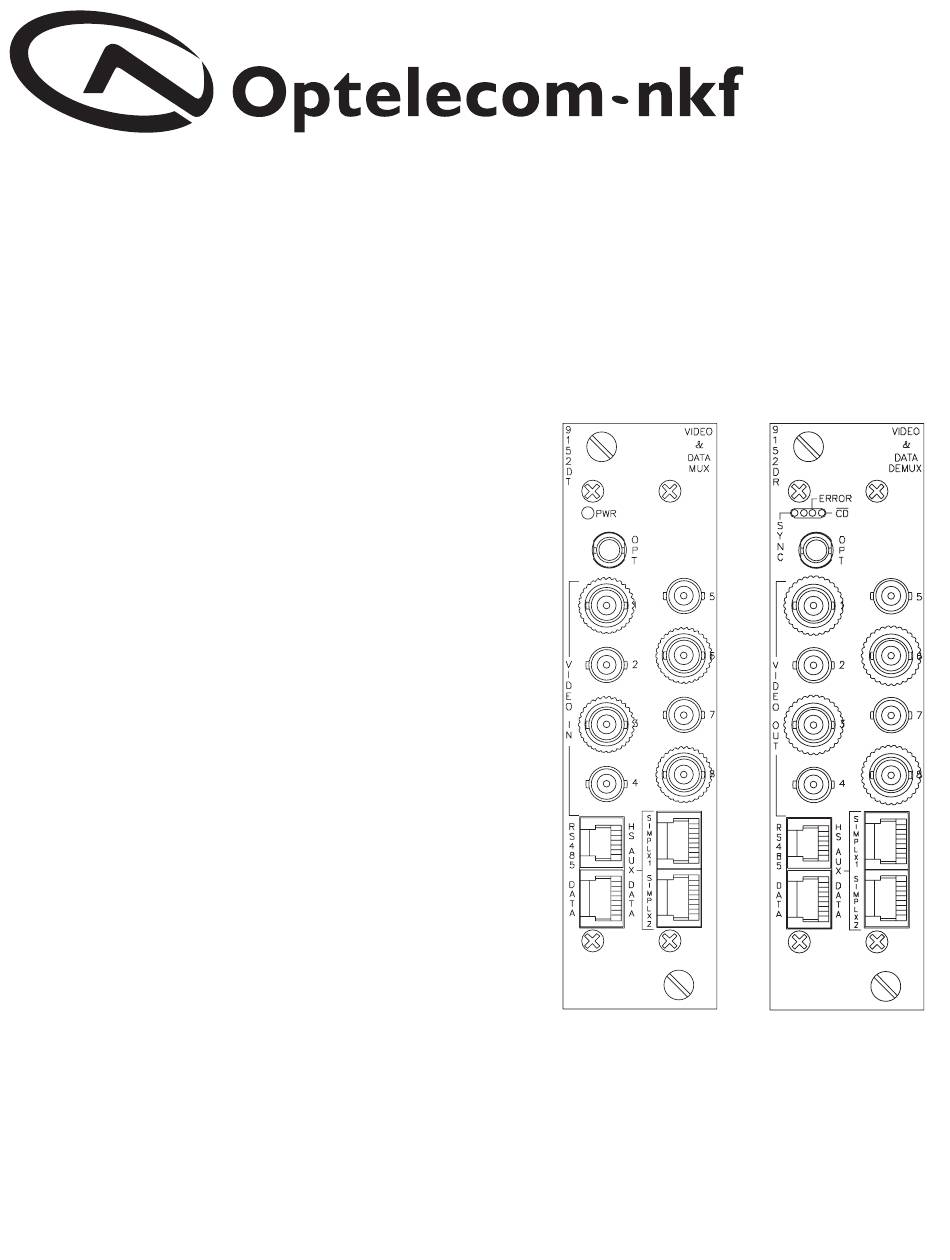

Model 9152DT
Model 9152DR
Digital Eight Channel Video/Five Channel
Data Multiplexer/Transmitter and
Receiver/Demultiplexer Cards
For the high quality transmission of eight channels of
composite baseband video and five channels of data
in one direction over one optical fiber
UM50243, Manual 9152DT/DR, ECO 22805, Rev. E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Optelecom-nkf 9000 Series

Summary of Contents for Optelecom-nkf 9000 Series

  • Page 1 9000 Series Installation and Operation Manual Model 9152DT Model 9152DR Digital Eight Channel Video/Five Channel Data Multiplexer/Transmitter and Receiver/Demultiplexer Cards For the high quality transmission of eight channels of composite baseband video and five channels of data in one direction over one optical fiber...

  • Page 3: Table Of Contents

    Table of Contents Section Page Safety Instructions Fiber Information Functional Description 9152DT Indicator, Connector, and Dipswitch Locations and Function 9152DR Indicator, Connector, and Dipswitch Locations and Function 9152DT/9152DR Configuration and Connection Guide Built-In Data Connection and Configuration Operation of the 9152DT and 9152DR Operation of the 9152D with the Network Management System Specifications for the 9152D UM50243, Manual 9152DT/DR, ECO22805, Rev.

  • Page 4: Safety Instructions

    Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the unit. Optelecom-NKF assumes no liability for the customer’s failure to comply with any of these safety requirements.
  • Page 5 Si no se cumple con alguna precaución, advertencia o instrucción indicada en este manual se infringen los estándares de diseño, fabricación y el uso destinado a la unidad. Optelecom-NKF no asume ninguna responsabilidad si el cliente no cumple con alguno de estos reequisitos de seguridad.
  • Page 6 Falls vorsichtsmassnahmen, warnungen oder anweisungen in diesem handbuch nicht befolgt werden, verstösst dies gegen die konstruktions, und herstellungsstandards und erfolgt im gegensatz zum vorgesehenen verwendungszweck dieser einheit. Optelecom-NKF übernimmt keine haftung für das verabsäumnis des kunden, diese sicherheitsanforderungen einzuhalten.
  • Page 7 Le non-respect d’une precaution, d’un avertissement ou d’une instruction figurant dans ce manuel est une violation des normes de conception, fabrication et indication d’usage de l’appareil. Optelecom-NKF n’est pas responsable du non-respect de ces consignes de securite par le client.

  • Page 8: Fiber Information

    Fiber Information This unit was manufactured with attention to fiber cleanliness by Optelecom-NKF . Beyond the optical safety information contained in this manual, the following guidelines should be observed when working with optical fibers. The biggest problem is dirt! It takes very little contamination to cause problems with optical fiber connections; cleanliness is extremely important to proper operation of optical equipment.

  • Page 9: Functional Description

    The 9152DT and 9152DR are compatible with the 9000 series card chassis, occupies two card slots each, and operate on 6 VDC from the appropriate chassis power supply.

  • Page 10: 9152Dt Indicator, Connector, And Dipswitch Locations And Function

    9152DT Indicator, Connector, and Dipswitch Locations and Function IGURE 1. POWER INDICATOR When illuminated, the green LED indicates that the card is receiving power from the power supply. 2. OPTICAL OUTPUT PORT The optical fiber cable connector is connected to this port for transmission of the optical signal to the 9152DR receiver/demux.

  • Page 11: 9152Dr Indicator, Connector, And Dipswitch Locations And Function

    9152DR Indicator, Connector, and Dipswitch Locations and Function IGURE 1. STATUS INDICATORS a. SYNC — When illuminated, this green LED indicates that the data demultiplexer is receiving a good signal and is synchronized with the multiplexer. b. ERR — When illuminated, this yellow LED indicates that there are errors being detected in the received optical data stream.
  • Page 12 5. SIMPLEX HS AUX DATA OUTPUT PORTS Each of these two RJ45 ports on the 9152DR interface with a Model 9961-C or 9962-C Auxiliary Audio/Data Mux/Demux cards to transport the multiplexed composite data transmitted via the 9152DT from the HS AUX Data Input Ports. These high-speed ports greatly expand the transmission capability of the 9152DT/9152DR pair.

  • Page 13: 9152Dt/9152Dr Configuration And Connection Guide

    9152DT/9152DR Configuration and Connection Guide IGURE Fiber Connection Video Video Camera Monitor 8 Video Inputs 8 Video Outputs Video Camera Video Monitor Simplex RS485 2-Wire Simplex RS232 Simplex High-Speed Simplex RS422, RS232, or Synchronous Data Port RS485 2-Wire or 4-wire Simplex High-Speed Synchronous Data Port Simplex High-Speed...

  • Page 14: Built-In Data Connection And Configuration

    Built-In Data Connection and Configuration DATA AND RS485 PORTS There are four data interface ports on the 9152DT and 9152DR. Two of them are the “DATA” port and the “RS485” port that are primarily used for the transmission of RS232, RS422, RS485 or Manchester (biphase) PTZ data.
  • Page 15 2 — C ABLE ONNECTIONS AND INOUTS Configurable DATA Port (RJ45) Pin Numbers Connection RS232 Common Common RS422, RS485 4-Wire, Manchester (–) (–) RS485 2-Wire In/Out In/Out (–) Note that on the 9152DT (Transmitter) only input connections are active and on the 9152DR (Receiver) only the output connections are active.
  • Page 16 Connections for 9152DT/9152DR Data Port (RJ45) IGURE Pinouts for the DATA Port (RJ45) DATA Port 9152DT 9152DR Pin 1 DATA Port (RJ45) DATA Port (RJ45) Common (GND) Common (GND) Pin 8 RS232 Input Not Connected RJ45 Front View Not Connected RS422/RS485/Manchester Output + The DATA connector on the 9152DT and 9152DR supports...
  • Page 17 Connections for 9152DT/9152DR RS485 Port (RJ12) IGURE Pinouts for the RS485 Port (RJ12) RS485 Port 9152DT 9152DR Pin 1 DATA Port (RJ45) DATA Port (RJ45) Pin 6 Common (GND) Common (GND) RJ12 Front View RS485 Input - RS485 Output RS485 Input + RS485 Output + RS485 Input + RS485 Output +...
  • Page 18 IGURE Terminating RS422 and Manchester Connections Simplex 2-Wire RS422 or Manchester Point-to-Point Termination Example Transmitting Device Receiving Device TX+ (Output) RX+ (Input) RX- (Input) TX- (Output) Termination Resistor Enabled (ON) RS422 Simplex 2-Wire and Manchester Daisy Chain Termination Example Transmitting Device TX+ (Output) RX+ (Input) Receiving Device #1...
  • Page 19 HS AUX DATA PORTS In addition to the “DATA” and “RS485” ports on both the DT and DR units, there are two HS AUX DATA INPUT ports on the 9152DT and two HS AUX DATA OUTPUT ports on the 9152DR. Each of these ports is capable of carrying asynchronous RS422 data at rates from DC to 1.5 Mbps (10X oversampled) in one direction from the transmitter (9152DT) to the receiver (9152DR).

  • Page 20: Operation Of The 9152Dt And 9152Dr

    5 — H 9152DR ABLE PEED IMPLEX INOUTS FOR THE Pin # Function Not Used Not Used Not Used RX Data (+) – Output RX Data (–) – Output Not Used RX Clock (+) – Output RX Clock (–) – Output Operation of the 9152DT and 9152DR Operation is straightforward.

  • Page 21: Operation Of The 9152D With The Network Management System

    Operation of the 9152D with the Network Management System Operation of the 9152DT with the Network Management System consists of the following parameters: 1. Slot Number 2. Card Name (Model Number) 3. Serial Number 4. Time 5. Wavelength 6. Revision Number 7 .

  • Page 22: Specifications For The 9152D

    Specifications for the 9152D OPTICAL Transmitter Model LD3(X) LD3(X) Transmitter Optical Output Wavelength 1310 1310 1310 1310 1550 1550 CWDM CWDM 1310 Mating Receiver Model Transmitter Optical Output Power (dBm) 50 µm Transmitter Optical Output Power (dBm) 62.5 µm Transmitter Optical Output Power (dBm) 09 µm Receiver Optical Input Sensitivity (dBm) 50 µm Receiver Optical Input Sensitivity (dBm) 62.5 µm Receiver Optical Input Sensitivity (dBm) 09 µm...
  • Page 23 VIDEO Video Format NTSC or PAL Voltage 1V p-p, 75Ω Bandwidth 2Hz to 6.5 MHz Differential Gain ≤0.7% typ. Differential Phase ≤0.7° typ. Video SNR ≥67 dB over usable fiber range (weighted per RS250 standard) Encoding 10 bit Linear PCM Sampling Rate 15 MHz Bit Rate Over Fiber...
  • Page 24 12920 Cloverleaf Center Drive • Germantown, MD 20874 • USA Main: +1 301.444.2200 • Fax: +1 301.444.2299 U.S. Toll Free: 800.293.4237 Optelecom-NKF B.V Zuidelijk Halfrond 4 • 2801 DD Gouda • The Netherlands Telephone: +31 182.592.333 • Fax: +31 182.592.123 Email: optelecom@optelecom-nkf.com • Website: www.optelecom-nkf.com...
