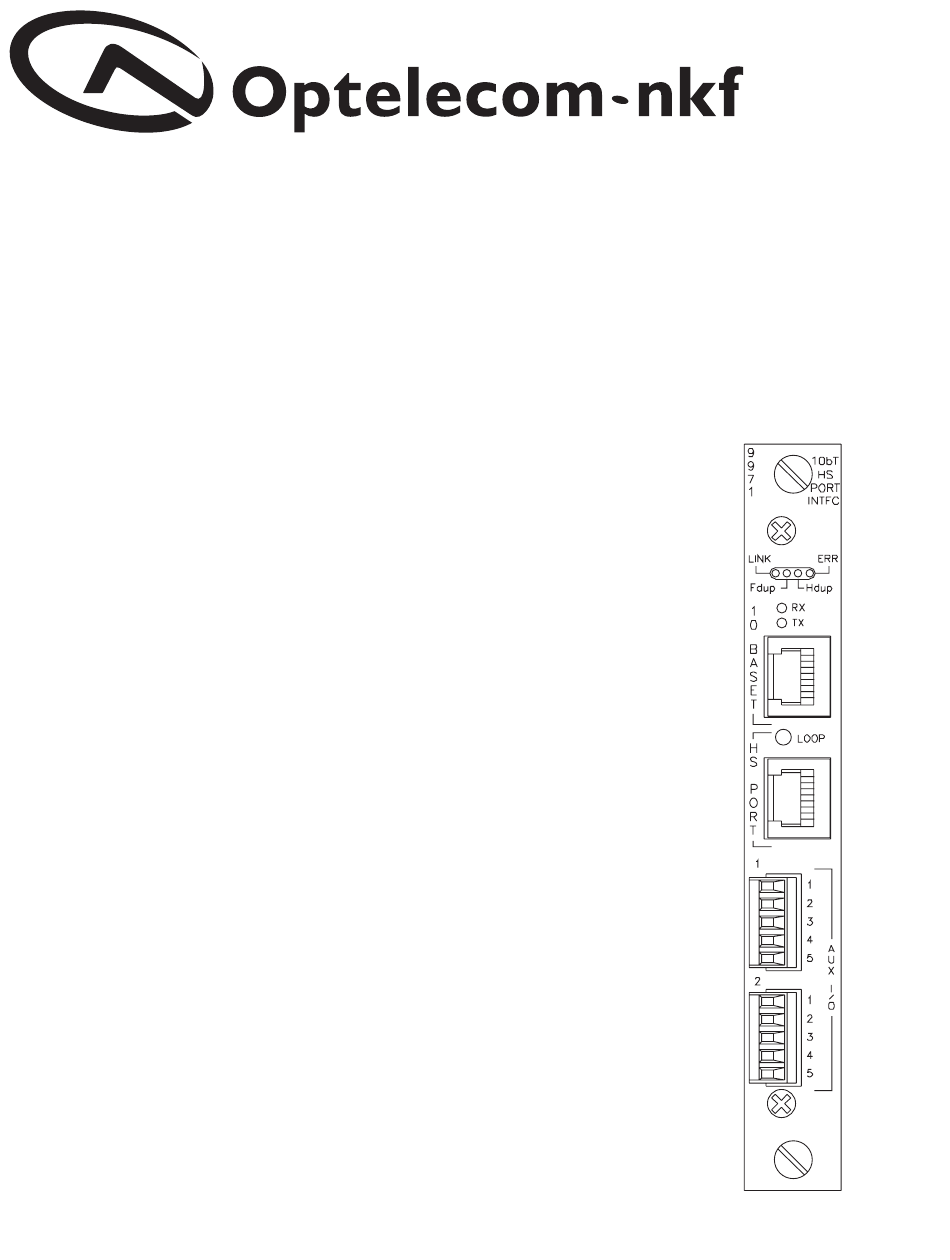

9000 Series
Installation and Operation Manual
Model 9971-C
10 Base T to High-Speed Port Interface Card
For transport of a 10 Base T Ethernet signal via the duplex
high-speed port available on selected models of Optelecom video
transmission cards
UM50314, Manual 9971-C, ECO23616, Rev. D

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Optelecom-nkf 9000 Series

Summary of Contents for Optelecom-nkf 9000 Series

  • Page 1 9000 Series Installation and Operation Manual Model 9971-C 10 Base T to High-Speed Port Interface Card For transport of a 10 Base T Ethernet signal via the duplex high-speed port available on selected models of Optelecom video transmission cards UM50314, Manual 9971-C, ECO23616, Rev. D...

  • Page 3: Table Of Contents

    Table of Contents Section Page Safety Instructions Functional Description 9971-C Indicator and Connector Locations Set Up and Operation of the 9971-C Typical Application Drawing Troubleshooting 9971-C Links Operation with the Network Management Software Specifications UM50314, Manual 9971-C, ECO23616, Rev. D...

  • Page 4: Safety Instructions

    Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the unit. Optelecom-NKF assumes no liability for the customer’s failure to comply with any of these safety requirements.
  • Page 5 Si no se cumple con alguna precaución, advertencia o instrucción indicada en este manual se infringen los estándares de diseño, fabricación y el uso destinado a la unidad. Optelecom-NKF no asume ninguna responsabilidad si el cliente no cumple con alguno de estos reequisitos de seguridad.
  • Page 6 Falls vorsichtsmassnahmen, warnungen oder anweisungen in diesem handbuch nicht befolgt werden, verstösst dies gegen die konstruktions, und herstellungsstandards und erfolgt im gegensatz zum vorgesehenen verwendungszweck dieser einheit. Optelecom-NKF übernimmt keine haftung für das verabsäumnis des kunden, diese sicherheitsanforderungen einzuhalten.
  • Page 7 Le non-respect d’une precaution, d’un avertissement ou d’une instruction figurant dans ce manuel est une violation des normes de conception, fabrication et indication d’usage de l’appareil. Optelecom-NKF n’est pas responsable du non-respect de ces consignes de securite par le client.

  • Page 9: Functional Description

    Functional Description A pair of 9971-C interface cards provide transmission for one 10 Base T Ethernet link and two independent 115 Kbps data channels via the duplex high-speed ports available on selected video or data over fiber transmission cards. Currently, the 9971-C will operate with the 9252DT/DR, the 9421DT/DR, and the 9672 cards. The cards operate on 6VDC as supplied by the chassis into which it is installed.

  • Page 10: 9971-C Indicator And Connector Locations

    9971-C Indicator and Connector Locations IGURE 1. LINK INDICATOR This indicator illuminates green when the RJ45 Ethernet port is connected to an active Ethernet connection. 2. FDUP INDICATOR This indicator illuminates green when the RJ45 Ethernet port is operating in the full duplex mode. 3.
  • Page 11 8. LOOP INDICATOR This three-color indicator provides status on the high-speed port connection to the opposite end of the link • If red (No Sync, No Loop), there is a problem with the signal being received from the opposite end of the link.

  • Page 12: Set Up And Operation Of The 9971-C

    Set Up and Operation of the 9971-C Set up and operation of the 9971-C cards consists of setting the data port switches, installing the unit into a Series 9000 chassis, connecting the provided Cat5 jumper cable from the high-speed port on the optical communications card to the 9971-C.
  • Page 13 Limitations for Half Duplex When an Ethernet link operates in the half duplex mode, there are limitations imposed on the end-to-end length of the system. Operating on fiber does not change these limitations and the user should be aware that, in general, the collision domain limits the total network diameter to 4000 meters or less, including fiber runs.
  • Page 14 Option Module Type B — Duplex Data Compared to the first and interim versions, the latest version has an additional bias switch to set for more robust RS485 operation of the data module. The bias resistors keep the differential signal pair biased so that when it is in a High-Z state the line receivers interpret the line as being inactive (no data transmitted).
  • Page 15 ODULE IGNALS AND ONNECTIONS Pin # Function RS232 (DTE) Signal Name Input No Connection Output No Connection Signal Common Common B-4 — RS232 C IGURE ONNECTIONS Optelecom-NKF Equipment Host Host Connected Connected Equipment Card Card Equipment Optical Link RS232 Connections...
  • Page 16 RS422 Option Module B supports both 2-wire (simplex) and 4-wire (duplex) RS422 communications. RS422 is a differential communications scheme and uses the polarity difference between the + and – leads to transmit the data bits. The signals input on pins 1 and 2 at one end of the link are transmitted to the other end of the link and are output on pins 3 and 4.
  • Page 17 B-5 — RS422 4-W IGURE UPLEX ONNECTIONS Optelecom-NKF Equipment Host Host Connected Connected Card Card Equipment Equipment Optical Link TX– TX– RX– RX– RS422 4-Wire Connections (Duplex) B-6 — RS422 2-W IGURE IMPLEX ONNECTIONS Optelecom-NKF Equipment Host Host Connected Connected...
  • Page 18 Input/Output – Output + Internally Connected to Pin 1 Output – Internally Connected to Pin 2 Signal Common — Chassis Ground B-7 — RS485 4-W IGURE ONNECTIONS UPLEX Optelecom-NKF Equipment Host Host Connected Connected Card Card Equipment Equipment Optical Link TX–...
  • Page 19 RS485 is a “many-to-many” type system, permitting up to 32 devices or receivers to be electrically connected to one transmitter. Refer to the “Termination Rules for RS422, RS485, and Manchester” later in this section for more details on terminations to ensure you have terminated multiple connections correctly. The fiber connection isolates parts of a system, effectively creating more than one electrical buss.
  • Page 20 B-9 — M IGURE ANCHESTER ONNECTIONS Optelecom-NKF Equipment Host Host Connected Connected Card Card Equipment Equipment Optical Link TX– RX– Manchester (Bi-Phase) RS422, RS485, ERMINATION ULES FOR ANCHESTER On RS422, RS485, and Manchester connections, it is possible that multiple devices may be connected in parallel.
  • Page 21 wire system. In normal operation of RS485 systems, the + (plus) terminals should be biased positive and the – (minus) terminals should be biased to signal ground. To determine if the bias resistors need to be enabled, make the following voltage measurements between the + (plus) signal line and the – (minus) signal line. Make the measurements with no data transmissions occurring.
  • Page 22 B-11 — RS485 4-W IGURE IRE WITH THE ERMINATION AND ESISTORS – – – – + Rx – – – – Disable the termination Fiber Tx 1 Controller Camera 1 Fiber Rx 1 and Bias via switches Enable the Termination and Bias Resistors via setting the switches –...
  • Page 23 Option Module Type B — Duplex Data PECIFICATIONS Data Input Types RS232, RS422, RS485 2- or 4-wire, Manchester Data Rate DC to 115 Kbps (RS232, RS422, RS485) 32 Kbps (Manchester)
  • Page 24 2 — F IGURE RONT IEW OF PTION ODULE Longer Connector Shorter Connector Standoff Guide Hole 1 2 3 4 5 6 7 8 1 2 3 4 5 6 2 — D ABLE PTION ODULE ETTINGS Input/Output Switch 1 Switch 2 Type RS232 Input...
  • Page 25 IGURE IGURE – TX– – RX– Shield Optional RS232 Connections 4-Wire RS422, RS485 and (Arrows Indicate Signal Direction) Manchester Connections (Arrows Indicate Signal Direction) (Manchester is usually unidirectional) IGURE – – Shield (Gnd) RS 485 2-Wire Connections Note that both Input and Output connections are made to pins 1 and 2.

  • Page 26: Typical Application Drawing

    Typical Application of the 9971-C Data Eight Video Data 10 Base T Ethernet Video Monitor 9002 Chassis 9002 Chassis Eight Videos Video Camera Video Video Camera Monitor 9252DR Card 9252DT Card with 9971-C Card with 9971-C Card Data Data Extending 10 Base T along with Eight Videos on One Fiber 10 Base T Ethernet This application drawing shows a pair of 9971-Cs used in a system with the high-speed ports on a pair of 9252DT and DR cards.

  • Page 27: Operation With The Network Management Software

    Operation of the 9971-C with Network Management Software Operation of the 9971-C with the Network Management System software consists of the following parameters: 1. Card Location 2. Card Size (Number of Slots) 3. Card Name (Model Number) 4. Serial Number 5.

  • Page 28: Specifications

    Specifications HIGH-SPEED PORT SPECIFICATIONS Connector RJ45 Data Format Synchronous RS422 @ 16 Mbps Duplex ETHERNET PORT Connector RJ45 Data Format 10 Mbps, MIDX, Full or Half Duplex, Auto Negotiate DATA PORTS 1 AND 2 SPECIFICATIONS Connector Five-position removable screw terminal Data Format RS232 (3-wire), RS422 2- or 4-wire, RS485 2- or 4-wire, Auto Baud up to 115.2 Kbps or Manchester (Burle, American Dynamics...
  • Page 32 12920 Cloverleaf Center Drive • Germantown, MD 20874 • USA Main: +1 301.444.2200 • Fax: +1 301.444.2299 U.S. Toll Free: 800.293.4237 Optelecom-NKF B.V Zuidelijk Halfrond 4 • 2801 DD Gouda • The Netherlands Telephone: +31 182.592.333 • Fax: +31 182.592.123 Email: optelecom@optelecom-nkf.com • Website: www.optelecom-nkf.com...

This manual is also suitable for:

9971-c
