- Page 1 INSTALLATION AND OPERATION MANUAL Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty.

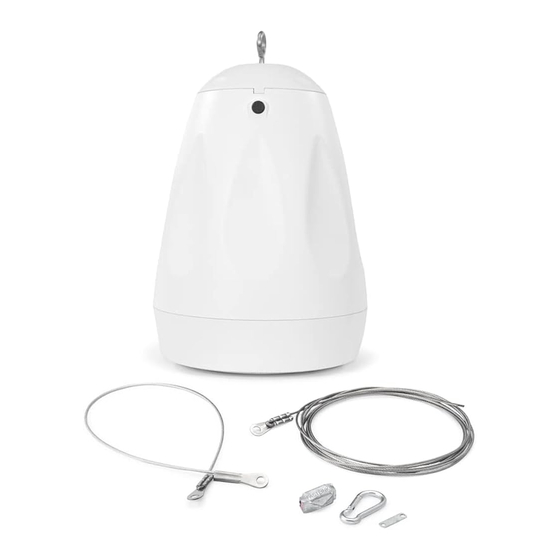

- Page 2 INTRODUCTION DESCRIPTION Designed to meet the needs of all open-ceiling applications, the Pure Resonance Audio PD6 6.5" indoor/outdoor pendant speaker is weather-resistant, high powered, and easy to install. The PD6 uses an acoustically matched 6.5" and 1" tweeter to maximize performance while minimizing the overall footprint of the speaker.
- Page 3 SAFETY PRECAUTIONS � Be sure to read the instructions in this section carefully before use. The included conventions of safety symbols and messages are regarded as very important precautions. � We recommend you keep this instruction manual handy for future reference. SAFETY SYMBOL AND MESSAGE CONVENTIONS Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling.
- Page 4 INSTALLATION & OPERATION GUIDE SPEAKER PLACEMENT � If you desire music over a wide area, it is best to have a larger number of speakers playing at low volume, rather than a few speakers playing at high volume. Keep this in mind when designing your pendant system. �...
- Page 5 BASIC SPEAKER INSTALLATION - 70 VOLT SYSTEMS AND APPLICATIONS Figure 1. Figure 2. Correct Speaker Wiring Incorrect Speaker Wiring SPEAKER OUTPUT 70V 100V SPEAKER OUTPUT 70V 100V Be careful not to cross wires when installing your speakers. Wiring should always be negative to negative and positive to positive (Figure 2.
- Page 6 OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE. This warranty gives you specific legal rights. You may have other rights which vary from state to state. PURE RESONANCE AUDIO ® (866) 676-7804 sales@pureresonanceaudio.com...
