- Page 1 MANUEL D’UTILISATION ROTEL AMPLIFICATEUR STEREO RA-1592S Besoin d’un conseil ? Une question sur ce produit ? RDV sur la communauté SAV Darty : https://sav.darty.com Déjà 1/2 million de solutions grâce à l’avis des utilisateurs.

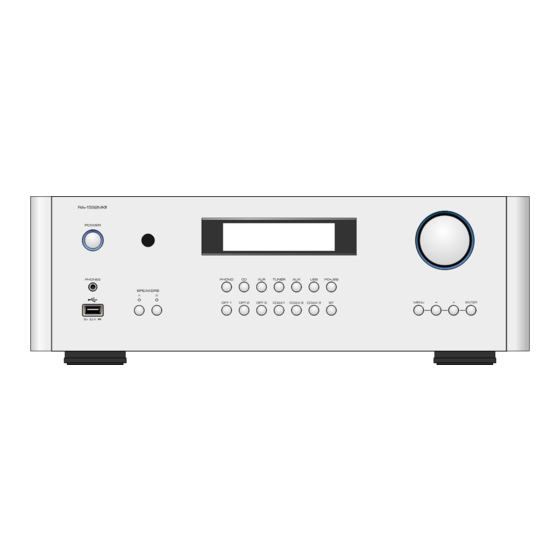

- Page 2 RA‑1592MKII Stereo Integrated Amplifier Amplificateur Stéréo Intégré Stereo‑Vollverstärker Amplificador Integrado Estereofónico Geïntegreerde stereoversterker Amplificatore integrato stereo Integrerad stereoförstärkare Интегрированный стерео усилитель Owner’s Manual Manuel de l’utilisateur Bedienungsanleitung Manual de Instrucciones Gebruikershandleiding Manuale di istruzioni Instruktionsbok Инструкция пользователя...
-
Page 3: Important Safety Instructions
Clean only with dry cloth. The unit must be connected to a power supply only of the type and Rotel products are designed to comply with Do not block any ventilation openings. Install in accordance with the voltage specified on the rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz) international directives on the Restriction of manufacturer’s instructions. - Page 4 Figure 1: Controls and Connections Commandes et Branchements Bedienelemente und Anschlüsse Controles y Conexiones Bedieningselementen en aansluitingen C ontrolli e connessioni Kontroller och anslutningar Органы управления и разъемы w e r...
- Page 5 RA‑1592MKII Stereo Integrated Amplifier Figure 2: RR‑AX150 Remote Control Afstandsbediening RR‑AX150 Télécommande infrarouge RR‑AX150 Telecomando RR‑AX150 Fernbedienung RR‑AX150 RR‑AX150 fjärrkontroll Mando a Distancia RR‑AX150 Пульт ДУ RR-AX150 SPKR A SPKR B MENU RR-AX150...
- Page 6 Conexiones de Entrada Analógicas y de Salida a las Cajas Acústicas Analoge ingangen en luidsprekeruitgangen Collegamenti ingressi analogici ed uscite diffusori Anslutningar för högtalare och analoga ingångar Подсоединение источников сигнала на аналоговые входы и акустических систем Rotel RA-1592MKII PHONO Rotel RCD-1572 CLASS 1 LASER PRODUCT...
- Page 7 Collegamenti ingressi digitali e segnali Trigger 12 V Anslutningar för digitala ingångar och 12‑volts styrsignaler Цифровой вход и выход 12-В триггерного сигнала Computer DIGITAL AUDIO OUTPUT CD PLAYER (Supplied) OPTICAL COAXIAL Rotel RA-1592MKII Rotel RCD-1572 CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 RP-565E...
- Page 8 Figure 5: Balanced (XLR) Inputs Gebalanceerde ingangen (XLR) Entrées symétriques (XLR) Collegamenti ingressi bilanciati (XLR) Anschlussdiagramm (symmetrische (XLR‑) Eingänge) Balanserade anslutningar (XLR) Entradas Balanceadas (XLR) Балансные (XLR) входы Rotel RA-1592MKII Rotel RCD-1572 CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 RP-565E...
-
Page 9: Important Notes
RA‑1592MKII Stereo Integrated Amplifier Important Notes When making connections be sure to: Turn off all the components in the system before hooking up any components, including loudspeakers. Turn off all components in the system before changing any of the connections to the system. It is also recommended that you: Turn the volume control of the amplifier all the way down before the amplifier is turned on or off. -
Page 10: Table Of Contents
Rotel Link w ........ -
Page 11: Getting Started
If you have any questions see your authorized Rotel dealer for advice about the best cable to use with your system. The main functions of the RA-1592MKII are easy to install and use. If you have experience with other stereo systems, you shouldn’t find anything... -
Page 12: Power Switch And Power Indicator 1
Balanced (XLR) Inputs very few loudspeakers will present any problems for the RA-1592MKII. See See Figure 5 your authorized Rotel dealer if you have any questions. A pair of balanced XLR inputs accept audio signals from CD player, Blu-ray Speaker Wire Selection player or other source components with XLR outputs. -
Page 13: Polarity And Phasing
In general, heavier wire will improve the sound. For active allowing search and play functions. best performance, you may want to consider special high-quality speaker cables. Your authorized Rotel dealer can help in the selection of cables for APTX Bluetooth Connection 0 your system. -
Page 14: Source Input Selector 8 J
Press the corresponding input button on the front panel or remote control Being Roon Tested means that Rotel and Roon have collaborated to ensure to select the desired listening source. you have the best experience using Roon software and the RA-1592MKII together, so you can just enjoy the music. -
Page 15: Network Connection
If the protection circuitry triggers repeatedly and you are unable to isolate 5 HOURS, 12 HOURS. and correct the faulty condition, contact your authorized Rotel dealer for assistance in troubleshooting. • FIXED GAIN: Configures a Fixed Volume level for a specified input. To... -
Page 16: Troubleshooting
• Press ENTER to check if a new software version is available. have blown. If you believe this has happened, contact your authorized Rotel dealer to get the fuse replaced. -
Page 17: Cannot Connect Via Bluetooth
Weight (net) 17.6 kg, 38.8 lbs. All specifications are accurate at the time of printing. Rotel reserves the right to make improvements without notice. Rotel and the Rotel Hi-Fi logo are registered trademarks of The Rotel Co, Ltd., Tokyo, Japan. - Page 18 The Rotel Co. Ltd. Tachikawa Bldg. 1F., 2-11-4, Nakane, Meguro-ku, Tokyo, 152-0031 Japan Rotel USA Sumiko 11763 95th Avenue North Maple Grove, MN 55369 Phone: (510) 843-4500 (option 2) E-mail: Rotelsupport@sumikoaudio.net Rotel Canada Kevro International 902 McKay Rd. Suite 4...
