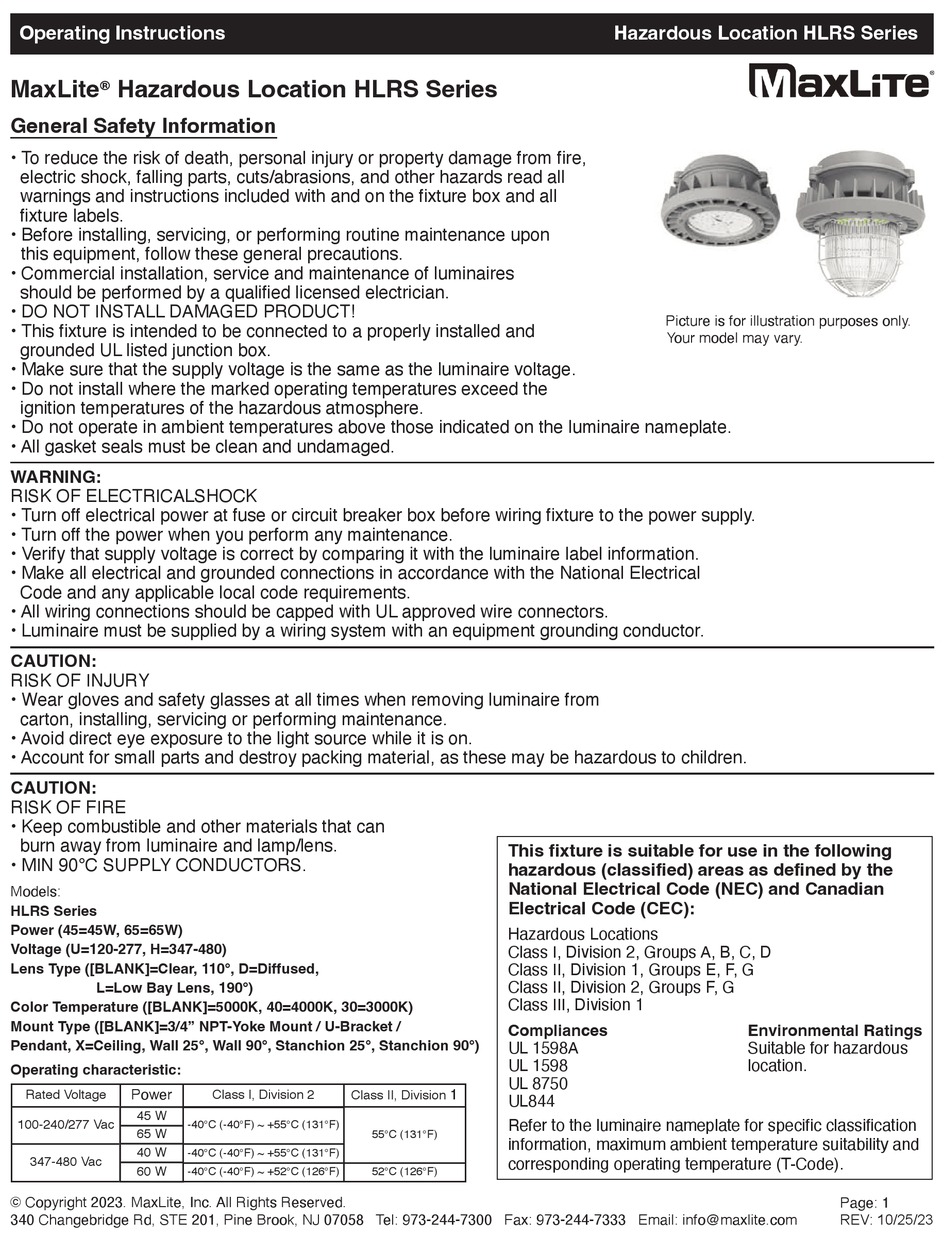

MaxLite HLRS Series Operating Instructions Manual

Operating Instructions
MaxLite Hazardous Location HLRS Series
®

General Safety Information

• To reduce the risk of death, personal injury or property damage from fire,
electric shock, falling parts, cuts/abrasions, and other hazards read all
warnings and instructions included with and on the fixture box and all
fixture labels.
• Before installing, servicing, or performing routine maintenance upon
this equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires
should be performed by a qualified licensed electrician.
• DO NOT INSTALL DAMAGED PRODUCT!
• This fixture is intended to be connected to a properly installed and
grounded UL listed junction box.
• Make sure that the supply voltage is the same as the luminaire voltage.
• Do not install where the marked operating temperatures exceed the
ignition temperatures of the hazardous atmosphere.
• Do not operate in ambient temperatures above those indicated on the luminaire nameplate.
• All gasket seals must be clean and undamaged.
WARNING:
RISK OF ELECTRICALSHOCK
• Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label information.
• Make all electrical and grounded connections in accordance with the National Electrical
Code and any applicable local code requirements.
• All wiring connections should be capped with UL approved wire connectors.
• Luminaire must be supplied by a wiring system with an equipment grounding conductor.
CAUTION:
RISK OF INJURY
• Wear gloves and safety glasses at all times when removing luminaire from
carton, installing, servicing or performing maintenance.
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be hazardous to children.
CAUTION:
RISK OF FIRE
• Keep combustible and other materials that can
burn away from luminaire and lamp/lens.
• MIN 90°C SUPPLY CONDUCTORS.
Models:
HLRS Series
Power (45=45W, 65=65W)
Voltage (U=120-277, H=347-480)
Lens Type ([BLANK]=Clear, 110°, D=Diffused,
L=Low Bay Lens, 190°)
Color Temperature ([BLANK]=5000K, 40=4000K, 30=3000K)
Mount Type ([BLANK]=3/4" NPT-Yoke Mount / U-Bracket /
Pendant, X=Ceiling, Wall 25°, Wall 90°, Stanchion 25°, Stanchion 90°)
Operating characteristic:
Power
Rated Voltage
100-240/277 Vac
-40°C (-40°F) ~ +55°C (131°F)
-40°C (-40°F) ~ +55°C (131°F)
347-480 Vac
-40°C (-40°F) ~ +52°C (126°F)
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: 973-244-7300 Fax: 973-244-7333 Email: info@maxlite.com
Class I, Division 2
Class II, Division
55°C (131°F)
52°C (126°F)
Hazardous Location HLRS Series
This fixture is suitable for use in the following
hazardous (classified) areas as defined by the
National Electrical Code (NEC) and Canadian
Electrical Code (CEC):
Hazardous Locations
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III, Division 1
Compliances
UL 1598A
UL 1598
UL 8750
1
UL844
Refer to the luminaire nameplate for specific classification
information, maximum ambient temperature suitability and
corresponding operating temperature (T-Code).
Picture is for illustration purposes only.
Your model may vary.
Environmental Ratings
Suitable for hazardous
location.
Page: 1
