MaxLite External U-Bend T8 Operating Instructions Manual

Operating Instructions
MaxLite External U-Bend T8
®

General Safety Information

WARNING – RISK OF FIRE OR ELECTRIC SHOCK. INSTALLATION OF THIS RETROFIT KIT
REQUIRES A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE
LUMINAIRE'S ELECTRICAL SYSTEM AND THE HAZARD INVOLVED. IF NOT QUALIFIED,
DO NOT ATTEMPT INSTALLATION. CONTACT A QUALIFIED ELECTRICIAN.
WARNING – RISK OF FIRE OR ELECTRIC SHOCK. INSTALL THIS KIT ONLY IN THE
LUMINAIRE THAT HAS THE CONSTRUCTION FEATURES AND DIMENSIONS SHOWN IN
THE PHOTOGRAPHS AND/OR DRAWINGS AND WHERE THE INPUT RATING OF THE
RETROFIT KIT DOES NOT EXCEED THE INPUT RATING OF THE LUMINAIRE.
DO NOT MAKE OR ALTER ANY OPEN HOLES IN AN ENCLOSURE OF WIRING OR ELECTRICAL
COMPONENTS DURING KIT INSTALLATION.
WARNING – TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR
OTHER SHARP OBJECTS.
THIS RETROFIT KIT IS ACCEPTED AS A COMPONENT OF A LUMINAIRE WHERE THE SUITABILITY OF THE
COMBINATION SHALL BE DETERMINED BY AUTHORITIES HAVING JURISDICTION. PRODUCT MUST BE INSTALLED
BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH THE APPLICABLE AND APPROPRIATE ELECTRICAL CODES.
THE INSTALLATION GUIDE DOES NOT SUPERSEDE LOCAL OR NATIONAL REGULATIONS FOR ELECTRICAL
INSTALLATIONS.
INSTALLERS SHOULD NOT DISCONNECT EXISTING WIRES FROM LAMPHOLDER TERMINALS TO MAKE NEW
CONNECTIONS AT LAMPHOLDER TERMINALS. INSTEAD, INSTALLERS SHOULD CUT EXISTING LAMPHOLDER LEADS
AWAY FROM THE LAMPHOLDER AND MAKE NEW ELECTRICAL CONNECTIONS TO LAMPHOLDER LEAD WIRES BY
EMPLOYING CONNECTORS SUITABLE FOR THE APPLICATION.
CAUTION – RISK OF FIRE. IF THE LAMP OR LUMINAIRE EXHIBITS UNDESIRABLE OPERATION (BUZZING, FLICKERING,
ETC.), IMMEDIATELY TURN OFF POWER, REMOVE LAMP FROM LUMINAIRE AND CONTACT MANUFACTURER.
THIS LAMP ONLY OPERATES ON ELECTRONIC BALLASTS. IF LAMP DOES NOT LIGHT WHEN THE LUMINAIRE IS
ENERGIZED, REMOVE LAMP FROM LUMINAIRE AND CONTACT LAMP MANUFACTURER OR QUALIFIED ELECTRICIAN.
THIS DEVICE IS NOT INTENDED FOR USE WITH EMERGENCY EXITS.
SUITABLE FOR DRY AND DAMP LOCATIONS ONLY.
LAMP ENDS CAN BE REVERSED
0-10V DIMMING
FOR CONNECTIONS, USE WIRE RATED FOR AT LEAST 90°C (194°F)
© Copyright 2020. MaxLite, Inc. All Rights Reserved. © Copyright 2020. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 973-244-7300 Fax: 973-244-7333 Email: info@maxlite.com 12 York Ave, West Caldwell, NJ 07006 Tel: 973-244-7300 Fax: 973-244-7333 Email: info@maxlite.com

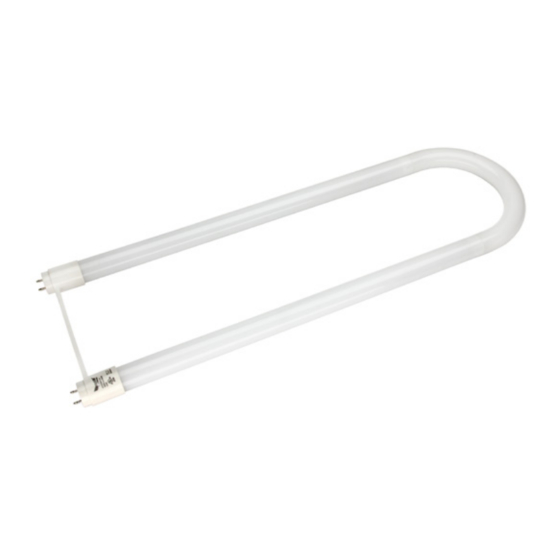

LED T8 U-Bend - Type C
Picture is for illustration purposes
only. Your model may vary.
Page: 1 Page: 1
REV: 06/30/20 REV: 06/30/20
