Operating Instructions
MaxLite Hazardous Location Linear Light
®
General Safety Information
• To reduce the risk of death, personal injury or property damage from fire,
electric shock, falling parts, cuts/abrasions, and other hazards read all
warnings and instructions included with and on the fixture box and all
fixture labels.
• Before installing, servicing, or performing routine maintenance upon
this equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires
should be performed by a qualified licensed electrician.
• DO NOT INSTALL DAMAGED PRODUCT!
• This fixture is intended to be connected to a properly installed and
grounded UL listed junction box.
• Make sure that the supply voltage is the same as the luminaire voltage.
• Do not install where the marked operating temperatures exceed the
ignition temperatures of the hazardous atmosphere.
• Do not operate in ambient temperatures above those indicated on the
luminaire nameplate.
• All gasket seals must be clean and undamaged.
• To ensure safety, a safety rope can be used to fix the luminaire before installation.
WARNING:
RISK OF ELECTRICALSHOCK
• Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label information.
• Make all electrical and grounded connections in accordance with the National Electrical
Code and any applicable local code requirements.
• All wiring connections should be capped with UL approved wire connectors.
• Luminaire must be supplied by a wiring system with an equipment grounding conductor.
CAUTION:
RISK OF INJURY
• Wear gloves and safety glasses at all times when removing luminaire from
carton, installing, servicing or performing maintenance.
• Avoid direct eye exposure to the light source while it
is on.
• Properly handle small parts and destroy packing
material, as these may be hazardous to children.
CAUTION:
RISK OF FIRE
• Keep combustible and other materials that can
burn away from luminaire and lamp/lens.
• MIN 90°C SUPPLY CONDUCTORS.
Models: HL-LI CID2 with EM
Operating characteristic:
Rated Voltage: 120-277 Vac, 50/60Hz
Ambient Temperature Range: -0（°C32 F) ~ +50 °C(122 F)
Charge time 24h, Discharge time 1.5h, Rated load 12w
© Copyright 2021. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 800-555-5629 Fax: 973-244-7333 Email: info@maxlite.com
MaxLite Hazardous Location Linear Light
This fixture is suitable for use in the following
hazardous (classified) areas as defined by the
National Electrical Code (NEC) and Canadian
Electrical Code (CEC):
Hazardous Locations
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class III , Division 1
Compliances
UL 844
UL 924
CSA C22.2 No.30-1986
CSA C22.2 No.137-M1981
CSA C22.2 No.250.0
CSA C22.2 No.250.13

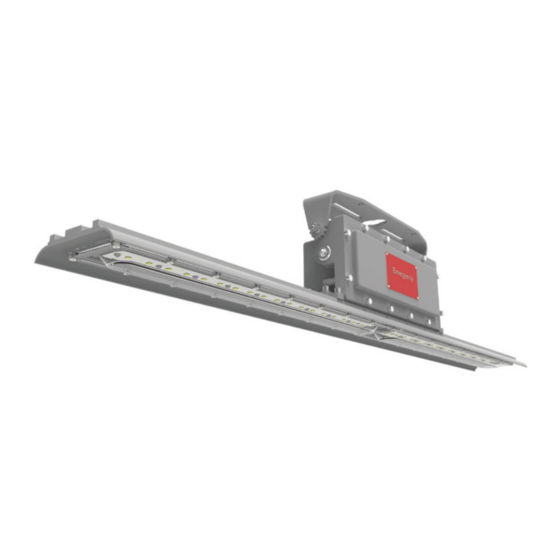

Picture is for illustration purposes only.
Your model may vary.
Refer to the luminaire
nameplate for specific
classification information,
maximum ambient
temperature suitability and
corresponding operating
temperature (T-Code).
Page: 1
REV: 9/30/21
