Operating Instructions

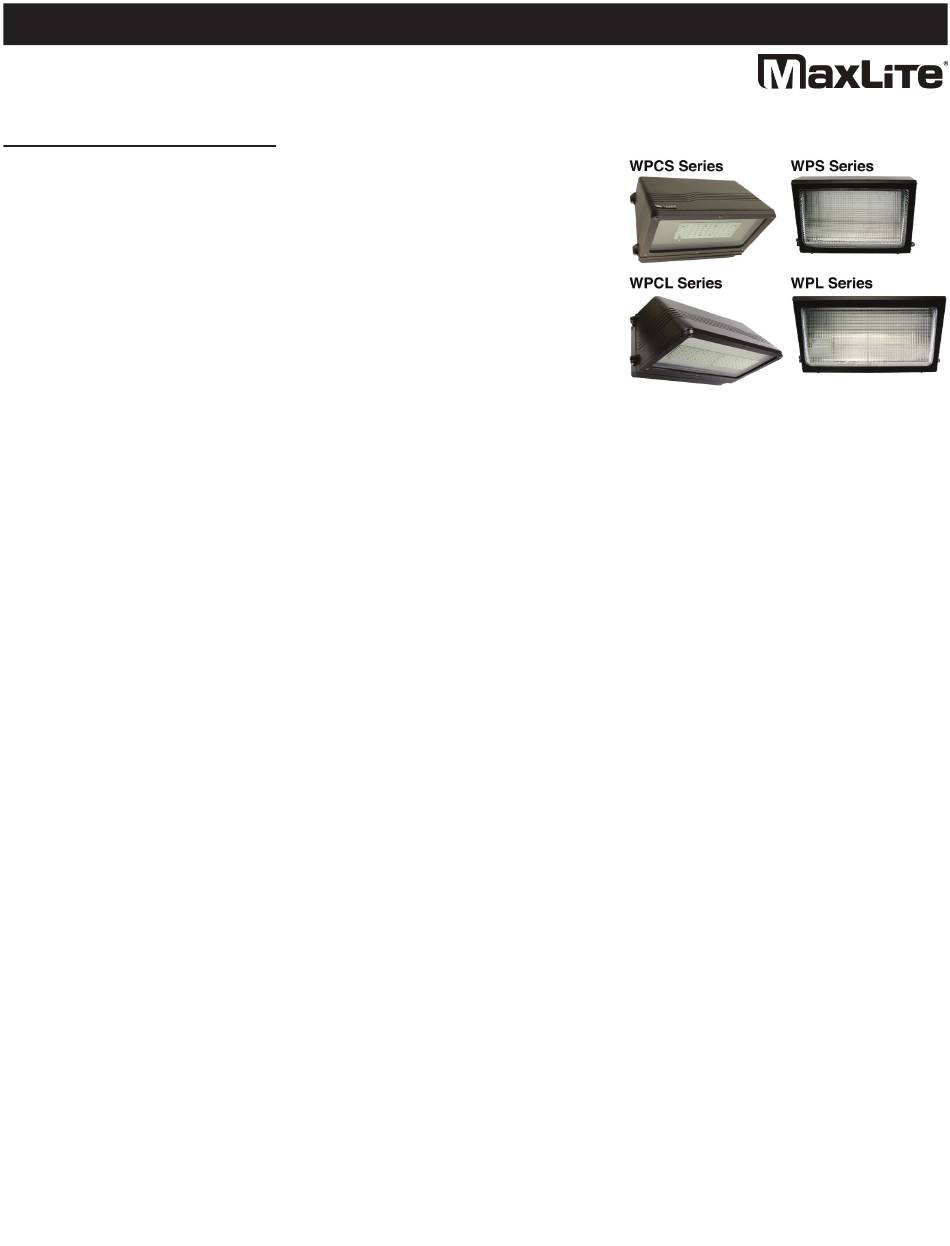

MaxLite LED Wall Packs (Cutoff & Standard)
®
General Safety Information
• To reduce the risk of death, personal injury or property damage from
fire, electric shock, falling parts, cuts/abrasions, and other hazards
read all warnings and instructions included with and on the fixture
box and all fixture labels.
• Before installing, servicing, or performing routine maintenance upon
this equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires
should be performed by a qualified licensed electrician.
• For Residential installation: If you are unsure about the installation or
maintenance of the luminaires, consult a qualified licensed electrician
and check your local electrical code.
• DO NOT INSTALL DAMAGED PRODUCT!
• This fixture is intended to be connected to a properly installed and
grounded UL listed junction box.
WARNING:
RISK OF ELECTRICAL SHOCK
• Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label information.
• Make all electrical and grounded connections in accordance with the National Electrical Code
and any applicable local code requirements.
• All wiring connections should be capped with UL approved wire connectors.
CAUTION:
RISK OF INJURY
• Wear gloves and safety glasses at all times when removing luminaire from carton, installing, servicing
or performing maintenance.
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be hazardous to children.
CAUTION:
RISK OF FIRE
• Keep combustable and other materials that can burn away from luminaire and lamp/lens
• MIN 90°C SUPPLY CONDUCTORS.
WPS20AU50XXXXX 120-277V 50/60 Hz
WPS30AU50XXXXX 120-277V 50/60 Hz
WPCS20AU50XXXXX 120-277V 50/60 Hz
WPCS30AU50XXXXX 120-277V 50/60 Hz
WPCL40AU50XXXXX 120-277V 50/60 Hz
WPCL55AU50XXXXX 120-277V 50/60 Hz
WPS20AU50XXXXX 120-277V 50/60 Hz
WPS30AU50XXXXX 120-277V 50/60 Hz
WPL40AU50XXXXX 120-277V 50/60 Hz
WPL55AU50XXXXX 120-277V 50/60 Hz
WPS40BU50XXXX 120-277V, 50/60 HZ
WPS28BH50XXXX 347-480V, 50/60 HZ
WPS50BH50XXXX 347-480V, 50/60 HZ
Model options:
If XXXX = PC12, voltage input 120V, 50/60Hz
If XXXX = PC27, voltage input 208-277V, 50/60 Hz
If XXXX = PC, voltage input 120-277V, 50/60Hz
If XXXX = MS, voltage input 120-277V, 50/60 Hz
If XXXX = IBB, voltage input 120-277V, 50/60 Hz
© Copyright 2017. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 800-555-5629 Fax: 973-244-7333 Email: info@maxlite.com

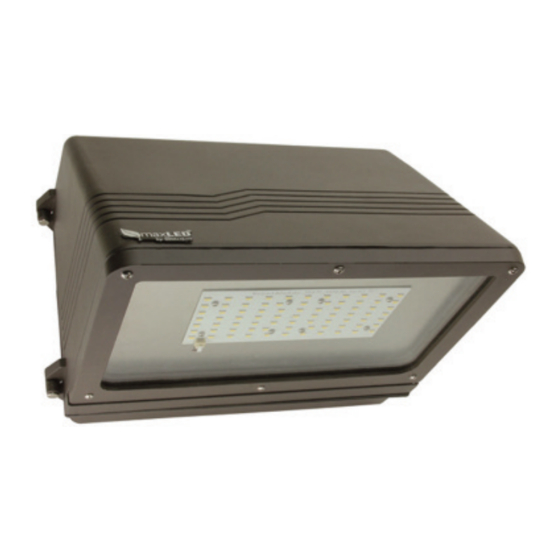

Picture is for illustration purposes
only. Your model may vary.
WPL80AU50 120-277V 50/60 Hz
WPS20A350XXXXX 347V 50/60 Hz
WPS30A350XXXXX 347V 50/60 Hz
WPCS20A350XXXXX 347V 50/60 Hz
WPCS30A350XXXXX 347V 50/60 Hz
WPL55AH50XXXXX 347-480V 50/60 Hz
WPL40AH50XXXXX 347-480V 50/60 Hz
WPCL40AH50XXXXX 347-480V 50/60 Hz
WPCL55AH50XXXXX 347-480V 50/60 Hz
WPS28BU50XXXX 120-277V, 50/60 HZ
WPS50BU50XXXX 120-277V, 50/60 HZ
WPS40BH50XXXX 347-480V, 50/60 HZ
Page: 1
REV: 5/22/17
