Supermicro SuperWorkstation 7033A-T Specifications

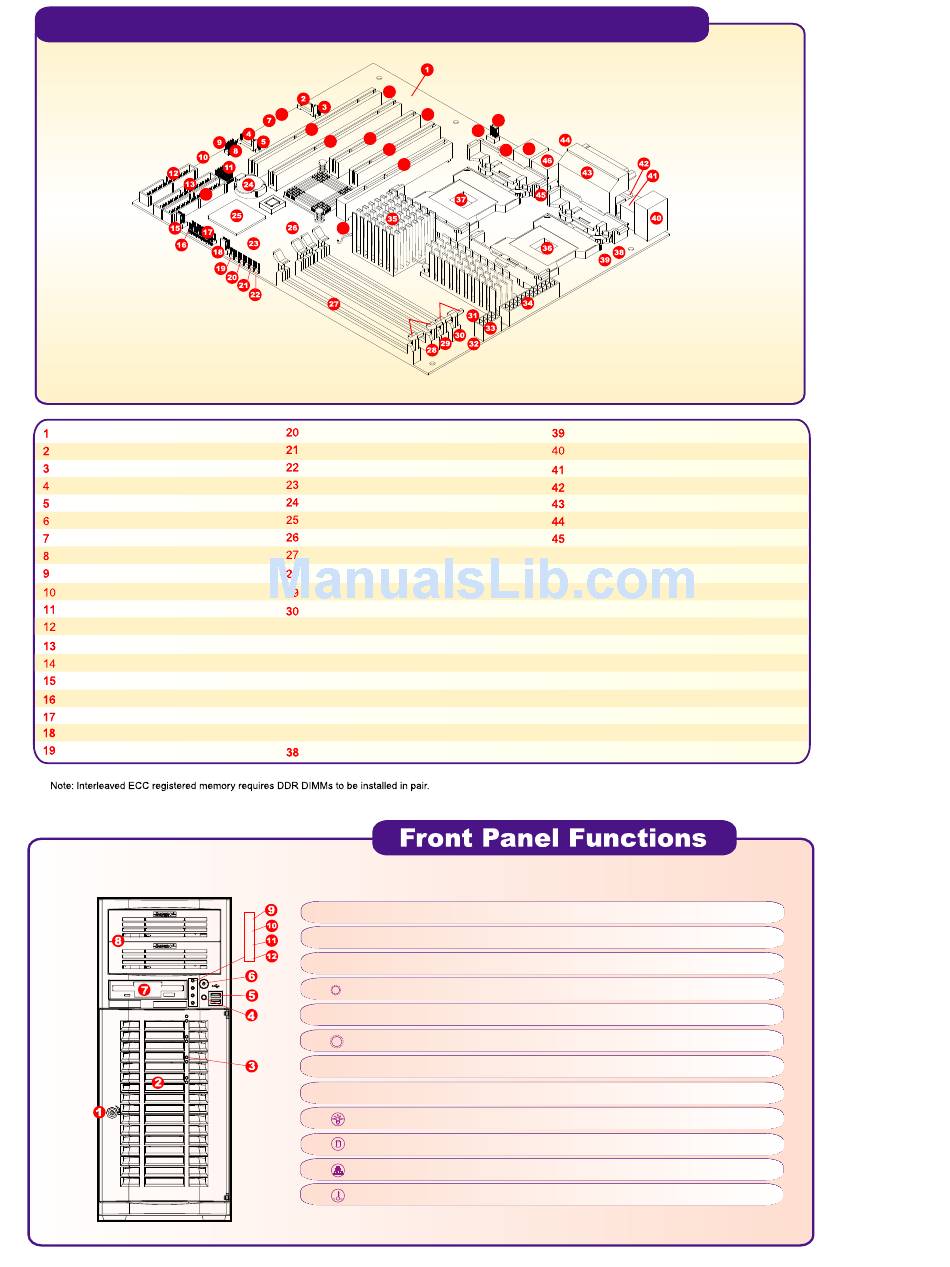

SuperWorkstaion 7033A-T Serverboard Components
14
Super X5DAL-TG2 serverboard
Serial ATA port #4
Serial ATA port #3
Serial ATA port #2
Serial ATA port #1
JPA1: SATA #1/#2 Enable/Disable
JPA2: SATA #3/#4 Enable/Disable
JL1: Chassis intrusion header
JSLED: SATA LED header
WOL1: Wake-on-LAN header
FPUSB 0/1/2/3: Front panel USB headers
Floppy connector
IDE#2 connector
IDE#1 connector
Chassis fan2
JBT1: CMOS clear
JF2: Front control panel connector
Chassis fan1
JD1: PWR LED/speaker header
58
6
57
56
54
55
53
52
51
JP36: Power supply fail alarm reset switch
JOH1: Overheat LED
JP37: Watch dog
JWOR1: Wake-on-Ring header
Battery
ICH4 chipset
JP39: System bus speed
DIMM #4 socket
DIMM #3 socket
DIMM #2 socket
DIMM #1 socket
JP9: Power fail alarm En/Disable
31
JP8: Third power supply fail header
32
J15: CPU power connector
33
ATX power connector
34
35 MCH
36 CPU1 socket
37 CPU2 socket
JPUSB: USB wake-up
1. Front bezel lock
2. 4 x 1" hot-swap SATA drive bays
3. SATA activity LED
4. Reset: use the reset button to reboot the system
5. Front side USB access
6. Main power button
7. Floppy drive
8. 2 x 5.25" drive bays
9.
Power: Indicates power is being supplied to the system.
HDD: Indicates IDE hard disk/CD-ROM drive activity.
10.
11. NIC: Indicates network activity on GLAN port.
12. Overheat: Indicates an overheat condition in either one of the processors.
49
50
47
48
JPWAKE: Keyboard wake-up
Keyboard & mouse
USB 0/1 port
COM1 port
Parallel port
COM2 port
CPU fan1
46, 47
Gigabit LAN 1/2 ports
CPU fan2
48
49 Overheat fan
JP38: Thermal fan control
50
51 J30: Power conn.(for use w/AGP Pro cards)
8xAGP 1.5V
52
53 PCI #2/33MHz
PCI #1/33MHz
54
55 PCI-X #2/100MHz
PCI-X #1/66MHz
56
57 J12: IR/CIR header
JPL1: Gigabit Enable/Disable
58
