Summary of Contents for W-Tec Pro 8

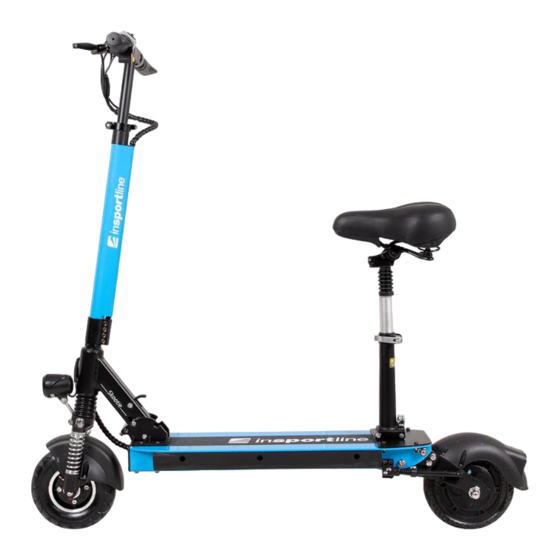

- Page 1 USER MANUAL – EN IN 21338 E-Scooter Skootie Pro 8 with seat IN 22330 E-Scooter Skootie Pro II Picture for illustration purpose only. Color may vary.
-
Page 2: Table Of Contents
CONTENTS PRODUCT DESCRIPTION ........................3 WARNINGS ............................. 5 UNFOLDING E-SCOOTER ........................6 FOLDING E-SCOOTER .......................... 8 BATTERY ..............................9 BATTERY CHARGING .......................... 10 OPERATION............................10 SAFETY INSTRUCTIONS ........................12 RIDING OPERATION ..........................13 PREPARATION ..........................13 FIRST START (ask others for help) ....................13 BRAKING ............................ -
Page 3: Product Description
PRODUCT DESCRIPTION 1) Handle 2) Speed control / Acceleration 3) Grip 4) Brake lever 5) Telescopic pipe 6) Quick release... - Page 4 7) Jump bead 8) Main tube 9) Fold switch 10) Kickstand 11) Light switch 12) Charge socket 13) Damping spring 14) Battery capacity labeling Quick folding mechanism, self-locking/release Rear air-free solid wheel Scrub anti-skid frame Damping spring Battery charger connector Front tire Speed control throttle/ON, OFF button/Battery indicator...
-
Page 5: Warnings
LED head light/Speed limit switch (left side slow, right side fast)/Horn Locking cap Kickstand WARNINGS • Maintain it regularly and according to the manual to avoid injury or product damage. The user is fully responsible for regular maintenance. • Read this manual carefully before first use and keep it for future reference. •... -
Page 6: Unfolding E-Scooter
UNFOLDING E-SCOOTER STEP 1 STEP 2... - Page 7 STEP 3 STEP 4 NOTE: Before each use make sure, that the safety switch is inserted all the way into the central folding mechanism. Otherwise you risk injury of yourself or mechanism breakage.
-
Page 8: Folding E-Scooter
FOLDING E-SCOOTER STEP 1 STEP 2... -
Page 9: Battery
STEP 3 STEP 4 NOTE: This product features a unique folding mechanism, that enables a quick and easy folding, carrying, transport and storing. BATTERY 6-month battery warranty – we guarantee that battery's nominal capacity does not fall below 70% of its total capacity within 6 months of the product’s sale. •... -
Page 10: Battery Charging
• Use and store it only according to the product requirements and within specified limits. Otherwise you could damage the battery or shorten its lifespan. Improper using or storing may result in warranty void. BATTERY CHARGING This product has an external charger. Connect the charging cable to the scooter charging socket under the footboard on the rear right side. -
Page 12: Safety Instructions
SAFETY INSTRUCTIONS • The scooter is designed to carry one person at the same time. • Wear a helmet and other protective equipment, incl. proper boots. • Do not ride on dangerous or ineligible roads. • Before the first ride, try to control the scooter in the open spaces. If you are not sure, ask a more experienced person for advice. -
Page 13: Riding Operation
• Do not speed when riding down the hill. The breaking distance is longer and you can loose control of the scooter. • Load capacity: 120 kg • This product meets standards: EN 55014-1: 2006+A1: 2009+A2: 2011, EN 55014-2: 1997+A1: 2001+A2: 2008 EN 61000-3-2: 2014, EN 61000-3-3: 2013 RIDING OPERATION PREPARATION... -
Page 14: Default Settings
3. After connection, the indicator will show red color, which means the charging is working, when the indicator turns green, the charging has finished. DEFAULT SETTINGS Default settings 8 inches 48 V Wheel diameter Low-voltage protection (DO NOT CHANGE) Number of pole pairs (for motor) Speed signal selection (DO NOT CHANGE) 1 can not be changed Kilometres or miles... -
Page 15: Quick Maintenance
QUICK MAINTENANCE Do NOT try to fix or modify the E-Scooter by your own. It can cause damage and cancel the manufacturer warranty. REAR FLAT TIRE REPAIR 1. Make sure that the scooter is turned off and it is not plugged in the power supply. 2. -
Page 16: Maintenance
the MODE button to select gear and press ON/OFF button or wait 5 seconds to save the option. The gear set up has a memory function, it will automatically set the gear to one that was used last. With full charged battery and user weight under 70 kg the speed is in average: Short press of MODE button the display will change to single range display. -
Page 17: Environment Protection
Battery capacity 13 Ah Range 35-40 km Motor type Brushless dc motor Rated power output 500 W Motor information Maximum speed 1200 rpm Rated voltage 48 V Maximum output torque 9.5 N.m Input voltage AC 100-240 V Output current Battery charger parameters Charging time 8-12 hours Charging power consumption... - Page 18 Warranty Conditions Warranty Period The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal warranty period provided to the Consumer is not affected. By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its regular or contracted features.
- Page 19 Strakonická 1151/2c, Praha 5, 150 00, ČR Registered Office: Dělnická 957, Vítkov, 749 01 Headquaters: Warranty & Service: Čermenská 486, Vítkov 749 01 CRN: 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty &...
