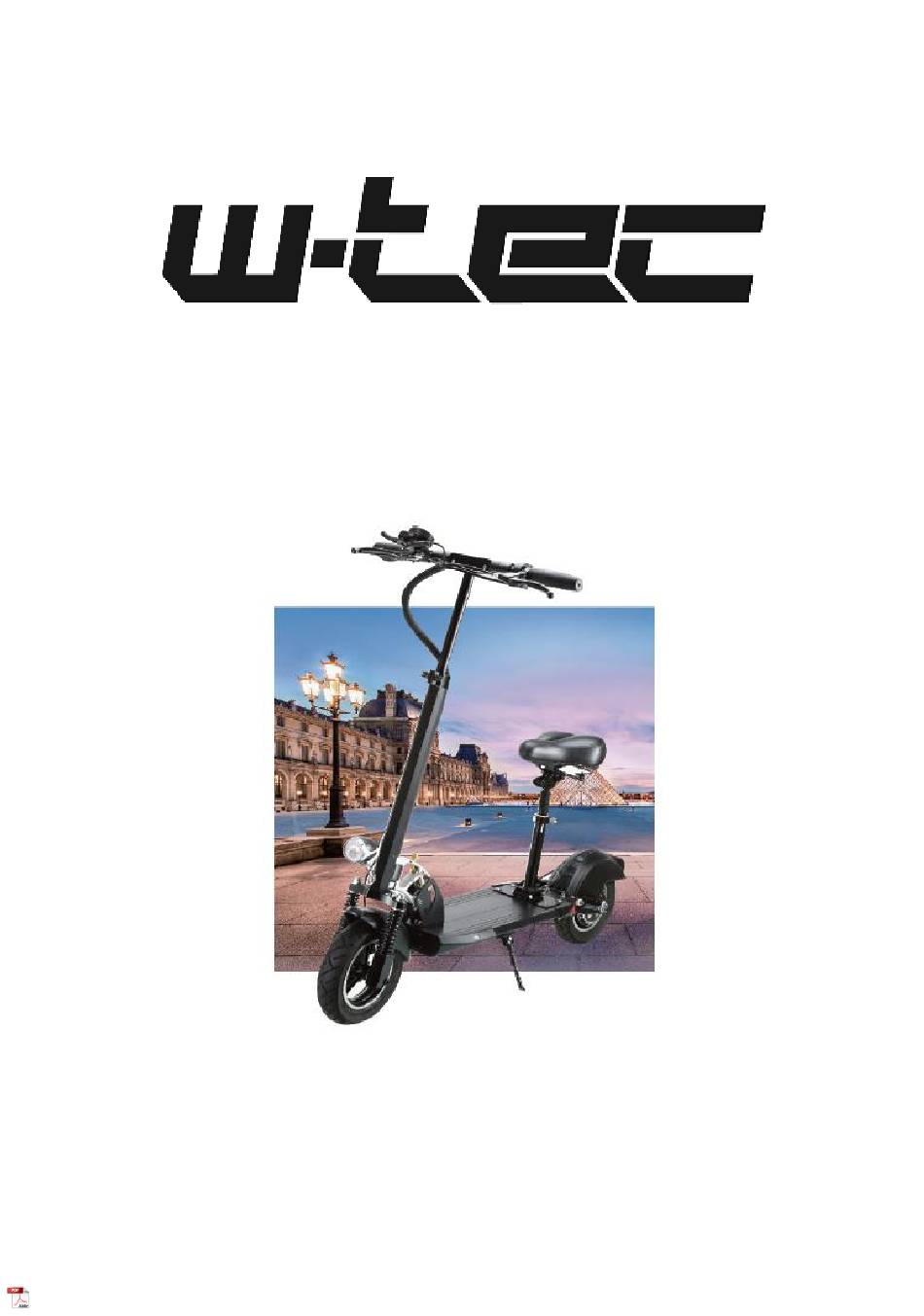

- Page 1 USER MANUAL – EN IN 23784 E-scooter W-TEC Tendeal 10''...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PRODUCT DESCRIPTION ........................4 UNFOLDING............................5 CONTROL PANEL ..........................5 FACTORY SETTING ........................... 6 SETTINGS ............................7 REMOTE CONTROLLER ........................8 CHARGING ............................. 9 BATTERY ..............................9 USE ................................. 9 RIDING TECHNIQUE ..........................9 CLEANING AND MAINTENANCE ......................10 STORAGE ............................. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Read the manual carefully and keep it for future reference. • The scooter is designed to carry one person at the same time. • Wear a helmet and other protective equipment, incl. proper boots. • Do not ride on dangerous or ineligible roads. •... -
Page 4: Product Description
• Weight limit: 150 kg PRODUCT DESCRIPTION Control panel Battery charging port Brake cable Scooter drive Front brake lever Rear brake pad Height-adjustable handlebar Reflectors Lever of height adjustable mechanism Rear fender Lights Quick release lever Front brake pad Seat 10 ‘‘... -
Page 5: Unfolding
UNFOLDING Step 1 Press the button on the folding mechanism B and slowly lift the handlebars A. Step 2 Slowly raise handlebars A until they are locked B. Step 3 Loosen the handlebar clamp and set the desired handlebar height. Then secure the clamp. For folding follow the steps in reverse. -
Page 6: Factory Setting
TRIP - currently covered distance, 0123.5 shows 123.5 km ODO - total distance traveled, 12035 shows 12035 km The time displayed in MM: SS format after reaching the maximum value of 99:99 switches to HH: MM format Power saving mode: The control panel enters standby mode after 90 seconds of inactivity. Hold the power button for 3 seconds to turn on. -
Page 7: Settings
ERRO 1: Motor error ERRO 2: Handle error ERRO 3: Control error ERRO 4 The brake does not work If an error message icon is displayed, press the on / off switch. An error code is displayed: ERRO 5: Surge protection ERRO 6: Communication error - the scooter is not receiving a signal from the control panel ERRO 7: Communication error - the control panel... -
Page 8: Remote Controller
P05 - Engine power P06 - Wheel diameter Unit: inches, accuracy to 0.1 Number magnets speed 1 – 100 measurement P08 - Speed limiter Just add speed and the scooter will start (Zero), it P09 - Starting method is necessary to bounce your foot and then add gas (Non) 0 - by bouncing (off) P10 - Drive mode... -
Page 9: Charging
Start - press twice, the scooter will unlock, and the display will turn on CHARGING Connect the charger. The indicator lights up red when it is charging, the indicator lights up green when the battery is charged. Recharge the battery regularly. BATTERY 6-month battery warranty –... -
Page 10: Cleaning And Maintenance
• Turn continuously and brake safely having enough free space. • Practice your first ride in an open area without obstacles. • Never let distract your mind during riding. Foot position – put your foot on the board as close to the front part as possible. Let your other foot on the ground. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Dimensions 100x56x120 cm Specifications Distance between the centers of 850 mm the front and rear wheels Weight (incl. Battery) 16.5 kg Load capacity 150 kg ≤40 km / h Maximal speed Performance 20 ° Maximum climb Battery type Lithium battery Voltage Battery... - Page 12 The seller is SEVEN SPORT s.r.o. with its registered office in Strakonická street 1151/2c, Prague 150 00, Company Registration Number: 26847264, registered in the Trade Register at Regional Court in Prague, Section C, Insert No. 116888. According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer”...
- Page 13 If the Seller finds out (by testing) that the product is not damaged, the Warranty Claim is not accepted. The Seller reserves the right to claim a compensation for costs arising from the false Warranty Claim. In case the Buyer makes a claim about the Goods that is legally covered by the Warranty provided by the Seller, the Seller shall fix the reported defects by means of repair or by the exchange of the damaged part or product for a new one.
