Summary of Contents for W-Tec Billar II

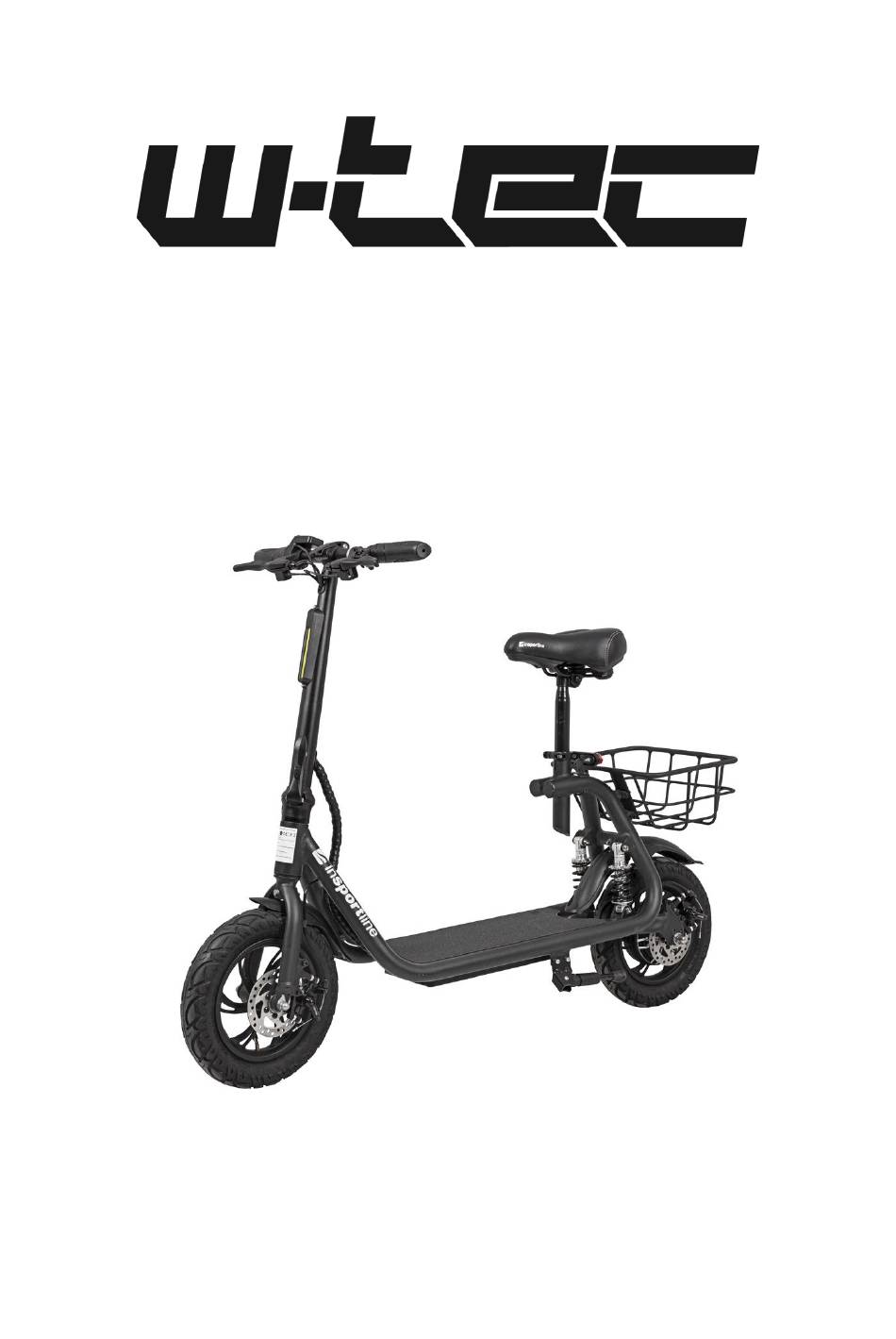

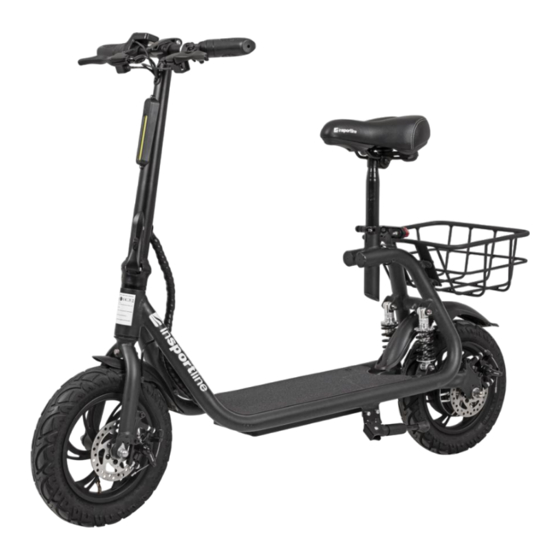

- Page 1 USER MANUAL – EN IN 23927 E-scooter W-TEC Billar II 500W 12''...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 ASSEMBLY ............................. 4 TECHNICAL PARAMETERS ....................... 6 PANEL DISPLAY AND FUNCTIONS ....................6 DISPLAY .............................. 6 USE ..............................7 SETTINGS ............................7 PARAMETERS ............................ 7 FACTORY SETTINGS ......................... 8 BRAKE ADJUSTMENT ........................... 8 BATTERY .............................. 10 USE ............................... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Read the manual carefully and keep it for future reference. • The scooter is designed to carry one person at the same time. • Wear a helmet and other protective equipment, incl. proper boots. • Do not ride on dangerous or ineligible roads. •... -
Page 4: Assembly
• Do not ride in the rain or on wet roads. There is a risk of damaging electronic part and battery. • Weight limit: 120 kg • Product meets standards: EN 55014-1: 2006+A1:2009+A2:2011; EN 55014-2:20015; EN 61000-3-2:20014; EN61000-3-3:2013; EN 60335-1:2012+A11:2014 ASSEMBLY 1. - Page 5 4. With quickrelease lever adjust the seat height. 5. Check the pressure in tires. 6. Check rear and front lights. Check battery and ring.
-
Page 6: Technical Parameters
CONTROL PANEL Turn the key to start the scooter. button to change speed modes , order: (1 – 2 – 3 – 2 – 1) Press the Hold the button to turn on / off lights. TECHNICAL PARAMETERS Rated voltage: Rated current: 20 mA -20 °... -
Page 7: Use
Total distance: Speed mode: Lights: button to switch speed modes (1 – 2 – 3 – 2 – 1). Turn the key to start / stop the scooter. Use the When turned on, the display shows the current distance traveled (TRIP). Press the button, to changed display information in order: currently traveled distance (TRIP), total distance traveled (ODO), battery voltage (VOL). -
Page 8: Factory Settings
Default value: 30 Unit: inches Accuracy: 0,1 P6 Wheel diameter For service department only Default value: 12 Range: 500 – 1500 Coefficient: 0,5 – 1,5 P7 Battery voltage For service department only Default value: 30 Range: 500 – 1500 Coefficient: 0,5 – 1,5 P8 Speed correction For service department only Default value: 0... -
Page 10: Battery
BATTERY CHARGING • The charging port is located at the rear side of the foot rest. • Connect the charger to the charging port. Make sure the charger and port are dry. • The indicator is red when the battery is charging. When the indicator turns green, the battery is fully charged. -
Page 11: Use
• Battery lifespan is limited. If you use a battery that exceeds normal lifespan, the charging frequency may increase, and the scooter range will be reduced. • Do not open or throw of the battery in a fire. Do not insert foreign objects into the battery. •... - Page 12 Braking – shift your weight backwards so that the braking is realized through your feet and not through handlebar and steering system. Learn well to adjust the gravity center during stopping to avoid turning over or excessive wearing of the braking and steering system CLEANING AND MAINTENANCE •...
-
Page 13: Technical Parameters
TECHNICAL PARAMETERS Material Aluminium Battery voltage 36 V Maximum range up to 38 km Maximal speed 25 km/h Weight 19 kg Maximal load capacity 120 kg Climbing angle 7,2° Display Tire size Front / rear 12‘‘ Tire pressure Front 2.8 bar, rear 2.5 bar Brakes Front / rear disc brakes Spaced dimensions... - Page 14 “The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the purpose of using the Goods or services for his own business activities. The Buyer conforms to the General Purchase Agreement and business conditions. These Conditions of Warranty and Warranty Claims are an integral part of every Purchase Agreement made between the Seller and the Buyer.
- Page 15 The Seller shall settle the Warranty Claim within 30 days after the delivery of the defective Goods, unless a longer period has been agreed upon. The day when the repaired or exchanged Goods is handed over to the Buyer is considered to be the day of the Warranty Claim settlement. When the Seller is not able to settle the Warranty Claim within the agreed period due to the specific nature of the Goods defect, he and the Buyer shall make an agreement about an alternative solution.
