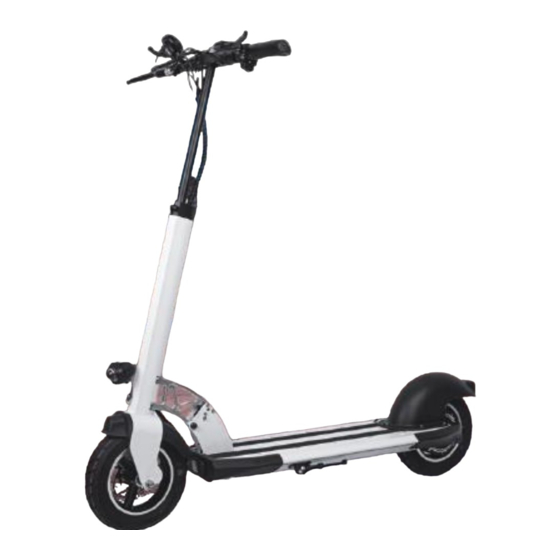

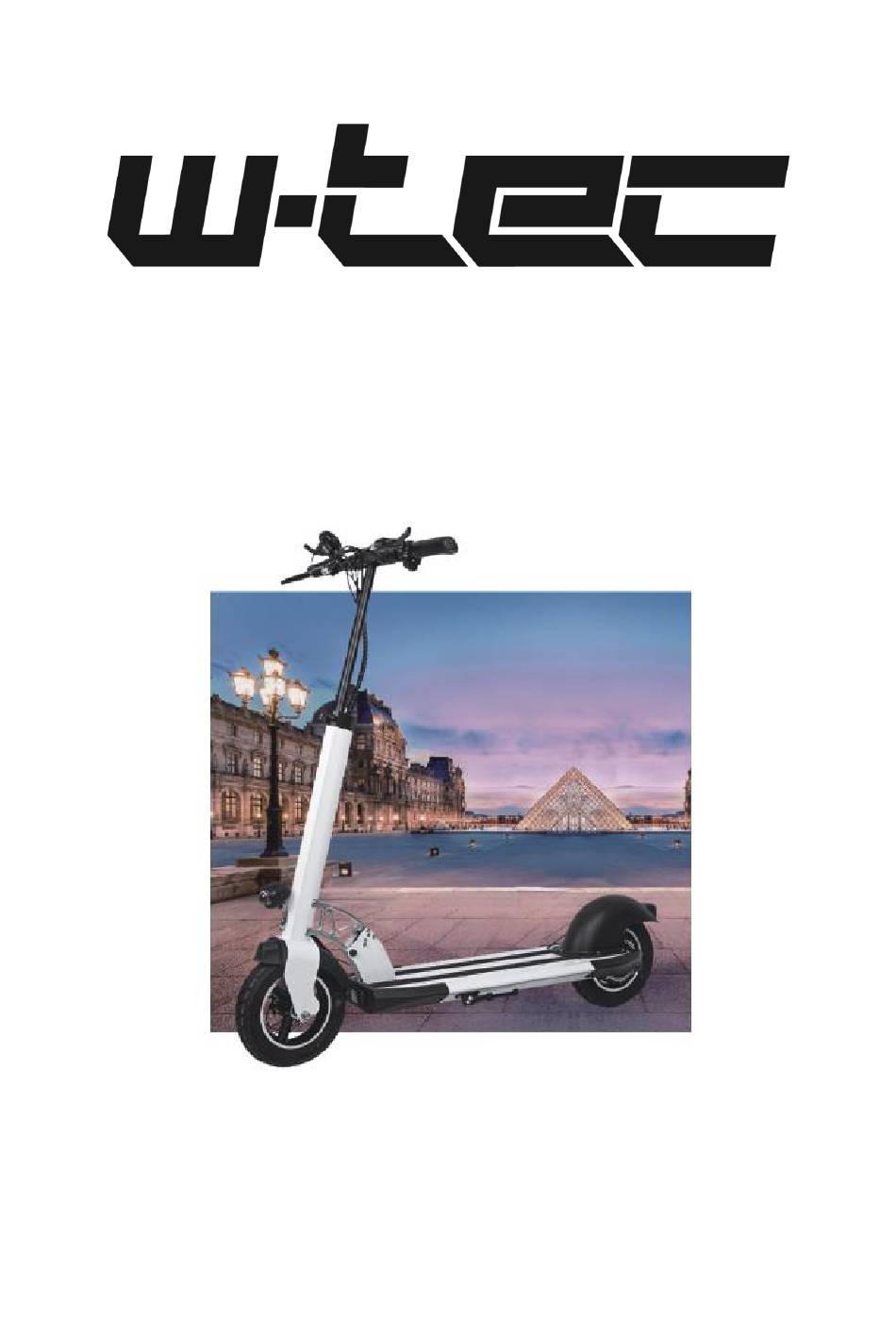

- Page 1 USER MANUAL – EN IN 23398 E-Scooter W-TEC Tenmark...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PRODUCT DESCRIPTION ........................4 FOLDING AND UNFOLDING ........................5 CONTROL PANEL ..........................6 FACTORY SETTINGS ......................... 6 SETTINGS ............................8 REMOTE CONTROLLER ........................9 CHARGING ............................. 9 BATTERY ..............................9 USE ............................... 10 RIDING TECHNIQUE ..........................10 CLEANING AND MAINTENANCE ...................... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Read the manual carefully and keep it for future reference. • The scooter is designed to carry one person at the same time. • Wear a helmet and other protective equipment, incl. proper boots. • Do not ride on dangerous or ineligible roads. •... -
Page 4: Product Description
• Weight limit: 150 kg PRODUCT DESCRIPTION Control panel Brake lever Front brake cable Adjustable handlebar rod Clamp Light Front brake 10 "wheel Aluminum rim Connection port Stand Battery charge connector Brushless motor Rear brake Reflections Fender... -
Page 5: Folding And Unfolding
Folding mechanism Handlebars FOLDING AND UNFOLDING Step 1 Press the button on the folding mechanism B and slowly lift the handlebars A. Step 2 Slowly raise handlebars A until they are locked B. Step 3 Loosen the handlebar clamp and set the desired handlebar height. Then secure the clamp. For folding follow the steps in reverse. -
Page 6: Control Panel
CONTROL PANEL Current speed mode Speed Distance traveled, etc. Battery status Hold the power button for 3 seconds to turn on. The LCD display enters standby mode. Press the mode button you change the speed modes L1, L2, L3 (L1 lowest, L3 highest). Speed depends on factors such as battery condition, user weight, road condition, etc. - Page 7 Battery status Display of total distance traveled (ODO), current distance traveled (TRIP), Voltage (V), current (A), current operation time, error code (E), detection code (UE) ERRO 1: Motor error ERRO 2: Handle error ERRO 3: Control error ERRO 4 The brake does not work If an error message icon is displayed, press the on / off switch.
-
Page 8: Settings
Gear, a higher number indicates a higher gear if the value is 0 when the engine is off Lights icon, hold down the MODE button to turn the lights on / off Cruise control: Hold a steady speed for 5 seconds to start cruise control, the corresponding icon will be displayed. -
Page 9: Remote Controller
1 – 20 A (for service only) P14 - Current P15 - Motor speed transmission limitation 1 – on, 0 – off P16 - Cruise control 1 - lights and backlight do not start after start-up P17 - Synchronization of lights and backlight after start-up 2 - lights and backlight start after start-up 1 –... -
Page 10: Use
• Battery lifespan is limited. If you use a battery that exceeds normal lifespan, the charging frequency may increase, and the scooter range will be reduced. • Do not open or throw of the battery in a fire. Do not insert foreign objects into the battery. •... -
Page 11: Cleaning And Maintenance
CLEANING AND MAINTENANCE • The scooter must be switched off, disconnected from the charger and the charging port must be covered before cleaning or maintenance. • Clean the scooter with a damp cloth and a mild detergent. • Do not use solvents or other aggressive cleaning agents. •... -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS Dimensions 100x56x120 cm Specifications Distance between the centers of 850 mm the front and rear wheels Weight (incl. Battery) 16.5 kg Load capacity 150 kg ≤40 km / h Performance Maximal speed 20 ° Maximum climb Battery type Lithium battery Voltage 36V / 48V... - Page 13 The seller is SEVEN SPORT s.r.o. with its registered office in Strakonická street 1151/2c, Prague 150 00, Company Registration Number: 26847264, registered in the Trade Register at Regional Court in Prague, Section C, Insert No. 116888. According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer”...
- Page 14 If the Seller finds out (by testing) that the product is not damaged, the Warranty Claim is not accepted. The Seller reserves the right to claim a compensation for costs arising from the false Warranty Claim. In case the Buyer makes a claim about the Goods that is legally covered by the Warranty provided by the Seller, the Seller shall fix the reported defects by means of repair or by the exchange of the damaged part or product for a new one.
-
Page 15: Es Declaration
Seven sport s.r.o. Strakonická 1151/2C Praha 5-Hlubočepy 150 00 IČ: 268 47 264 Czech republic Declares on its own responsibility that E-scooter W-TEC Tenmark (A1) product: IN 23398 This product meets the following standards CERTIFICATE SGS: SHES210801682785HSC / 05.11.2021 EN ISO 12100:2010 EN 17128:2020 CERTIFICATE BST: BSTDG181211138301CC / 06.11.2018...
