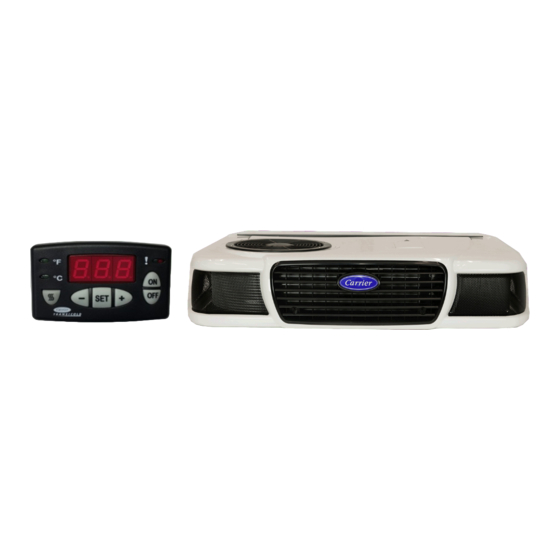

- Page 1 Truck Refrigeration Operator’s Manual 20X and 35X Road Only Truck Refrigeration Units with Cab Command Controller 62-10892 Rev B...
- Page 3 Operator’s Manual 20X and 35X Road Only Truck Refrigeration Units with Cab Command Controller ©Carrier Corporation, 2018 - Printed in U. S. A. March 2018...
-
Page 5: Table Of Contents
Table of Contents Introduction ............... 1 Safety ................2 Unit Identification .............. 3 Keypad and Display .............. 5 Unit Operation ..............6 Operating Principle ............6 Starting ................7 Temperature Setpoint ............8 Manual Defrost ..............9 Defrost Interval ..............10 Minimum Setpoint, Out-of-Range, and Continuous Airflow ................ -
Page 7: Introduction
Introduction This guide has been prepared for the operator of Carrier Transicold 20X and 35X Road Only Truck Refrigeration units with Cab Command Controller. It contains basic instructions for the daily operation of the refrigeration unit as well as safety information, and other information that will help you to deliver the load in the best possible condition. -
Page 8: Safety
Safety Your Carrier Transicold refrigeration unit has been designed with the safety of the operator in mind. During normal operation, all moving parts are fully enclosed to help prevent injury. During all pre-trip inspections, daily inspections, problem troubleshooting, you may be exposed to moving parts; please stay clear of all moving parts when the unit is in operation. -
Page 9: Unit Identification
This information will be needed when you contact a technician or Carrier Transicold Service Engineer so that he or she may properly assist you. 20X Nameplate... - Page 10 Unit Identication A : Evaporator B : Condenser C : Cab Command control D : Compressor E : Vehicle battery...
-
Page 11: Keypad And Display
Keypad and Display Readout Standby operation display (Not Applicable) Road operation display Manual defrost control key Unit start-up key Unit shut-down key Data selection key Selected data decrease key Selected data increase key Unit operation display - Green = In-range (left half) - Red = Alarm (right half) -
Page 12: Unit Operation
Unit Operation Operating Principle After starting up the refrigeration unit by pressing the ON key on the Cab Command, unit start-up and shutdown are automatic. Road operation: An open-type compressor is driven by the engine of the vehicle. The vehicle battery powers the evaporator and condenser fans. -
Page 13: Starting
Starting the Unit 40°F 1. Press the ON key. Start-up may be time- delayed. 2. Check if box temperature is displayed. 3. Check that the road operation light is on. NOTE: If standby power cord is plugged in, the controller will trigger a visual alarm in the form of a flashing alarm light and readout (4), and the unit will run in standby mode. -
Page 14: Temperature Setpoint
Temperature Setpoint 1. Press SET key to display setpoint. 2. Press + (plus) key to increase setpoint or press - (minus) key to decrease setpoint. 3. Press SET key when desired setpoint is displayed to lock in new setpoint. -
Page 15: Manual Defrost
Manual Defrost 1. Check that box temperature is 40°F or lower. 2. Press Manual Defrost key to initiate manual defrost. -
Page 16: Defrost Interval
Defrost Interval Defrost Interval in Hours: 0, 1, 1.5, 2, 2.5, 3, 4, 5 & 6 AUT: Microprocessor optimized automatic defrost according to type of cargo. 1. Press the OFF key. 2. Press Defrost and ON key to display the previously selected defrost interval. -
Page 17: Minimum Setpoint, Out-Of-Range, And Continuous Airflow
Minimum Setpoint, Out-of-Range, and Continuous Airflow Minimum Setpoint Settings: ---20_F (---28.9_C), ---4_F (---20_C), or 32_F (0_C) Out-of-Range Settings: 1.8, 3.6 or 5.4_F (1, 2 or 3_C) Continuous Airflow Settings: ON or OFF 1. Turn unit on and press + (plus) key. 2. -
Page 18: Stopping The Unit
Stopping the Unit Press the OFF key. -
Page 19: Product Loading
Product Loading Before Loading • Pre-cool the body. This will remove much of the heat from the inside of the body and give the product better protection when it is loaded. • Place the unit in a defrost cycle immediately before loading. This will remove moisture accumulated on the evaporator coil. - Page 20 All products should be kept away from the side°walls of the body, to allow air flow between the body and the load; this prevents heat filtering through the walls from affecting the product. It is important to check the temperature of the product being loaded to ensure that it is at the correct temperature for transport.
-
Page 21: Recommended Transport Temperatures
These are included for reference only and should not be considered preemptive of the set point required by the shipper or receiver. More detailed information can be obtained from your Carrier Transicold dealer. Setpoint Range Product °F... -
Page 22: Problems And Alarms
If, however you run into problems the following section may be of assistance. If you do not find the trouble that you have experienced listed, please call your Carrier Transicold dealer for assistance. General Problems •... -
Page 23: Alarm Display
Alarm Display 1. When an alarm is activated, the ! light flashes red. The ! light flashes green when the unit is operating correctly. 2. Press the SET key for five seconds to display alarms. 3. Press + (plus) or - (minus) key to view additional alarms. -
Page 24: Alarm List
Alarm List Alarm Description Alarm No Malfunction A01/A02 High or Low Pressure Switch Road Compressor Clutch Condenser Fan Motor (high amp draw) Evaporator Fan Motor (high amp draw) Hot Gas Valve (HGS1) (high amp draw) Quench Valve (BPV) (high amps draw) Condenser Pressure Control Valve (HGS2) High Temperature Alarm... -
Page 25: Alarm Reset
Alarm Reset Press the OFF key to clear alarm list. Unit can now be restarted if no active alarm condition remains. -
Page 26: Fuses
Road Supply Fuse Engine FEFM Evaporator Fan Motor 1 & Electrical Box FCFM Condenser Fan Motor Electrical Box Microprocessor Board Electrical Box 20X Fuses Fuse Purpose Location Ignition Engine Compartment Main Road Fuse Vehicle Battery Road Supply Fuse Condenser To access the fuses in the control box, remove the upper cowling... -
Page 27: Unit Maintenance
Refrigerant Charge: R-404a Refrigerant Charge Unit Charge 3.1 lbs (1.4 kg) 3.3 lbs (1.5 kg) Oil Charge: Carrier POE #46-0002-02 Compressor Oil Unit Oil Charge 4 oz. (120 ml) 4 oz. (120 ml) For the most reliable operation and for maximum life, your unit requires regular maintenance. -
Page 28: Service Schedule
Service C motors, brush maintenance is not required. 3. Change compressor oil Use polyol ester oil (POE) approved by Carrier Transicold. Change the removable fuses and capacitors (if Service D any) in the control box. -
Page 29: Emergency Road Service
Emergency Road Service At Carrier Transicold we are working hard to give you complete service when and where you need it. That means a worldwide network of dealers that offer 24-hour emergency service. These service centers are manned by factory trained service personnel and backed by extensive parts inventories that will assure you of prompt repair. -
Page 31: Index
Index Alarm Display, Problems & Alarms, 16 Alarm List, 18 Product Loading, 13 Recommended Continuous Airflow, 11 Transport Temperatures, 15 Refrigerants, 2 Defrost Interval, 10 Safety, 2 Setpoint, 8,11 Emergency Road Service, Starting the Unit, 7 Stopping the Unit, 12 Keypad and Display, 5 Fuses, 20 Temperature Setpoint, 8... - Page 34 Specifications are subject to change without notice. Warranty: Product warranty and limitations are outlined in Form 62-11019. This warranty applicable only in North America. Consult your Carrier Transicold representative for warranty coverage elsewhere. North America Central America and Mexico...
