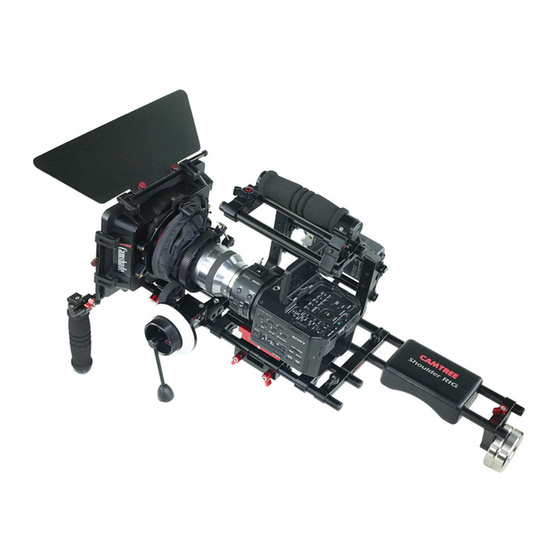

Camera Shoulder Mount Kit 201
(C-Kit-201)
I N S T R U C T I O N M A N U A L
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted
by the applicable copyright statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Camtree C-Kit-201
Summary of Contents for Camtree C-Kit-201
- Page 1 Camera Shoulder Mount Kit 201 (C-Kit-201) I N S T R U C T I O N M A N U A L All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
- Page 2 Please inspect the contents of your shipped package to ensure you have received all that is pictured and listed below. The grey foam shipping /storage container has been especially designed to protect your purchase while in transit and is a good place to keep your CAMTREE Shoulder Kit 201 when not in use.
- Page 3 CAMTREE Shoulder Kit 201 A S S E M B L I N G YO U R C A M S H A D E M AT T E B OX Insert the french flag in to the matte box and tighten the screws. Using the same approach, insert the side flags into the (big) slots provided in the hinges and secure with the screws.
- Page 4 CAMTREE Shoulder Kit 201 A S S E M B L I N G Y O U R S H O U L D E R K I T 2 0 1 Attach the quick release plate of your tripod head with base plate & mount the base plate on fluid head and secure it properly.
- Page 5 CAMTREE Shoulder Kit 201 Insert the 300mm long rods into the front and back 15mm slots on the cage bracket & Secure Properly. Then insert the set of 300mm rods into the top rod holder of cage. Then attach the top handle on the front bracket of cage and secure properly.
- Page 6 CAMTREE Shoulder Kit 201 Attach the straight bracket to the back side of rods, then insert 300mm rods into it and tighten with provided knob to secure properly. Insert the shoulder pad & counter weight to the rods, tighten the knob to secure properly.
- Page 7 CAMTREE Shoulder Kit 201 Attach gear ring to camera lens and tighten properly. Insert X5 follow focus to front of rods and secure it properly with the help of provided knob. Now attach the matte box to the front of rods, align the knicker with the lense barrel and tighten the knot.
-
Page 8: Warranty
CAMTREE Shoulder Kit 201 Attach the handles at both sides and tighten the knobs to secure properly. C A M T R E E S H O U L D E R K I T 2 0 1 S E T U P I S R E A D Y T O U S E... - Page 9 CAMTREE Shoulder Kit 201 not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product , or service by anyone other than our company. We are not liable for incidental or consequential damages resulting from the use of the unit or occurring due to any breach of this warranty.
