Camtree G-51 Instruction Manual

Gripper campod suction car mount
Hide thumbs Also See for G-51:

Advertisement

Table of Contents

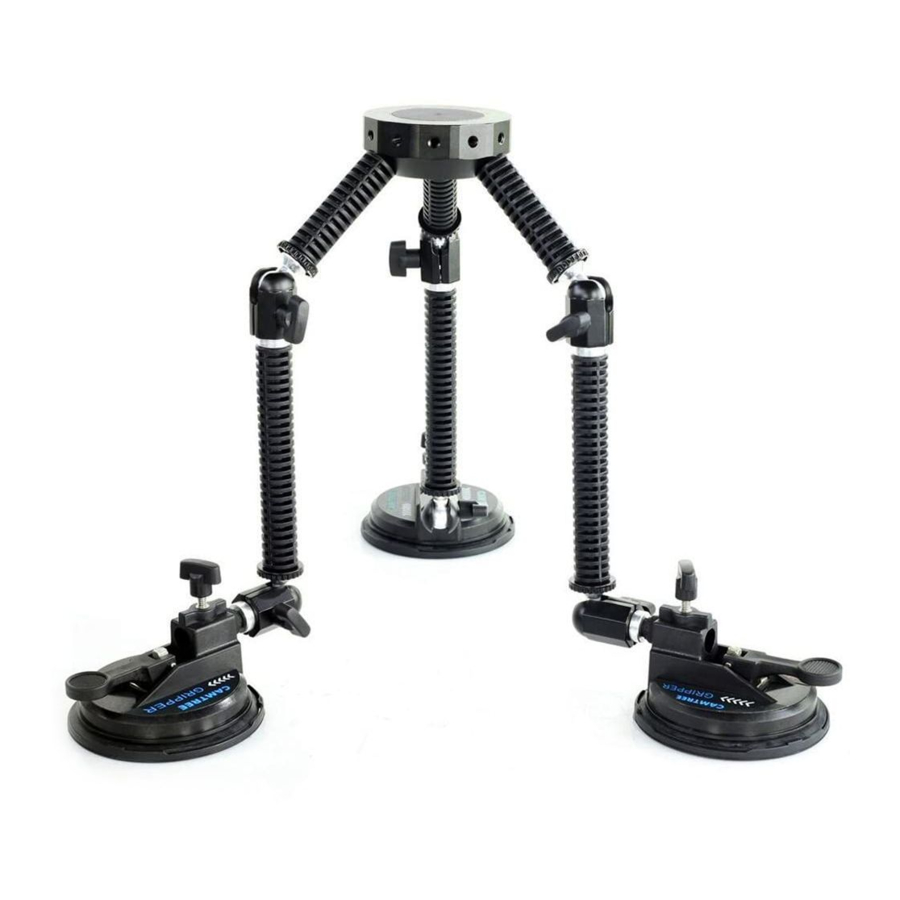

Gripper Campod Suction
Car Mount (G-51)
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-51 and is the answer not in the manual?

Questions and answers

Related Manuals for Camtree G-51

Summary of Contents for Camtree G-51

  • Page 1 Gripper Campod Suction Car Mount (G-51) Instruction Manual...

  • Page 2: Table Of Contents

    At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise. With our commitment to continuous improvement and your Feedback, building on our reputation of providing affordable, quality products is PRIORITY #1.

  • Page 3: Foreword

    Welcome To Proaim! Dear Client, On behalf of all the people that work so hard to provide you with the most up-to-date, flexible and cost-efficient production gear, we would like to welcome you into the Proaim family. By purchasing your Gripper Campod Suction Car Mount, you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.

  • Page 4: Introduction

    The strong industrial suction cups provides a fully secured & stable grip with load capacity up to 20kg/44lb. G-51 adds the “Wow” factor to production value by giving you an incomparable freedom to shoot with safety, style and precision.

  • Page 5: Safety Hints

    Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT SERIOUS DAMAGE TO THE GEAR! BE CAUTIOUS OF CLEANLINESS & ADHESION Always make sure that the suction cups and mounting surface must be clean. If they are left unconsidered, the suction cups won’t install correctly and it may cause accidental loss.

  • Page 6: Assembling

    Repeat this process with other two rods to build your tripod. NOTE: While fitting your G-51 and choosing which holes to use in the hub, keep in mind the relationship between the surface you are using to mount G-51 and the position of camera.
  • Page 7 NOTE: Make sure to tighten all connections to avoid accidental loss of camera and rig.  Add the second set of Ball Tilt Heads to suction cups and tighten to properly secure them.  Now attach the rod system into ball tilt head and tighten to secure it properly.
  • Page 8 Attach both the round hooks with camera hub and insert one end of both safety wires into each hook. NOTE: Although G-51 Gripper’s holding force is adequate for regular driving shots, safety wires must be used for additional security. When mounted on cars, the objects attached to the Gripper (e.g.
  • Page 9  Finally, using any of the 1/4”-20 or 3/8’’-16 screws located in the centre of camera hub, attach your professional camera to the gripper. NOTE: The design and construction of this rig supports cameras up to 10kg/ 22lb (at running position) & 20kg/ 44lb (at static position), and is meant for use when traveling at a maximum speed of 40 km/hr.

  • Page 10: Warranty

    WARRANTY We offer a limited time warranty for our products. For mechanical products we provide a 6 month warranty & for electronic products we provide a 3 month warranty from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
