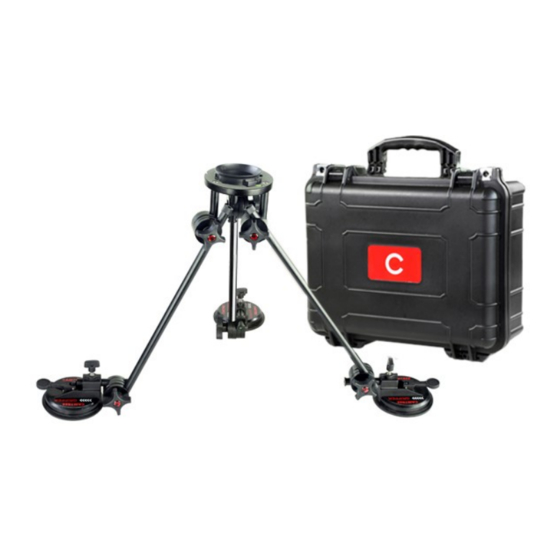

Camtree C-G-10 Instruction Manual

Camtree C-G-10 Instruction Manual

Gripper car suction mount

Advertisement

Quick Links

G r i p p e r C a r S u c t i o n M o u n t
C - G - 1 0
I N S T R U C T I O N M A N U A L
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted
by the applicable copyright statutes or in writing by the publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the C-G-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Camtree C-G-10

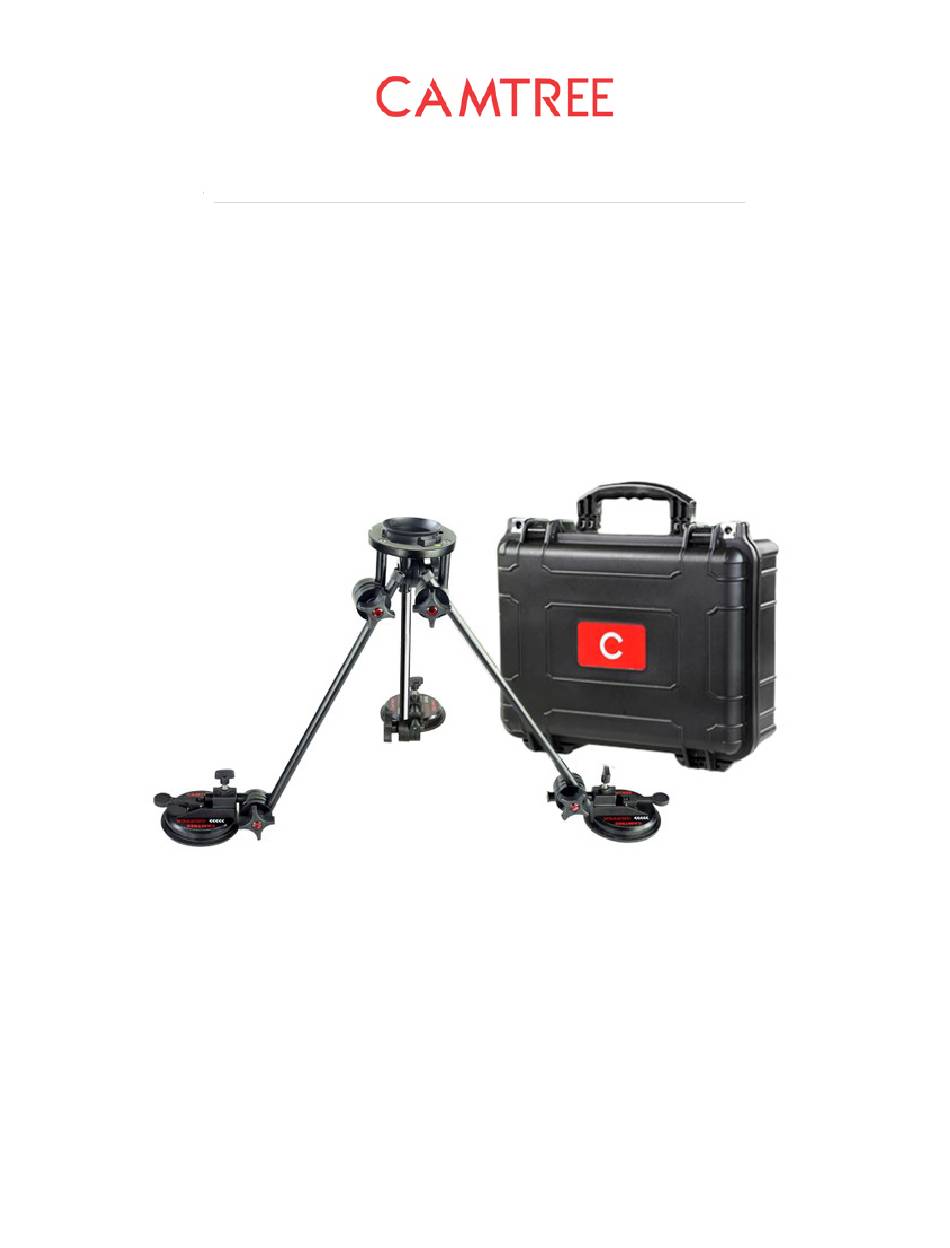

  • Page 1 G r i p p e r C a r S u c t i o n M o u n t C - G - 1 0 I N S T R U C T I O N M A N U A L All rights reserved.
  • Page 2 CAMTREE Gripper G-10 Car Suction Mount I N T R O D U C T I O N Our CAMTREE Gripper G-10 Car Suction Mount is a custom designed production tool that allows shooters to mount their DV/DSLR/Mirror Less cameras on most flat surfaces where handheld and fixed mount configurations are not possible.
  • Page 3 CAMTREE Gripper G-10 Car Suction Mount  Select a surface position for your suction cup and lock it with the lever on it.  Now loosen the knob on suction cup, then attach 110mm rod to it and retighten with same knob.
  • Page 4 CAMTREE Gripper G-10 Car Suction Mount Attach joint clamp to Camera Platform with 3 x 110mm Rods. Using same approach,  attach other joint clamps to camera platform tighten the knobs. Then attach 450mm rod setups to it.  Now mount your camera onto it and secure it with locking adapter.
  • Page 5 CAMTREE Gripper G-10 Car Suction Mount Note - You can also assemble your Gripper G-10 by using mounting clamp. The clamp allows the gripper to be mounted to any square corner or rounded edge surface. Please Use following sequence of pictures and text as your assembly guide.
  • Page 6 CAMTREE Gripper G-10 Car Suction Mount Insert the screws from the bottom of the plate into the threads and mount the camera  platform on top. • Securely tighten the screws with the help of 4mm Allen Key.  Image showing the camera platform with 3x110mm rods secured adequately to the metal plate.
  • Page 7 CAMTREE Gripper G-10 Car Suction Mount  Loosen the screw out of the locking adapter, insert it into the bottom thread of the 100mm flat fluid head and tighten it. Mount the 100mm flat fluid head on the camera platform and adequately secure the screw ...
  • Page 8 YOUR CAMTREE GRIPPER G-10 CAR SUCTION MOUNT ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
