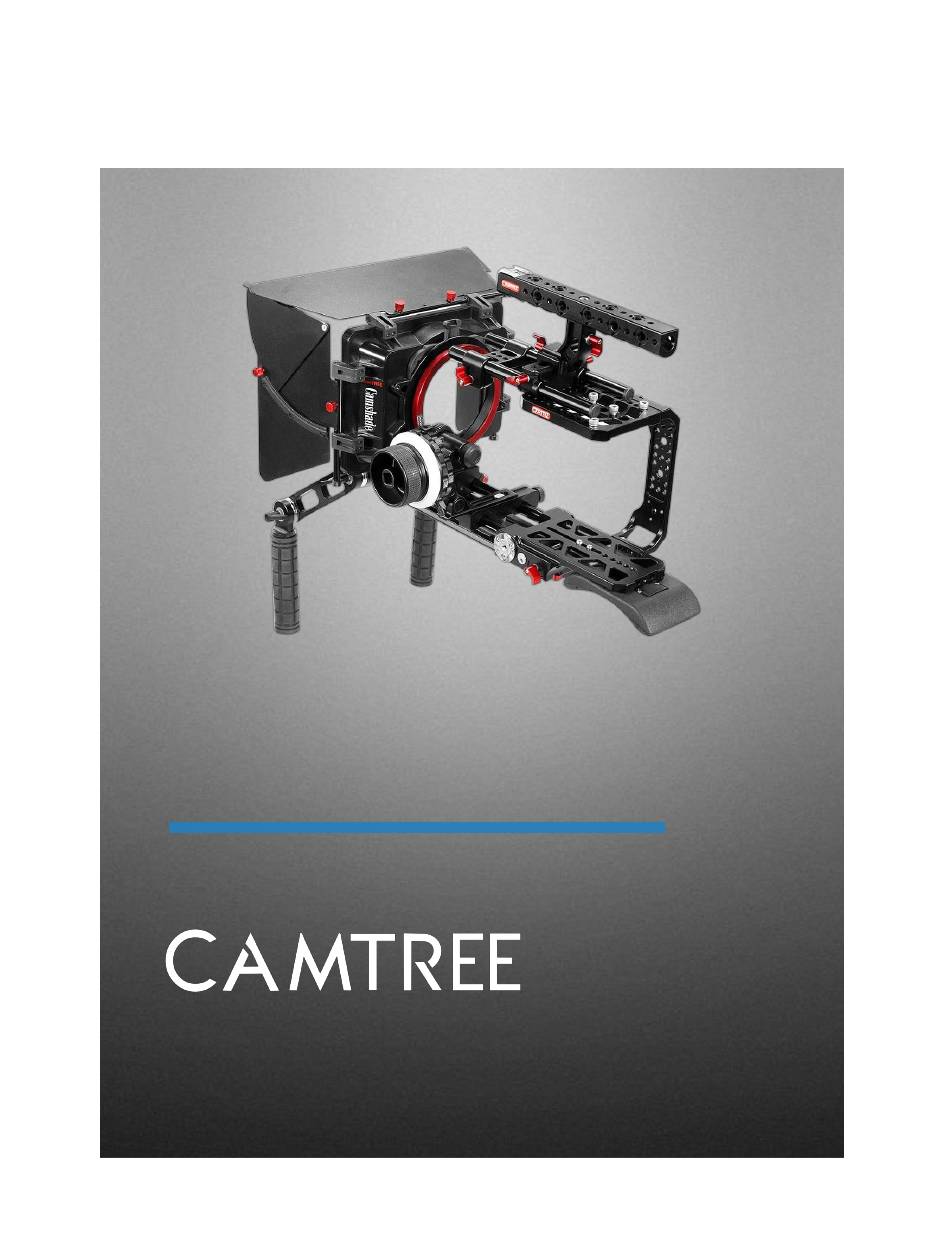

- Page 1 HUNT CAMERA CAGE SHOULDER KIT (CH-BMUM-SK) Instruction Manual...
- Page 2 At Camtree, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
- Page 3 Camtree family. By purchasing your Camtree Hunt Camera Cage Shoulder Kit, you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.
- Page 4 Introduction A Professional camera always needs a professional support system for enhanced functionality with high performance and for that we have launched Camtree Hunt Camera Cage Shoulder Kit for Blackmagic URSA Mini 4K/ 4.6K/ / Pro 4.6K (CH-BMUM-SK). It's Rock Solid handle ensures easy carrying & supports mounting of various accessories.
- Page 5 Assembling Attach the dovetail plate with your tripod plate and mount it on your tripod. Tighten it well to secure it. NOTE: Firstly Secure the camera with Base plate and then attach the side Bracket and top plate. Attach the shoulder pad to the camera plate and tighten it well.
- Page 6 Attach the top plate with lens support side bracket and then insert two 200mm rods into 15mm rod adapter. Tighten the knob to secure it. Attach the top handle and tighten the knob to secure it well. Mount the camera plate on dovetail plate and tighten the knob to secure it.
- Page 7 Insert 300mm rods into the 15mm rod adapter and tighten the side knob. Attaching Follow Focus Attach the follow focus on 300mm rods and tighten to secure it. Note: You can use speed crank for precise focusing.

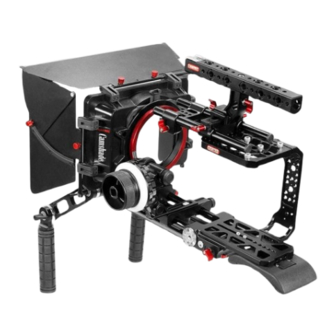

- Page 8 Attach the Matte Box on 300mm rods and tighten the knob Attaching Handle Set Attach the handle set on 300mm rods and tighten the knob. YOUR CAMTREE CAMSHADE MATTEBOX ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
- Page 9 WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual. Please note that we will not cover any shipping costs for returning the product to us.
