RT520RF THERMOSTAT - FULL USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RXRT520 and is the answer not in the manual?

Questions and answers

Related Manuals for Salus RXRT520

Summary of Contents for Salus RXRT520

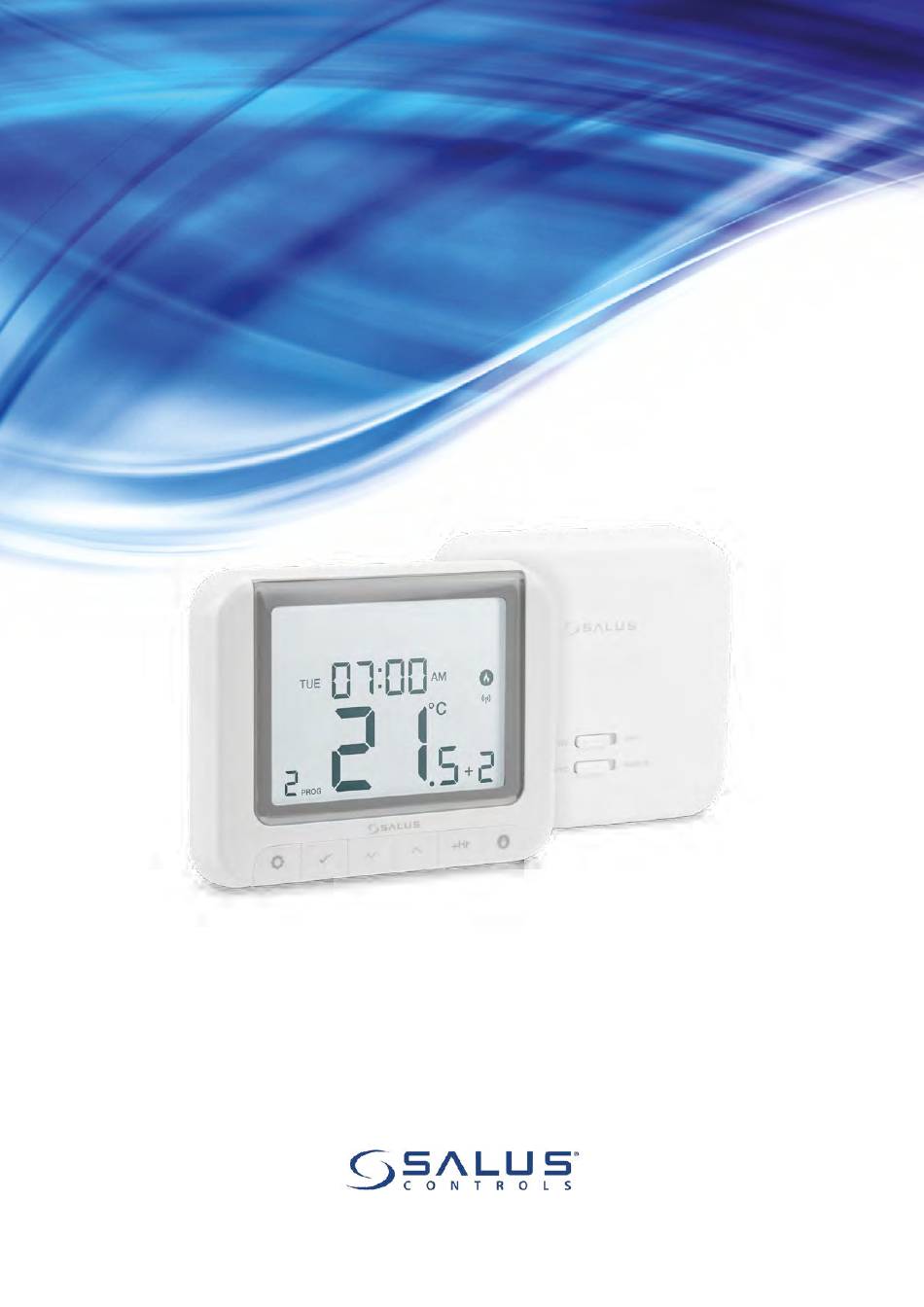

  • Page 1 RT520RF THERMOSTAT - FULL USER MANUAL...

  • Page 2: Table Of Contents

    2.1 Example of boilers compatible with the OpenTherm OT+ 4.0 protocol ..................6 2.2 Montage ......................................7 2.3 Package content ....................................7 2.4 Proper thermostat location ................................7 3. RXRT520 receiver ................................8 3.1 Receiver’s switches description ..............................8 3.2 LED indications in the receiver ...............................9 3.3 Wall mounting of the receiver ..............................10 3.4 Connection description ................................11...

  • Page 4: Introduction

    1. Introduction 1.1 Product Compliance This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com. 1.2 Safety Informations •...

  • Page 5: Product Overview

    2. Product Overview The RT520RF room thermostat simply switches the heating system on and off as necessary. It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached. Turning a room thermostat to a higher setting will not make the room heat up any faster.

  • Page 6: Example Of Boilers Compatible With The Opentherm Ot+ 4.0 Protocol

    2.1 Example of boilers compatible with the OpenTherm OT+ 4.0 protocol COMPANY MODEL COMPANY MODEL E-Tec S Linea HE E-tec Plus Mynute A Vokera Alpha Heating E-tec Mynute HE Evoke Unica HE Intec GS Vitodens 100W Typ WB1A (Connection: X3.3 and X3.4) Vitodens 100W Typ WB1B (Connection: X21.1 and Atag iC Economiser...

  • Page 7: Montage

    2.2 Montage 2.3 Package content 1) RT520RF thermostat 2) Thermostat bracket 3) RXRT520 receiver 4) 2x AA batteries 5) Short instruction 6) Mounting screws 2.4 Proper thermostat location Please note: The ideal position to thermostat mounting is about 1,5m under floor level far from heating or cooling sources. Thermostat can’t be exposed to sunlight or any extreme conditions like for example draft.

  • Page 8: Rxrt520 Receiver

    The thermostat communicates wirelessly with the RXRT520 receiver. The receiver should be supplied with 230VAC, the maximum load of the receiver is 16A. Avoid installing the device in places directly exposed to water, moisture and air condensation. The RXRT520 receiver can operate in two different modes - AUTO (automatic) and MANUAL (manual).

  • Page 9: Led Indications In The Receiver

    3.2 LED indications in the receiver The status of the RXRT520 receiver is indicated by two LEDs. These are LEDs with the following colors: - red (upper one), - green (lower one). A detailed explanation of the meaning of the LEDs can be found in the table below: MEANING The receiver is connected to the 230V power supply and is paired with the thermostat.

  • Page 10: Wall Mounting Of The Receiver

    3.3 Wall mounting of the receiver Wall mounting the receiver: drill two ø6 mm holes in the wall. Insert the plugs and, by putting the plate to the wall (included in the set), put the two screws through the holes and then screw them in. Connect the necessary cables to the receiver. Next, hang the receiver on the board using the handles designed in the receiver, marked in the picture below.

  • Page 11: Connection Description

    RXRT510 RXRT510 3.4 Connection description I A - Boiler connection AC 230V AC 230V (ON / OFF) RT520TX AC 230V AC 230V RXRT520 RXRT510 RXRT510 2 x AA l u b RXRT510 RXRT510 RT520TX AC 230V AC 230V OpenTherm...

  • Page 12: Before You Start (First Power Up)

    4. Before you start (first power up) 4.1 LCD icon description 3A 3B 1. Text Bar 9. Heating Mode On 2. Temperature Unit 10. Low battery status 3A. Day of the week (numeric) 11. Wireless connection with the receiver 3B. Day of the week (alphabetic) 12.

  • Page 13: First Power Up Sequence And Configuration

    4.3 First power up sequence and configuration Please make the receiver connections and power the receiver before inserting the batteries into the thermostat. After inserting the batteries, the Using , choose your Press thermostat will power up. language and then press Press to confirm.
  • Page 14 Press to confirm. Press Using , enable or disable DST (Daylight Saving Time). When OpenTherm is connected, the Press to confirm. Using , select your device software will automatically temperature accuracy. adjust to the OpenTherm settings.
  • Page 15 TPI (Time Proportional & Integral) is a self-learning, time-proportional algorithm. TPI type of regulation ensures economical system operation through more accurate temperature maintenance during controlling process and limits overload conditions. In addition to the exact and stable room temperature, the advantage of this system is the minimization of energy consumption and significant savings.
  • Page 16 The optimization function is an energy-saving algorithm for the effective control of the heating device, ensuring better thermal comfort at certain times of the day. When the OPTIMUM START function is active, the thermostat sends a heating signal to the heat source beforehand so that the preset temperature in the room is reached at the time specified in the schedule.

  • Page 17: Opentherm - Hot Water Configuration

    4.4 OpenTherm - Hot Water configuration RT520RF can be configured in Hot Water OPENTHERM system. To configure it follow steps below: Press Using , navigate to Using , adjust the Hot Water submenu and press temperature and then press The thermostat will return to the The text bar indicates that hot water main screen.

  • Page 18: User Settings

    5. User settings 5.1 Manual mode In manual mode, the thermostat maintains a constant temperature set by the user. To exit mode, press and hold button for 3 seconds. A hand icon is displayed when manual mode is active. A hand icon will appear, which means To set temperature use Press button.

  • Page 19: Schedule Mode - Programming Schedule

    5.2 Schedule mode - programming schedule In this mode, user can set the schedules for thermostat (temperature setpoints for specific periods of time). Programmed schedules should use all time periods. Press Press Using , select the program type between: 5 +2 (schedule for the working days All (set one schedule for Individual (set a daily schedule).

  • Page 20: Switching Between Manual And Schedule Mode

    5.3 Switching between manual and schedule mode In this option, user can switch between manual and schedule mode by using button. To do that please follow steps below: TO SWITCH FROM AUTOMATIC MODE TO MANUAL MODE: In the manual mode, the user can set the desired temperature that the thermostat will maintain.

  • Page 21: Boost Mode - Hourly Temperature Override (+Hr)

    5.4 BOOST mode - hourly temperature override (+Hr) The function is available in automatic and manual mode. Used to change the temperature to the desired value for a specified number of hours (up to 9 hours). After the elapsed time, the thermostat returns to the previous operating mode. Press +Hr button to set hour for Thermostat is working in BOOST Using...

  • Page 22: Control And Heat/Cool Settings

    5.5 Control and Heat/Cool settings This function enables the selection of the controller operating mode: HEAT - thermostat controls heating installations, COOL - thermostat controls cooling installations. Thermostat is set to heating mode by default. To change the parameter follow the steps below: Press Enter using button.

  • Page 23: Offset Temperature Calibration

    5.6 OFFSET temperature calibration In this chapter you will learn how to properly calibrate the temperature in the RT520RF thermostat. Calibration is possible in the range from -3.5°C to 3.5°C (in steps of 0.5°C). To calibrate temperature please follow steps below: Press Enter using button.

  • Page 24: Landlord Settings

    5.7 Landlord settings Landlord settings is a pin code protected feature that allows the landlord to set a service reminder on the thermostat that will warn the tenant when the boiler is due its annual service. 5.7.1 PIN code setting Press Using , navigate to...

  • Page 25: Service Reminder / Notification Setting

    5.7.2 Service reminder / notification setting In this chapter you will learn how to set the service notification / reminder for the boiler using the SERVICE parameter. You can set a specific date and time when a reminder is to be displayed before the upcoming boiler service. The option also allows you to set the temperature that the boiler is to maintain after exceeding the date on which the boiler service was to be performed.
  • Page 26 The LOCKTEMP parameter determines the set temperature that will be maintained by the boiler after exceeding the current boiler service date. This temperature cannot be changed until the boiler is serviced again. Using , select the Press lock temperature and then press Provide the number to a trusted maintenance technician.

  • Page 27: Maximum / Minimum Setpoint Temperature Setting

    5.7.3 Maximum / Minimum setpoint temperature setting MAX_MIN seeting allows you to define maximum and minimum temperature setpoint which could be set by the thermostat. Please see the steps below: Using , move to the Press Using , navigate to next option.

  • Page 28: Receiver's Operation Setting

    5.7.4 Receiver’s operation setting If the thermostat parameter “RECEIVER” is set to “ON MANUAL”, the receiver switch “AUTO-MANUAL” is active. The AUTO setting causes the receiver to react to signals sent by the thermostat. However, the MANUAL setting causes that the receiver ignores the thermostat signals and its operation depends only on the position of the top ON-OFF switch.

  • Page 29: Time/Date

    5.8 Time/Date To set time/date follow steps below: Press Press to enter Time/Date Using move between settings. parameters. Using , choose Using , set the hour Using , set the the time format. Press and then press minutes and then press confirm.

  • Page 30: Holiday Mode

    5.9 Holiday mode Holiday mode is a special program temperature setpoint which thermostat will maintain for specified days. How to set HOLIDAY MODE: Press Press to enter Using move between holiday mode settings. parameters. Using , set the year Using , set the month Using , set the day...

  • Page 31: Language

    5.10 Language To choose language follow steps below: Press Using move between Press to enter parameters. language settings. Thermostat will go to the main Press to confirm. Using choose your screen with saving the changes. language.

  • Page 32: Rt520Rf Thermostat Pairing With The Receiver

    6. RT520RF thermostat pairing with the receiver The word PAIRING in the user settings means the function of synchronizing the transmitter with the receiver again, if it has been removed. WARNING! IN THE SET RT520RF THE THERMOSTAT IS FACTORY PAIRED WITH THE RECEIVER! In order to pair the devices correctly, you must first prepare the receiver for synchronization! If you want to re-pair the devices with Move the top switch to the OFF...

  • Page 33: Test The Pairing Process

    7. Test the pairing process It is important to place the receiver and transmitter in places where nothing interferes with the radio signal. The range of communication between the transmitter and the receiver in an open area is up to 60m. The radio transmission is influenced by many factors that can shorten the working distance, such as thick walls, drywall covered with aluminum foil, metal objects such as cabinets, general radio interference, etc.

  • Page 34: Factory Reset

    9. Factory Reset To RESET RT520RF thermostat to it’s factory default settings please follow steps below: To reset the thermostat press and Thermostat has been reseted. PLEASE NOTE: User settings will not hold together buttons for 5 seconds. be deleted. 10.

  • Page 35: Cleaning And Maintenance

    The RT520RF thermostat requires no special maintenance. Periodically, the outer casing can be wiped clean using a dry cloth (please DO NOT use solvents, polishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or repairs could only be carried out by Salus Controls or their appointed agents. 13. Technical Informations...

  • Page 36: Warranty

    14. Warranty SALUS CONTROLS warrants this product to be free from any defects in material or workmanship and to perform as specified for a period of five years from the date of installation. SALUS CONTROLS reserves the sole responsibility for breach of this warranty by repairing or replacing the defective product. This product includes software that matches the distributor’s identification at the time of sale.
  • Page 38 SALUS Controls is a member of the Computime Group. Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. Ver. 10 Issued: 31 VIII 2021 Soft version: 2.3...
