MiTAC TYAN TS75A-B7132 Service Engineer's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

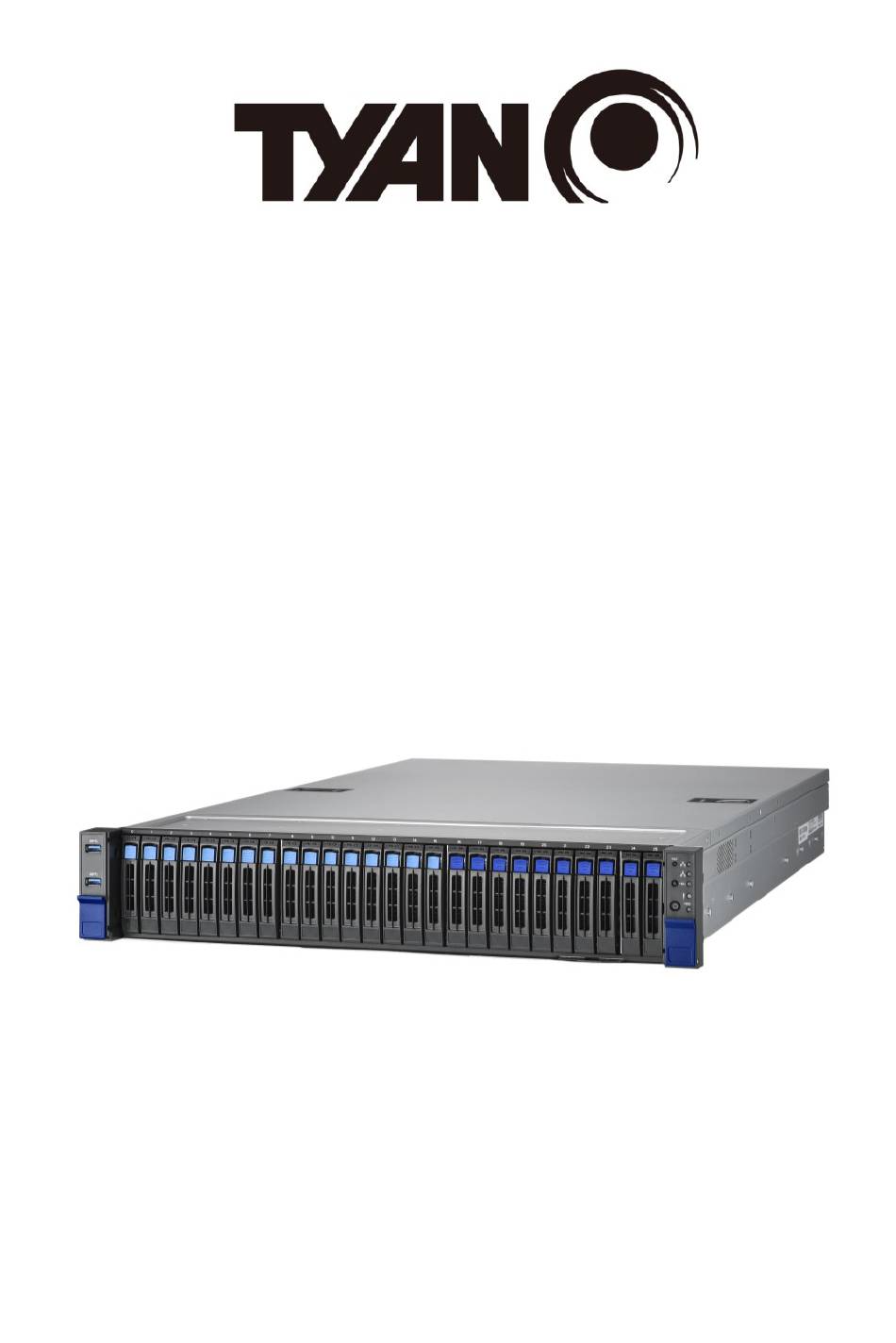

TS75A-B7132
Service Engineer's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TYAN TS75A-B7132 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MiTAC TYAN TS75A-B7132

Summary of Contents for MiTAC TYAN TS75A-B7132

  • Page 1 TS75A-B7132 Service Engineer’s Manual...
  • Page 2 In no event will MITAC be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.
  • Page 3 FCC Declaration ● Notice for the USA Compliance Information Statement (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: ‧This device may not cause harmful interference.
  • Page 4 Warning This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. CAUTION Lithium battery included with this board. Do not puncture, mutilate, or dispose of battery in fire. There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer.
  • Page 5 How this guide is organized This guide contains the following parts: Chapter 1: Overview This chapter provides an introduction to the TYAN TS75A-B7132 barebones and standard parts list, describes the external components, gives an overview of the product from different angles.
  • Page 6 Safety and Compliance Information Before installing and using TYAN TS75A-B7132, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.
  • Page 7 Safety Information Retain and follow all product safety and operating instructions provided with your equipment. In the event of a conflict between the instructions in this guide and the instructions in equipment documentation, follow the guidelines in the equipment documentation. Observe all warnings on the product and in the operating instructions.
  • Page 8 · Ensure that the voltage and frequency of your power source match the voltage and frequency inscribed on the electrical rating label of the equipment. · Do not install the system in or near a plenum, air duct, radiator, or heat register.
  • Page 9 · Make sure the full weight of the rack rests on the leveling jacks. · Always load the rack from the bottom up. Load the heaviest component in the rack first. · Make sure the rack is level and stable before pulling a component out of the rack.
  • Page 10 · Do not place objects on AC power cords or cables. Arrange them so that no one might accidentally step on or trip over them. · Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.
  • Page 11 Equipment Repairs and Servicing · The installation of internal options and routine maintenance and service of this product should be performed by trained service technicians/personnel who are knowledgeable about the procedures, precautions, and hazards associated with equipment containing hazardous energy levels. ·...

  • Page 12: Table Of Contents

    Table of Contents Chapter 1: Overview ................ 15 About the TYAN TS75A-B7132 ..........15 Product Model ................ 15 Features.................. 16 Standard Parts List ..............21 1.4.1 Box Contents ..............21 1.4.2 Accessories ..............22 About the Product ..............23 1.5.1 System Front View ............
  • Page 13 Replacing the USB Board ............67 3.6.1 USB Board Specifications ..........68 Replacing the System Fan ............. 69 Replacing the HDD Backplane Board ........70 3.8.1 HDD Backplane Board Features ........71 3.8.2 Connector Definition ............72 Replacing the Power Supply ..........73 3.10 Disconnecting All Motherboard Cables ......
  • Page 14 NOTE http://www.tyan.com...

  • Page 15: Chapter 1: Overview

    Chapter 1: Overview About the TYAN TS75A-B7132 ® Congratulations on your purchase of the TYAN TS75A-B7132, a highly optimized rack-mountable barebone system. The TS75A-B7132 is designed to support 4th Intel® Xeon Scalable Processor, and up to 4,096GB RDIMM/3DS RDIMM DDR5 ®...

  • Page 16: Features

    Features B7132T75AV10E16HR Specifications Form Factor 2U Rackmount Chassis Model TS75A Dimension (D x W x H) 29.56" x 17.26" x 3.43" (750.8 x 438.4 x 87mm) System Motherboard Name S7132GM2NRE # Motherboard Notification # The motherboard not sold separately Board Dimension Prop.
  • Page 17 (1) M7132T75-L16-1F riser card for (1) HH/HL PCIe Gen.5 x 16 slot / (1) M7132T75-R16-1L riser card for (1) HH/HL PCIe Gen.5 x 16 slot / (1) M7132T75-R16-1F riser card for (1) FH/10.5"L/DW PCIe 5.0 x16 slot Others (1) PCI-E Gen.5 x16 OCP 3.0 mezzanine slot Q'ty / Port (2) GbE ports + (1) GbE dedicated for IPMI Controller...
  • Page 18 Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI sleeping states S0, S5 Operating System OS supported list Please refer to our AVL support lists. FCC (SDoC) Class A CE (DoC) Class A Regulation CB/LVD VCCI Class A C-Tick Class A Operating Temp.
  • Page 19 Redundancy Q'ty / Socket Type (2) LGA4677 Supported CPU Series 4th Gen. Intel Xeon Scalable Processors Processor Thermal Design Power Max up to 350W (TDP) Wattage Chipset Intel C741 Supported DIMM Qty (16)+(16) DIMM slots DIMM Type / Speed RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC / 3DS RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC Memory...
  • Page 20 Monitoring Temperature Monitors temperature for CPU & memory & system environment Voltage Monitors voltage for CPU, memory, chipset & power supply Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator Others Watchdog timer support Onboard Chipset Onboard Aspeed AST2600 AST2600 iKVM Feature...

  • Page 21: Standard Parts List

    Standard Parts List This section describes TS75A-B7132 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive with packaged as illustrated below. 1.4.1 Box Contents If any items are missing or appear damaged, contact your retailer or browse to TYAN’s website for service: http://www.tyan.com B7132T75AV10E16HR-2T...

  • Page 22: Accessories

    1.4.2 Accessories If any items are missing or appear damaged, contact your retailer or browse to TYAN’s website for service: http://www.tyan.com  (1) Rail kit and Screw  (1) 2.5 HDD Screws  (2) CPU Heatsink  (2) M.2 Board Latch ...

  • Page 23: About The Product

    About the Product The following views show you the product. 1.5.1 System Front View M1718T65-FPB Front Panel Board/ M1717T65-USB USB Board LAN1LED ID Button LAN2 LED Power Button with green LED ID LED USB 3.0 Port Warning LED USB 3.0 Port HDD LED 2.5”HDD NVMe bays RESET Button...
  • Page 24 M1718T65-FPB Front Panel LED Control Board Switch and LED Indication Field Color Behavior System Power off / off Power Green System Power On / solid on System under S1 or S3 / Blinking (TBD) Offline / LED Off LAN1/LAN2 Green Linking / Solid on Access / Blinking Normal / Off...

  • Page 25: System Rear View

    1.5.2 System Rear View Description Description RJ45 LAN Port (LAN1) (10Gbs/w PSU1 Intel X710) (1Gbs/w Intel I210) RJ45 LAN Port (LAN2) (10Gbs/w PSU0 Intel X710) (1Gbs/w Intel I210) ID Button Dedicate to IPMI Port OCP NIC 3.0 Slot BIOS Debug VGA Port USB3.2 Gen1 Ports ID LED...
  • Page 26 Rear I/O: Onboard LAN LED Color Definition The three (3) onboard Ethernet ports have green and amber LEDs to indicate LAN status. The chart below illustrates the different LED states. 10Gbps LAN Port 10/100/1000 Mbps LAN Link/Activity LED Scheme Left LED Right LED (Link/Activity) (Speed)

  • Page 27: System Top View

    Power Supply Status Indication Output ON and OK GREEN No AC power to all power supplies PSU standby state AC present/Only 12VSB on 1Hz Blink GREEN Power supply is cold standby state or always 1Hz Blink GREEN standby state as defined in the Cold Redundancy section of the CRPS Common Requirements Specification AC cord unplugged or AC power lost;...
  • Page 28 No. Description No. Description http://www.tyan.com...
  • Page 29 (1) M1718T65-FPB Front Panel Riser Card Bracket (M7132T75-R16-1L pre-installed) Board pre-installed (1)M1717T65-USB USB Board Riser Card Bracket pre-installed (M7132T75-L16-1F pre-installed) HDD Module PSU1 (1)M1321T70A-BP12-8 (2)M1322T70A-BPE-8 PSU0 (1)M1318T65-BP12E-2 Backplane Board pre-installed PCIE#2 x20 Slot (6) System fans PCIE#3 x16 Slot Memory Slot OCP 3.0 mezzanine slot CPU Socket PCIE#4 x16 Slot...

  • Page 30: Chassis Dimensions

    1.5.4 Chassis Dimensions http://www.tyan.com...

  • Page 31: Chapter 2: Setting Up

    Chapter 2: Setting Up 2.0.1 Before you Begin This chapter explains how to install the CPUs, CPU heatsinks, memory modules, and hard drives. Instructions on inserting add on cards are also given. 2.0.2 Work Area Make sure you have a stable, clean working environment. Dust and dirt can get into components and cause malfunctions.

  • Page 32: Precautions

    2.0.4 Precautions Components and electronic circuit boards can be damaged by discharges of static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to TS75A-B7132 or injury to yourself. ...

  • Page 33: Installing Motherboard Components

    Installing Motherboard Components This section describes how to install components on to the mainboard, including CPUs, memory modules and add on cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove TS70A-B7132 chassis cover. 1. Press the latches simultaneously and slide the chassis cover backwards. 2.

  • Page 34: Replacing The Chassis Cover

    2.1.2 Replacing the Chassis Cover Follow these instructions to replace TS70-B8056 chassis cover. 1. Place the chassis cover on top. 2. Push the latches simultaneously and slide the chassis cover forwards until it clicks. 2.1.2 Installing the CPU and Heatsink Follow the steps below on installing the processor, heatsink.
  • Page 35 NOTE: 1. Please save and replace the CPU protection cap when returning for service. 2. A new heatsink comes with pre-applied thermal grease. Once the heatsink has been removed from the processor, you need to clean the processor and heatsink using an alcohol solvent. Then apply new thermal grease before reinstalling the heatsink.
  • Page 36 3. Align and install the processor on the carrier. Make sure the gold arrow is located in the correct direction. NOTE: When installing the processor, secure the front side (A)first, and following with the middle and rear sides(BC). 4. Remove the CPU cover. http://www.tyan.com...
  • Page 37 5. Carefully flip the heatsink assembly. Align the heatsink with the CPU socket by the guide pins. Make sure also that the triangle edge of the carrier is aligned correctly with the triangle mark on the CPU socket. 6. Press down on the retention clips to fix the heatsink assembly to the CPU socket. To secure the heatsink assembly, use a T30 Security Torx to tighten the screws in a sequential order (1234).
  • Page 38 NOTE: When disassembling the heatsink, loosen the screws in reverse order (4321). Repeat the procedures described earlier to install the second processor and heatsink. http://www.tyan.com...

  • Page 39: Installing The Air Duct

    2.1.3 Installing the Air Duct Follow these instructions to install the air duct to the chassis. 1. Installed heatsink onto the CPU. 2. Installed air duct onto the heatsink. http://www.tyan.com...

  • Page 40: Installing The Memory

    2.1.4 Installing the Memory Follow these instructions to install the memory modules onto the motherboard. 1. Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. 2. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module.
  • Page 41 Recommended Memory Population Table CPU1 CPU1 CPU1 CPU1 CPU1 CPU1 CPU1 CPU1 CPU0 CPU0 CPU0 CPU0 CPU0 CPU0 CPU0 CPU0 DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM http://www.tyan.com...

  • Page 42: Installing Hard Drives

    2.1.5 Installing Hard Drives The TS75A-B7132 supports twenty-six 2.5” screwless drive carriers. Installing 2.5” Hot-Swap Hard Drives Follow these instructions to install a 2.5” SSD. Warning!!! Always install the hard disk drive to the chassis after the chassis has been secured on the rack. Press the locking lever latch and pull the locking lever open.
  • Page 43 Open the lock to place the 2.5” hard disk drive into the HDD tray. Reinsert the HDD tray into the chassis. Push to secure the locking lever until it clicks into place. http://www.tyan.com...

  • Page 44: Installing The Pcie Card

    2.1.6 Installing the PCIE Card Follow these instructions to install the PCIE card. NO.2 or 3 bracket There are four riser card brackets in the chassis. Unscrew the riser card bracket NO.3. Unscrew the riser card bracket. Remove the riser card bracket from the chassis. http://www.tyan.com...
  • Page 45 Remove the No.3 riser card bracket from the chassis. 6. Unscrew to remove the dummy brackets. 7. Insert the PCIE card into the riser card bracket and screw it firmly. http://www.tyan.com...
  • Page 46 8. Reposition and screw the riser card bracket into the chassis. Screw the riser card bracket into the chassis. 10. Follow the same procedures to insert the card to the NO.2 riser card bracket if necessary. http://www.tyan.com...
  • Page 47 NO.1 or 4 bracket Unscrew the riser card bracket NO. 4. Remove the riser card brackets for both sides from the chassis. Follow the same procedures to remove the NO.1 riser card bracket from the chassis. http://www.tyan.com...
  • Page 48 Unscrew to remove the dummy brackets. Insert the PCIE card into the riser card bracket and screw it firmly. Reposition the riser card bracket to the chassis and secure the rotate screw firmly. Follow the same procedures to insert the card to the NO.1 riser card bracket if necessary.

  • Page 49: Installing Io Rail For Ocp Card

    2.1.7 Installing IO Rail for OCP Card Follow these instructions to install the IO Plate for OCP Card. Here shows how to install the OCP 3.0 card 1. Use a screwdriver to remove the dummy cover for the OCP card slot. 2.
  • Page 50 4. Secure the OCP 3.0 card to the chassis. 5. The OCP 3.0 card to the chassis has been completed. http://www.tyan.com...

  • Page 51: Installing The M.2 Latch

    2.1.8 Installing the M.2 Latch Follow these instructions to install the M.2 Latch. 1. Measure the length of the M.2 card and insert the latch into the appropriate hole. 2. Insert the M.2 Latch into the appropriate hole. http://www.tyan.com...
  • Page 52 3. Insert the M.2 card into the slot. Pull the latch to lock the M.2 card. http://www.tyan.com...

  • Page 53: Rack Mounting

    Rack Mounting After installing the necessary components, the TYAN TS75A-B7132 can be mounted in a rack using the supplied rack mounting kit. Installing the Inner Rails to the Chassis Draw out the inner rail from the rail assembly. When the rail comes to a...
  • Page 54 Repeat steps 2 to 4 to secure the sliding rail to the other side of the server. NOTE: Use a screwdriver to slightly push the latch open and then push the inner rail forwards to unlock. http://www.tyan.com...
  • Page 55 Installing the Outer Rails to the Unit Attach the outer rail to the rack. Pull the latch open and align the square stud with the square hole on the rack rail. Please note that the square stud must be fully attached inside the square hole and then close the latch to lock.
  • Page 56 http://www.tyan.com...

  • Page 57: 2.2.2 Rack Mounting The Server

    2.2.2 Rack mounting the Server Draw out the middle rail to the latch position. When the inner rails come to a stop, pull the tab to release the latch and push the whole system in. Secure the unit to the rack. http://www.tyan.com...
  • Page 58 NOTE http://www.tyan.com...

  • Page 59: Chapter 3: Replacing Pre-Installed Components

    Chapter 3: Replacing Pre-Installed Components Introduction This chapter explains how to replace the pre-installed components, including the Motherboard, M1717T65-FPB Front Panel Board, M1718T65-USB Board, M1321T70A-BP12-8/ M1322T70A-BPE-8/ M1318T65-BP12E-2 HDD Backplane, M7132T75-L20-2F M7132T75-L16-1F M7132T75 R16-1L M7132T75-R16-1F Riser cards, System fan and Power supply unit etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure.

  • Page 60: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover first. Follow Chapter 2.1.1 to remove the cover of the TS75A-B7132. Replacing Motherboard Components Follow these instructions to replace motherboard components, including the motherboard. Follow Chapter 2.1.5 to uninstalling the riser cards of the TS75-B7132. And follow these instructions to replace the M7132T75-L20-2F M7132T75-L16-1F...
  • Page 61 Unscrew the M7132T75-L20-2F riser card to replace with a new one. Unscrew the M7132T75-R16-1L riser card to replace with a new one. Unscrew the M7132T75-R16-1F riser card to replace with a new one. Follow the steps described earlier in reverse to reinstall the riser card bracket.

  • Page 62: Pcie Riser Cards Specification

    3.4.2 PCIE Riser Cards Specification M7132T75-L20-2F M7132T75-L20-2F Riser Card  Support (2) PCIE Gen5 slots Features PCIE x16 slot x1 PCIE x8 slot x1 M7132T75-L16-1F M8252T75-R16-1F Riser Card  Support (1) PCIE Gen5 slots Features PCIE x16 slot x1 http://www.tyan.com...
  • Page 63 M7132T75-R16-1L M7132T75-R16-1L Riser Card  Support (1) PCIE Gen5 slots Features PCIE x16 slot x1 M7132T75-R16-1F M7132T75-R16-1F Riser Card  Support (1) PCIE Gen5 slots Features PCIE x16 slot x1 http://www.tyan.com...

  • Page 64: Replacing The Front Panel Board

    Replacing the Front Panel Board Follow these instructions to replace the M1718T65-FPB Front Panel Board. 1 Unscrew to release the Front Panel Board cover. 2 Remove the Front Panel Board cover. 3 Unscrew and disconnect the Front Panel Board to replace a new one. 4 Follow the steps described earlier in reverse to reinstall the Front Panel Board.

  • Page 65: Front Panel Board Specifications

    3.5.1 Front Panel Board Specifications Front View Rear View M1718T65-FPB Front Panel Board Form Factor 18mmx40mm,T=1.6mm  IO: 2x15-pin Front Panel Header (J4)  3 Buttons: Reset Button (J3), ID Button (J5), Specifications Power Button with LED (J6)  6 LEDs: LAN1 LED, LAN2 LED, ID LED (LED3), Fault LED (LED6), HDD LED, Power LED http://www.tyan.com...

  • Page 66: Fpb Led Definitions

    3.5.2 FPB LED Definitions Function LED Behavior Status Button LAN1 LAN1_LED Green Solid on Linking LAN2 LAN2_LED Green Blinking Active System ID LED Orange Solid on Memory fail monitoring (LED3) Orange Blinking FAN fail Red Solid on PSU alert Red Blinking System over Temp.

  • Page 67: Replacing The Usb Board

    Replacing the USB Board Follow these instructions to replace the M1717T65-USB Front USB Board. 1 Unscrew to release the USB front cover. 2 Remove the USB front cover. Disconnect the USB cable and then unscrew the Front USB Board to replace with a new one.

  • Page 68: Usb Board Specifications

    3.6.1 USB Board Specifications M1717T65-USB USB Board Form Factor 48mmx19mm,T=1.6mm  USB 3.0 Connector (J1, J2) Specifications  20-pin Header Input Connector (J3) http://www.tyan.com...

  • Page 69: Replacing The System Fan

    Replacing the System Fan Follow these instructions to replace the fan. Take out the fan from the chassis. Replace a new fan to the chassis. Reinstall a new fan to the chassis. http://www.tyan.com...

  • Page 70: Replacing The Hdd Backplane Board

    Replacing the HDD Backplane Board NOTE: Before detach the HDD backplane, please remove all the HDD trays with HDDs, otherwise the HDD backplane will be damage when strains at the disassembly. Disconnect all cables connected to the M1322T70A-BPE-8 HDD backplane Board.

  • Page 71: Hdd Backplane Board Features

    3.8.1 HDD Backplane Board Features M1322T70A-BPE-8 Front View Rear View Form Factor PCB Dimensions: 131mm*76mm*3mm  (2)10Pin FAN Header  (4) MCIO Connector Input Specifications  (8) NVME HDD Output Overview  (2) SMbus Header  (2) FAN Connectors(Fan1/Fan2) http://www.tyan.com...

  • Page 72: Connector Definition

    3.8.2 Connector Definition Location Definition NVME0 NVME HDD Connector NVME 1 NVME HDD Connector NVME 2 NVME HDD Connector NVME 3 NVME HDD Connector NVME 4 NVME HDD Connector NVME 5 NVME HDD Connector NVME 6 NVME HDD Connector NVME 7 NVME HDD Connector MCIO1 SLIMSAS Connector...

  • Page 73: Replacing The Power Supply

    Replacing the Power Supply Follow these instructions to replace the power supply module in your system. Press the latch to pull the power supply out. After replacing a new power supply, press and hold the latch to push the power supply back into the chassis.

  • Page 74: Disconnecting All Motherboard Cables

    3.10 Disconnecting All Motherboard Cables Disconnect slim SAS cables connected to the motherboard. Disconnect SATA SGPIO cable and power cables connected to the motherboard. http://www.tyan.com...

  • Page 75: Removing The Motherboard

    3.10.1 Removing the Motherboard After removing all of the aforementioned cables, follow the instructions below to remove the motherboard from the chassis. Remove the air duct, processor and heatsink if installed. Release three screws securing the bar from the chassis. Use a hex screwdriver and Phillips screwdriver to loosen screws.
  • Page 76 Unscrew the 20 screws with the Screwdriver. Carefully lift the motherboard from the chassis. http://www.tyan.com...

  • Page 77: Chapter 4: Installing Gpu Cards

    Chapter 4: Installing GPU Cards The TN75-B7132 has 4 PCIe/GPU Card Brackets in the chassis. In this chapter we will introduce you how to install a GPU card. NOTE: Please visit our Web site (http://www.tyan.com) for the latest GPU card support list.
  • Page 78 Remove the dummy bracket from the riser. Insert the tesla T4 GPU card and secure the tesla T4 GPU card to the riser. Reinstall the bracket to the chassis. http://www.tyan.com...
  • Page 79 Unscrew the riser card bracket. Insert the tesla T4 GPU card and secure the tesla T4 GPU card to the riser. http://www.tyan.com...
  • Page 80 Reinstall the bracket to the chassis. Secure GPU card onto the left and right riser card and secure the three screws and one thumb screw on both sides to the bracket. http://www.tyan.com...

  • Page 81: Chapter 5: Motherboard Information

    Unplug the power from your computer power supply and then touch a safely grounded object to release static charge (i.e. power supply case). For the safest conditions, MiTAC recommends wearing a static safety wrist strap. (2) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the board in any way.

  • Page 82: Board Image

    Board Image S7132 This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...

  • Page 83: Block Diagram

    Block Diagram S7132 Block Diagram http://www.tyan.com...

  • Page 84: Board Parts, Jumpers And Connectors

    Board Parts, Jumpers and Connectors This diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual.
  • Page 85 Motherboard Components Connectors 1.System Power Connector0 (J24) 31. Fan Connector (SYS_FAN_6) 2.4-pin Power Connector (J45) 32. Fan Connector (SYS_FAN_5) 3.4-pin Power Connector (J44) 33. MCIOx4 NVME (CN11) 34. MCIOx8 NVME (J60) 4.ID Button (SW2) 5.4-pin Power Connector (J42) 35. MCIOx4 NVME (CN10) 6.
  • Page 86 Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover CPU0/CPU1: 4-pin CPU Fan Connectors Fan PWM (Speed) Signal +12V Tachometer Control SYS_FAN_1/SYS_FAN_2/ SYS_FAN_3/ SYS_FAN_4/ SYS_FAN_5/ SYS_FAN_6: 6-Pin FAN Connector Signal Signal P12V FAN_TACH FAN_PWM P12V USB3.0: Front USB3.0/2.0 Header...
  • Page 87 J22: Front Panel Connector Signal Signal FP_PW_LED_PW P3V3_AUX FP_ID_LED_PW FP_PW_LED_GND FP_ID_LED_N HDD_LED_PW BMC_HW_FAULT_N HDD_ACT_LED_N BMC_SYS_FAULT_N FP_PWR_BTN_N LAN0_LED_P LAN0_LED_N FP_RST_BTN_JP_N FP_SMB_DAT FP_SMB_CLK IDLED_SW# FP_INTRUSION_N SYS_Air_Inlet LAN1_LED_P FP_NMI_BTN_N LAN1_LED_N J28: Vertical (Type_A) USB3.2 Gen1 Connector Signal Signal USB_TYPE_PW USB2_03_TYPEA_DN USB2_03_TYPEA_DP USB3_N2_RX_REAR USB3_P2_RX_REAR USB3_N2_TX_C_REAR USB3_P2_TX_C_REAR J38: ESPI Port 80 Header...
  • Page 88 (CN1/CN2): M.2 Connector PCIE ONLY Signal Signal VCC3 VCC3 VCC3_AUX M2_LED_N VCC3 VCC3 VCC3 VCC3 PCH_PE1_M2_1_RX_N P12V_IN P12V_IN PCH_PE1_M2_1_RX_P P12V_IN P12V_IN PCH_PE1_M2_1_TX_N PCH_PE1_M2_1_TX_P M2_SMB_CLK_R PCH_PE0_M2_0_RX_N M2_SMB_DAT_R PCH_PE0_M2_0_RX_P PCH_PE0_M2_0_TX_N M2_PERST_N_R PCH_PE0_M2_0_TX_P M2_2_PEWAKE_N CLK_100M_M2_DN CLK_100M_M2_DP PE_M.2_DETECT_N VCC3 VCC3 VCC3 http://www.tyan.com...
  • Page 89 MINI_SAS_HD1: Mini SAS HD Connector Signal Signal PCH_SATA_0-7_A1 SGPIO_SATA_CLK SGPIO_SATA_LOAD SATA1_RXP_C SATA0_RXP_C SATA1_RXN_C SATA0_RXN_C SATA3_RXP_C SATA2_RXP_C SATA3_RXN_C SATA2_RXN_C SGPIO_DO_0R SGPIO_DI_0R SAS0_CTYPE SATA1_TXP_C SATA0_TXP_C SATA1_TXN_C SATA0_TXN_C SATA3_TXP_C SATA2_TXP_C SATA3_TXN_C SATA2_TXN_C NC_PCH_SATA_0-7_A10 SGPIO_SATA_CLK SGPIO_SATA_LOAD SATA5_RXP_C SATA4_RXP_C SATA5_RXN_C SATA4_RXN_C SATA7_RXP_C SATA6_RXP_C SATA7_RXN_C SAA6_RXN_C SGPIO_DO_1R SGPIO_DI_1R SAS1_CTYPE...
  • Page 90 J26: SATA DOM0 Connector Signal Signal SATA6G_TX_C_DP<8> SATA6G_TX_C_DN<8> SATA6G_RX_C_DN<8> SATA6G_RX_C_DP<8> P5V_SATADOM1_A P5V_SATADOM1_R J27: SATA DOM1 Connector Signal Signal SATA6G_TX_C_DP<9> SATA6G_TX_C_DN<9> SATA6G_RX_C_DN<9> SATA6G_RX_C_DP<9> P5V_SATADOM2_A P5V_SATADOM2_R J9/J10/J17: HDD BP Smbus Header Signal Signal VCC3_AUX HP0_SCK HP0_SDA CPU01_SMBALERT_N_C : Intrusion Header J1_FPGA Signal PCH_INTRUDER_N J3_FPGA: CPLD JTAG Connector (reserved) Signal...
  • Page 91 J1_PCH: Top Swap Disabled Jumper Pin1 Pin2 Pin3 TP_BIOS_RCVR_BOOT FM_PCH_BIOS_RCVR_ PU_BIOS_RCVR_ MODE BOOT 1-2 Closed: TOP SWAP DISABLED (Default) 2-3 Closed: PCH HAS INTERNAL WEAK PULL-DOWN J2_PCH: PASSWORD CLEAR Jumper Pin1 Pin2 Pin3 TP_PASSWORD_ PD_PASSWORD_ FM_PASSWORD_CLEAR_N CLEAR CLEAR (Default) 1-2 Closed: Normal 2-3 Closed: PASSWORD CLEAR J3_PCH: ME Recovery Mode Jumper/ME Firmware Update Jumper Pin1...
  • Page 92 J18: BMC Reader Jumper Pin1 Pin2 Pin3 SP_BMC_UART5_R_TXD SP_BMC_UART5_R_RXD J19: BMC Remote Debug Jumper Pin1 Pin2 Pin3 P3V3_AUX FM_REMOTE_DEBUG_EN_DET_R2 TP_HDR_QS_3 1-2 Closed: ENABLE BMC REMOTE DEBUG 2-3 Closed: DISABLE REMOTE DEBUG <Default > VGA1: Front Panel VGA Header Signal Signal VGA2_5V HD_VGA_R HD_VGA_G...

  • Page 93: Led Definitions

    LED Definitions http://www.tyan.com...
  • Page 94 Signal LED_PLD_HEARTBEAT LED_PLD_HEARTBEAT_D CPLD Heartbeat 1. D33 State Description Blink POWER OFF Green POWER ON Signal LED_RST_PLTRST_D RST_PLTRST_PLD_N 2. D41 PLTRST LED State Description POWER OFF Green POWER ON Signal LED_SYS_PWROK LED_SYS_PWROK_D SYSTEM PWROK 3. D82 State Description SYSTEM POWER OFF Green SYSTEM POWER OK Signal LED_BMC_HB_LED_D_N...

  • Page 95: Thermal Interface Material

    Thermal Interface Material There are two types of thermal interface materials designed for use with the processors. The most common material comes as a small pad attached to the heat sink at the time of purchase. There should be a protective cover over the material.

  • Page 96: Tips On Installing Motherboard In Chassis

    Tips on Installing Motherboard in Chassis Before installing your motherboard, make sure your chassis has the necessary motherboard support studs installed. These studs are usually metal and are gold in color. Usually, the chassis manufacturer will pre-install the support studs. If you are unsure of stud placement, simply lay the motherboard inside the chassis and align the screw holes of the motherboard to the studs inside the case.
  • Page 97 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MITAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed.

  • Page 98: Installing The Memory

    Installing the Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard. DIMM Location NOTE: 1. √ indicates a populated DIMM slot. 2.
  • Page 99 Memory Population Table CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ http://www.tyan.com...

  • Page 100: Installing Add-In Cards

    Installing Add-In Cards Before installing add-in cards, it’s helpful to know if they are fully compatible with your motherboard. For this reason, we’ve provided the diagrams below, showing the slots that may appear on your motherboard. PCIE#4 x16(J2) CPU1 P0 :0~15 PCIE#3 x16(J3) CPU1 P2:0~15 PCIE#2 x20 (J46) CPU0: PE1 0~15 and PE0 8~11 ...

  • Page 101: 5.9 Installing The Power Supply

    5.9 Installing the Power Supply There are Eight (8) power connectors on your S7132 motherboard. The S7132 supports EPS 12V power supply. J41/J45/J32/J33/J34/J41/J12/J55: 8-PIN Power Connector Signal Signal COM_1 +12VDIG_1 COM_2 +12VDIG_ 2 COM_3 +12VDIG_3 COM_4 +12VDIG_4 J40: 4-PIN Power Connector Signal Signal P12V...

  • Page 102: Chapter 6: Bios Setup

    Chapter 6: BIOS Setup About the BIOS The BIOS is the basic input/output system, the firmware on the motherboard that enables your hardware to interface with your software. The BIOS determines what a computer can do without accessing programs from a disk. The BIOS contains all the code required to control the keyboard, display screen, disk drives, serial communications, and a number of miscellaneous functions.
  • Page 103 Chipset section unless you are absolutely sure of what you are doing. The Chipset defaults have been carefully chosen either by MiTAC or your system manufacturer for best performance and reliability. Even a seemingly small change to the Chipset setup options may cause the system to become unstable or unusable.

  • Page 104: Main Menu

    Main Menu In this section, you can alter general features such as the date and time. Note that the options listed below are for options that can directly be changed within the Main Setup screen. BIOS Information It displays BIOS related information. Product Name It displays Product name.
  • Page 105 Year: 2005-2099 Months: 1-12 Days: dependent on month System Time Set the Time. Use Tab to switch between Time elements. http://www.tyan.com...

  • Page 106: Advanced Menu

    Advanced Menu This section facilitates configuring advanced BIOS options for your system. Network Stack Configuration Network Stack Settings S5 RTC Wake Settings Enable system to wake from S5 using RTC alarm. Serial Port Console Redirection Serial Port Console Redirection. PCIe Device Configuration PCIe Device Configuration USB Configuration USB Configuration Parameters.
  • Page 107 Super IO Configuration System Super IO Chip Parameters Hardware Health Configuration Hardware health Configuration Parameters. PCI Subsystem Settings PCI, PCI-X and PCI Express Settings. NVMe Configuration NVMe Device Options Settings. Trusted Computing Trusted Computing Settings. CSM Configuration CSM configuration: Enable/Disable, Option ROM execution settings,etc. Redfish Host Interface Settings Redfish Host Interface Parameters.
  • Page 108 Intel® Ethernet Network Adapter E810-C-Q2 for OCP3.0 VLAN Configuration (MAC: XXXXXXXXXXXX) VLAN Configuration (MAC: XXXXXXXXXXXX) MAC: XXXXXXXXXXXX --- IPV4 Network Configuration Configure network parameters. (MAC: XXXXXXXXXXXX) MAC: XXXXXXXXXXXX --- IPV6 Network Configuration Configure IPV6 network parameters. (MAC: XXXXXXXXXXXX) 6.3.1 Network Stack Configuration NOTE: The BIOS will automatically read the onboard LAN controller.
  • Page 109 Ipv4 PXE Support Enable Ipv4 PXE Boot Support. If disabled IPV4 PXE boot option will not be created. Disabled / Enabled Ipv4 HTTPS Support Enable Ipv4 HTTP Boot Support. If disabled IPV4 HTTP boot option will not be created. Disabled / Enabled Ipv6 PXE Support Enable Ipv6 PXE Boot Support.
  • Page 110 6.3.2 S5 RTC Wake Settings Wake system from S5 Enable or disable system wake on alarm event. Select Fixed time, system will wake on the hr::min::sec specified. Select dynamic time, system will wake on the current time+ increase minute(s) Disabled / Fixed time / Dynamic time When Wake system from S5 is set to [Fixed Time] Wake up hour Select 0-23.
  • Page 111 6.3.3 Serial Port Console Redirection Console Redirection Console redirection enable or disable. Disabled / Enabled Legacy Console Redirection Settings Legacy Console redirection settings. Serial Port for Out-of-Band Management/ Windows Emergency Management Services（EMS） Console Redirection Enable or Disable Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data.
  • Page 112 6.3.3.1 Console Redirection Settings Terminal Type Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes. VT-UTF8 / VT100 / VT100+ / ANSI Bits per Second Select serial port transmission speed.
  • Page 113 Stop Bits Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. 1 / 2 Flow Control Flow Control can prevent data loss from buffer overflow.
  • Page 114 6.3.3.2 Legacy Console Redirection Settings Redirection COM Port Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages. COM1 Resolution On Legacy OS, the Number of Rows and Columns supported redirection. 80x24 / 80x25 Redirect After POST When BootLoader is selected, then Legacy Console Redirection is disabled before booting to legacy OS.
  • Page 115 6.3.3.3 Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS) Console Redirection Settings Out-of-Band Mgmt Port Microsoft Windows Emergency Management Services (EMS) allows for remote management of a Windows Server OS through a serial port. COM1 Terminal Type EMS VT-UTF8 is the preferred terminal type for out-of-band management. The next best choice is VT100+ and then VT100.
  • Page 116 Flow Control Flow Control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal.
  • Page 117 6.3.4.1 Option ROM Dispatch Policy Configuration LAN1 Option ROM Enabled or Disabled LAN1 Option ROM Enabled / Disabled LAN2 Option ROM Enabled or Disabled LAN2 Option ROM Enabled / Disabled PCIE#1 Option ROM Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled PCIE#2 Option ROM Enable or Disable Option ROM execution for selected Slot.
  • Page 118 PCIE#4 Option ROM Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled PCIE#5 Option ROM Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled OCP3.0 Option ROM Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled 6.3.5 USB Configuration...
  • Page 119 XHCI Hand-off This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. Disabled / Enabled USB Mass Storage Driver Support Enable/Disable USB Mass Storage Driver Support. Disabled / Enabled Port 60/64 Emulation Enables I/O Port 60h/64h emulation support.
  • Page 120 6.3.6 Onboard Device Configuration I210 Chipset Onboard VGA Enable or Disable ASPEED VGA. Enabled / Disabled LAN1 LAN Enable/Disable control function. Disabled / Enabled LAN2 LAN Enable/Disable control function. Disabled / Enabled Primary Display Select active Video type. Onboard / External NMI Funtion Enable or Disable NMI function Disabled / Enabled...
  • Page 121 X710 Chipset Onboard VGA Enable or Disable ASPEED VGA. Enabled / Disabled LAN1 LAN Enable/Disable control function. Disabled / Enabled Primary Display Select active Video type. Onboard / External NMI Funtion Enable or Disable NMI function Disabled / Enabled Chassis Intrusion Detection Enabled: When a chassis open event is detected, the BIOS will display the event.
  • Page 122 6.3.7 Super IO Configuration Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). http://www.tyan.com...
  • Page 123 6.3.7.1 Serial Port 1 Configuration Serial Port Enable or disable Serial Port (COM). Enabled / Disabled Change Settings Select an optimal setting for Super IO Device. Auto / IO=3F8h; IRQ=4; / IO=2F8h; IRQ=4, / IO=3F8h; IRQ=4, / IO=2E8h, IRQ=4, http://www.tyan.com...
  • Page 124 6.3.8 Hardware Health Configuration Fan Speed Control Fan Speed Control. Automatic / Manual / Full Speed NOTE: Change the Fan Speed Control BIOS setting from [Manual] to [Full Speed] when installing the Nvidia GeForce / Quardro GPU and any VGA card. PWM Minimal Duty Cycle PWM Minimal Duty Cycle (%).
  • Page 125 5.3.8.1 Sensor Data Register Monitoring NOTE: SDR cannot be modified. Read only. http://www.tyan.com...
  • Page 126 http://www.tyan.com...
  • Page 127 http://www.tyan.com...
  • Page 128 http://www.tyan.com...
  • Page 129 6.3.8 PCI Subsystem Settings Above 4G Decoding Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding). Enabled / Disabled SR-IOV Support If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO Virtualization Support.
  • Page 130 6.3.8.1 PCI Express Settings Maximum Payload Set Maximum Payload of PCI Express Device or allow System BIOS to select the value. Auto / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048 Bytes / 4096 Bytes http://www.tyan.com...
  • Page 131 6.3.9 NVMe Configuration This page shows the Device Name you installed. Press Enter to read the device information. If no NVME device is installed, it shows no NVME device is found. Read only. http://www.tyan.com...
  • Page 132 6.3.10 Trusted Computing Security Device Support Enable or disable BIOS support for security device. O.S. will not show Security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Enabled / Disabled http://www.tyan.com...
  • Page 133 6.3.11 CSM Configuration CSM support Enable/Disable CSM Support Enabled / Disabled Option ROM Messages Set display mode for Option ROM Force BIOS / Keep Current Network Controls the execution of UEFI and legacy PXE OpROM UEFI / legacy Storage Controls the execution of UEFI and legacy PXE OpROM UEFI / legacy Video Controls the execution of UEFI and legacy Video OpROM...
  • Page 134 6.3.12 Redfish Host Interface Configuration Redish Enable/Disable AMI Redfish Disabled / Enabled NOTE: When Redfish Host Interface Settings set to [Enabled], the following items will appear. BMC Redfish Version BIOS Redfish Version IP Address Enter IP address. IP Mask Address Enter IP Mask address.
  • Page 135 6.3.13 Tls Auth Configuration Submenu Server CA Configuration Press <Enter> to configure Server CA. Client Cert Configuration Press <Enter> to configure Client Cert. http://www.tyan.com...
  • Page 136 6.3.13.1 Server CA Configuration Enroll Cert Press <Enter> to enroll cert. Delete Cert Press <Enter> to delete cert. http://www.tyan.com...
  • Page 137 6.3.13.1.1 Enroll Cert Enroll Cert Using File Enroll Cert Using File. Cert GUID Input digit character in 11111111-2222-3333-4444-1234567890ab format. Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
  • Page 138 6.3.13.1.2 Delete Cert FE9C6606-8B49-44A3-8B6B-DEA3A0E032 GUID for CERT. Disabled / Enabled http://www.tyan.com...
  • Page 139 6.3.14 iSCSI Configuration Host iSCSI Configuration Host iSCSI Configuration http://www.tyan.com...
  • Page 140 6.3.14.1 Host iSCSI Configuration iSCSI Initiator Name The worldwide unique name of iSCSI Initiator. Only IQN format is accepted. Enter [iqn.xxx]. xxx ranges from 4 to 223. Add an Attempt Add an Attempt. Delete Attempts Delete one or more attempts. Change Attempt Order Change the order of Attempts using +/- keys.
  • Page 141 6.3.14.1.1 Add an Attempt NOTE: Only LAN1 supports iSCSI function. MAC xx:xx:xx:xx:xx:xx (Intel® I210 Gigabit Network Connection) PFA: Bus 2 / Dev 0 / Func 0. http://www.tyan.com...
  • Page 142 6.3.14.1.1.1 MAC xx:xx:xx:xx:xx:xx (Intel® I210 Gigabit Network Connection) iSCSI Attempt Name The human name defined for this attempt. Maximum length is up to 12 characters. Attempt 2 iSCSI Mode Disabled, Enabled, Enabled for MPIO. Disabled / Enabled / Enabled for MPIO Internet Protocol Initiator IP address is system assigned in IP6 mode.
  • Page 143 Connection Establishing Timeout The timeout value in milliseconds. The minimum value is 100 milliseconds and the maximum is 20 seconds. Configure ISID OUI-format ISID in 6 bytes, default value is derived from MAC address. Only last 3 bytes are configurable. Example: update 0ABBCCDDEEFF to OABBCCF07901 by input F07901.
  • Page 144 6.3.14.1.2 Attempt 1 iSCSI Attempt Name The human name defined for this attempt. Attempt 1 iSCSI Mode Disabled, Enabled, Enabled for MPIO. Disabled / Enabled / Enabled for MPIO Internet Protocol Initiator IP address is system assigned in IP6 mode. In Autoconfigure mode, iSCSI driver will attempt to connect iSCSI target via IPv4 stack, if failed then attempt IPv6 stack.
  • Page 145 Configure ISID OUI-format ISID in 6 bytes, default value is derived from MAC address. Only last 3 bytes are configurable. Example: update 0ABBCCDDEEFF to OABBCCF07901 by input F07901. Enable DHCP Enable DHCP. Disabled / Enabled Initiator IP Address Enter IP address in dotted-decimal notation. Initiator Subnet Mask Enter IP address in dotted-decimal notation.
  • Page 146 6.3.14.1.3 Delete Attempts Attempt 1 MAC xx:xx:xx:xx:xx:xx, PFA: Bus 2 / Dev 0 / Func 0, iSCSI mode: Disabled, IP version: IPv4. Disabled / Enabled Attempt 2 MAC xx:xx:xx:xx:xx:xx, PFA: Bus 2 / Dev 0 / Func 0, iSCSI mode: Disabled, IP version: IPv4.
  • Page 147 6.3.14.1.4 Change Attempt Order Change Attempt Order Change the order of Attempts using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. Attempt 1 Commit Changes and Exit Commit Changes and Exit.
  • Page 148 6.3.15 Intel® I210 Gigabit Network Connection Firmware Image Properties View device firmware version information. NIC Configuration Click to configure the network device port. Blink LEDs Blink LEDs for a duration up to 15 seconds http://www.tyan.com...
  • Page 149 6.3.15.1 Firmware Image Properties http://www.tyan.com...
  • Page 150 6.3.15.2 NIC Configuration Link Speed Specifies the port speed used for the selected boot protocol Auto Negotiated / 10 Mbps Half / 10 Mbps Full / 100 Mbps Half / 100 Mbps Full Wake On LAN Enables power on of the system via LAN. Note that configuring Wake on LAN in the operating system does not change the value of this setting, but does override the behavior of Wake on LAN in OS controlled power states.
  • Page 151 6.3.16 VLAN Configuration (MAC: A0423F50417F) Enter Configuration Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
  • Page 152 6.3.16.1 Enter Configuration VLAN ID VLAN ID of new VLAN or existing VLAN, valid value is 0~4094 Priority 802.1Q Priority, valid value is 0~7 Add VLAN Create a new VLAN or update existing VLAN Remove VLAN Remove selected VLANs http://www.tyan.com...
  • Page 153 6.3.17 MAC: A0423F50417F -IPv6 Network Menu Enter Configuration Menu Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
  • Page 154 6.3.17.1 Enter Configuration Interface ID The 64 bit alternative interface ID for the device. The string is color separated. e.g. ff:dd:88:66:cc:1:2:3 DAD Transmit Count The number of consecutive Neighbor Solicitation messages sent while performing Duplicate Address Detection on a tentative address. A value of zero indicates that Duplicate Address Detection is not performed.
  • Page 155 6.3.18 MAC: A0423F50417F-IPv4 Network Menu Configured Indicate whether network address configured successfully or not. Disabled / Enabled NOTE: When configured is set to Enabled, the following items will appear. Enable DHCP Indicate whether network address configured successfully or not. Disabled / Enabled Local IP Address Enter IP address in dotted-decimal notation.
  • Page 156 6.3.19 Intel® Ethernet Network Adapter E810-C-Q2 for OCP 3.0 Firmware Image Properties View device firmware version information. NIC Configuration Click to configure the network device port. Blink LEDs Blink LEDs for a duration up to 15 seconds http://www.tyan.com...
  • Page 157 6.3.19.1 Firmware Image Properties http://www.tyan.com...
  • Page 158 6.3.19.2 NIC Configuration Link Speed Specifies the port speed used for the selected boot protocol Auto Negotiated / 10 Mbps Half / 10 Mbps Full / 100 Mbps Half / 100 Mbps Full LLDP Agent Enables power on of the system via LAN. Note that configuring Wake on LAN in the operating system does not change the value of this setting, but does override the behavior of Wake on LAN in OS controlled power states.
  • Page 159 6.3.20 VLAN Configuration (MAC: B49691B23040) Enter Configuration Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
  • Page 160 6.3.20.1 Enter Configuration VLAN ID VLAN ID of new VLAN or existing VLAN, valid value is 0~4094 Priority 802.1Q Priority, valid value is 0~7 Add VLAN Create a new VLAN or update existing VLAN Remove VLAN Remove selected VLANs http://www.tyan.com...
  • Page 161 6.3.21 MAC: B49691B23040-IPv6 Network Menu Enter Configuration Menu Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
  • Page 162 6.3.21.1 Enter Configuration Interface ID The 64 bit alternative interface ID for the device. The string is color separated. e.g. ff:dd:88:66:cc:1:2:3 DAD Transmit Count The number of consecutive Neighbor Solicitation messages sent while performing Duplicate Address Detection on a tentative address. A value of zero indicates that Duplicate Address Detection is not performed.
  • Page 163 6.3.22 MAC: B49691B23040-IPv4 Network Menu Configured Indicate whether network address configured successfully or not. Disabled / Enabled NOTE: When configured is set to Enabled, the following items will appear. Enable DHCP Indicate whether network address configured successfully or not. Disabled / Enabled Local IP Address Enter IP address in dotted-decimal notation.
  • Page 164 CPU Configuration Processor Configuration Displays and provides option to change the Processor Settings. Common RefCode Configuration Displays and provides option to change the Common RefCode Settings. Uncore Configuration Displays and provides option to change the Uncore Settings Memory Configuration Displays and provides option to change the Memory Settings. IIO Configuration Displays and provides option to change the IIO Settings.
  • Page 165 6.4.1 Processor Configuration Enabled LP [Global] Enables Logical processor (Software Method to Enable/Disabled Logical Processor threads) (Hyper-Threading). ALL LPs / Single LP ® Enable Intel ® Enable Intel TXT. Disabled / Enabled Hardware Prefether =MLC Streamer Prefetcher (MSR 1A4h Bit[0]) Disabled / Enabled Adjacent Cache Prefetch =MLC Streamer Prefetcher (MSR 1A4h Bit[0])
  • Page 166 AES-NI Enabled/Disabled AES-NI support Disabled Enabled 6.4.2 Common RefCode Configuration Numa Enable or Disable Non uniform Memory Access (NUMA). Disabled / Enabled http://www.tyan.com...
  • Page 167 6.4.3 Uncore Configuration Uncore General Configuration Displays and provides option to change the Uncore General Settings. http://www.tyan.com...
  • Page 168 6.4.3.1 Uncore General Configuration Uncore Status Uncore Status Help Link Speed Mode Select the UPI link speed as either the POR speed (Fast) or default speed (Slow). Slow / Fast Link Frequency Select Allows for selecting the UPI Link Frequency. 9.6GT/s / 10.4GT/s / 11.2GT/s / Auto / Use Per Link Setting Link L0p Enable Enable --- Set the c_l0p_en,...
  • Page 169 Disabled supports 1-cluster and 4-IMC way interleave. Enable SNC2 supports 2-clusters SNC and 2-way IMC interleave. Enabled SNC4 supports 4-cluster and 1-IMC way interleave. Disabled / Enabled SNC2 (2-clusters) / Enabled SNC4 (4-clusters) MMCFG Base Select MMCFG Base, Auto – Auto decides based on Si Compatibility. 1G / 1.5G / 1.75G / 2G / 2.25G / 3G / Auto MMCFG Size Select MMCFG Size, Auto –...
  • Page 170 6.4.3.1.1 Uncore Status Read only http://www.tyan.com...
  • Page 171 6.4.4 Memory Configuration Memory Frequency Maximum Memory Frequency Selections in Mhz. If Enforce POR is disabled, user will be able to run at higher frequencies than the memory support (limited by processor support). Do not select Reserved. Auto / 4000 / 4400 / 4800 Memory Topology Displays memory topology with DIMM population information Memory RAS Configuration...
  • Page 172 6.4.4.1 Memory Topology Configuration http://www.tyan.com...
  • Page 173 6.4.4.2 Memory RAS Configuration Dynamic ECC Mode Selection Enabled/Disabled Dynamic ECC Mode Selection Enabled / Disabled Mirror Mode Full Mirror Mode will set entire 1LM memory in system to be mirrored, consequently reducing the memory capacity by half. Partial Mirror Mode will enable the required size of memory to be mirrored.
  • Page 174 Disabled / Enabled Patrol Scrub Interval 6.4.5 IIO Configuration Socket0 Configuration Socket0 Parameters Socket1 Configuration Socket1 Parameters Intel® VT for Directed I/O (VT-d) Press <Enter> to bring up the Intel® VT for Directed I/O (VT-d) Configuration menu. PCIe Hot Plug Enable/Disable PCIe Hot Plug globally.
  • Page 175 PCIe Max Read Request Size This option can set requested Max Read Request Size in PCI hierarchy. ’Default’ Keeps hardware default. Auto / 128B / 256B / 512B / 1024B / 2048B / 4096B 6.4.5.1 Socket 0 Configuration IOU0 (IIO PCIe Port 1) Selects PCIe port Bifurcation for selected slot(s).Port Format:xDxCxBxA The port can further be x2x2 Auto / x4x4x4x4 / x4x4x_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16...
  • Page 176 The port can further be x2x2 Auto / x4x4x4x4 / x4x4x_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16 IOU3 (IIO PCIe Port 4) Selects PCIe port Bifurcation for selected slot(s). Port Format:xDxCxBxA The port can further be x2x2 Auto / x4x4x4x4 / x4x4x_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16 IOU4 (IIO PCIe Port 5) Selects PCIe port Bifurcation for selected slot(s).
  • Page 177 6.4.5.1.1 Port 1A/1C/1E/2A/3A/4A/4E/4G/5A/5C/5C/5E/5G PCI-E Port In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.
  • Page 178 Auto / x1 / x2 / x4 / x8 / x16 PCI-E Port DeEmphasis De-Emphasis control (LNKCON2[6]) for this PCIe port. -6.0 dB / -3.5 dB PCI-E ASPM Support This option enables/disables the ASPM (L1) support for the downstream devices. Auto / Disabled MCTP Enable/Disable MCTP...
  • Page 179 The port can further be x2x2 Auto / x4x4x4x4 / x4x4x_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16 IOU1 (IIO PCIe Port 2) Selects PCIe port Bifurcation for selected slot(s). Port Format:xDxCxBxA The port can further be x2x2 Auto / x4x4x4x4 / x4x4x_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16 IOU2 (IIO PCIe Port 3) Selects PCIe port Bifurcation for selected slot(s).
  • Page 180 6.4.5.2.1 Port 1A/2A/3A/4A/4C/4E/4G/5A/5C/5E/5G PCI-E Port In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.
  • Page 181 Override Max Link Width Override the max link width that was set by bifurcation. Auto / x1 / x2 / x4 / x8 / x16 PCI-E Port DeEmphasis De-Emphasis control (LNKCON2[6]) for this PCIe port. -6.0 dB / -3.5 dB PCI-E ASPM Support This option enables/disables the ASPM (L1) support for the downstream devices.
  • Page 182 Pre-boot DMA Protection Enable DMA Protection in Pre-boot environment (If DMAR table is installed in DXE and If VTD_INFO_PPT is installed in PEI.) Enabled / Disabled PCIe ACSCTL Enable/Disable overwrite of PCI Access Control Services Control register in PCI root ports.
  • Page 183 6.4.6 Advanced Power Management Configuration CPU P State Control P State Control Configuration Sub Menu, include Turbo, XE and etc. Hardware PM State Control Hardware P-State setting. CPU C State Control CPU C State setting. Package C State Control Package C State setting CPU Advanced PM Tuning Setting Energy Per Bias, Pwr_Ctl,PP0 Current SWLTD, SAPM etc Package Current Config...
  • Page 184 6.4.6.1 CPU P State Control SpeedStep (Pstates) Enable/Disable EIST (P-States). Disabled / Enabled Boot performance mode Select the performance state that the BIOS will set before OS hand off. Max Performance / Max Efficient / Set by Intel Node Manager Energy Efficient Turbo Energy Efficient Turbo Disable, MSR 0x1FC [19].
  • Page 185 6.4.6.2 Hardware PM State Control Hardware P-State Control Disable: Hardware chooses a P-state based on OS Request (Legacy P-States). Native Mode: Hardware chooses a P-state based on OS guidance. Out of Band Mode: Hardware autonomously chooses a P-state (no OS guidance). Disabled / Native Mode / Out of Band Mode / Native Mode with No Legacy Support http://www.tyan.com...
  • Page 186 6.4.6.3 CPU C State Control CPU C1 auto demotion Allows CPU to automatically demote to C1. Takes effect after reboot. Disabled / Enabled CPU C6 report Enable/Disable CPU C6 (ACPI C3) report to OS. Disabled / Enabled / Auto Enhanced Halt State (C1E) Core C1E auto promotion Control.
  • Page 187 6.4.6.4 Package C State Control Package C State Package C State limit C0/C1 state / C2 state / C6 (non Retention) state / C6(Retention) state / No Limit /Auto http://www.tyan.com...
  • Page 188 6.4.6.4 CPU Advanced PM Turning Power Performance Tuning Optioins decides who Controls EPB. In OS mode: 1A32_ENERGY_PERF_BIAS is used In BIOS mode: ENERGY_PERF_BIAS_CONFIG is used In PECI mode: PCS53 is used OS Controls EPB / BIOS Controls EPB / PECI Controls EPB http://www.tyan.com...
  • Page 189 6.4.6.5 Package Current Configuraion Current Limit Override Disable – Default, do nothing; Enable, override Current limitation in 1/8 A increments. Disabled / Enabled http://www.tyan.com...
  • Page 190 6.4.6.6 Socket RAPL Configuraion PL1 Power Limit PL1 Power Limit in Watts.The value may vary from 0 to Fused Value. If the value is 0, the fused value will be programmed. A value greater than fused TDP value will not be programmed.
  • Page 191 Chipset Configuraion PCH-IO Configuration PCH Parameters Server ME Configuration Configure Server ME Technology Parameters http://www.tyan.com...
  • Page 192 6.5.1 PCH-IO Configuraion Restore AC Power Loss Specify what state to go to when power is re-applied after a power failure(G3 state). Power On / Power Off / Last State http://www.tyan.com...
  • Page 193 6.5.1.1 PCI Express Configuration PCI Express Root Port 1~16 PCI Express Root Port 1~16 Settings. http://www.tyan.com...
  • Page 194 6.5.1.1.1 PCI Express Root Port 1 ~ 16 PCI Express Root Port 1~16 Control the PCI Express Root Port. Disabled / Enabled NOTE: When PCI Express Root Port 1 has set to [Enabled], the following items Will be available to set up. ASPM PCI Express Active State Power Management settings Disabled / L1...
  • Page 195 6.5.1.2 SATA And RST Configuration Controller 1 SATA And RST Configuration SATA Controller 1 Device Options Settings Controller 2 SATA And RST Configuration SATA Controller 2 Device Options Settings http://www.tyan.com...
  • Page 196 6.5.1.2.1 Controller 1 SATA And RST Configuration SATA Controller Enable or Disable SATA Controller. Disabled / Enabled SATA Mode Selection Determines how SATA controllers operate. AHCI / RAID Configure SATA as Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. AHCI / RAID SATA1 Port 0/1/2/3/4/5/6/7 Enable or Disable SATA Port.
  • Page 197 Spin Up Device If enabled for any of ports Staggered Spin Up will be performed and only the drives which have this option enabled will spin up at boot. Otherwise all drives spin up at boot. Disabled / Enabled SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard disk Drive.
  • Page 198 SATADOM1/2 Port 1/2 Enable or Disable SATA Port. Disabled / Enabled Hot Plug Designates this port as Hot Pluggable. Disabled / Enabled Spin Up Device If enabled for any of ports Staggered Spin Up will be performed and only the drives witch have this option enabled will spin up at boot.
  • Page 199 6.5.2 Server ME Configuration http://www.tyan.com...

  • Page 200: Server Management

    Server Management FRB-2 Timer Enable or Disable FRB-2 timer (POST timer). Enabled / Disabled NOTE: FRB-2 Timer timeout and FRB-2 Timer Policy are available when FRB-2 Timer is set to [Enabled]. FRB-2 Timer timeout Enter value Between 3 to 6 min for FRB-2 Timer Expiration value. Not available if FRB-2 Timer is disabled.
  • Page 201 NOTE: OS Wtd Timer timeout and OS Wtd Timer Policy are available when OS Watchdog Timer is set to [Enabled]. OS Wtd Timer timeout Configure the length of the OS Boot Watchdog Timer. Not available if OS Boot Watchdog timer is disabled. 5 minutes / 10 minutes / 15 minutes / 20 minutes OS Wtd Timer Policy Configure how the system should respond if the OS Boot Watchdog Timer expires.
  • Page 202 6.6.1 System Event Log SEL Components Change this to enable or disable all features of System Event Logging during boot. Disabled / Enabled Erase SEL Choose options for erasing SEL. No / Yes, on next reset / No, on every reset When SEL is Full Choose options for reactions to a full SEL.
  • Page 203 6.6.2 BMC Network Configuration Configure IPV4 support Management Port 1 Configuration Address Source Select the configure LAN channel parameters statically or dynamically (by BIOS or BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. Unspecified / Static / DynamicBmcDhcp / DynamicBmcNonDhcp Management Port 2 Enable/Disable BMC Share NIC.
  • Page 204 Configure IPV6 support Management Port 1 IPV6 Support Enable or Disable LAN1 IPV6 Support. Enabled / Disabled Management Port 2 IPV6 Support Enable or Disable LAN2 IPV6 Support. Enabled / Disabled 6.6.2 BMC User Configuration Add User Press<Enter> to Add a User Delete User Press<Enter>...
  • Page 205 6.6.2.1 BMC Add User Configuration http://www.tyan.com...
  • Page 206 6.6.2.2 BMC Delete User Configuration http://www.tyan.com...
  • Page 207 6.6.2.3 BMC Change User Configuration http://www.tyan.com...

  • Page 208: Security

    Security Administrator Password Set administrator password in the Create New Password window. After you key in the password, the Confirm New Password window will pop out to ask for confirmation. User Password Set user password in the Create New Password window. After you key in the password, the Confirm New Password window will pop out to ask for confirmation.
  • Page 209 6.7.1 Secure Boot Secure Boot Secure Boot feature is Active if Secure Boot is Enabled. Platform Key (PK) is enrolled and the System is in User mode. The mode change requires platform reset. Enabled / Disabled Secure Boot Mode Secure Boot mode selector: Standard/Custom. In Custom mode Secure Boot Variables can be configured without authentication.

  • Page 210: Boot

    Key Management Enables expert users to modify Secure Boot Policy variables without full authentication. Boot Bootup NumLock State Select the keyboard NumLock state. Off / On Quiet Boot Enable or disable Quiet Boot option. Disabled / Enabled Endless Boot Enable or disable Endless Boot. Disabled / Enabled http://www.tyan.com...
  • Page 211 Wait For “ESC” If Error Enable or disable wait ‘ESC’ key Function. When chassis intrusion CMOS clear or BMC not Response. Disabled / Enabled Boot Option #1 Sets the system boot order. Device Name / Device Name / Disabled Boot Option #2 Sets the system boot order.
  • Page 212 6.8.1 Add New Boot Option Configuration Add boot option Create new boot option Path for boot option Enter the path to the boot option in the format Create Creates the newly formed boot option http://www.tyan.com...
  • Page 213 6.8.2 Delete Boot Option Configuration Delete Boot Option Remove an EFI boot option from the boot order Select one to Delete / Device Name http://www.tyan.com...

  • Page 214: Save & Exit

    Save & Exit Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes.
  • Page 215 Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. http://www.tyan.com...

  • Page 216: Appendix I: Cable Connection Tables

    Appendix I: Cable Connection Tables B7132T75AV10E16HR & B7132T75AV10E16HR-2T SKU Front Backplane (BP) Board to S7132GM2NRE-2T/MB HDD BP-1 Cable Connect to S7132GM2NRE-2T/MB M1322T70A-BPE-8  MCIO 8I to MCIO 8I MCIO1 MCIO 8I to MCIO 8I MCIO2  MCIO 8I to 2*MCIO 4I ...
  • Page 217 Power Cables HDD BP-1 M1322T70A-BPE-8 Connect to S7132GM2NRE-2T/MB  HDD BP-2 M1322T70A-BPE-8 Connect to S7132GM2NRE-2T/MB  HDD BP-3 M1321T70A-BP12-8 Connect to S7132GM2NRE-2T/MB  HDD BP M1318T65-BP12E-2 Connect to S7132GM2NRE-2T/MB  SWITCH CABLE Chassis Connect to S7136GM2NRE-2T-B/MB Chassis  http://www.tyan.com...

  • Page 218: Appendix Ii: Fan And Temp Sensors

    Appendix II: Fan and Temp Sensors This section aims to help readers identify the locations of some specific FAN and Temp Sensors on the motherboard. A table of BIOS Temp sensor name explanation is also included for readers’ reference. NOTE: The red dot indicates the sensor.
  • Page 219 BIOS Temp Sensor Name Explanation: NOTE: SDR cannot be modified. Read only. http://www.tyan.com...
  • Page 220 http://www.tyan.com...
  • Page 221 http://www.tyan.com...
  • Page 222 PCH_Temp Temperature of the PCH P0_MC0_DIM_CH_A The highest temperature of CPU0 MC0 channel A slot P0_MC0_DIM_CH_B The highest temperature of CPU0 MC0 channel B slot P0_MC0_DIM_CH_C The highest temperature of CPU0 MC0 channel C slot P0_MC0_DIM_CH_D The highest temperature of CPU0 MC0 channel D slot P0_MC1_DIM_CH_E The highest temperature of CPU0 MC1 channel E slot P0_MC1_DIM_CH_F...

  • Page 223: Appendix Iii: How To Recover Uefi Bios

    Appendix III: How to recover UEFI BIOS Important Notes: The emergency UEFI BIOS Recovery process is only used to rescue a system with a failed or corrupted BIOS image that fails to boot to an OS. It is not intended to be used as a general purpose BIOS flashing procedure and should not be used as such.
  • Page 224 The system will boot to BIOS setup. A new menu item will appear at the far right of the screen. Scroll to the 'Recovery' tab, move the curser to “Proceed with flash update” and press the "Enter" key on the keyboard to start the BIOS recovery process.

  • Page 225: Appendix Iv: Fru Parts Table

    Appendix IV: FRU Parts Table TS75-B7132 FRU Parts Model Item Part Number Picture Description Number TF-POWER SUPPLY;SBU,2000 Power Supply FRU-PS-0351 471100000511 W,CHICONY,R18-2K0P1XA,R2K0AX07 P,(00),1U CRPS MODULE,REV:00 FRU-TF-FAN MODULE;SBU, FAN module FRU-TS-9230 5412T6150010 FRU-TS-9230, FAN 60*60*38mm,6 PIN (HEADER 1*6),TS75-B8252 HF-HEATSINK;Passive,SBU,Intel Eaglestream,1U<H≤ Heatsink & 2U,118.0X78.0X64.0 MM,Al Fin,No 2nd FRU-TH-0450 343B00600002...
  • Page 226 TF-CABLE ASSY;CONTROL INTERNAL,28 AWG,900 mm,NVME FRU-CS-2440 422T63900005 SIGNALCABLE,1*7P,P1.25/1*7P,P1.25, TS65-B7126 TF-CABLE ASSY;SAS INTERNAL, SBU,30 AWG,700 mm,MINI-SAS HD FRU-CS-0510 422T53400005 CABLE, SHORT MINI-SAS HD 36P/ SHORT MINI-SAS HD 36P,TN71-BP012 TF-CABLE ASSY;SBU,POWER FRU-CS-0530 422T42300003 CABLE,2*4P(M),P4.2/2*4P(M),P4.2, L=600MM,TN70-B7016-X2 TF-CABLE ASSY;SBU,POWER FRU-CS-2380 422797000005 CABLE,2*4P(M),P4.2/2*4P(M),P4.2, L=400MM,TN70-B7016-X2 http://www.tyan.com...

  • Page 227: Appendix V: Technical Support
