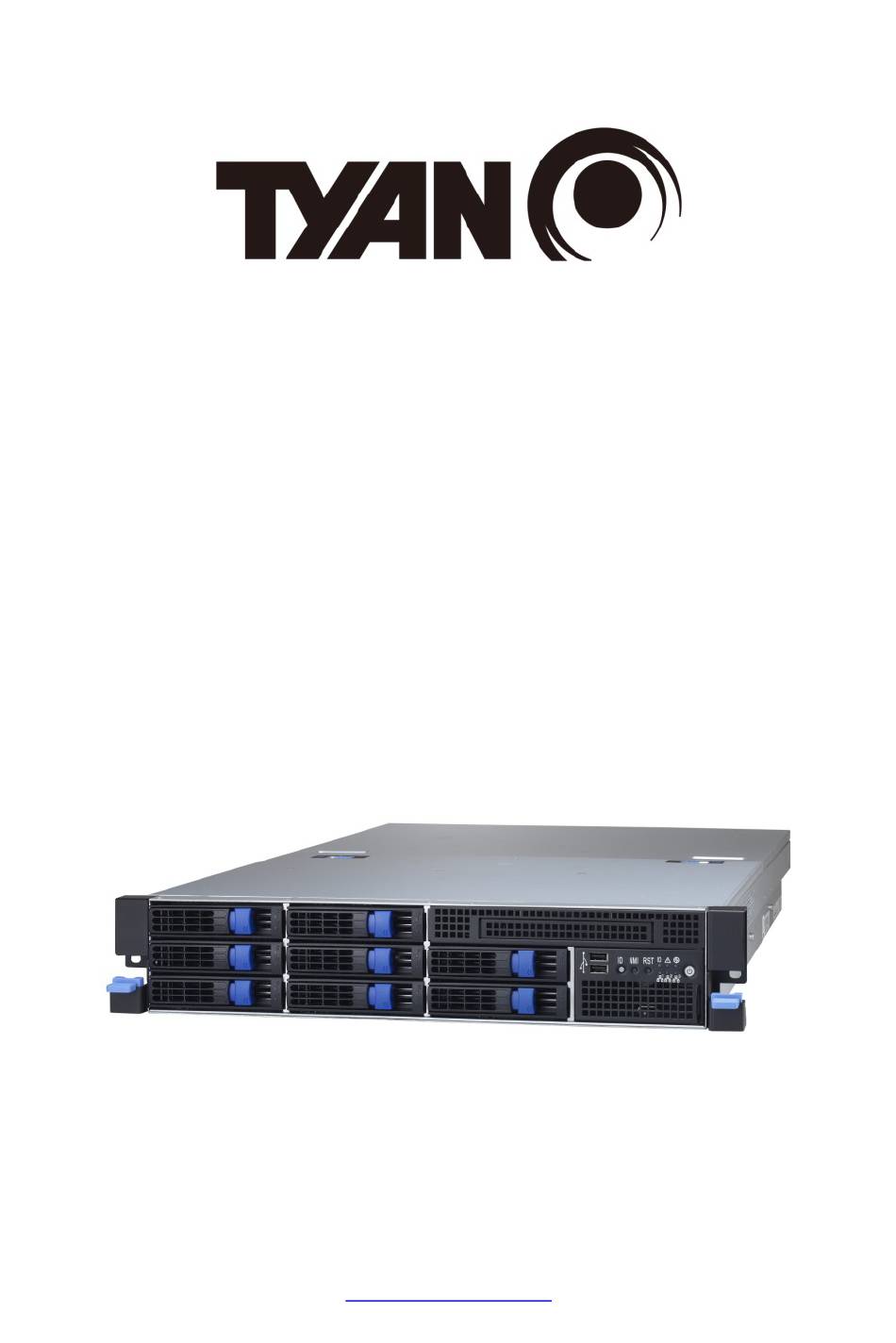

GN70-B7086
Service Engineer's Manual
1
http://www.tyan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TYAN GN70-B7086 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MiTAC TYAN GN70-B7086

Summary of Contents for MiTAC TYAN GN70-B7086

  • Page 1 GN70-B7086 Service Engineer’s Manual http://www.tyan.com...
  • Page 2 In no event will MiTAC be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.
  • Page 3 FCC Declaration Notice for the USA Compliance Information Statement (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This device must not cause harmful interference.
  • Page 4 About this Manual This manual provides you with instructions on installing your TYAN GN70-B7086. This Manual is intended for trained service technician /personnel with hardware knowledge of personal computers. This manual consists of the following parts: Chapter1: Provides an introduction to the TYAN GN70-B7086...
  • Page 5 Safety and Compliance Information Before installing and using TYAN GN70-B7086, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.
  • Page 6 Safety Information Retain and follow all product safety and operating instructions provided with your equipment. In the event of a conflict between the instructions in this guide and the instructions in equipment documentation, follow the guidelines in the equipment documentation. Observe all warnings on the product and in the operating instructions.
  • Page 7 Machine Room Environment · Make sure that the area in which you install the system is properly  ventilated and climate-controlled. · Ensure that the voltage and frequency of your power source match the voltage and frequency inscribed on the electrical rating label of the equipment.
  • Page 8 · Make sure the rack is level and stable before installing an appliance in the rack. · Make sure the leveling jacks are extended to the floor. · Make sure the full weight of the rack rests on the leveling jacks. ·...
  • Page 9 · In all European electrical environments, you must ground the Green/Yellow tab on the power cord. If you do not ground the Green/Yellow tab, it can cause an electrical shock due to high leakage currents. · Do not place objects on AC power cords or cables. Arrange them so that no one might accidentally step on or trip over them.
  • Page 10 · Do not exceed the level of repair specified in the procedures in the product documentation. Improper repairs can create a safety hazard. · Allow the product to cool before removing covers and touching internal components. · Remove all watches, rings, or loose jewelry when working before removing covers and touching internal components.

  • Page 11: Table Of Contents

    Table of Contents Chapter 1: Overview ................ 13 About the TYAN GN70-B7086..........13 Product Models ............... 13 Features.................. 14 Standard Parts List ..............19 1.4.1 Box Contents ..............19 1.4.2 Accessories ..............20 About the Product ..............22 1.5.1 System Front View ............22 1.5.2...
  • Page 12 Replacing the Front Panel Board ........... 63 3.6.1 Front Panel Board Specifications ........65 3.6.2 Connector Pin Definition ..........66 Replacing the System Fan ............. 67 Replacing the Fan Backplane Board ........69 3.8.1 Fan BP Board Specifications ........... 72 3.8.2 Fan BP Board LED Definitions ........

  • Page 13: Chapter 1: Overview

    Chapter 1: Overview About the TYAN GN70-B7086 ® Congratulations on your purchase of the TYAN GN70-B7086, a highly optimized rack-mountable barebone system. The GN70-B7086 is designed to support dual ® ® Intel Xeon E5-2600v3 series (HSW-EP) Processors and up to up to...

  • Page 14: Features

    Features TYAN GN70B7086 (B7086G70V6E2HR) Form Factor 2U Rackmount Gross Weight 25 kg Chassis Model GN70 System Dimension (D x W x 27.56” x 17.72” x 3.43” (700 x 450 x 87mm) Motherboard S7086GM3NRE Board Dimension EATX, 12”x13” (305x330mm) Buttons (1) RST / (1) ID / (1) PWR w/ LED Front Panel LEDs (1) PWR / (1) ID / (1) Warning / (3) LAN...
  • Page 15 Memory channel 4 Channels per CPU PCI-E (6) PCI-E Gen3 x16 slots (w/ x8 link) (1) OCP slot for Mezz Card/ (1) Proprietary slot for SAS Note: Mezz Card/ (4) PCI-E Gen3 x4 in MiniSAS HD for NVMe devices(TYAN Proprietary) M7062-B811-1T, PCI-E Gen3 x8, Broadcom 10GbE Mezz Card M7062-B810-2T, PCI-E Gen3 x8,...
  • Page 16 Management IPMI 2.0 compliant baseboard management controller AST2400 IPMI (BMC) / Supports storage over IP and remote Feature platform-flash / USB 2.0 virtual hub AST2400 iKVM 24-bit high quality video compression / 10/100 Mb/s Feature MAC interface Brand / ROM size AMI / 16MB User-configurable H/W monitoring / SMBIOS BIOS...
  • Page 17 Efficiency 80 plus gold Redundancy Serviceability Hot-swap Input Range 100-127V AC/10A / 200-240V AC/5A Frequency 50/60 Hertz Output Watts 770 Watts Supported CPU Intel Xeon Processor E5-2600 v3 series processors Series Socket Type / Q’ty LGA2011 / (2) Thermal Design Processor Power (TDP) Max up to 145W...
  • Page 18 Connector (1) Mini-SAS (4-ports) Controller Intel C612 SSATA Speed 6.0 Gb/s RAID RAID 0/1/10/5 (Intel RST) only for 4 SATA devices Connector type D-Sub 15-pin Graphic Resolution Up to 1920x1200 Chipset Aspeed AST2400 (4) ports (2 at front, 4 at rear) (1) DB-9 COM port I/O Ports (1) D-Sub 15-pin port...

  • Page 19: Standard Parts List

    Standard Parts List This section describes GN70-B7086 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.4.1 Box Contents Component Description 2U chassis, (8) hot swap HDD bays ®...

  • Page 20: Accessories

    1.4.2 Accessories If any items are missing or appear damaged, contact your retailer or browse to ® TYAN ’s website for service: http://www.tyan.com ® The web site also provides information of other TYAN products, as well as FAQs, compatibility lists, BIOS settings, etc. ®...
  • Page 21 Addendum for China Use Only http://www.tyan.com...

  • Page 22: About The Product

    About the Product The following views show you the product. 1.5.1 System Front View Ears 3.5” /2.5” HDD bays USB Ports ID Button NMI Button RESET Button LAN1/LAN2/LAN3 ID LED System Fan Fail LED System Warning LED Power On/OFF Button with LED http://www.tyan.com...
  • Page 23 LED Definitions Status Behavior Remark Color Power on Solid on Power LED Green Power off Normal System All BMC Amber Warning LED Warning Solid on warning PSU alert, PSU fail Normal System Fan System Fan Fail System Fan Fail Solid on fail warning Normal ID LED...
  • Page 24 HDD LED Behavior Activity LED Status LED HDD Drive State Color: Green Color: Red No Driver Present or power disconnected No Activity Solid ON Driver Present Access Activity Blinking HDD Drive Fail Don’t care Solid ON RAID Rebuild Don’t care Blinking @ 4Hz HDD Drive Locate Identifier Don’t care...

  • Page 25: System Rear View

    1.5.2 System Rear View Power Supply LAN3 (shared with IPMI) + 2 USB COM Port LAN1 (left) + LAN2 (right) OCP card ports(Reserved) ID LED VGA Port PCI-E Slots 10/100/1000 Mbps LAN Link/Activity LED Scheme Left LED Right LED (Link/Activity) (Speed) No Link Solid Green...
  • Page 26 NOTE: I350 LAN chip is support on LAN1 and LAN2 can up to 1Gbps. I210 LAN chip is support on LAN3 can up to 1Gbps. Peripheral devices can be plugged straight into any of these ports but software may be required to complete the installation. ID LED Behavior Status...

  • Page 27: Motherboard (S7086) Layout

    1.5.3 Motherboard (S7086) Layout This diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual.

  • Page 28: Jumpers & Connectors

    1.5.4 Jumpers & Connectors Connectors 1. LAN port#3 (IPMI) and USB 3.0 ports 17. 4-pin Fan Connector(CPU0_FAN) 2. 7-pin vertical SATA 3.0 Connector 18. 8-pin Power Connector(PW2) (SATA5,upper/SATA4 down) 3. VGA Port / COM Port 19. 4-pin Fan Connector(SYS_FAN3) 4. 4-pin Fan Connector(SYS_FAN4) 20.
  • Page 29 Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...

  • Page 30: System Block Diagram (S7086)

    1.5.5 System Block Diagram (S7086) http://www.tyan.com...

  • Page 31: Internal View

    1.5.6 Internal View With Riser Card Brackets 3.5”/2.5” HDD cage (underneath) SAS/SATA HDD Backplane Board System Fan Unit Power Distribution Board PCI-E Riser Card Bracket Power Supply (underneath) http://www.tyan.com...
  • Page 32 Without Riser Card Brackets 3.5”/2.5” HDD cage (underneath) SAS/SATA HDD Backplane Board System Fan Unit Power Distribution Board Power Supply (underneath) http://www.tyan.com...
  • Page 33 NOTE http://www.tyan.com...

  • Page 34: Chapter 2: Setting Up

    Chapter 2: Setting Up 2.0.1 Before you Begin This chapter explains how to install the CPUs, CPU heatsinks, memory modules, and hard drives. Instructions on inserting add on cards are also given. 2.0.2 Work Area Make sure you have a stable, clean working environment. Dust and dirt can get into components and cause malfunctions.

  • Page 35: Precautions

    2.0.4 Precautions Components and electronic circuit boards can be damaged by discharges of static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to GN70-B7086 or injury to yourself. ...

  • Page 36: Installing Motherboard Components

    Installing Motherboard Components This section describes how to install components on to the motherboard, including CPUs, memory modules, HDD and PCI-E cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove the GN70-B7086 chassis cover. Unscrew the rear top cover on the back side. Unscrew the front top cover and pull the latches aside to lift up the top cover.
  • Page 37 Slide the rear top cover out. http://www.tyan.com...

  • Page 38: Removing The Riser Card Brackets

    2.1.2 Removing the Riser Card Brackets Follow these instructions to remove the PCI-E Riser Card Brackets. Loose three thumb screws to release the PCI-E Riser Card Brackets. Lift up the Riser Card Brackets. http://www.tyan.com...

  • Page 39: Installing The Cpu And Heatsink

    2.1.3 Installing the CPU and Heatsink Follow the steps below on installing CPUs and CPU heatsinks. Locate the CPU sockets. Always start with CPU0 first. Pull the first and second levers slightly away from the socket and then push them to a fully open position. http://www.tyan.com...
  • Page 40 Push the CPU socket cover to a fully open position. Take out the protection Place the CPU into the socket and make sure that the gold arrow is located in the right direction. http://www.tyan.com...
  • Page 41 Close the CPU socket cover and press the levers down to secure the CPU. Position the heatsink on top of the CPU and secure it with 4 screws. Repeat the procedures mentioned earlier to install the second CPU and heatsink. http://www.tyan.com...

  • Page 42: Installing The Memory

    2.1.4 Installing the Memory Follow these instructions to install the memory modules onto the motherboard. Locate the memory slots on the motherboard. Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. Align the memory module with the slot.
  • Page 43 Memory Population Option Table Recommended Memory Population Table(Single CPU) Single CPU Installed (CPU0 only) Quantity of memory installed CPU0_DIMM_A0 √ √ √ √ √ √ CPU0_DIMM_A1 √ √ CPU0_DIMM_B0 √ √ √ √ √ CPU0_DIMM_B1 √ √ √ √ √ CPU0_DIMM_C0 CPU0_DIMM_C1 √...
  • Page 44 Recommended Memory Population Table (Dual CPU) Dual CPU installed (CPU0 and CPU1) Quantity of memory installed CPU0_DIMM_A0 √ √ √ √ √ √ √ √ √ √ CPU0_DIMM_A1 √ √ √ CPU0_DIMM_B0 √ √ √ √ √ √ √ √ √...
  • Page 45 ® ® Intel Xeon processor E5-2600v3 product families Support NOTE 1: 1DPC => One dimm per channel NOTE 2: 2DPC => Two dimm per channel  Physical Ranks are used to calculate DIMM Capacity.  Supported DRAM Densities are 4Gb, 8Gb. http://www.tyan.com...

  • Page 46: Installing Hard Drives

    2.1.5 Installing Hard Drives The GN70-B7086 can support up to eight (8) 3.5” or 2.5” hard drives. Follow these instructions to install a hard drive. Warning!!! Always install the hard disk drive to the chassis after the chassis is secured on the rack. Press and hold the locking lever latch to pull the locking lever open.
  • Page 47 Option A: for 2.5” hard drives Place a 2.5” hard drive into the HDD tray and use 4 screws to secure the HDD. Option B: for 3.5” hard drives Unscrew the drive bracket from the HDD tray. http://www.tyan.com...
  • Page 48 Place a 3.5” hard drive into the drive tray and use 6 screws to secure the HDD. Reinsert the HDD tray into the chassis and press the locking lever to secure the tray. http://www.tyan.com...

  • Page 49: Installing The Pci-E Cards

    2.1.6 Installing the PCI-E Cards The GN70-B7086 supports PCI-E Riser Card Brackets. A power cable (2x3p/2x4p) is required for GPU cards. Follow these instructions to install PCI-E cards. Unscrew the PCI-E slot to take out the PCI bracket. Insert the PCI-E card and securely screw as shown. http://www.tyan.com...
  • Page 50 Repeat the same procedures for the second Riser Card Bracket. NOTE: Please add a 4-pin power cable to connect PDB J4/J5 to riser card M7056-L24 PWR1/M7056-R24 PWR1, if the PCI-E card needs more than 75W power and has no power connector to supply power. M7056-L24-3F M7056-R24-3F Signal...

  • Page 51: Rack Mounting

    CRAL-0190 Rail Kit Front view 2.2.1 Installing the Server in a Rack Follow these instructions to mount the TYAN GN70-B7086 into an industry standard 19” rack. NOTE: Before mounting the TYAN GN70-B7086 in a rack, ensure that all internal components have been installed and that the unit has been fully tested. However, to make the installation easier, we suggest that you remove all HDD trays before you insert the chassis to the rack.
  • Page 52 Repeat the same procedures for the front end of the rail. Front Push the locking latch to secure the rail to the rack. Repeat the same procedures for the other rail. Left Right http://www.tyan.com...
  • Page 53 Slide the inner rail to its full length. Note that to slide to its full length, push the locking tab of the rail upward and then the rail can slide freely. There are three holes on each rail which are used to hook and secure the chassis. Align the studs on the chassis with the holes on the rails and make sure the chassis is securely hooked.
  • Page 54 Push the chassis back into the rack. The installation is now complete. http://www.tyan.com...

  • Page 55: Removing The Server From A Rack

    2.2.2 Removing the Server from a Rack Follow these instructions to remove the TYAN GN70-B7086 from an industry standard 19” rack. Push the ears to pull the chassis forward. Push forward the locking tabs on both rails to unhook the chassis from the rails.

  • Page 56: Chapter 3: Replacing Pre-Installed Components

    Chapter 3: Replacing Pre-Installed Components Introduction This chapter explains how to replace the pre-installed components, including the S7086 Motherboard, M1709G70-FPB Front Panel Board, PCI-E Riser Card, M1276G70-BP12E-8/M1276G70-BP12-8 SATA/SAS HDD Board, System Fan and Power Supply Unit etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. http://www.tyan.com...

  • Page 57: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow Section 2.1.1 Removing the Chassis Cover (page 36) to remove the cover of the GN70-B7086. Replacing Motherboard Components Follow these instructions to replace motherboard components, including the motherboard.
  • Page 58 Repeat the same procedures for the second Riser Card Bracket. Unscrew the M7056-L24-3F riser card to replace a new one if necessary. http://www.tyan.com...

  • Page 59: Pci-E Riser Cards Specification

    3.4.2 PCI-E Riser Cards Specification M7056-L24-3F riser card M7056-L24-3F riser card http://www.tyan.com...

  • Page 60: Disconnecting All Motherboard Cables

    3.4.3 Disconnecting All Motherboard Cables Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all cables. Disconnect the Mini SAS, USB and 2x12pin power cables. Disconnect the PSMI and front panel cables. Disconnect the 2x4pin power cable.

  • Page 61: Removing The Motherboard

    3.4.4 Removing the Motherboard After removing all of the aforementioned cables, follow the instructions below to remove the motherboard from the chassis. Remove the heatsinks and processors if installed. Remove the nine screws securing the motherboard to the chassis. Carefully lift the motherboard from the chassis. http://www.tyan.com...

  • Page 62: Replacing The Power Distribution Board

    Replacing the Power Distribution Board Follow these instructions to replace the M1601T70-D-PDB power distribution board. Disconnect all cables. Unscrew to replace a new power distribution board. http://www.tyan.com...

  • Page 63: Replacing The Front Panel Board

    Replacing the Front Panel Board Follow these instructions to replace the M1709G70-FPB Front Panel Board. Unscrew to release the Front Panel Board Module. Push the Front Panel Board Module forward. Disconnect the Front Panel Control and USB cables. http://www.tyan.com...
  • Page 64 Unscrew the Front Panel Board to replace a new one. Follow the steps described earlier in reverse to reinstall the Front Panel Board. http://www.tyan.com...

  • Page 65: Front Panel Board Specifications

    3.6.1 Front Panel Board Specifications Here shows the M1709G70-FPB Front Panel Board in details.  Form Factor 18.5MMx44.2MM, 4-Layer PCB  One 2x15 pin header for front panel connector of Connectors motherboard and HDD backplane board  Power On/Off Button with LED: Green ...

  • Page 66: Connector Pin Definition

    3.6.2 Connector Pin Definition Front Panel Connector (J3) Definition Definition PW_LED+ ID_LED+ PW_LED- ID_LED- HD/LAN3_LED+ SYS_FAULT1- HD/LAN3_LED- SYS_FAULT2- PWR_SW+ LAN1_LED+ PWR_SW- LAN1_LED- RESET+ ICH_SMBDAT RESET- ICH_SMBCLK ID_SW+ INTRU# Temp_sensor LAN2_LED+ EXT_INT LAN2_LED- USB Connector (J1) Definition Definition USB1- USB2- USB1+ USB2+ http://www.tyan.com...

  • Page 67: Replacing The System Fan

    Replacing the System Fan Follow these instructions to replace the system fan. Press the latch in the direction as shown to lift up the fan from cage. Take out the fan unit. Loose the screws on both sides. http://www.tyan.com...
  • Page 68 Push the latch in the direction as the arrow shown to release the fan from the iron holder. Remove the iron holder to replace a new fan. After replacing a new one, put the fan unit back into the cage. http://www.tyan.com...

  • Page 69: Replacing The Fan Backplane Board

    Replacing the Fan Backplane Board Follow these instructions to replace the M1806G70-FB Fan Backplane Board in your system. Press the latch in the direction as shown to lift up the fan from cage. Remove all four fans from the chassis. Disconnect all cables attached to the Fan Backplane Board.
  • Page 70 Use a screw driver to unscrew the Fan Module. Disconnect the power and fan cables. Lift up the Fan Module. http://www.tyan.com...
  • Page 71 Release the 14 screws on the Fan Backplane Board to replace a new one. Follow the steps described in reverse order to reinstall the fan cage. http://www.tyan.com...

  • Page 72: Fan Bp Board Specifications

    3.8.1 Fan BP Board Specifications Here shows the M1806G70-FB Fan Backplane Board in details.  Form Factor 254 mm x 82 mm, 4-layer PCB  (2) 1x4pin R/A Power Connector  (8) 2x2pin Fan Connectors Integrated I/O  (1) 2x10pin Barebone Fan Connector ...

  • Page 73: Connector Pin Definitions

    3.8.3 Connector Pin Definitions Power Connector (PW1/PW2) Definition Definition +12V Barebone Fan Connector (J8) Definition Definition FANIN1 FANIN6 FANIN2 FANIN7 FANIN3 FANIN8 FANIN4 SIO_FANIN1 FANIN5 SIO_ FANIN2 MB_PWM2 MB_PWM1 SIO_ FANIN3 SMBUS_3V3_DATA SIO_ FANIN4 SMBUS_3V3_CLK VDD_3.3_AUX MB_PWM3 http://www.tyan.com...

  • Page 74: Replacing The Hdd Backplane Board

    Replacing the HDD Backplane Board Follow these instructions to replace the M1276GN70_BP12E_8 HDD Backplane Board. Refer to Section 3.8 Replacing the Fan Backplane Board for how to remove the Fan Module. Disconnect the power cables attached to the HDD BP Board. Unscrew the HDD BP Board.

  • Page 75: Hdd Bp Board Specifications

    3.9.1 HDD BP Board Specifications Here shows the M1276GN70_BP12E_8 Fan Backplane Board in details. Front View Rear View  Form Factor 332*82.5mm, 8 layer PCB  One (1) 2x5 pin SGPIO connector Support (4) 68 pin SAS+PCIe connectors, (4) NVMe devices ...
  • Page 76 PW4 Pin definition Definition Definition +12V +12V +12V +12V SGPIO Pin definition Definition Definition SMBUS_3V3_CLK SAS_GPIO2 SAS_GPIO0 SMBUS_3V3_DATA SAS_GPIO3 SAS_GPIO1 VCC3 HD_ERR_LED http://www.tyan.com...
  • Page 77 3.10 Replacing the Power Supply The system has two pre-installed 1,600W (80+ Platinum Power Supply Units. Follow these instructions to replace the power supply units. Press and hold the latch to pull the power supply out. After replacing a new power supply, press and hold the latch to push the power supply back into the chassis.

  • Page 78: Appendix I: Cable Connection Tables

    Appendix I: Cable Connection Tables Mini-SAS Cable For B7086G70V6E2HR SKU SAS/SATA Backplane Connects to Motherboard M1276G70-BP12E-8 SATA0_3  SATA0_3 SATA4_7  SSATA0_3 NVME0  SAS_HD1 NVME1  SAS_HD2 For B7086G70V8HR SKU SAS/SATA Backplane Connects to Motherboard M1276G70-BP12-8 SATA0_3  SATA0_3 ...
  • Page 79 Power Cable Power Board FAN Board Connects to M1601T70-D-PDB M1806G70-FB PW4 (FAN BD1)  PW5 (FAN BD2)  Power Cable Power Board SAS/SATA Backplane Connects to M1601T70-D-PDB M1276G70-BP12E-8  PATX6 (HDD BP1) http://www.tyan.com...

  • Page 80: Appendix Ii: Fru Parts Table

    Appendix II: FRU Parts Table Item Model Number Part Number Picture Description TF-POWER SUPPLY;SBU,770 Power FRU-PS-0100 471100000247 W,DELTA,DPS-770GB C,(S0F),1U Supply MODULE,REV.S0F CFAN-0330 336252012309 12000RPM,60*60*38mm,4pin TF-HEATSINK;SBU,CU+VC,SOLDE RLING,2011-1U-SPECIAL-PASSIVE- Heatsink FRU-TH-0140 343T51200003 HEATSINK, 0P305224, 108.0X82.0X25.0 MM, SCREW,GF83-B7094 M7056-R24-3F 411T43900115 PCI-E x16 2U Riser Card PCBA M7056-L24-3F 411T43900114...
  • Page 81 NOTE http://www.tyan.com...

  • Page 82: Appendix Iii: Fan And Temp Sensors

    Appendix III: Fan and Temp Sensors This section aims to help readers identify the locations of some specific FAN and Temp Sensors on the motherboard. A table of BIOS Temp sensor name explanation is also included for readers’ reference. NOTE: The red dot indicates the sensor.
  • Page 83 BIOS Temp Sensor Name Explanation: http://www.tyan.com...
  • Page 84 http://www.tyan.com...
  • Page 85 BIOS Temp Sensor Name Explanation CPU0_DTS_Temp Temperature of the CPU0 Digital Temperature Sensor CPU1_DTS_Temp Temperature of the CPU1 Digital Temperature Sensor CPU0_PECI_Value Temperature of the CPU0 Platform Environment Control Interface CPU1_PECI_Value Temperature of the CPU1 Platform Environment Control Interface SYS_Air_Inlet Temperature of the PCH Area SYS_Air_Outlet Temperature of the M/B Air Inlet Area...
  • Page 86 SYS_FAN_12 Fan speed of SYS_FAN_12 http://www.tyan.com...

  • Page 87: Appendix Iv: Technical Support
