Pentair CHLORPLUS PROTECT 10 Installation And Operating Instructions

PERFORMANCE DATA SHEET
This system has been tested according to NSF/ANSI Standard 53 for the reduction of the
substances listed below. The concentration of the indicated substances in water entering
the system was reduced to a concentration less than or equal to the permissible limit for
water exiting the system, as specified in NSF/ANSI Standard 53. Testing was performed
under standard laboratory conditions; actual performance may vary.
Influent Challenge Max. Permissible Product
Substance Concentration Water Concentration
Standard 53
Perfluorooctanoic Acid (PFOA) and
0.0015 mg/L ± 10% 0.00007 mg/L
Perfluorooctane Sulfonate (PFOS)
Flow Rate = 1 gpm (3.79 L/min); Capacity = 1,000 gallons (3,785.41 L) or 12 months
TROUBLESHOOTING
Leaks:
Between Cap and Bottom of Filter Housing:
1. Turn off water supply and press the red pressure-relief button. Remove bottom of the
housing.
2. Clean O-ring and O-ring groove (located directly beneath threads of housing). Lubricate
the O-ring with silicone lubricant and replace securely into groove. Screw bottom of
filter housing onto cap and hand-tighten. Do Not Overtighten.
On Inlet/Outlet Connections:
1. Turn off water supply. For brass fittings, tighten nut snugly about 1/2-turn with a wrench.
2. Turn on water supply. If leaks persist, or if there are other leaks on the system, turn off
water supply. Call Pentair Technical Support at 1.800.279.9404.

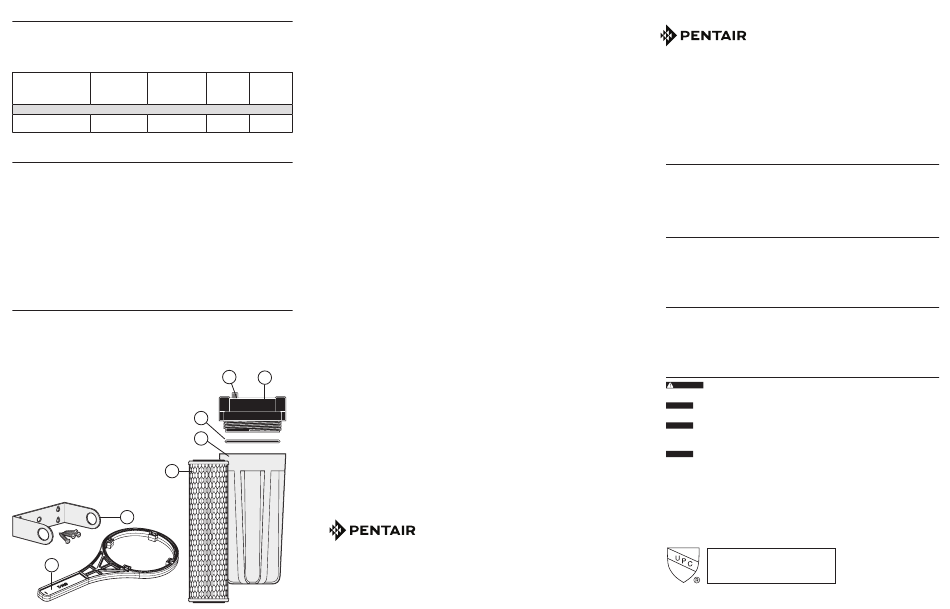

REPLACEMENT PARTS
1. 151039 Pressure-relief button kit
2. 154101 Black cap (W/PR 3/4")
3. 151120 O-ring, cap
4. 153019 Blue housing
5. 655226-43 ChlorPlus Protect 10 cartridge
6. 151011 UB-1KIT mounting bracket kit
7. 150295-06 SW-2 housing wrench
For replacement parts, contact your nearest
Pentair dealer or call 1.800.279.9404.
5
6
7
5
Reduction Average
Requirements Reduction
n/a 98.20%
For Pentair product warranties visit: pentair.com/assets/residential-filtration-warranty
1 2
3
4
13845 Bishops Dr. | Suite 200 | Brookfield, WI 53005 | United States
P: 262.238.4400 | Customer Service: 800.279.9404
tech-support@pentair.com | pentair.com
All indicated Pentair trademarks and logos are property of Pentair. Third party registered
and unregistered trademarks and logos are the property of their respective owners.
©2022 Pentair. All Rights Reserved.
CHLORPLUS™ PROTECT 10
WATER FILTRATION SYSTEM
INSTALLATION AND OPERATING INSTRUCTIONS
OPERATING SPECIFICATIONS
Pressure Range: 30–125 psi (2.1–8.6 bar)
Flow Rate: 1 gpm (3.78 Lpm)
Capacity: 1,000 gallons (3,785 L)
Temperature Range: 40–100°F (4.4–37.7°C)
PARTS INCLUDED
• 10" filter housing
• ChlorPlus Protect 10 cartridge
• Filter housing cap
• O-ring
TOOLS AND MATERIALS REQUIRED (not included)
• Appropriate fittings and pipe to install filter
• Plumber' s tape
• File
• Pencil
PRECAUTIONS
Do not use with water that is microbiologically unsafe or of unknown quality
WARNING:
without adequate disinfection before or after the system.
Filter must be protected against freezing, which can cause cracking of the
CAUTION:
filter and water leakage.
The rubber O-ring provides the watertight seal between the cap and the
CAUTION:
bottom of the housing. It is important that the O-ring be properly seated in the
groove below the threads of the housing or a water leak could occur.
Because of the product's limited service life and to prevent costly repairs or
CAUTION:
possible water damage, we strongly recommend that the bottom of all plastic
housings be replaced every 10 years for opaque. If the bottom of your housing
has been in use for longer than this period, it should be replaced immediately.
Date the bottom of any new or replacement housing to indicate the next
recommended replacement date.
The ChlorPlus Protect 10 system is certified
by IAPMO R&T against NSF/ANSI 53 for the
reduction of perfluorooctanoic acid (PFOA)
and perfluorooctane sulfonate (PFOS).
150743 Rev A NO22
• Mounting bracket kit
• Screw kit
• Housing wrench
• Phillips head screwdriver
• Adjustable wrenches (2)
• Pipe cutters or hacksaw
PENTAIR.COM
