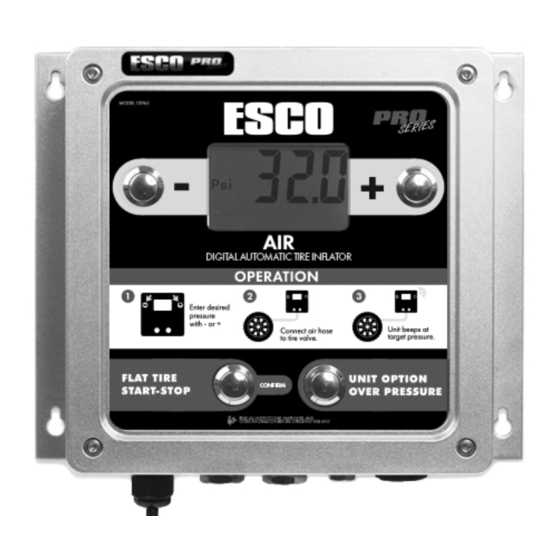

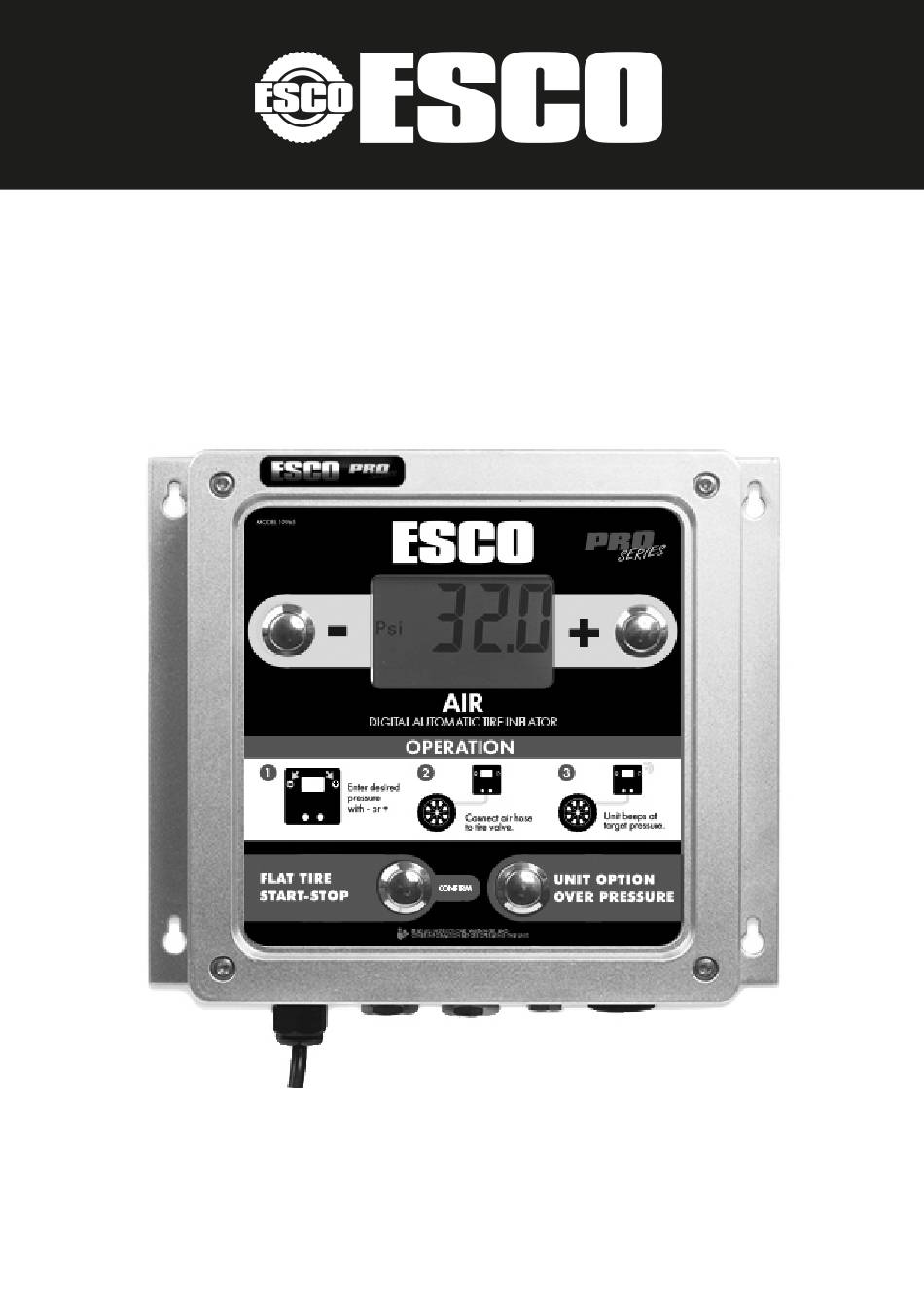

- Page 1 AUTOMATIC DIGITAL WALL MOUNTED INFLATOR Operating Instructions MODEL 10965...
- Page 2 1. Thank you for selecting this ESCO TABLE OF CONTENTS Automatic Digital Wall Mounted Inflator. Features ............2 Please read this manual before carrying Components List ......... 2 out any installation or service procedure. Installation ............ 3 2. This manual is an integral and essential Warning .
- Page 3 INSTALLATION WARNING 1. Unpack the unit. To avoid the risk of personal injury, especially to the eyes, face or skin, DO NOT direct the 2. Hold the unit up on the wall and mark air stream at any person, or any part of the where the four (4) holes are to be drilled.
- Page 4 PRODUCT IDENTIFICATION CONTROL PANEL 1. Mounting Point (x 4) 2. - Target pressure control 3. + Target pressure control 4. Display 5. FLAT TIRE / CONFIRM Flat tire mode air Start/Stop control; Function Select Confirm 6. Unit Option Unit of measure select; Over Pressure Setting set control Fig.
- Page 5 OPERATION Inflation and Deflation: 1. Press + or - to select target pressure. The device includes the OPS (Over Pressure Setting) function which allows for the tire’s 2. Connect with tire, ensure no air leaks, pressure to be set very high and then reduced inflator will start automatically.
- Page 6 TROUBLEShOOTING PRObLEm POSSIbLE CAUSE SOLUTION Check the pneumatic connection and Air leak Leak in the connection make sure of seals The inflator works, Obstruction in the filters or in air system Clean the filters and check the air tube but no air inflated Inflation does not Check the hose connection, make sure Air hose improperly connected...
- Page 7 CALIBRATION CERTIFICATE This Digital Wall Mounted Inflator has been calibrated in its normal working position on test equipment with an accuracy that is traceable to International Standards according to: 86/217/EEC AllowAblE TolErAncE ±0.08 up to and including 4 bar ±0.16 between 4 bar and 10 bar inclusive ±0.25 greater than 10 bar...
- Page 8 15-120° F | -10 - 50° C up to 95% RH Relative humidity non-condensing WIRING dIAGRAM Distributed by ESCO - Equipment Supply Co. 15270 Flight Path Drive, Brooksville FL, 34604 info@esco.net www.esco.net Customer Service on For more information contact 1-800-352-9852...
