Page 1: Instruction Manual

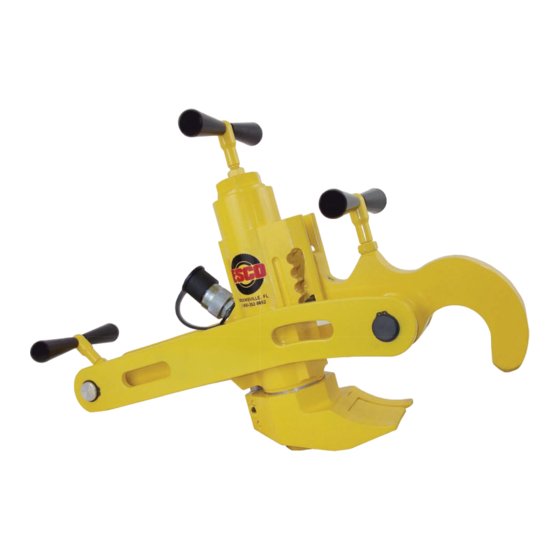

EURO BEAD BREAKER MODEL #10107 Instruction Manual Parts Breakdown... -
Page 2: Operation
The Model #10107 includes a clamping jaw pivot pin which can be placed in one of four jaw pivot positions for use on di erent width anges. The top hole (closest to the handle) is used for smaller rim anges, and the bottom hole (furthest from the handle) is used for larger rim anges. - Page 3 ESCO EURO BEAD BREAKER Model #10107 CAUTION Make certain that the teeth slip in between the rim ange and the bead. If not, depress the RELEASE end of the pump pedal and realign the tool. If the tool is not positioned correctly, extending the breaker rod may damage the tire bead or sidewall, the rim ange, or the tool.
- Page 4 ESCO EURO BEAD BREAKER Model #10107 Purging Air These instructions are designed for use with the ESCO Air/Hydraulic Pump. If using a di erent pump, use this information as a guide only. Purge air from the pump and bead breaker as follows: Remove the snap rings on the rod connectors (items 35 and 38 on the parts drawing).
-
Page 5: Hydraulic Flow
ESCO EURO BEAD BREAKER Model #10107 Hydraulic Flow Use the hydraulic ow information to help troubleshoot problems with the ESCO Euro Bead Breaker The bead breaker works via an air/hydraulic pump which supplies hydraulic uid pressure to the clamping cylinder. Fluid pressure is restricted to... - Page 6 ESCO EURO BEAD BREAKER Model #10107 Hydraulic Flow The breaker rod has moved out of the cylinder and the tongue is pressing against the bead. As pressure increases, the tongue will break the bead of the tire from the rim.
-
Page 7: Troubleshooting
ESCO EURO BEAD BREAKER Model #10107 Troubleshooting SYMPTOM PROBABLE CAUSE RESOLUTION Rods extend too slowly. Insu cient hydraulic pressure Check air supply. from pump. Check clearance of inlet check ball. Ball must be ush with or below end of lter adapter. - Page 8 EURO BEAD BREAKER Model #10107...
-
Page 9: Parts List
EURO BEAD BREAKER Model #10107 Parts List Part # Description Part # Description Washer Body Screw Cylinder Rod Screw Cylinder Head Valve Plug Teeth, Clamping Washer Foot Spring Clamping, Jaw Sequencing Ball Clamping Cylinder Rod Clamping Cylinder Housing Screw Washer...
