Summary of Contents for Esco 20408

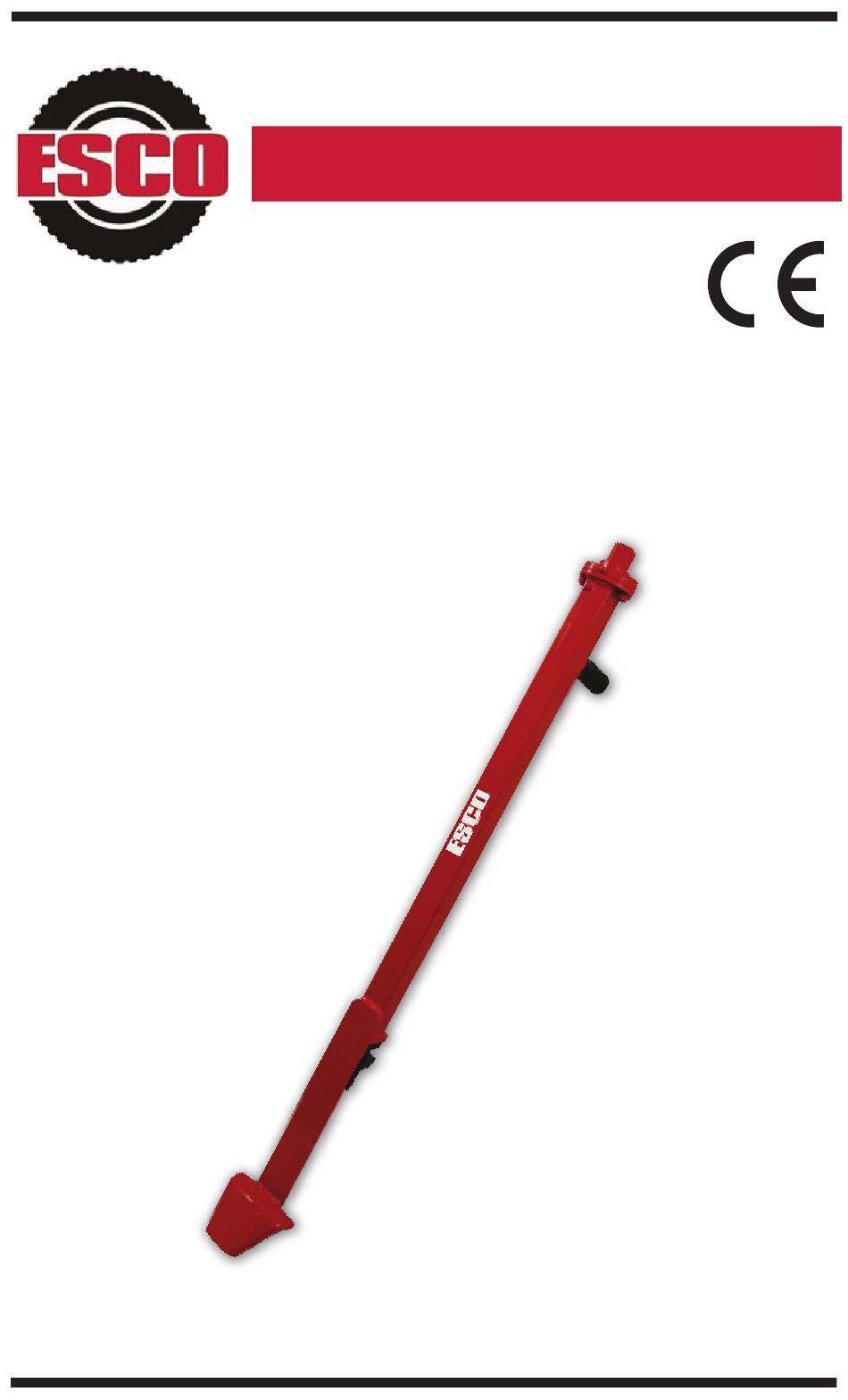

- Page 1 REV.05.17.A Equipment Supply Company Instruction Manual Pneu-Tek Impact Driven Tire Demounter ESCO #20408 Copyright © 2017 Equipment Supply Co., All rights reserved...
-
Page 2: Product Description

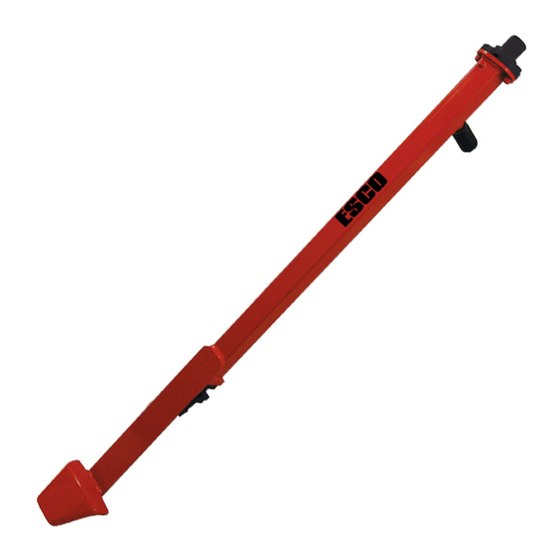

OTHER TIRE SERVICE TOOLS WITH THE UPMOST SAFETY PRECAUTIONS. Product Description The ESCO Model #20408 Pneu-Tek Impact Driven Tire Demounter is a professionally safe, simple, fast and economical way of demounting a tire. The Pneu-Tek Impact Driven Tire Demounter works great for Agricultural, One Piece Grader, Loader, Forestry, and Back Hoe Tires. -
Page 3: Available Kits
Pneu-Tek Impact Driven Tire Demounter Model #20408 AVAILABLE KITS #20414 #20415 #20415A RELATED PRODUCTS #70100 #20396 #20416 #90518-100-1 #90518-100-KIT #90518-200-1 #90518-200-KIT #90518-200M #20401 #20402 #20403 #20404 1.800.352.9852 • info@esco.net • www.esco.net... - Page 4 Pneu-Tek Impact Driven Tire Demounter Model #20408 INSTRUCTIONS Step 1: Lubricate & Initial Tool Placement Generously lubricate both sides of the tire before demounting. NOTE: We recommend using liquid lubricant to penetrate between rim and tire bead for demounting. Insert the tool between the rim and tire bead by...
- Page 5 Pneu-Tek Impact Driven Tire Demounter Model #20408 Step 2: First Bead Demount Bring tool to an upright position to engage the puller foot between rim and inside tire bead. Begin tool engagement by turning the impact wrench in a counter clockwise manner. As the...
- Page 6 Pneu-Tek Impact Driven Tire Demounter Model #20408 Continue to retract the pulling foot with the impact wrench while bringing the tool towards the wheel center in a pivoting motion until the 1st bead is removed. NOTE: Do not force or excessively pry with the tool.
- Page 7 Pneu-Tek Impact Driven Tire Demounter Model #20408 Step 3: Second Bead Demount Place tool at an approximately 45 degree angle and insert between 2nd tire bead and rim. Once inserted between the bead and rim, bring tool to an upright position and ensure that you have a secure hold on the 2nd bead with the pulling foot.
- Page 8 Pneu-Tek Impact Driven Tire Demounter Model #20408 Step 3: Second Bead Demount (Cont’d) Begin to extend the push foot with an impact wrench in a counter clockwise motion. As the pushing foot begins to meet the rim, ensure that the...
- Page 9 Pneu-Tek Impact Driven Tire Demounter Model #20408 Return tool to original retracted position. The Pneu-Tek Impact Driven Tire Demounter Model #20408 is also available in the following kits: Model #20414 for Small Tires Model #20415 for Large Tires Model #20415A for Large Tires...
- Page 10 Pneu-Tek Impact Driven Tire Demounter Model #20408 OTHER PRODUCTS AVAILABLE THROUGH ESCO Tire Spreaders • Tire Inflation Cages • Torque Tools • Tire Inflators Manual & Pneumatic Bead Breakers • Manual Tire Demounting Tools Bead Holders • Air inflation Hoses • Pneumatic Torque • Balancing Beads Air Hydraulic Bottle Jacks •...
- Page 11 Not only do we service our own products, but we also service our competitors’ products. In addition to ESCO’s 30 years of providing quality repair service, ESCO has reached out and partnered with more than 50+ hydraulic repair facilities across the US & Canada, to deliver quality repair and timely return of products.
- Page 12 Pneu-Tek Impact Driven Tire Demounter Model #20408 NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ 1.800.352.9852 • info@esco.net • www.esco.net...
- Page 13 ESCO website WWW.ESCO.NET CONTACT INFO: www.esco.net - info@esco.net 15270 Flight Path Drive Brooksville, FL 34604 PH. 352.754.1117 Toll Free. 1.800.352.9852 (US, Canada Only) Fax: 352.754.4508 ESCO - The Proper Tools to Keep Your Equipment Moving! Stay Connected with ESCO...
