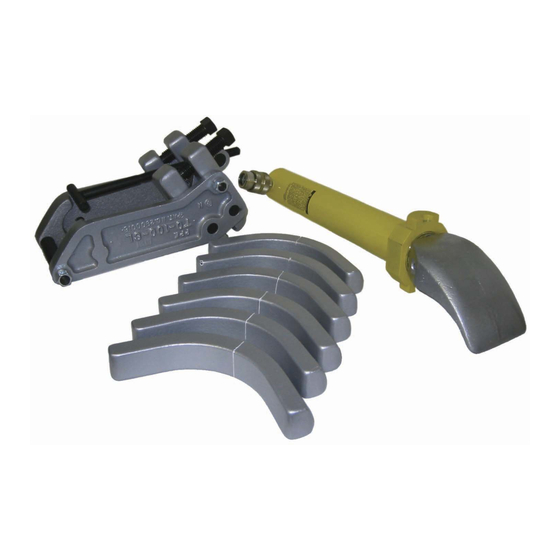

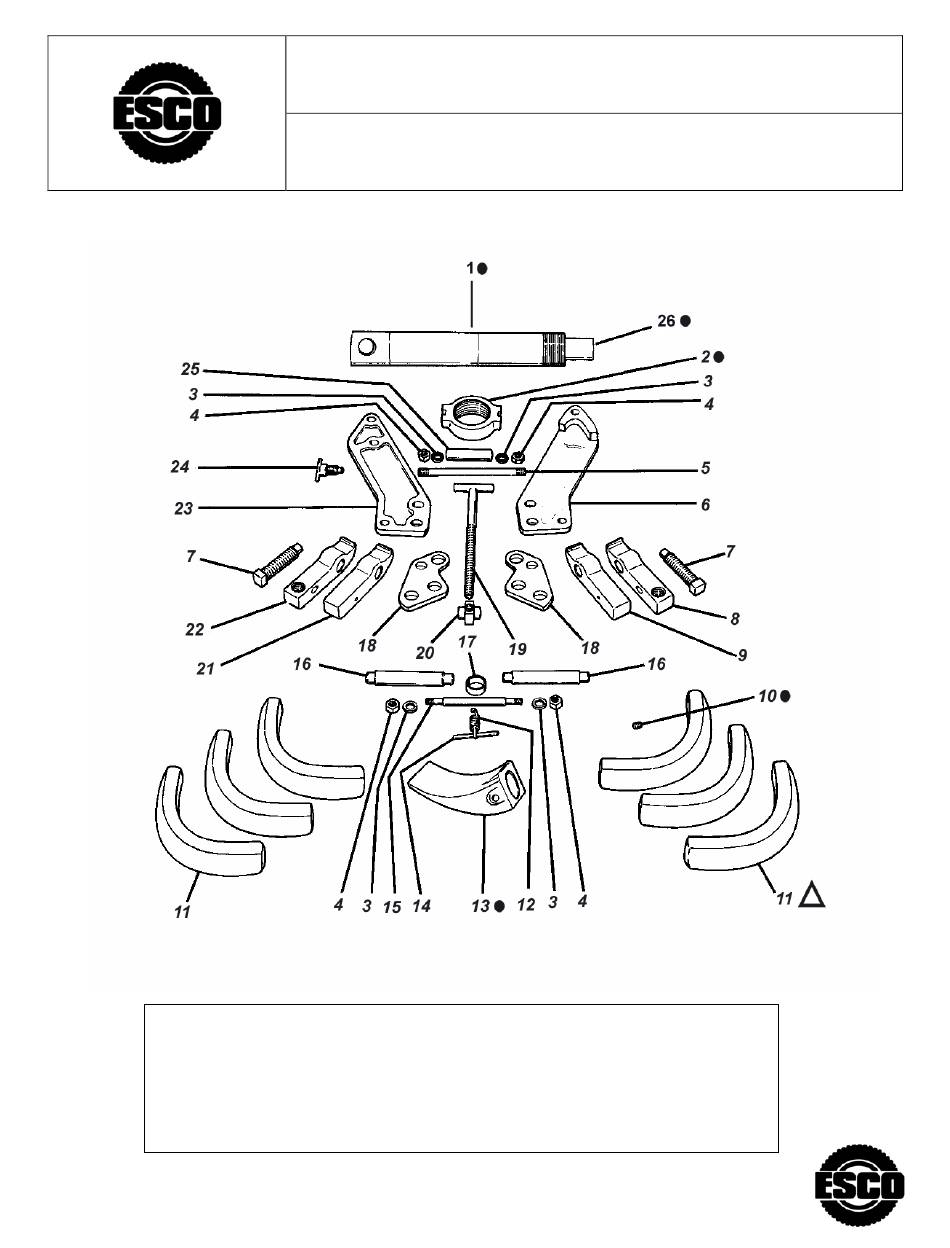

- Page 1 REV0620 Parts List and Operating Instructions for Bead Breaker Model 10104 ∆ Not included with 10215 or 10216 assembly. • Indicates parts in 10216 ram assembly. Balance of parts not indicated with (∆ or •) are included in 10215 frame...
- Page 2 REV0620 Parts List and Operating Instructions for Bead Breaker Model 10104 ITEM PART REQ’D DESCRIPTION TO-100-RA Cylinder (Includes trunion [item 3]) 1• 2• TO-100-18 Trunion TO-100-17 Lock Washer TO-100-16 Hex Nut TO-100-8 Tie Bolt TO-100-6R Side Plate (right) TO-100-15 Sq. Hd. Set Screw...
- Page 3 REV0709 Parts List and Operating Instructions MOUNTING and INFLATION Block the wheels opposite the jack before placing the jack in position. Inspect all rim components for damage. All badly worn, cracked, severely rusted components must be replaced. Clean and repaint as required. Be careful to keep paint out of the lock ring groove in the gutter. Do not use a steel hammer on the rim or rim components.
- Page 4 REV0709 Parts List and Operating Instructions 3. With spade tip down and cylinder in retracted position, insert spade and cylinder assembly between open sides of frame. Place spade tip between tire bead and rim flange. See Figure 3. Figure 3 4.
- Page 5 REV0709 REPAIR PARTS FOR TO-100-HA PART NUMBER DESCRIPTION TO-100-1R Bottom Clamp Right TO-100-1L Bottom Clamp Left TO-100-2R Top Clamp Right TO-100-2L Top Clamp Left TO-100-3 Center Link TO-100-4 Swivel Nut TO-100-5 Spacer TO-100-6L Side Plate Left TO-100-6R Side Plate Right TO-100-7 Hinge Pin (see 202825) TO-100-8...
