hp27-o VESA adapter
Assembly
instructions
The VESA adapter is compatible with the following products from
hp
(hp.com):
OMEN 27, OMEN X27
The VESA adapter allows you to conveniently mount your HP brand monitor to a
monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and
nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws
and dowels (not included).
www.3idee.eu

Advertisement

Table of Contents
loading

Related Manuals for 3idee hp27-o

Summary of Contents for 3idee hp27-o

  • Page 1 VESA adapter Assembly instructions The VESA adapter is compatible with the following products from (hp.com): OMEN 27, OMEN X27 The VESA adapter allows you to conveniently mount your HP brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.

  • Page 2: Important Safeguards

    Assembly instructions Important Safeguards Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should also always be given. Failure to follow these instructions may result in injury or damage to people and the product, for which we cannot accept any liability.

  • Page 3: Waste Disposal

    For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area. 4. Manufacturer Information 3idee Technologies S.à r.l. 5 Um Lenster Bierg L-6125 Junglinster Luxembourg 5.

  • Page 4: Scope Of Delivery Accessories

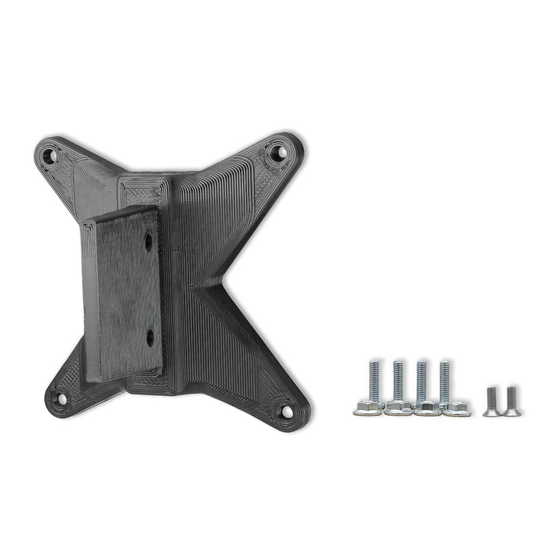

    Assembly instructions Scope of Delivery Accessories 4x M4x14 Phillips head screw 4x M4 Locknut (SP9) 2x M3x6 Phillips head (SP9) countersunk screw (SP9)

  • Page 5: Horizontal Mounting

    Assembly instructions Horizontal / Vertical Alignment Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly. We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

  • Page 6: Assembly Instruction

    Assembly instructions Assembly Instruction Step 1 Place your screen in a safe, soft place so that your screen does not get damaged. Remove the base of your monitor if it is already attached. Simply use the click mechanism on the monitor mount and pull the foot upwards.
  • Page 7 Assembly instructions Step 4 Now take the 3idee VESA adapter and put the mount that you just removed from your Omen monitor onto the VESA adapter. (Figure 3) Figure 3 Step 5 Now take the included 2 small screws and attach the mount to the 3idee VESA adapter.
  • Page 8 Assembly instructions Step 7 Once you have completed the last step, please check if all screws are tightened. (Figure 6) Figure 6 Step 8 Plug the monitor onto the adapter so that it audibly clicks into place. (Figure 7) Note: Apply some pressure if necessary ! Figure 7...
  • Page 9 Assembly instructions Step 9 Please check again if the VESA adapter is properly snapped into your monitor and all screws are properly tightened (Figure 8). Figure 8...
